Quick Start

This Quick Start contains the basic steps necessary to set up and operate your i. AM. Radio Transmitter
using the Indoor Wire Antenna. Please read the detailed procedures in this manual for complete
instructions, especially if your set-up includes the Outdoor Antenna.
2 3

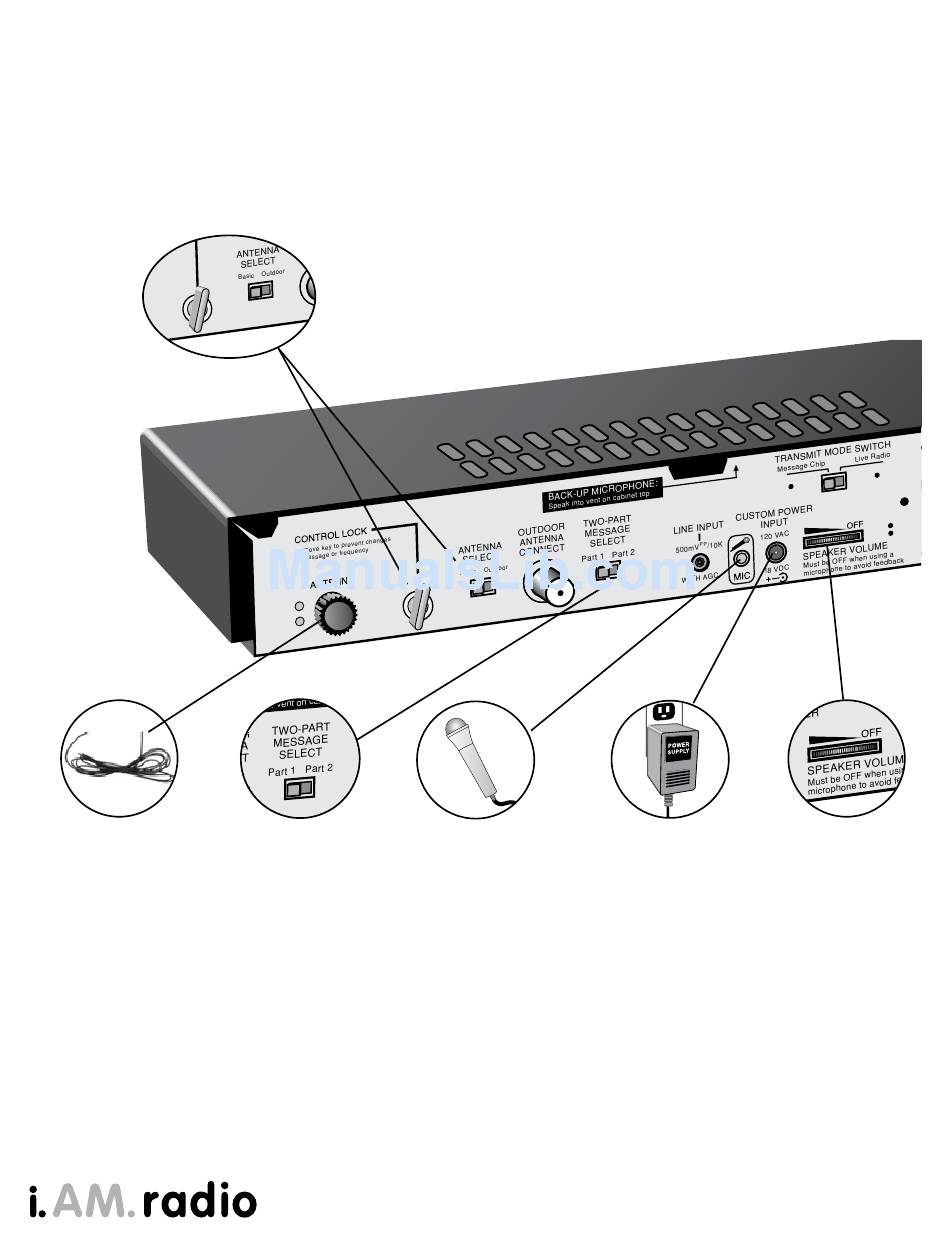

Connect the indoor
antenna and be sure
to uncoil and fully
extend the wire.
1
Make sure the Control Lock Key is inserted in the Control Lock hole
located on the rear of the Transmitter. This key must be completely
inserted to record messages and set the frequency on the transmitter.
Also, make sure that "ANTENNA SELECT" switch is in the
"Basic" position.
4
Set the TWO-PART Plug the hand-held
MESSAGE SELECT microphone into the
switch to Part-one. MIC jack located on
You are now the back of the Trans-
ready to record mitter. If you are not
a message to be using a hand-held mic
broadcast via the the transmitter input
internal or external will default to the
mic or any external internal microphone
input source con- located just under the
nected to the LINE perforated lid.
INPUT jack.
Or, plug any line-level
source (Mp3 player,
Cassette deck) into the
LINE INPUT jack on the
rear panel.
5
Next, plug the power
transformer into a
grounded wall outlet,
and then plug the power
cord into the CUSTOM
POWER input jack
located on the back
of the Transmitter.
The Transmitter will
then begin calibrating
itself. When it is finished
calibrating, a frequency
will appear on the front
panel display.
6
The SPEAKER
VOLUME should be
turned off when
using the mic to
avoid feedback.
