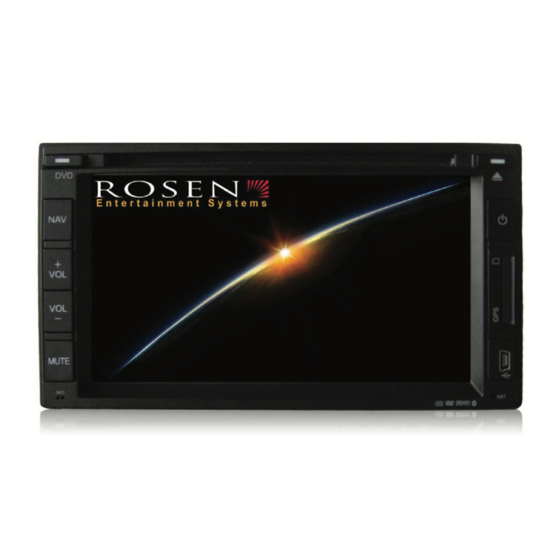

Multimedia Navigation System
Navigation
Bluetooth Hands-Free
Satellite Radio ready
iPod
and MP3 compatible
TM
Play DVDs, Audio CDs, MP3 Discs
Supports steering wheel controls
Back-Up Camera and/or sensor ready
In-Dash Multi-Media /
Navigation System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multimedia Navigation System and is the answer not in the manual?

Questions and answers

Related Manuals for Rosen Multimedia Navigation System

Summary of Contents for Rosen Multimedia Navigation System

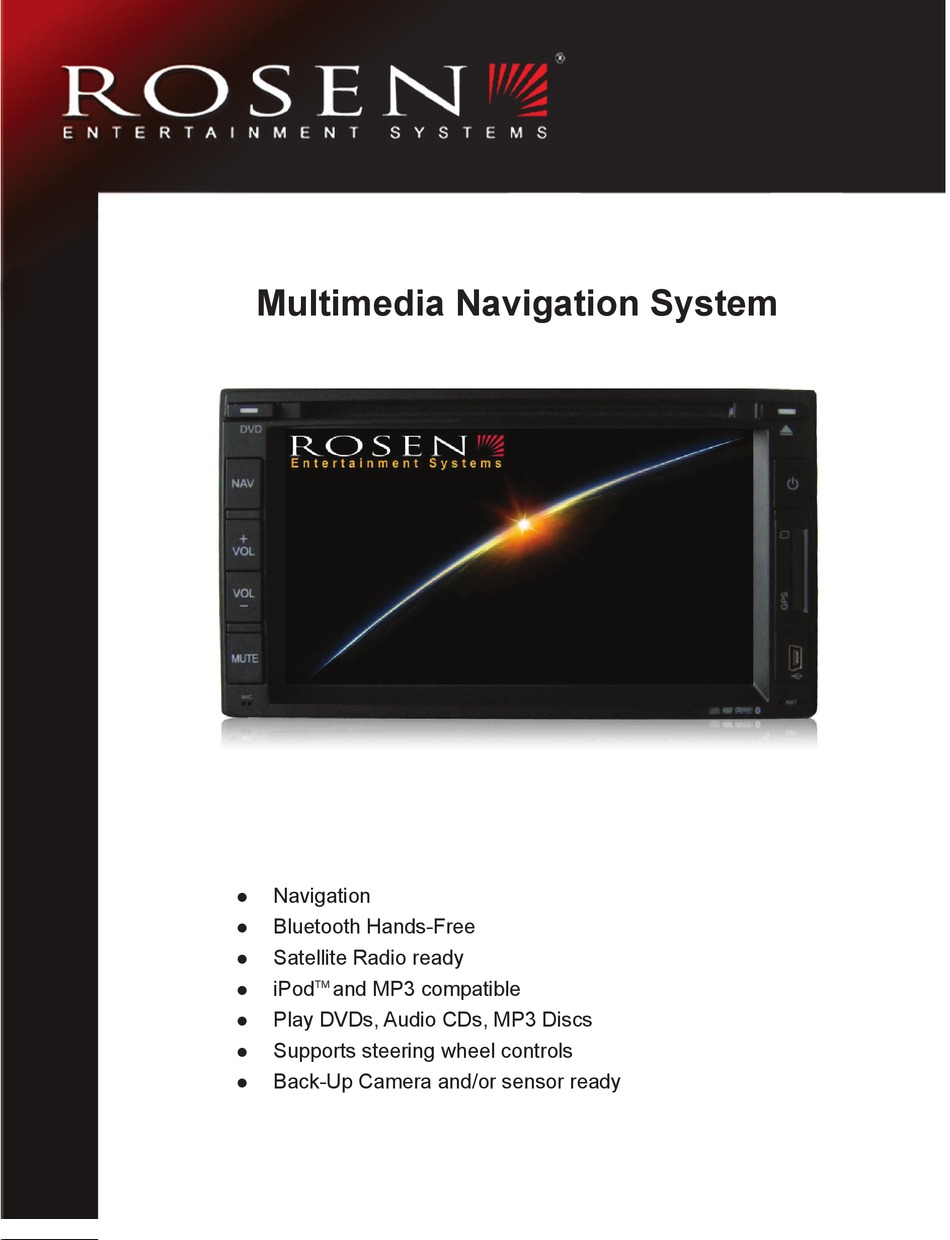

  • Page 1 In-Dash Multi-Media / Navigation System Multimedia Navigation System Navigation  Bluetooth Hands-Free  Satellite Radio ready  iPod and MP3 compatible  Play DVDs, Audio CDs, MP3 Discs  Supports steering wheel controls  Back-Up Camera and/or sensor ready ...
  • Page 3 NOTICE OF INTENDED USE Some features of Rosen Entertainment Systems are not intended for viewing by the driver when the vehicle is in motion, such as movie playback. When using navigation, minimize the amount of time spent viewing the screen and use voice prompts as much as possible.

  • Page 4: Basic Functions

    Basic Functions Turning The System On/Off Vehicle ignition must be On or in ACC Mode to operate system. Press the Power button on the right side of the panel to turn the system ON/OFF. When the vehicle is turned off, the unit will automatically turn off.
  • Page 5 Radio Touch Button Descriptions Short touch tunes up/down one channel at a time Long touch seeks the previous/next available station Touch to scan and play available stations for several seconds. During scan, the display will change color Touch to select AM and FM1,2 & 3 preset screens Satellite Radio (If Equipped) Short touch tunes up/down one...

  • Page 6: Ipod Audio

    iPod Audio When the optional iPod interface is connected to a compatible iPod player, the audio files stored on the iPod can be played through the system. Note: Sleep mode should be enabled on the iPod to reduce battery drain if the iPod is left connected with the vehicle off.
  • Page 7 CD/DVD CD/DVD Play/Pause track Stop track Play previous song/chapter Play next song/chapter Repeat current song played CD Only Change audio EQ setting Change spectrum display Play songs on disc in random order Scan songs for several seconds Copy song to Favorites folder DVD Only Long Touch in DVD mode to show the DVD control screen.

  • Page 8: Bluetooth Hands-Free

    “Pairing” will be displayed on the screen. After the connection succeeds on your phone, select “Rosen” and enter the password (1234). The sys- tem will indicate “Linking” and then “Connected.” When your phone is connected its name will be displayed on the unit.
  • Page 9 Making/Ending A Call You can dial the number from your phone or use the touch-screen shown at the right by entering the number, then press the Call button Clear last number Press to redial the last number dialed with the touch screen Press to transfer call between cell phone and car speakers Press to end the call...
  • Page 10 Settings Settings Menu Screen Press to enter the Settings Menu. To change system settings, select desired option System Settings The time displayed on all screens Settings Screen Turn the backup camera on/off Allows the Nav screen to display for a short time when directions are given Button beep on/off Spectrum on/off...

  • Page 11: Steering Wheel Controls

    Steering Wheel Controls Steering Wheel Control Setup Your system is equipped with a capability to interface with most factory Steering Wheel Controls. To program your vehicles Steering Wheel Controls, follow the steps below. Note: Some vehicles use a data bus system, which is not compatible.
  • Page 12 Quick Start Guide. _______________________________________________________ Start Up/Main Menu When the Rosen Navigation software starts, you will see the reminder warning to use your Rosen Navigation software safely and lawfully. You must these conditions to continue.
  • Page 13 Map View Screens Button Function Indicates distance to and direction of next turn (Top of screen) Next turn street or Compass, Current direction GPS strength and quick menu option Indicates posted speed if enabled To adjust viewing position, short touch anywhere on the screen and the following will appear: Button Select this Option to...

  • Page 14: Navigation Menu

    Navigation Menu Menu Select this Option to... Option Find Pick a destination for routing Manage Organize or select saved routes or POI Route Edit or cancel a route in progress Settings Set preferences for navigation and more Settings (Screen 1) Menu Select this Option to...
  • Page 15 Find Menu Option Select this Option to... Find Address Enter destination address Search for a POI using address, Find POI cursor or GPS position History View previous route history Find Enter specific coordinate Coordinate List of favorite destinations, POI, Favorites etc.
  • Page 16 Find Address In this screen you will enter your destination address. STEP 2: Start typing each letter of the city You will complete this section, touching one name. line at a time. See examples in these 4 steps. STEP 1: Touch “City Name” and the keyboard screen will appear.
  • Page 17 In the following example, we will select “Around Cursor” and show you how to search a POI using a keyword.

  • Page 20: Safety Information And Precautions

    /or knowledge of safe driving practices. Prior to completing any ma- neuvers suggested by your Rosen Navigation software (for example, a U-turn or a left turn), verify that you can legally and safely complete the maneuver.
