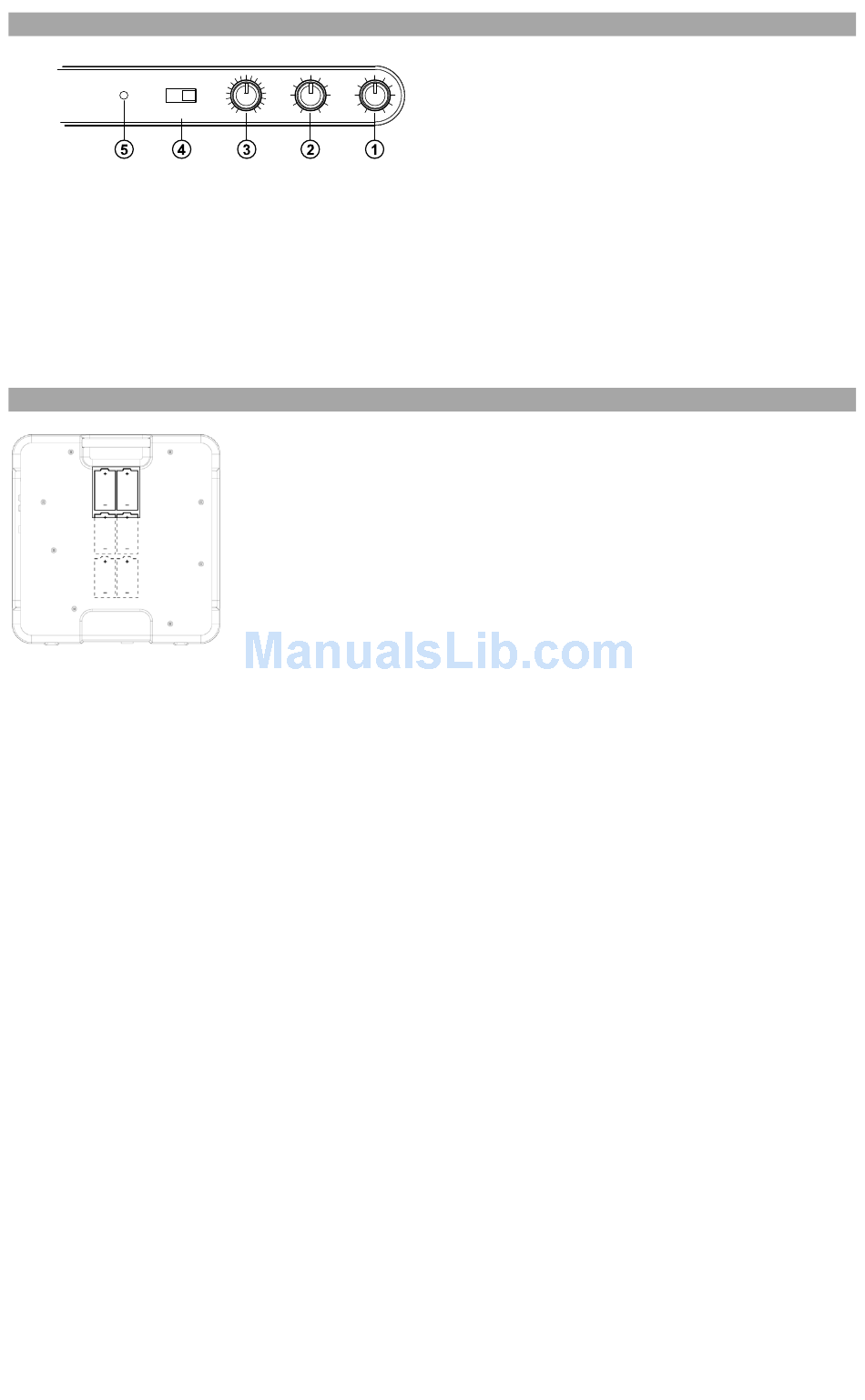

CONTROL PANEL FEATURES

RPM
POWER
33
1. Audio Level Control:
adjusts the volume level of the onboard
speaker, headphone and line out outputs.
NOTE: Make sure the Audio Level Control is
set to OFF when connecting any alternate
audio output devices.
2. Tone Control:
adjust the low and high frequency audio
levels.

BATTERY INSTALLATION

PITCH TONE AUDIO
45 78
LOW HIGH
-10% +10%
This rotary control
This feature allows you to
This product can be powered by 6 "D" Cell batteries. They should be loaded as show
above, with the positive end toward the handle.
3.
OFF
4.
5.
Pitch Control: This knob adjusts the pitch of
the music +/- 10%. In the center position the
pitch is at 0%.
NOTE: In order for the pitch to be adjusted,
the tempo also changes according to what the
pitch setting.
RPM Selection Switch: This switch selects
the RPM of the turntable platter -- 33, 45, and
78 RPM.
Power LED: This LED indicates that the
power switch on. Make sure the power is off
when storing or transporting the unit, to avoid
wasting battery power.
