USER'S MANUAL
PROLiNK LCD MONITOR
PRO1912W & PRO2212W
Version 1.2 (Feb'09)
Bangladesh | Brunei | Cambodia | Fiji | Indonesia | Madagascar | Maldives
your
Global
Malaysia | Mauritius | Mongolia | Myanmar | Nepal | Pakistan | Philippines
Info
Communications
Singapore | Sri Lanka | Serbia | Taiwan | Thailand | USA | Vietnam
Provider
Advertisement
Table of Contents
Related Manuals for PROLiNK PRO1912W
Summary of Contents for PROLiNK PRO1912W

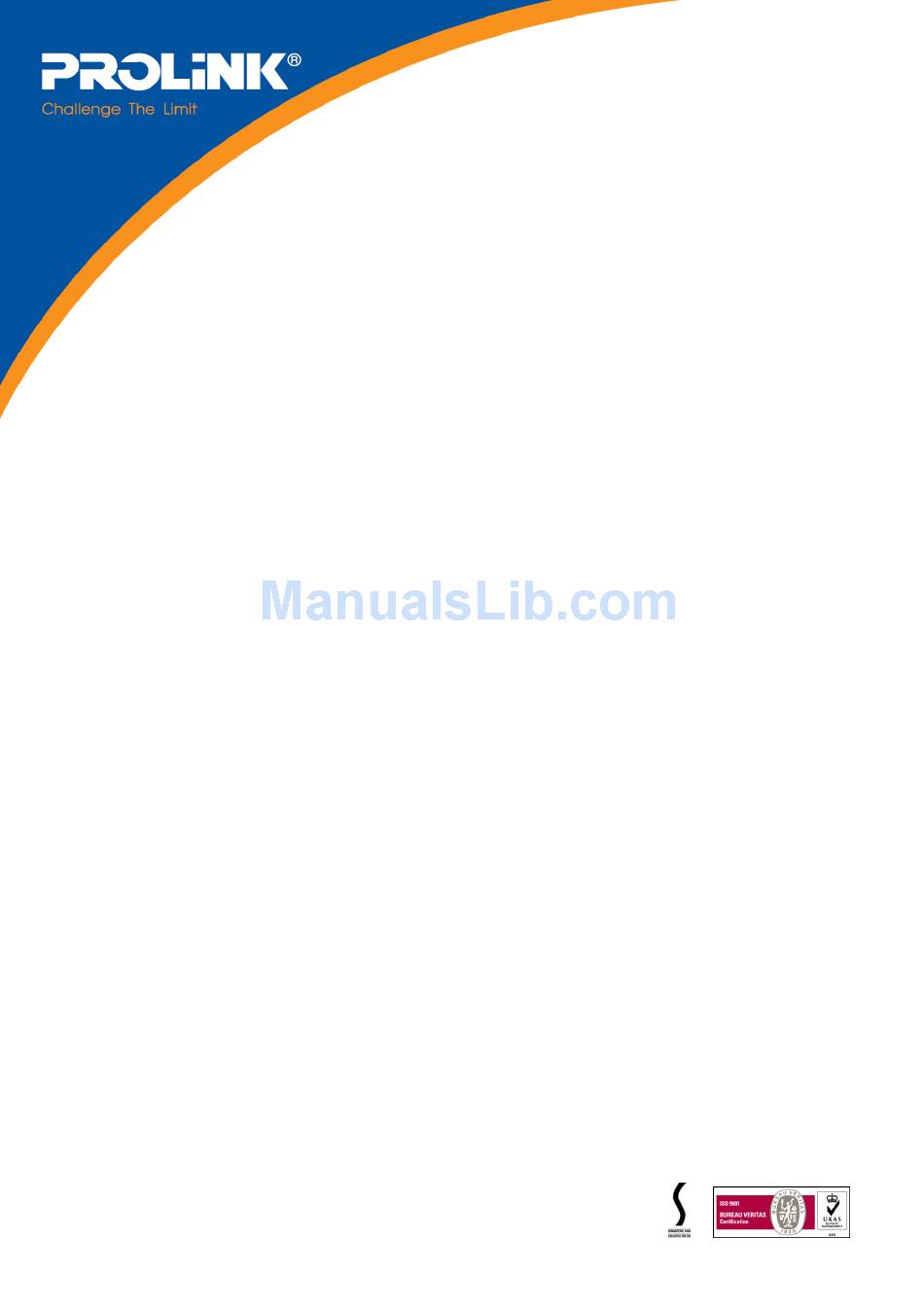

- Page 1 USER'S MANUAL PROLiNK LCD MONITOR PRO1912W & PRO2212W Version 1.2 (Feb’09) Bangladesh | Brunei | Cambodia | Fiji | Indonesia | Madagascar | Maldives your Global Malaysia | Mauritius | Mongolia | Myanmar | Nepal | Pakistan | Philippines Info...
-
Page 2: Table Of Contents
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com TABLE OF CONTENTS FCC Statement Important Safeguard Chapter 1 Introduction Features Checking List Chapter 2 Monitor Overview Front Panel overview Rear Panel overview Chapter 3 Installation Connecting a Computer Connecting a Laptop Connect with Audio... -
Page 3: Fcc Statement
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Important Safeguard
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Important Safeguard 1. Read all of these instructions. 2. Unplug this monitor from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 3. Do not use this monitor near water. For example near a bathtub, washbowl , kitchen sink, or laundry tub, in a wet basement , or near a swimming pool, etc…... -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction Features High resolution of 1360 x 768 @ 60Hz (for PRO1912W model), 1920 x 1080 @ 60Hz (for PRO2212W model) Contrast ratio of 10000 : 1 Pixel pitch of 0.3mm (for PRO1912W) and 0.248mm (for PRO2212W) -
Page 6: Chapter 2 Monitor Overview
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Chapter 2 Monitor Overview Front Panel overview Front Panel overview 22 for PRO2212W 19 for PRO1912W Power ON/OFF Menu/ Enter Exit Down Version 1.2 (Feb’09) -
Page 7: Rear Panel Overview
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Front Panel overview Audio Connector Connector Connector (Optional) (Optional) Note: For VOLUME function, please ensure the audio is connected to the sound card of the computer or to the output source of any media player with 3.5mm stereo socket. -
Page 8: Chapter 3 Installation
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Chapter 3 Installation Whenever you connect a video system to your set, ensure that all elements are switched off. Refer to the documentation supplied with your equipment for a detailed connection instructions and safeguard information. -
Page 9: Chapter 4 Operation
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Chapter 4 Operation Power (ON/OFF) Switch Button This button is used to turn the monitor on and off. NOTE: The ON/OFF switch button does not disconnect the device from the main voltage. To completely disconnect the main voltage, please remove the power plug from the socket. - Page 10 PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Color Adjustment 1920 x 1080@60Hz Brightness adjustment To adjust the image brightness to suit the user viewing requirements. Contrast adjustment To adjust the image contrast to obtain the best display on screen. DCR Mode (option)
- Page 11 PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Color Temperature Adjustment 1920 x 1080@60Hz Warm This control adjusts the color temperature of the screen image, preset by default. Cool This control adjusts the color temperature of the screen image, preset by default.
- Page 12 PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Misc Auto Configuration To automatically get the best adjustment. Not function with DVI signal. Auto Color To automatically get the best color adjustment. Not function with DVI signal. Factory Reset To reset all setting back to factory default settings.
-
Page 13: Chapter 5 Technical Information
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Chapter 5 Technical Information Product Specifications ITEM DESCRIPTION Model Number PRO1912W 18.5” TFT LCD Monitor PRO2212W 21.6” TFT LCD Monitor Bezel color Options Piano Black Piano Black TFT Panel (16:9) Wide (16:9) Wide Pixel Pitch (mm) 0.3mm... - Page 14 5.3.2 Display image is too large or small Use the OSD controls to adjust Auto Setup. 5.3.3 The color are distorted Check if the signal cable is properly connected. Use the OSD controls to adjust the color control setting. 5.3.4 The image is too light or too dark Use the OSD controls to adjust the brightness and contrast.
-
Page 15: Chapter 6 Technical Support
PROLiNK User's Manual for PRO1912W, PRO2212W www.prolink2u.com Chapter 6 Technical Support Register online for your free warranty. FREE TECHNICAL SUPPORT HOTLINE: Mon to Fri: 9am - 6pm (Closed on Sundays & Public Holidays) • Singapore : (65) 6357 0666 • Malaysia : (60) 3 8023 9151 •... - Page 16 Register Online For Your Product Warranty www.prolink2u.com Singapore FIDA INTERNATIONAL (S) PTE LTD Blk 16 Kallang Place #06-02 Kallang Basin Industrial Estate Singapore 339156 Email: sales@fida.com Malaysia FIDA SYSTEMS (M) SDN BHD Tel: (60) 3 8023 9151 Indonesia PROLINK INDONESIA Tel: (62) 21 628 3205...
