Summary of Contents for Homelite UT60526

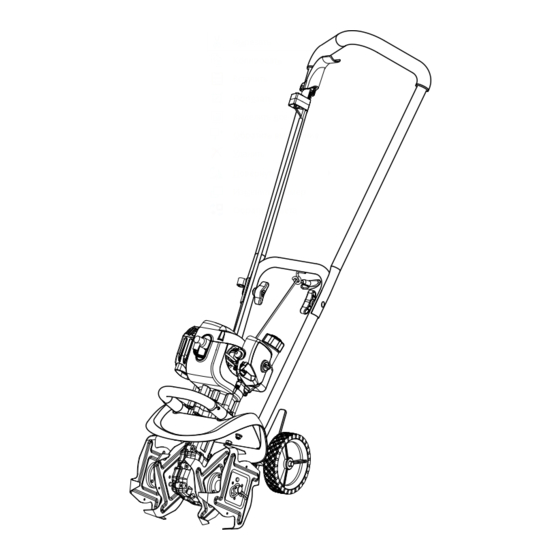

- Page 1 HOMELITE Gas Cultivator Model No. UT60526 REPAIR SHEET (All Versions)
- Page 2 HOMELITE GAS CULTIVATOR – MODEL NO. UT60526 FIGURE A...
- Page 3 HOMELITE GAS CULTIVATOR – MODEL NO. UT60526 PARTS LIST (FIGURE A) PART PART NUMBER DESCRIPTION NUMBER DESCRIPTION 220029010 Gear Box Assembly ..........1 660934002 Screw (M5 x 60 mm T.F.) ........1 620888001 Drive Shaft ............. 1 638566001 Clutch Drum ............1 678187002 Clip ................
- Page 4 HOMELITE GAS CULTIVATOR – MODEL NO. UT60526 FIGURE B 12 13 10 11...
- Page 5 HOMELITE GAS CULTIVATOR – MODEL NO. UT60526 PARTS LIST (FIGURE B) PART PART NUMBER DESCRIPTION NUMBER DESCRIPTION 300960002 Clutch Assembly ........... 1 518497001 Heat Dam .............. 1 638090001 Washer ..............1 901552001 Carburetor Gasket ..........1 638284002 Spacer Tube ............1 518690001 Baffle Plate ............
