Summary of Contents for Grundig PAD01
-
Page 2: Introduction

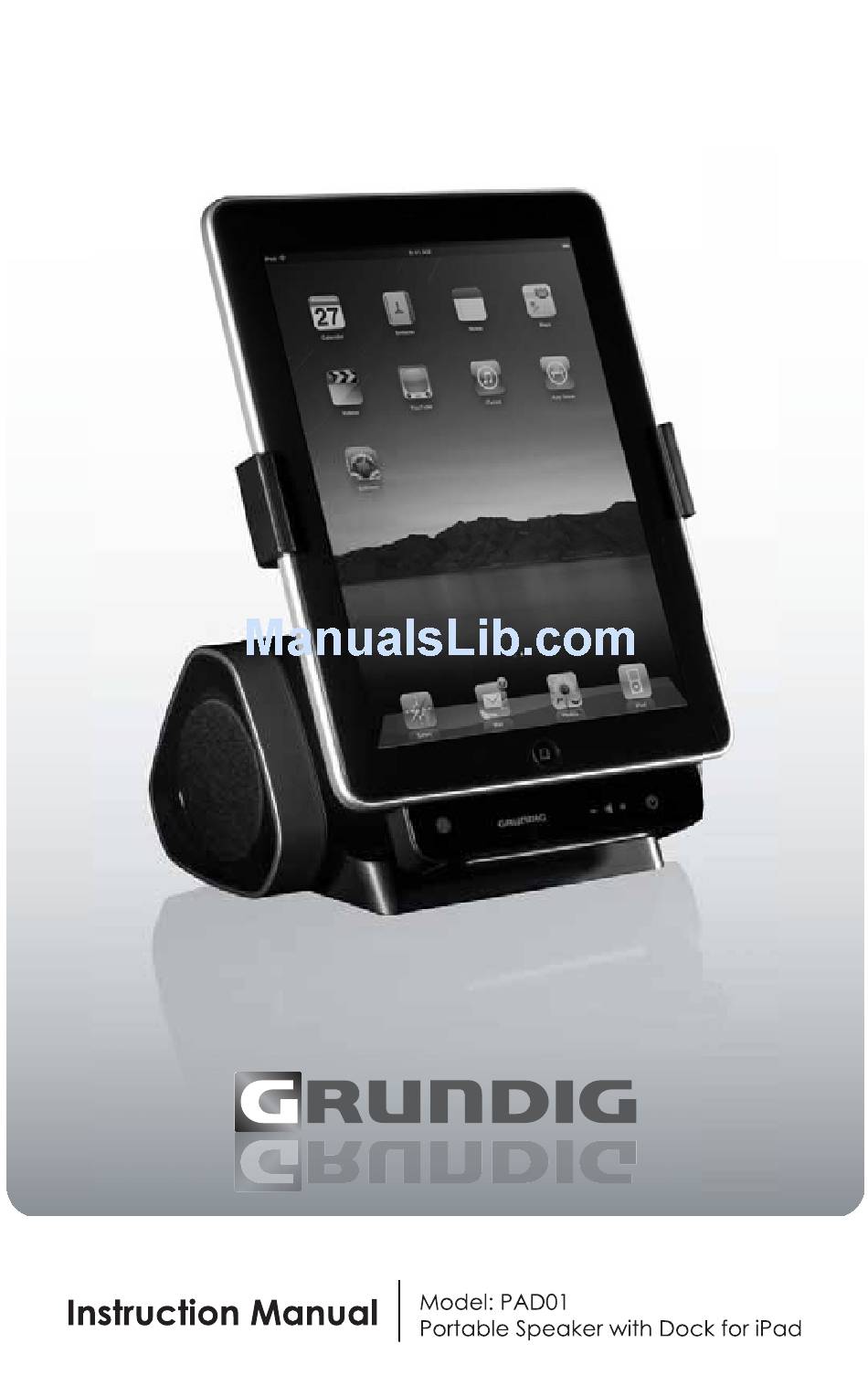

PAD01 Introduction Thank you for buying this GRUNDIG product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarise you with the unit’s many features and to ensure you... -
Page 3: Table Of Contents
PAD01 Contents Introduction What’s in the Box Safety Instructions Your Docking System Getting Started Using the Dock Other Functions Troubleshooting Specifications Warranty What’s in the box Carefully remove your Portable Speaker with Dock for iPad from the box. You may wish to keep the packaging for future use. Inside the box you will find: •... -
Page 4: Safety Instructions
PAD01 Safety Instructions Ensure that you read all of the safety instructions before operating this unit. Safety Considerations • Ensure that the power cable and other connected cables are protected and are positioned so that they are not likely to be walked on, pinched or damaged. -
Page 5: Your Docking System
PAD01 Your Docking System FRONT iPad Dock LEFT Speaker RIGHT Speaker IR SENSOR POWER ON / STANDBY Button DOCKING Connector VOLUME UP Button VOLUME DOWN Button REAR ROTATING Head DOCK Hinge SUPPORT Arm BASE Hinge BASS Opening BATTERIES Compartment DC Jack (9V) VIDEO ON/OFF Button DC 9V VIDEO OUT... - Page 6 PAD01 Your Docking System Remote Control REPEAT Button POWER ON / MUTE Button STANDBY Button VOLUME DOWN Button VIDEO Button VOLUME UP Button MENU Button PLAY /PAUSE Button UP ARROW Button SHUFFLE Button SKIP BACKWARD Button SKIP FORWARD Button DOWN ARROW Button SELECT Button POWER ON/ STANDBY Button Press the STANDBY Button to turn the power on or off.
-
Page 7: Getting Started
PAD01 Getting Started Setting up the Docking System 1.Insert the connector of the power adaptor into the DC IN jack on the rear of the unit. 2.Insert the power adaptor plug into the wall socket and switch the socket on. 3.Gently dock your iPad/iPhone/iPod into the docking connector. - Page 8 PAD01 Getting Started Using the Remote Control Remove the plastic insulation tab from the battery compartment to activate the remote control before first use. When the operation of the remote control becomes intermittent or the effective distance is significantly decreased, it is time to replace the original battery with a new type CR2025 3V === lithium battery as follows: 1.
-
Page 9: Using The Dock
PAD01 Using the Dock Setting up the Dock 1. Gently dock your iPad, iPhone, or iPod touch while the unit is in portrait mode. 2. If you wish you can rotate the dock to view your iPad, iPhone or iPod in landscape mode. 3. - Page 10 PAD01 Using the Dock Listening to Music on your Apple Device This unit works with all models of iPad, iPhone, iPod touch, and iPod nano. 1. Dock your Apple device carefully and securely onto the Docking Connector. 2. Press the button to turn on the unit and the touch control panel will illuminate.
- Page 11 PAD01 Using the Dock Watching Videos or YouTube Clips on your Apple Device while Docked 1. Dock your Apple device carefully and securely onto the Docking Connector. 2. Press the Standby button to turn the unit on and the touch control panel will illuminate. 3.
-
Page 12: Other Functions
PAD01 Other Functions Switching On 1. To turn on the unit, press the button. 2. To turn off the unit, press the button again. Adjusting the Volume 1. To increase the volume level, press the VOLUME+ button. 2. To decrease the volume level, press the VOLUME- button. Mute Note: You need to use the remote control to use this function. -
Page 13: Troubleshooting
PAD01 Troubleshooting If you encounter problems when using this unit, first check the following points before requesting service. If the problem remains unsolved, we suggest you consult your retailer or service professional. WARNING: You can contact our Service and Warranty team United Electrical on 1800 509 394. Problem Possible Cause What to do... -
Page 14: Specifications
PAD01 Specifications Model Number PAD01 Power Supply: Main Unit (AC Adaptor) Input: 100-240V~ 50/60Hz Output: 9V === 2500mA DC 9V, 6 x AA size batteries Remote Control DC 3V, 1 x CR2025 lithium battery Power Consumption: Standby Operating Frequency Response 80Hz - 16kHz, + 3dB Power Output 2 x 2.5W (10% THD) -
Page 15: Warranty
In the unlikely event that your product fails to work normally, please contact the GRUNDIG Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 16 PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au...
