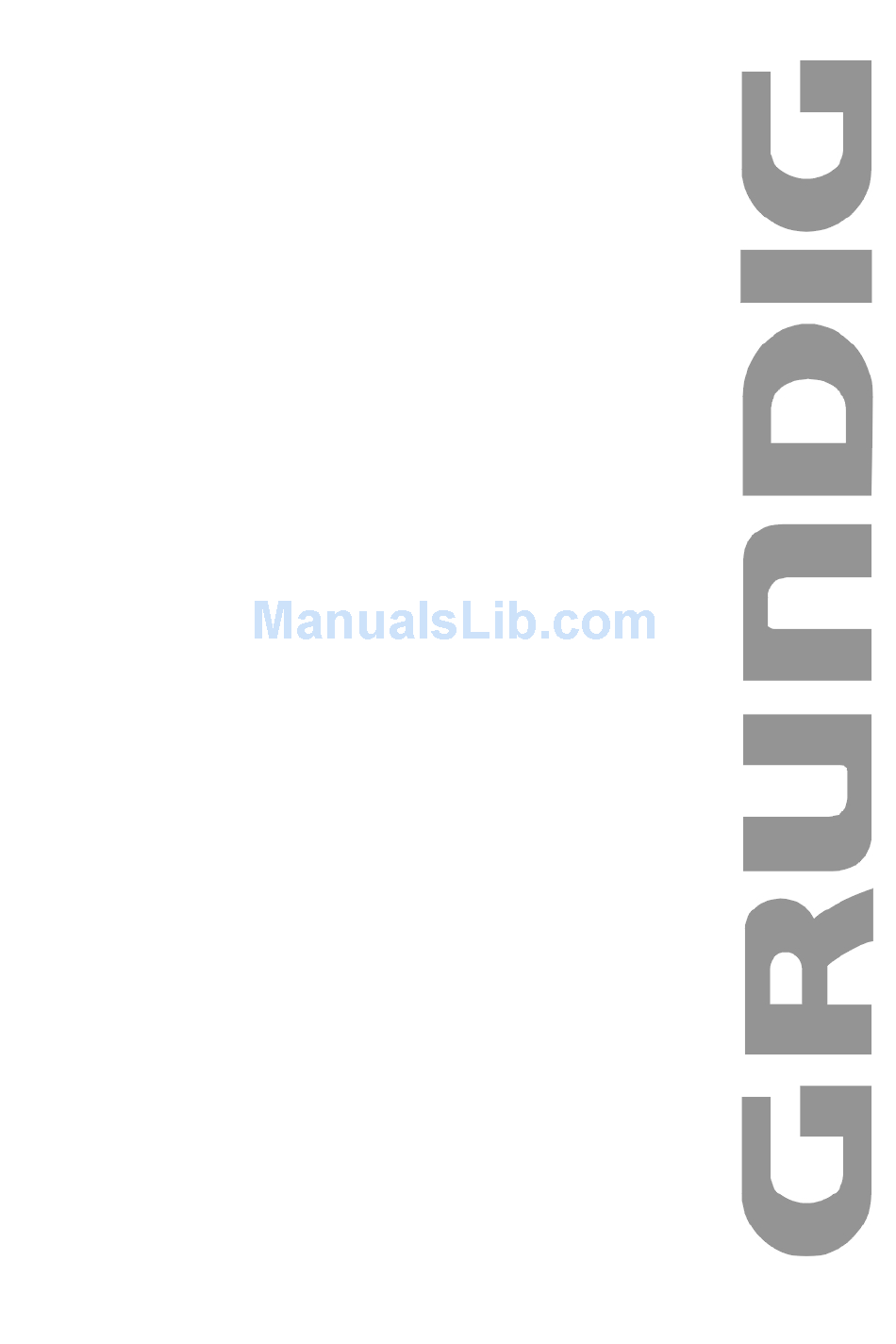

- Page 1 MISURO HD LCD TV WITH DVD PLAYER GLCD3206HDV Series The Gold Technical Support Line: 1902 215 259 Personal Product Support (Charges will apply at $2.95 per minute)
-
Page 2: Introduction
Introduction Thank you for buying this Grundig product, which is designed to give you many years of trouble-free service. You may already be familiar with using a similar unit, but please take time to read these instructions. They are designed to familiarize you with the unit’s many features and to ensure you get the very best from your purchase. -
Page 3: Table Of Contents
Contents Introduction …………………………………..….………1 Safety Instructions ……………………………………...3 Unpacking ………………………………………..…..…5 TV/Monitor Stand Installation Guidelines ……..……6 Wall Mount Bracket Installation Guidelines ……..……7 View of TV/Monitor ………..………………………….…8 Remote Control …………………..………………….…… 10 Installation and Connection …………….…………..…….13 TV/Monitor Screen Operation …….……………………14 TV Channel Menu and Adjustment …….……….….….16 DVD Player Operation ….……………..…………………26 Other Operation ….……………………………………..36 Notes …………….……………………………………….38... -
Page 4: Safety Instructions
Safety instructions 1. Do not use this apparatus near water. 2. Clean only with a dry cloth. 3. Do not block any ventilation openings. Install in accordance with the manufacturers instructions. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 5 Installation notes This TV can be connected to AC 110-240 Volts. 50/60 Hz. Never connect to a DC supply or any other power supply. Locate the TV in the room where light does not strike the screen. Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.
-
Page 6: Unpacking
Unpacking ___________________________________________ Please make sure that the following items are included with your LCD TV/Monitor. If any item is missing, please contact the warranty line. TFT LCD TV/ Monitor Remote control Operation manual RCA cable Power cord Stand Support Stand Screws (a Type 4 x14 mm) Screws (b Type 4 x16mm ) TV/Monitor Stand Installation Guidelines... -
Page 7: Tv/Monitor Stand Installation Guidelines
1. Fixing the Support to the Stand by screws (3 pieces a type screws 4 x14 mm) as below figure: 2. Fixing the finished Stand Assy. to the TFT LCD TV Unit by screws (4 pieces b type screws 4 x16mm) as below figure: Wall Mount Bracket Installation Guidelines ____________________________________________... -
Page 8: Wall Mount Bracket Installation Guidelines
1. Fixing the Support to the TFT LCD TV Unit by screws (4 pieces b type screws 4 x16mm) as below figure: 2. Using 6 screws to fix the TFT LCD TV Unit on the Wall Mount Bracket. Please find there are 6 holes on the back of the unit. -
Page 9: View Of Tv/Monitor
I. View of the TV/Monitor Front view Back view... - Page 10 Remote sensor DVD disc slot To receive remote signal from To load disc for playback. remote control. HDMI 2 STANDBY button / power HDMI 1 indicator PC audio in VGA input jack Turn the TV on and into standby mode in power on mode the indicator will To connect to a PC.
-
Page 11: Remote Control
II. Remote Control... - Page 12 (1) Remote control keys function 1. STANDBY: Turn the TV on and into 21. REPEAT: To repeat play in DVD mode standby mode. and display yellow subject in Teletext 2. Numeric buttons: To select a channel by mode. number input or input numbers in menus. 22.
- Page 13 (2) Remote control battery installation and cautions Replace battery by following the below steps: Requires two AAA batteries. Open the battery cover as shown below: Install the battery into the battery tray. Close the battery cover Caution: 1. Keep batteries out of children’s reach. 2.
-
Page 14: Installation And Connection
III. Installation and Connection Connect the LCD TV/monitor 1. Connect the TV RF source to the ANTENNA port. TV RF signal including: Receiving antenna/satellite TV/CATV net. You can use 75 coaxial cable to connect the outdoor antenna. Outdoor Antenna Connection: Use 75 coaxial cable plug or 300-75 impedance converter to plug in... -
Page 15: Tv/Monitor Screen Operation
4. Connect the video source to the S-VIDEO input jack of the TV by the S-video cable 5. When using the LCD as a computer screen, connect the PC from the VGA jack of the monitor by the relevant cable. IV. - Page 16 present channel to the last channel was viewed. Press the P.MODE button repeatedly to cycle through the available video picture modes from the below different types Standard Mild Dynamic User Press the S.MODE button repeatedly to cycle through the available sound modes from the below different types Movie Sports...
-
Page 17: Tv Channel Menu And Adjustment
the TELETEXT buttons. V. TV Channel Menu and Adjustment CHANNEL menu - Press SOURCE button to select DTV or TV input. - Press LCD MENU button and the CHANNEL menu will appear. - Press to select the items: Auto Tuning, DTV Manual Tuning, ATV Manual Tuning, Program Edit. - Page 18 DTV Manual tuning Press to select the channel, then press ENTER to start scan. ATV manual tuning...
- Page 19 - Press the button to select the items, and press the button to adjust. See details in the following sub-options. - Press the ENTER button to confirm and press the LCD MENU button to return to previous menu or press the EXIT button to exit. Storage To Press the button to select the channel number you want to save to.
-
Page 20: Picture Menu
- Press the button to select the channel. Delete Press red button, DELETE mark will be shown on the current channel; Press red button again, the current program will be deleted. Rename Press green button, RENAME mark will be shown on the current channel; then move cursor by button, select characters by button, at... - Page 21 - Press the LCD MENU button to display the OSD menu then press the button to select PICTURE menu. - Press the button to select the items in PICTURE menu, press the button to enter the sub-menu, press the LCD MENU button to return to the previous menu or press the EXIT button to exit.
-
Page 22: Sound Menu
Press the button to adjust Green Press the button to adjust Blue Press the button to adjust Aspect Ratio Press the button to select Aspect Ratio: Zoom1, Zoom2, Auto, 4:3, 16:9 Noise Reduction Press the button to turn the Noise Reduction function on or off SOUND menu - Press the LCD MENU button to display the OSD menu then press the button to select SOUND menu. -
Page 23: Time Menu
Press the button to adjust the bass. Balance Press the button to adjust the balance of left/right output channels. Auto Volume Press the button to select off or on, when it’s set to on, the volume level will be reduced automatically if you set the volume too high. Surround Sound Press the button to turn the surround sound effect on or off. -
Page 24: Option Menu
Press the button to select on, press the button to enter the setup sub-menu, then to set the time you want the unit to be turned on, select the time using the buttons. Sleep timer Press the button to set the sleep time: 240min, 180min, 120min, 90min, 60min, 30min, 20min, 10min. -
Page 25: Lock Menu
Audio Language Press the button to select the Audio language, the default language is English. Subtitle Language Press the button to select the Subtitle language, the default language is English. Country To show the country you have set when you started auto scan. Restore Setting Press the button to restore, this operation will reset the unit to factory... -
Page 26: Epg Menu
Change Password Press the ENTER or button and enter the new password. Block Program Press the ENTER or button to enter the program list. Press button to select the channel you want to lock then press the green button to lock, the lock icon will appear behind the locked channel, to un-lock the channel, select the locked channel and press the green... -
Page 27: Dvd Player Operation
To see what is going to be broadcast after the current programme, press the button to change the time and press the button to move the time back. To view a different channel, press the button. To book a wanted program for later watching, press the blue button to enter setting menu, then... - Page 28 Press the PLAY/PAUSE button once during playback. Press the PLAY/PAUSE button again to resume normal playback. HOW TO REMOVE THE DISC Press the button on the remote control. Wait until the disc is completely ejected before removing. HOW TO STOP PLAYBACK Press the STOP button once, the DVD video player will stop.
- Page 29 your DVD. Press the REPEAT button once to repeat playing the present chapter. Press the REPEAT button again to repeat playing the present title. Press the REPEAT button third time to repeat playing the whole disc. Press the REPEAT button for the fourth time to cancel repeat play and return to normal play.
- Page 30 h. INFO During playback, press the D.DISP button on the remote control to show the current information available. The following information will appear - Title Elapsed; Title Remain; Ch. Elapsed; Ch. Remain; Display Off and so on. Note: For different discs, D.DISP button may have a different function. i.
- Page 31 from the same point. If you press the STOP button twice the program playing will be cancelled. j. Selecting the Camera Angles Setting This DVD video player allows you to select from several different angles. Press the ANGLE button while playing back a scene recorded with multiple angles.
- Page 32 included on the Multi-languages DVD discs. By Pressing the LANG button once during playback to display current language, press the LANG button again to toggle between different language mode in sequence. Note: For MP3/CD discs playback, press the LANG button to switch between different audio channels in sequence.
- Page 33 Press the INTRO button to play the first 10 seconds of each track when playing CD discs . o. Customizing the Function Settings This DVD video player allows you to customise the performance to your personal preference. DISPLAYING THE SETUP MENU SCREEN: The DVD SETUP MENU screen asks you to select a setting category from SYSTEM SETUP, LANGUAGE SETUP, AUDIO SETUP, VIDEO SETUP, SPEAKER SETUP and DIGITAL SETUP.
- Page 34 left and right edges of the picture may be cut off from the screen. 4:3LB(Normal) Choose this setting will allow you to view the movies in its original aspect ratio. the entire frame of the movie will be displayed on screen but will occupy a smaller portion of the screen.
- Page 35 DEFAULT SETTING Press the ENTER button to restore factory default. Note: The Password and Rating setting can not be restored. 2. Language Setup Press the buttons to select the LANGUAGE setup icon, press ENTER button to confirm. You could choose the available languages as displayed on the screen menu.
- Page 36 surround sound effect. Use this setting when connecting the coaxial output to a receiver-amplifier not capable of decoding multi-channel audio. Press the buttons to adjust the key setting. 4. Video Setup Press the , , buttons to Move the cursor. Press ENTER button to confirm.
-
Page 37: Other Operation
Trouble Shooting Should the unit not function, please check the following table to find out the possible problem. If you still can not solve the problem, please contact the Grundig Warranty line. a. DVD player SYMPTOM CAUSE POSSIBLE CURE... - Page 38 b. TV/Monitor Symptom Remedy 1. Check whether the power plug is connected to the power No power supply. 2. Pull out the plug and wait for 60 seconds, and then insert the power plug again and switch on the TV/monitor. Check whether the antenna is connected properly.
-
Page 39: Notes
VIII. Notes (1) Please read these operating instructions carefully before you operate this unit. (2) When you want to cut off the electricity supply to the unit, please press the STANDBY button on the unit, then take out the plug from the wall outlet. -
Page 40: Maintenance
IX. Maintenance 1). Cleaning the cabinet Use a soft cloth slightly moist with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives. 2). Cleaning discs When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the centre outwards. -
Page 41: Specifications
X. Specifications Model No. GLCD3206HDV/GLCD3206HDVW/ GLCD3206HDVS Screen size 32 inch Screen format 16:9 Resolution 1366*768 Contrast 1000:1 Brightness 500 cd/m Display colours 16.7M View angle 176° (horizontal) / 176° (vertical) Response time 5 ms TV system Digital: DVB-T/ Analog: PAL I/BG/L/DK Audio: MPEG2 Audio Layer I&II DTV decode Video: MPEG2 Transport MP@HL... -
Page 42: Display Modes
XI. Display modes Resolution Horizontal Freq. (KHz) Vertical Freq. (Hz) 720x400 31.5 640x400 31.5 640x480(VGA) 31.5 640x480(VGA) 37.9 640x480(VGA) 37.5 800x600(SVGA) 37.9 800x600(SVGA) 47.2 800x600(SVGA) 46.9 1024x768(XGA) 48.4 1024x768(XGA) 56.5 1024x768(XGA) 60.0 1280x1024(SXGA) 63.5 1280x1024(SXGA) 80.0 1. Modes, which are not listed in the above table, may not be supported. For an optimal picture it is recommended to choose a mode listed in the table. -
Page 43: Warranty
In the unlikely event that your product fails to work normally, please contact Grundig Warranty on 1800 509 394 (Australia) or 0800 450 259 (New Zealand) and have your receipt of purchase on hand. - Page 44 PO BOX 6287 Silverwater NSW 1811 www.grundig.net.au Ver. 2 13-August-2009...
