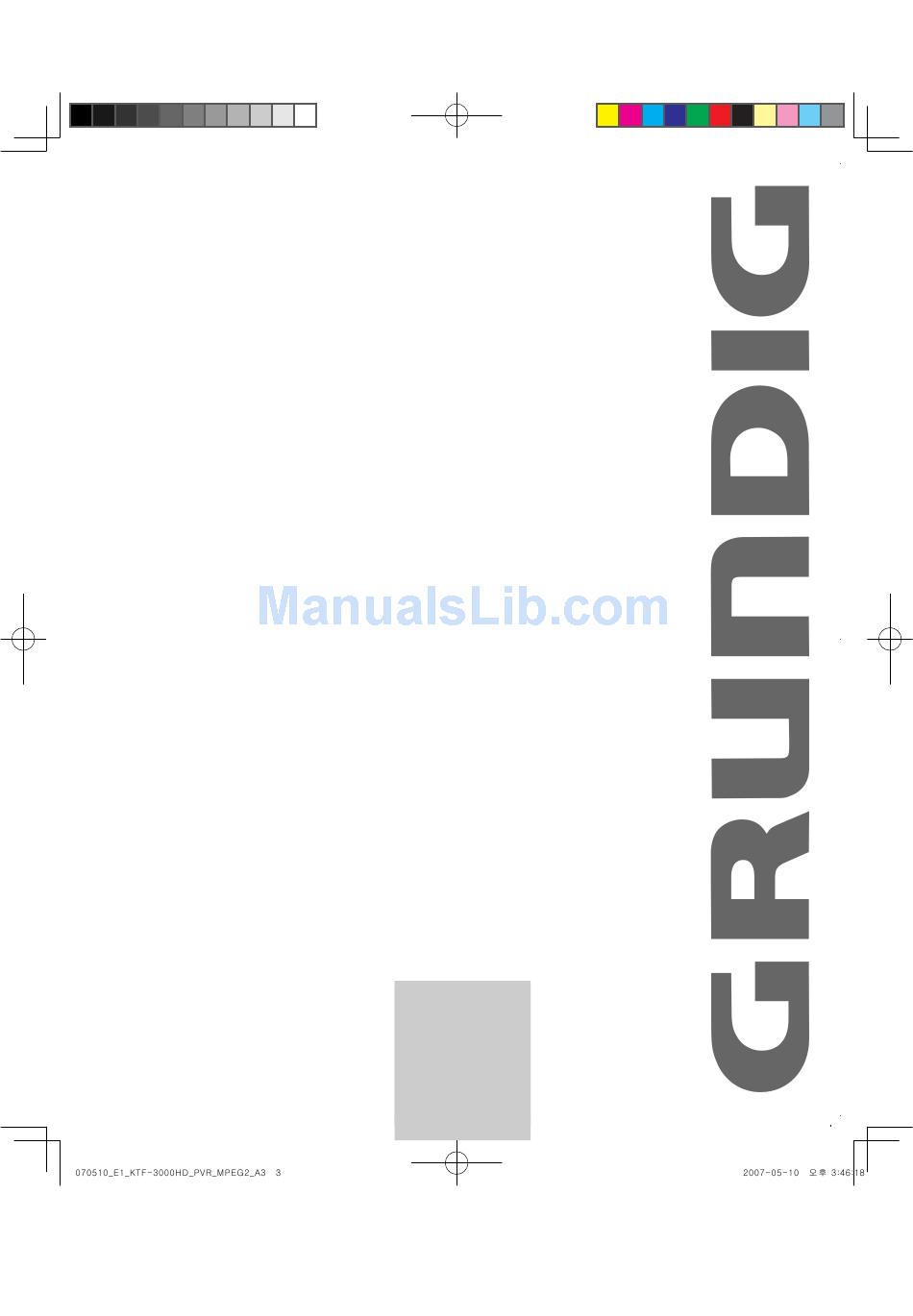

- Page 1 HIGH DEFINITION TV RECORDER GPVR3250HD Grundig Helpline: 1800 509 394 Australia Grundig Helpline: 0800 450 259 New Zealand ENGLISH ENGLISH...
-
Page 2: General Safety
General Safety Warning Always follow these instructions to avoid the risk of injury to yourself or damage to your equipment. Unplug the receiver from the AC power outlet before cleaning. Use only a damp cloth for cleaning the exterior of the receiver. Do not use accessories or attachments not recommended by the receiver manufacturer as they may cause problems to the equipment and will void the warranty. - Page 3 General Safety Digital Terrestrial Receiver Owner's Manual OPERATION HANDBOOK Before operation, Please read the entire manual thoroughly and retain it for future reference. Program Guide Utility System Setting Edit Channel List Automatic Search Manual Search HIGH DEFINITION TV RECORDER...
-
Page 4: Table Of Contents
Contents Remote Control Unit ............6 Front Panel . - Page 5 Contents Menu Transparency ............28 Change PIN Code .
-
Page 6: Remote Control Unit
Remote Control Unit STAND BY MUTE NUMERIC BUTTON VIDEO FORMAT P.SIZE YELLOW BUTTON/TIMER GREEN BUTTON INFO(BLUE BUTTON) SUBTITLE(RED BUTTON) STOP PLAY/PAUSE SLOW QUICK REPLAY QUICK FORWARD RECORD MENU EXIT VOL UP/DOWN CH UP/DOWN LEFT/RIGHT UP/DOWN SLEEP A.LANG A.L/R RECALL RADIO FILE PIP ON/OFF PIP CH... -
Page 7: Play/Pause
Remote Control Unit STAND BY To switch between operation and stand by mode. MUTE To enable or disable audio. NUMERIC BUTTONS To select the channel and enter the channel edit and PIN code. FORMAT To select the mode 570P, 720P, 1080i. P.SIZE To change screen size. -
Page 8: Front Panel
Front Panel Note! : The design of the Front Panel may be changed without any notice in advance. 1. POWER(STAND BY) Switch the receiver power "ON" or "OFF". 2. VFD To display the current state, such as channel, time and display. 3. - Page 9 Front Panel VFD Information (Option) 1. HDD storage space 2. Time Shift operation indications 3. Radio channel selection 4. When the Audio Mode is Dolby sound 5. Recording Recording 6. PVR Functions - Rewind, Slow Rewind, Play/Pause, Slow Play, Fast/Forward 7.
-
Page 10: Rear Panel
Rear Panel 12 13 Note! : The design of the Rear Panel may be changed without any notice in advance. 1. POWER SUPPLY 90 - 250V ~ 50/60Hz. 2. POWER SWITCH To provide power to the main unit. 3. ANT IN To connect to a digital terrestrial antenna input. -
Page 11: Connecting Your Equipment
Connecting Your Equipment How to connect your STB to various systems There are several ways of connecting the STB to your TV, VCR and/or Hi-Fi SYSTEM. Consult your local supplier for assistance in setting-up your system that is best suited to your requirements. 1. - Page 12 Connecting Your Equipment 4. Connect STB to a VCR set Connect your RCA jack from the VCR to the back of the receiver. Alternatively you can use A/V, S-Video jacks. 5. Connect STB to a Hi-Fi System Connect a RCA stereo cable from the AUDIO L/R jacks, S/PDIF on your STB to the LINE, AUX, SPARE or EXTRA input jacks on your Hi-Fi System.
- Page 13 Connecting Your Equipment TV with Trerrestrial Antenna 1. Connect one end of RCA/Cinch cable to the RCA/ Cinch jack on the back of the STB and the other end to a RCA/Cinch jack on your TV. If your TV doesn’t have a RCA/Cinch jack, connect one end of RF cable to the TV OUT on the back of the STB and the other end to a RF input jack on your 2.
-
Page 14: Basic Operation
Basic Operation Basic Function 1. Program Information After the television channels have been programmed, you will see the information box each time you change the channels. 1. Every time you change channels you will receive program information for a few seconds. (In the "Banner Time" menu you can select how long this information will be shown.) 2. -
Page 15: Basic Function
Basic Operation Basic Function 3. Next-Information Banner 1. During "Channel Banner" is appearing, when you press YELLOW button, you can get "Next-Information Banner" 2. Using "Next-Information Banner", you can get a simple EPG of "Next-Information". 4. Channel-Information Banner 1. During "Channel Banner" is appearing, when you press INFO(BLUE) button, you can get "Channel-Information Banner". - Page 16 Basic Operation Basic Function 7. Timer The user can reserve a desired program at a desired time by using the Timer function. 1. Once, Daily, Weekly Reservation. ♦ Use the , , , or buttons in the Timer Setting screen to select the date and time.
-
Page 17: Record
Basic Operation Basic Function 9. Soundtrack 1. When you want to change the Audio Language of current channel, press the A.LANG button on the remote control. The on-screen menu is displayed on the left side of the screen. 2. Use buttons to choose the audio you want. -
Page 18: Menu Guide
Menu Guide Easy Installation Before you can view the television or radio program, you must perform the installation procedure first. Therefore you will see only "Easy Installation Menu" at first when you plug in your system. The Easy Installation gives you the convenience of selecting various languages, adjusting the time and channel search. - Page 19 Menu Guide Easy Installation Language The first option is "Language Select" to select the desired language of the Menu, Audio, or Subtitle. Place the cursor on the sub menu by pressing the keys and press the OK button to change language. The Language of Menu, Audio, or Subtitle will be changed to the selected language.
-
Page 20: Main Menu
Menu Guide Main Menu Press the MENU button on the remote control unit. You will see the "Main Menu" on the screen. 1. You can move into the desired submenu using buttons. 2. You should enter the PIN code in order to move into the corresponding submenu in case of "Edit Channel List"... -
Page 21: Pvr
Menu Guide This function is for setting the Time Shift. If you set to ON, you can use the Time Shift function. 1. Select "PVR" in the main menu with buttons and press OK button. 2. Input the current PIN code using NUMERIC button on the remote control. 3. -
Page 22: Timer
Menu Guide 2. Timer With this function, you can set reserved recording functions including adding, changing and deleting reserved recordings. You can add a reserved recording. 1. Select "Timer" in the PVR menu with buttons. Press the OK button. 2. Select buttons to choose the file you want. -
Page 23: Format Hdd
Menu Guide Fast-Forward & Rewind The Fast-Forward and Rewind functions enable the user to view the front, back or any desired part of the file. • To view forward parts press the FF button and to view previous parts press the REW button on the remote control. •... -
Page 24: Program Guide
Menu Guide Program Guide The program guide supplies information such as program listings and ending times for all available programs. 1. Select "Program Guide" in the main menu with buttons and press OK button. In the viewing program, when you press the EPG button, you can get this view. -
Page 25: Utility
Menu Guide Utility 1. Demonstration Select "Demonstration" in the Utility menu with buttons and press OK button, you can see the Automatic Operation Function. Press the EXIT button to quit the Automatic Operation Function completely. 2. Calendar Select "Calendar" in the Utility menu with buttons and press OK button, you can see the Calendar. -
Page 26: System Setting
Menu Guide System Setting You will be asked to enter your PIN code before you can enter this menu. The PIN code preset to 0000 from the factory. The code can be changed from the "Change PIN Code" menu. Refer to page 29. If you want to customize the system to suit you better, you can specify some settings from the submenus in the "System Setting"... -
Page 27: Subtitle Language
Menu Guide System Setting 3. Subtitle Language In this menu You can change default language for subtitle when changing services. 1. Use the buttons to move to language you want and then press OK button. You can choose the language from a selection of English, German, Spanish, French, Italian, and etc..(option) Note If you cancel the subtitle function, select the off. -
Page 28: Menu Transparency
Menu Guide System Setting 6. Menu Transparency From 20 to 100 will give the variable transparency on Video and OSD screen. Select an menu blending ratio and press OK button. The transparency will be applied on the screen. 7. Change PIN Code From here you can change the PIN code from the standard 0000. -
Page 29: Parental Lock
Menu Guide System Setting 8. Parental Lock When you change Parental Lock , service channel can get or not from " " " " " " that set values. If you select , you may need PIN code every time you select the lock "... -
Page 30: Auto Power
Menu Guide System Setting 12. Auto Power 1. If the Auto Power is set to On and power is off, the Set turns on automatically and turns into the channel mode which you were watching before power breakdown. 2. If the Auto Power is set to Off and power is off, the Set turns into the standby mode. -
Page 31: Edit Channel List
Menu Guide Edit Channel List From these menus, You can edit favorite lists, lock, skip, delete, or move channel. 1. Select "Edit Channel List" in the main menu with buttons and press OK button. 2. At the request window, Input PIN code. If you have not entered your own PIN code, then the PIN code 0000 applies, which was set at the factory. - Page 32 Menu Guide Edit Channel List 1. Favorite 1 ~ 4 (option) 1. You can edit favorite TV and Radio list. This enables you to create the 8 favorite TV and Radio lists. 2. Select the channel you want to edit favorite list and press OK button. Note To rename the Favorite channel, press INFO(BLUE) button.
- Page 33 Menu Guide Edit Channel List 5. Move 1. You can change the position of the channel you want on the TV/Radio/ All channel lists. 2. Select the channel you want to move to desired channel and press the OK button. 3.
-
Page 34: Automatic Search
Menu Guide Automatic Search In this menu,You can set channel automatically. 1. Select “Automatic Search” in main menu and press OK button. 2. At the pop up window, select all channel or open channel search. 3. After moving highlight on automatic search and press OK button to get the channel. -
Page 35: Manual Search
Menu Guide Manual Search In this menu,You can set channel manually. Manual search is more convenient to search a specific MUX. This menu searches also all channels broadcasted over a specific MUX using its detected information. 1. Select “Manual Search” in main menu and press OK button. 2. -
Page 36: Troubleshooting
Troubleshooting Problem Solution No display LED on the front panel. Power cord plug in correctly. No power supply No Picture Ensure that the STB is switched on. Check connection and correct. Check channel and video output and correct. Poor picture quality Check the signal level, if this is low then try adjusting the alignment of your dish. -
Page 37: Technical Specifications
Technical Specifications TUNER & CHANNEL Guard Interval Modes 1/32, 1/16, 1/8, 1/4 Active symbol duration FEC Modes Rate 1/2, 2/3, 3/4, 5/6, 7/8 Input Connector IEC 169-2, Female Frequency Range UHF (520-820MHz), VHF (174-230MHz) Demodulation COFDM 8K Carrier Channel Bandwidth 7MHz MPEG TS A/V DECODING Transport Stream... - Page 38 Technical Specifications SYSTEM RESOURCE Main Processor TL-955SH Flash Memory Application Memory 32Mbit Boot Memory 4Mbit Program DRAM Max. 128MByte EEPROM Max. 2KByte HDD Size 3.5 Inch of 160GB IDE INTERFACE POWER SUPPLY Input Voltage AC 90 to 250V, 50/60Hz Power Consumption MAX.
-
Page 39: Menu Map
Menu Map Main Menu Program Guide Utility System Setting Menu Language Audio Language Subtitle Language Banner Time Local Time Menu Transparency Change PIN Code Parental Lock Receiver Lock Menu Lock Digital Audio Edit Channel List Auto Power Manual Search Factory Reset Automatic Search System Information HIGH DEFINITION TV RECORDER... - Page 40 This guarantee is in addition to, and does not diminish, your statutory or legal rights. Grundig • PO BOX 6287 • SILVERWATER NSW 1811 • www.grundig.net.au • Grundig Helpline: 1800 509 394 Australia • Grundig Helpline: 0800 450 259 New Zealand...
