Parts Manual
Manuel de pièces
Manual de piezas

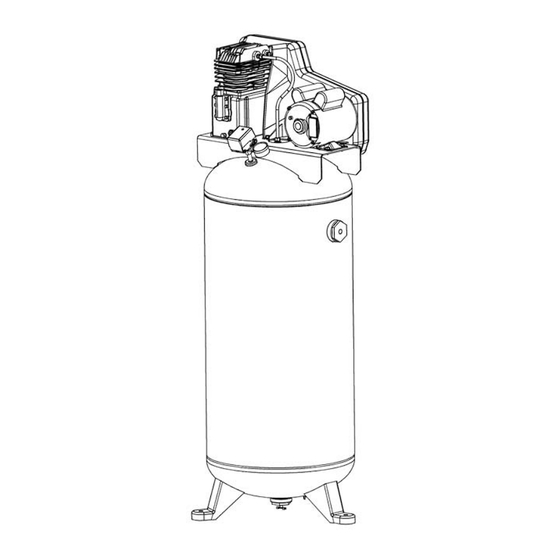

Single Stage, Belt Drive, Electric Air Compressors
D'une seule étape, actionnement pour courroie, compresseur d'air
électrique
De una sola etapa, accionamiento por correa, compresor de aire
eléctrico
Specification Chart________Tableau des spécifications_______Cuadro de especificaciones
MODEL NO.
RUNNING
(MODÉLE)
H.P.
(MODELO)
(CV)
LA3706056
3.7
?
Questions? See back pages.___Questions ? Consultez la pages final.___¿Preguntas? Vea la páginas final.
Printed in U.S.A.
TANK CAPACITY
GALLONS
(CAPACITÉ DU
RÉSERVOIR - LITRES)
(CAPACIDAD DEL
TANQUE - LITROS)
60 (227,1)
VOLTAGE/
AMPS/PHASE
PRESSURE
(TENSION/
(PRESSION
AMPS/PHASE)
D'OUVERTURE)
(VOLTAJE
(PRESION DE
AMP/FASE)
CONEXION)
240/15/1
200-2540
Revision A
KICK-IN
KICK-OUT
PRESSURE
(PRESSION DE
FERM.)
(PRESION DE
DESCONEXION)
125
155
(8,62 bar)
(10,69 bar)
1-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200-2540 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powermate 200-2540

  • Page 1 Parts Manual 200-2540 Manuel de pièces Revision A Manual de piezas Single Stage, Belt Drive, Electric Air Compressors D’une seule étape, actionnement pour courroie, compresseur d’air électrique De una sola etapa, accionamiento por correa, compresor de aire eléctrico Specification Chart________Tableau des spécifications_______Cuadro de especificaciones TANK CAPACITY VOLTAGE/ KICK-IN...
  • Page 2 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 85-90 lb-in. Serrez de 85 À 90 lbs-in. Torsión hasta 9,6-10,2 N•m Note: Tighten compression nut handtight plus 1 full turn. Note: Serrez l'écrou de compactage solide plus 1 plein tour.
  • Page 3 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS Item Part No Qté Núm / P Cant Description Description Descripción 125-0151 Beltguard (outer).........Garant ..........Protector 061-0114 Plastite screw........Vis ...........Tornillo Bolt, 5/16-18 x 1/2.......Boulon ..........Perno 125-0152 Beltguard (inner) .........Garant ..........Protector Setscrew ..........Vis d’arrêt ........Tornillo fajador 146-0016 Key............Clé...........Chaveta...
  • Page 4 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: 755H Pump Torque to 25-27 lb-ft. Assembly Serrez de 25 À 27 lbs-ft. Torsión hasta 33,9-36,6 N•m Torque to 14-16 lb-ft. Serrez de 14 À 16 lbs-ft. Torsión hasta 19,0-21,7 N•m Torque to 9-12 lb-ft.
  • Page 5 PARTS LIST / LISTE DE PIÈCES / LISTA DE LAS PIEZAS 755H Pump Assy -- Ensemble du pompe -- Conjunto de bomba Item Part No Qté Núm / P Cant Description Description Descripción Screw, M4 x 8 ........Vis ...........Tornillo Lock washer, M4.........Rondelle ..........Arandela 042-0112 Inlet cover ...........Couvercle ........Tapa 118-0032...
  • Page 6 PARTS DRAWING / DESSIN DES PIÈCES / ESQUEMA DE LA PIEZAS NOTES: Torque to 17-24 lb-in. Serrez de 17 À 24 lbs-in. Torsión hasta 1,9-2,7 N•m Torque to 125-150 lb-in. Serrez de 125 À 150 lbs-in. Torsión hasta 14,1-17,0 N•m Note: Tighten compression nut handtight plus 1 full turn.
  • Page 7 Centro de Servicio o el Servicio al Cliente. Se requiere la prueba de compra para todas las Product Service transacciones y puede requerirse una copia de su Powermate Corporation recibo de venta. 4970 Airport Road Kearney, NE 68848 EE.UU.
  • Page 8 Made in USA with domestic and foreign components Fabriqué aux États – Unis à l’aide de composants de l’intérieur et de l’étranger Hecho en EE.UU.con componentes domésticos y extranjeros Powermate Corporation, Aurora, IL 60504 ©2005 Powermate Corporation All Rights Reserved. Tous droits réservés. Reservados todos los derechos.
