Page 1

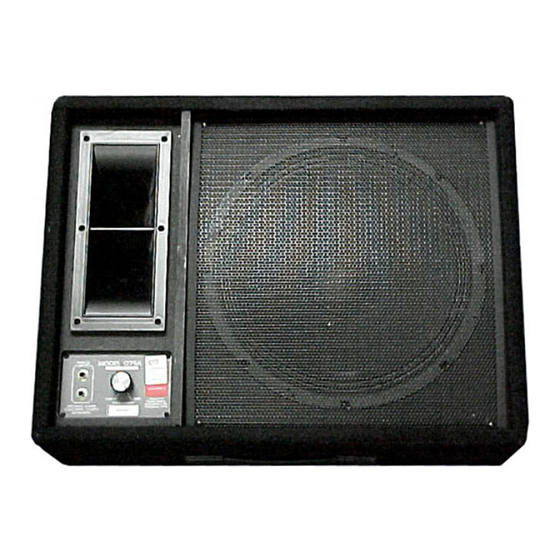

1272X / 1275X Loudspeaker Monitor Systems Reference / Owner’s Manual for 1272X /1275X P/N 053996 REV A...
Page 2
7975 North Hayden Road, Scottsdale, Arizona 85258 U.S.A. A Message from the Chairman At Fender, we know the importance of sound reinforcement. From the simple box-top powered mixer to today’s touring concert systems, the need to communicate to make the connection between the performer and the audience is foremost in our mind.
Page 3
SYSTEMS SYSTEMS Thank you for your purchase of a 1272X / 1275X loudspeaker monitor system from Fender We are sure you will find it both a unique and effective sound reinforcement product, providing years of trouble-free service day in and day out.
Page 4
Higher impedance speakers will draw less power from the amplifier than lower impedance speakers will draw. At Fender ® , we recommend connecting multiple speakers in parallel for several reasons. First, if one speaker fails, the others will continue to operate.
1272X /1275X SPEAKER CONNECTIONS The 1/4" jacks are wired in parallel allowing any one of the jacks to be used as an input and the other as an output. This allows "daisy chaining" of multiple loudspeakers, eliminating the need for several long, cumbersome runs of speaker cable.
