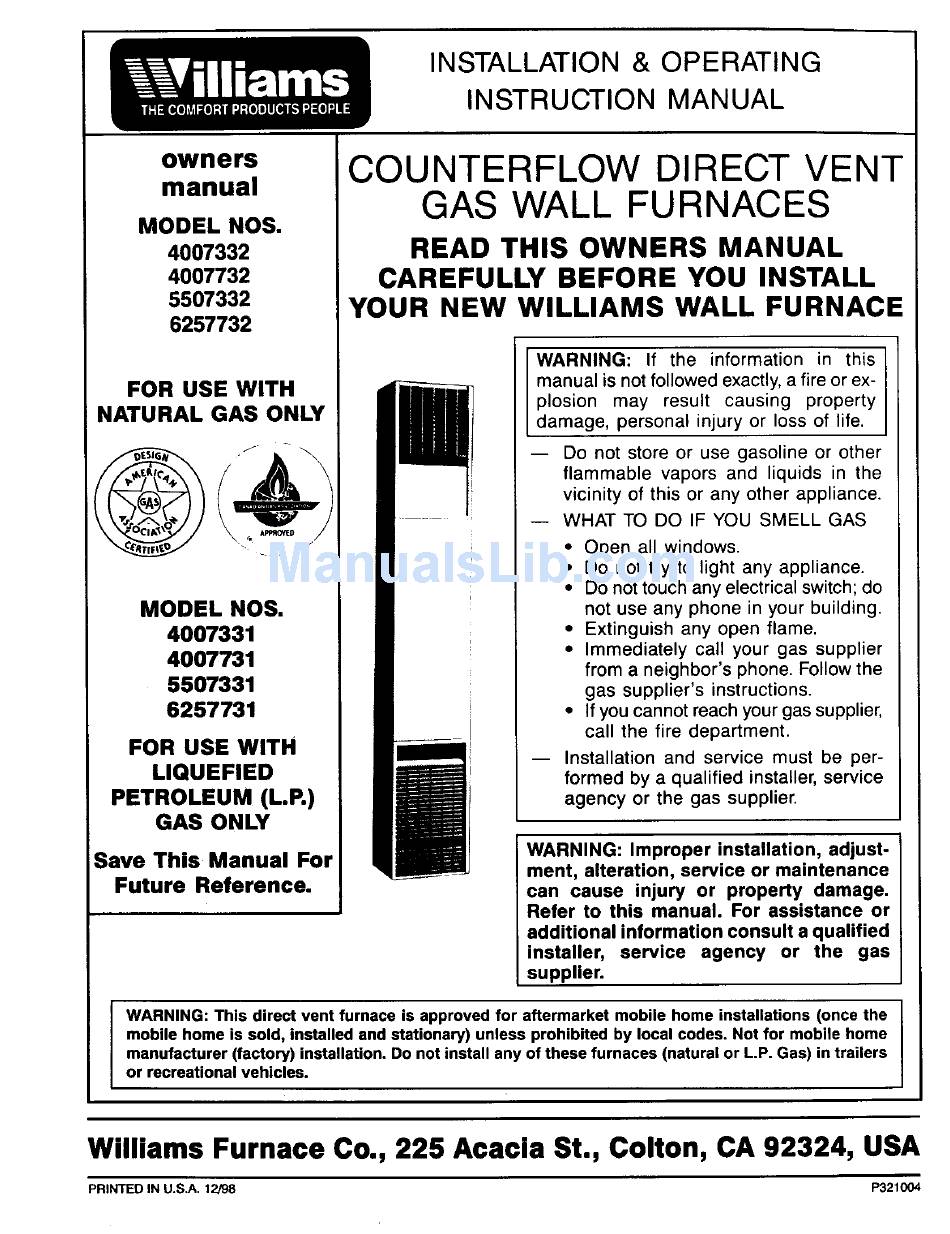

INSTALLATION & OPERATING
INSTRUCTION
MANUAL
owners
manual
MODEL
NOS.
4007332
4007732
5507332
6257732
FOR USE WITH
NATURAL
GAS ONLY
MODEL
NOS.
4007331
4007731
5507331
6257731
FOR USE WITH
LIQUEFIED
PETROLEUM
(L.P.)
GAS ONLY
Save This Manual
For
Future
Reference.
COUNTERFLOW
DIRECT VENT
GAS WALL FURNACES
READ THIS
OWNERS
MANUAL
CAREFULLY
BEFORE
YOU INSTALL
YOUR NEW WILLIAMS
WALL FURNACE
WARNING:
If the
information
in this
manual is not followed exactly, a fire or ex-
plosion
may
result
causing
property
damage,
personal
injury or loss of life.
--
Do not store or use gasoline
or other
flammable
vapors
and liquids
in the
vicinity
of this or any other appliance.
WHAT TO DO IF YOU SMELL
GAS
• Open all windows.
• Do not try to light any appliance.
• Do not touch any electrical switch; do
not use any phone in your building.
• Extinguish
any open flame.
• Immediately
call your gas supplier
from a neighbor's
phone. Follow the
gas supplier's
instructions.
• If you cannot reach your gas supplier,
call the fire department.
Installation
and service
must be per-
formed
by a qualified
installer, service
agency
or the gas supplier.
WARNING:
Improper
installation,
adjust-
ment, alteration,
service
or maintenance
can
cause
injury
or property
damage.
Refer to this manual.
For assistance
or
additional
information
consult a qualified
installer,
service
agency
or
the
gas
supplier.
WARNING: This direct vent furnace is approved for aftermarket mobile home installations
(once the
mobile home is sold, installed and stationary) unless prohibited by local codes. Not for mobile home
manufacturer
(factory) installation. Do not install any of these furnaces (natural or L.P. Gas) in trailers
or recreational vehicles.
Williams Furnace Co., 225 Acacia St., Colton, CA 92324, USA
PRINTED IN U.S.A. 12/98
P321004
