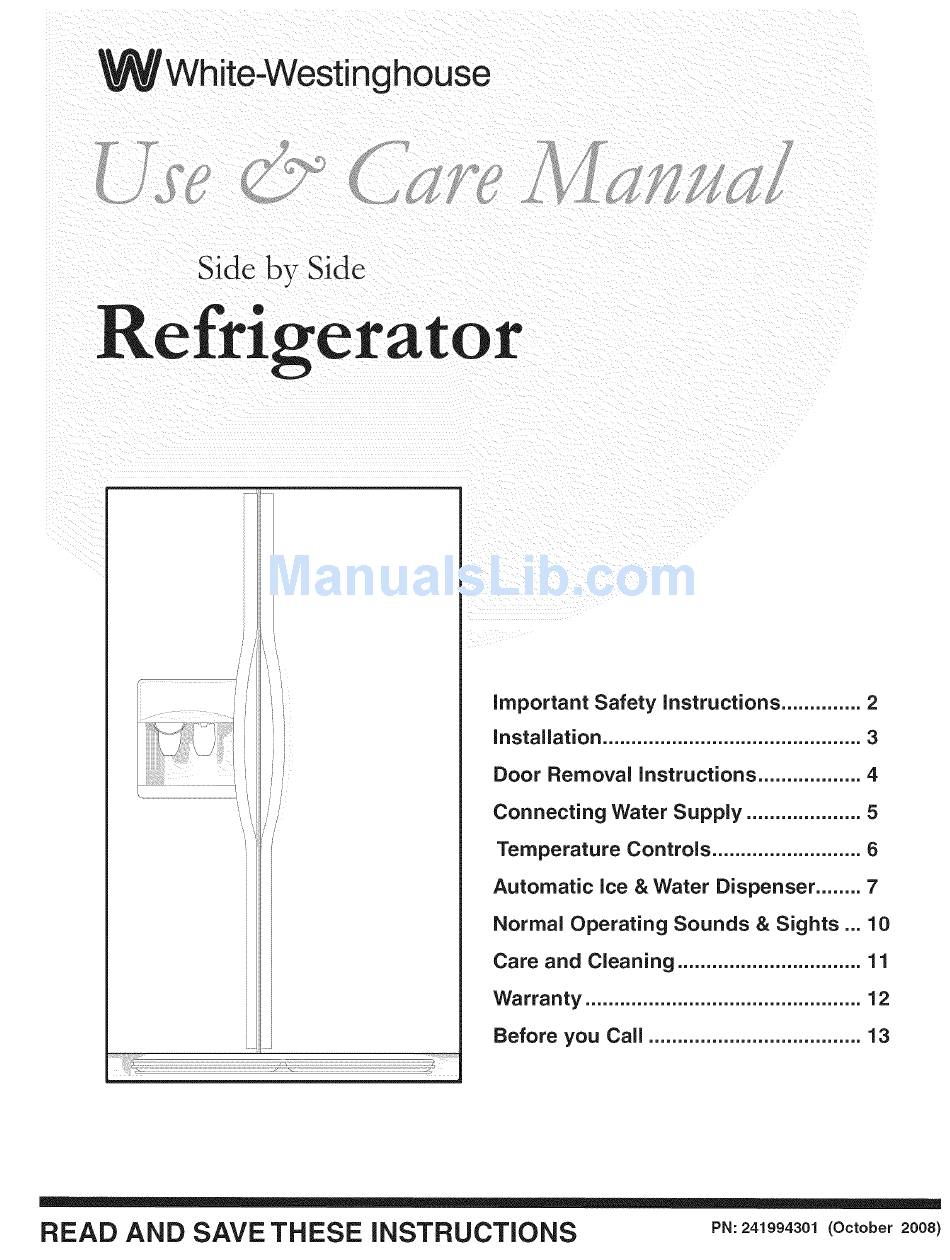

- Page 1 White-Westinghouse Side by Side Refrigerator Important Safety Instructions ....2 Installation ..........Door Removal Instructions ....Connecting Water Supply ....Temperature Controls ......Automatic Ice & Water Dispenser ..7 Normal Operating Sounds & Sights ... 10 Care and Cleaning ........
- Page 2 PROPER DISPOSAL OFYOUR REFRIGERATOR OR iMPORTANT SAFETY iNSTRUCTiONS FREEZER Safety Precautions Do not attempt to install or operate your unit until you have read Risk of child entrapment the safety precautions in this manual. Safety items throughout this manual are labeled with a Danger, Warning or Caution Child entrapment and suffocation based on the risk type.
- Page 3 Guidelines for final positioning of your refrigerator: • All four corners of the cabinet must rest firmly on the floor. The cabinet should be level at the front and rear. The sides should tilt ¼-inch (6 ram) from front to back (to ensure that doors close and seal properly).
- Page 4 Tools Necessary: 3/8" Adjustable Fixed Wrench Wrench Phillips "_hea_ Flat Head Screw Driver DOOR REMOVAL INSTRUCTIONS: If it is necessary to move the refrigerator through narrow doorways, follow these steps to remove the doors. Before you start: 1 Make sure the electrical power cord is unplugged from the wall outlet. 2 Remove any food from the door shelves.
- Page 5 To Connect Water Supply Line To Ice Maker Inlet Valve WARNING Disconnect refrigerator from electric power source. To avoid electric shock, which can cause death or Place end of water supply line into sink or bucket. Turn ON severe personal injury, disconnect the refrigerator from water supply and flush supply line until water is clear.
- Page 6 COOL DOWN PERIOD Toensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food. REFRIGERATOR & FREEZER CONTROLS TEMPERATURE ADJUSTMENT • After 24 hours, adjust the controls as needed. Adjust temperatures gradually;...
- Page 7 HOW TO PRIME THE WATER SUPPLY SYSTEM Because of new plumbing connections, the first production of ice cubes may be discolored or have an odd flavor. Discard ice Your refrigerator's water supply system includes several tubing made during the first 24 hours. lines, a water filter, a water valve and a water tank.
- Page 8 iCE PRODUCTION: WHAT TO EXPECT How Much Ice Will a Side Mounted ice Maker Produce in 24 Hours? A side mounted ice maker will produce 4 to 4.5 pounds d ice every 24 hours, depending on usage conditions. Ice is produced at a rate of 8 cubes every 75 to 90 minutes.
- Page 9 the refrigerator. The dispenser system will also operate without PURESOURCE ICE AND WATER FILTER (SOME filtration (with filter cartridge removed). MODELS) To change filter: Order new filter cartridges through the dealer It is not necessary to turn the water supply off to change the filter. where you bought the refrigerator, contact the 1.
- Page 10 D. Automatic Ice Maker UNDERSTANDING THE SOUNDS YOU MAY HEAR If your refrigerator is equipped with an automatic ice Your new high-efficiency refrigerator may make unfamiliar maker, you will hear ice cubes falling into the ice bin. sounds. These are all normal sounds and soon will become familiar to you.
- Page 11 Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface. Do not wash any removable parts in a dishwasher.
- Page 12 Your appliance iscovered bya 90daylimited warranty. For 9 0days f rom your o riginal date ofpurchase, Electrolux will p ay costs, except as set forth below, associated with replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
- Page 13 1-800-944-9044 (United States) Visit our web site at www.frig idai re.corn 1-800-668-4606 (Canada) PROBLEM CAUSE CORRECTION RUNNING OF REFRIGERATOR • Freezer control is set to "OF" Set freezer control. See TEMPERATURE CONTROLS Compressor does not or "0". section. run. • Refrigerator is in defrost cycle.
- Page 14 CAUSE CORRECTION PROBLEM TEMPERATURES ARE TOO WARM Freezer/Fresh Food tern= Doors are opened too frequent- • Warm air enters the refrigerator whenever the door is perature is too warm. ly or too long. opened. Open the door less often. • See PROBLEM column OPENING/CLOSING Door is slightly open.
- Page 15 PROBLEM CAUSE CORRECTION AUTOMATIC ICE MAKER (CONTINUED) Ice maker is not making • Ice maker is producing less ice Side mounted ice maker should produce 4 to 4.5 pounds enough ice. than you expect. (approximately 4 quarts) of ice every 24 hours. A rear mounted ice maker should produce 3 to 4 pounds (ap- proximately 31/2quarts) of ice every 24 hours.
- Page 16 PROBLEM CAUSE CORRECTION WATER DISPENSER • Household water line valve is Dispenser will not dis= • Open household water line valve. See PROBLEM col- umn ICE MAKER IS NOT MAKING ANY ICE. pense water. not open. • Freezer door is not closed. •...
