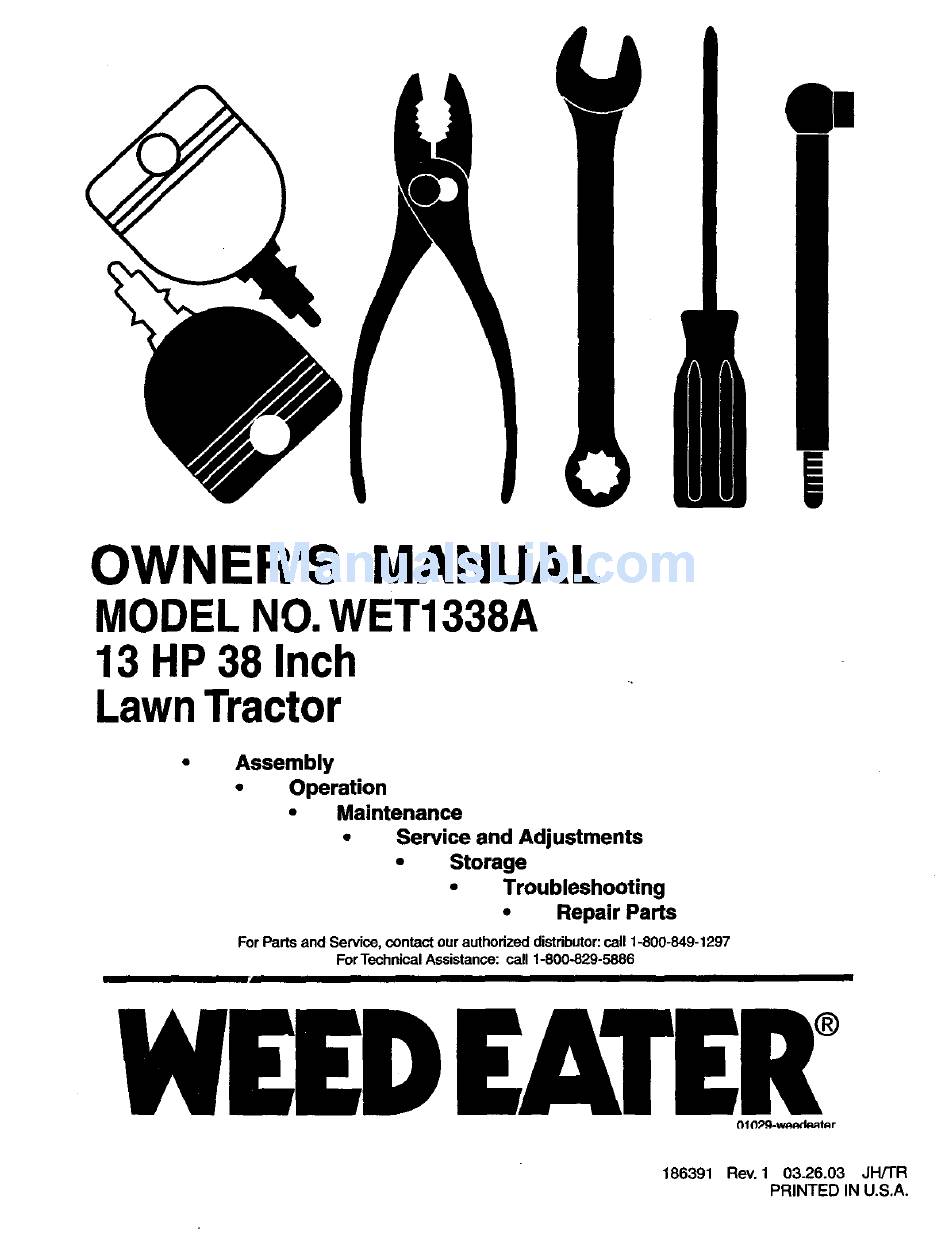

OWNER'S
MANUAL
MODEL NO, WET1338A
13 HP 38 Inch
LawnTractor
Assembly
•
Operation
•
Maintenance
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
Repair Parts
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
ForTechnical Assistance: call 1-800-829-5886
WIlD EAT[R
NIN:_l-w_d_tnr
186391
Rev. 1 03.26.03
JH/TR
PRINTED IN U.S.A.

Advertisement

loading

Related Manuals for Weed Eater WET1338A

Summary of Contents for Weed Eater WET1338A

  • Page 1 OWNER'S MANUAL MODEL NO, WET1338A 13 HP 38 Inch LawnTractor Assembly • Operation • Maintenance • Service and Adjustments • Storage • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor: call 1-800-849-1297 ForTechnical Assistance: call 1-800-829-5886 WIlD EAT[R NIN:_l-w_d_tnr 186391...
  • Page 2 SAFETY RULES Safe Operation Practices for Ride-On Mowers IMPORTANT: THIS CU'I-I'ING MACHINE IS CAPABLEOF AMPUTATING HANDSAND FEET ANDTHROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULTIN SERIOUS INJURY OR DEATH. • Avoid starting or stopping on a slope. If tires lose trac- I.
  • Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers & • Be sure the area is clear of other people before mowing. WARNING: In order to prevent ac- Stop machine if anyone enters the area. cidental starting when setting up, Never carry passengers or children even with the blades transporting, adjusting or making off.
  • Page 4 PRODUCT SPECIFICATIONS CONGRATUL._, TIONS on your purchase of a new tractor. Ithas been cleslgned, engineered and manufactu red to give 1.25 Gallons Gasoline Capacity you the best possible dependability and performance. and type: Unleaded Regular Should you experience any problem you cannot easily ram- Oil Type (API-SF-sj): SAE 30 (above 32°F) edy, pleasecontact your nearest authorized service center/...
  • Page 5 UNASSEMBLED PARTS Steering Wheel Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge (1) Lock Washer Steering Wheel Insert Steering Boot Steering (1) Bolt Extension Shaft Steering Wheel Adapter (1) Oil Drain Tube For Future Use Keys 2) Keys Slope Sheet (1) Locknut 1/2-20 (1) Large Flat Washer...
  • Page 6 ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 7 ASSEMBLY HOW TO SET UP YOUR TRACTOR (See Fig. 2) INSTALL SEAT SEATPAN Adjust seat before tightening adjustment bolt. LABEL Remove adjustment bolt, lock washer and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor. Pivotseat upward and remove from the cardboard pack- ing.
  • Page 8 ASSEMBLY CHECKTIRE PRESSURE ,/CHECKLIST The tires on your tractor were overinflated at the factory BEFORE YOU OPERATE AND ENJOY YOUR NEW TRAC- for shipping purposes. Correct tire pressure is important TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE for best cutting performance. BESTPERFORMANCEANDSAT/SFACTIONFROMTHIS QUALITY PRODUCT.
  • Page 9 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL HIGH CHOKE FAST SLOW IGNITION ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE LOCKED UNLOCKED...
  • Page 10 OPERATION KNOW YOU R TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. LIGHT SWITCH ATFACHMENT IGNITION POSITION...
  • Page 11 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while op- erating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
  • Page 12 OPERATi0N TO TRANSPORT TO OPERATE MOWER (See Fig. 6) • Raise attachment liftto highest positionwith attachment Yourtractor is equipped with an operator presence sensing lift control. switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will •...
  • Page 13 OPERATION MOWING TIPS CAUTION: Alcohol blended fuels (called gasohol or Tire chains cannot be used when the mower housing using ethanol or methanol) can attract moisture which is attached to tractor. leads to separation and formation of acids during stor- •...
  • Page 14 MAINTENANCE MAINTENANCE SCHEDULE __/_._ ,_/_/_,_'_/_n_/_ FILL IN DATES O_'/_-_O_b_- _0_/"_ "O_'_n'_O_'_O.O-_O_v REGO R SERV,CE Check Brake Operation Check Tire Pressure Check Operator Presence Interlock Systems IV @ Check for Loose Fasteners IV e Sharpen/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling...
  • Page 15 MAINTENANCE TRACTOR MANDREL TRAILING ASSEMBLY Always observe safety rules when performing any main- tenance. EDGE UP BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See "TO ADJUST BRAKE" in the Service and Adjustments section of this manual).
  • Page 16 MAINTENANCE BATFERY NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils Your tractor hasa battery charging system which issufficient will result in increased oil consumption when used above for normal use. However, periodic charging of the battery 32°F.
  • Page 17 MAINTENANCE CLEAN AIR SCREEN (See Fig. 13) FILTER Air screen must be kept free of dirt and chaff to prevent Your engine will not run properly using a dirty air filter. engine damage from overheating. Clean with a wire brush Remove cartridge every 25 hours of operation and tap to or compressed air to remove dirt and stubborn dried gum clean.
  • Page 18 L. _ MAINTENANCE MUFFLER Inspect and replace corroded muffler and spark attester CLAMP (if equipped) as it could create a fire hazard and/or dam- age. SPARK PLUGS CLAMP Replace spark plugs at the beginning of each mowing FUEL _J________ season or after every 100 hours of operation, whichever FILTER occurs first.
  • Page 19 SERVIC, E AND ADJUSTMENTS & WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST- MENTS: • Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. • Place attachment clutch in "DISENGAGED" position. •...
  • Page 20 'i" SERVICE AND ADJUSTMENTS When distance "D" is 1/8" to 112" lower at front than TO LEVEL MOWER HOUSING rear, tighten nuts "F" against trunnion on both front Adjust the mower while tractor is parked on level ground links. or driveway. Make sure tires are properly inflated (See To raise front of mower, loosen nut"P from trunnion on "PRODUCT SPECIFICATIONS"...
  • Page 21 SERVICE AND ADJUSTMENTS TO REPLACE MOTION DRIVE BELT (See Fig. 22) R,H. SUSPENSION Park the tractor on level surface. Engage parking brake. For assistance, there is a belt installation 'guide decal on ENGINE MANDREL bottom side of left footrest. PULLEY PULLEY BELT REMOVAL - Remove mower (See "TO REMOVE MOWER"...
  • Page 22 SERVICE AND ADJUSTMENTS TO REMOVE WHEEL REPAIRS (See Fig. 23) • Block up axle securely. • Remove axle cover, retaining ring and washers to allow wheel removal (rear wheel contains a square key - Do not lose). • Repair tire and reassemble. •...
  • Page 23 SERVICE AND ADJUSTMENTS ENGINE TO REPLACE HEADLIGHT BULB • Raise hood. ADJUST THROTTLE CONTROL CABLE • Pull bulb holder out of the hole in the backside of the (See Fig. 28) grill The throttle control has been preset at the factory and •...
  • Page 24 STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days FUEL SYSTEM or more. IMPORTANT: IT IS IMPORTANTTO PREVENT GUM DEPOSITS FROM FORMING IN ESSENTIAL FUELSYSTEM PARTS SUCH WARNING: Never store the tractor with AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK...
  • Page 25 TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. Engine not =CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter.
  • Page 26 TROUBLESHOOTING POINTS i CAUSE CORRECTION PROBLEM Check widng, switches and connecf_ons. If not Faulty operator-safety presence control system. Engine continues to run corrected, onntact an authorized service center/ when operator leaves department. seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade.
  • Page 27 TRACTOR - - MODEL NUMBER WET1338A SCHEMATIC BLACK BATTERY FUSE STARTER BLACK 'O'(3-i-,-- WHITE CLUTCH / BRAKE (PEDALUP) WI-IFi_ IGNITION SWITCH wHrnE ,..(NOT OCCUPIED) SEAT SWITCH II_I ..SU_CK (CLUTCH O_ GROUNDING CONNECTOR • (OPTIONAL) SPARK • UNIT L.J GAP IGNITION PLUG FUEL',...
  • Page 28 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A ELECTRICAL ll\l...
  • Page 29 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A ELECTRICAL PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20 Uric x 3/4 176689 Box Battery 176138 Switch Interlock 175685 Harness Asm Light W/4152j 4152J Bulb Light #1156 108423X Cable Battery 6 Ga 6"red 146147 Cable Battery 175158...
  • Page 30 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A CHASSIS chassis-pl.lL23...
  • Page 31 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A CHASSIS PART DESCRIPTION 174620 Chassis 176554 Drawbar, Stretch 17060612 Screw 3/8-16 x 3/4 155272 Bumper, Hood/Dash 174643X013 Saddle Silkscreen 155138 Clip Retainer Slide-On 168347X011 Dash 72140608 Bolt, Carriage 3/8-16 x 1 174996 Panel Dash LH 145660 Clip Tinnerman Grille RL 172105X010...
  • Page 32 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A DRIVE 38._ 5230 _477 _" j_151 ._._" <t drive-saddle_24...
  • Page 33 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A DRIVE PART DESCRIPTION PART DESCRIPTION Transaxle 123205X Retainer Belt Style Spring Peerless Model 205-544C 72110612 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5 (Order parts from transaxle manu- 73680600 Nut Crownlock 3/8-16 Unc facturer) 73680500 Nut Crownleck 5/16-18 Unc...
  • Page 34 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A STEERING t_12 ; ..1..+, ',-------- I •...
  • Page 35 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A STEERING PART DESCRIPTION 140044X428 Wheel Steering 175131 Axle Asm 169840 Spindle Asm LH 169839 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga 19272016 Washer 27/32 x 1-1/4 x 16 Ga 12000029 Ring Klip #t5304-75 3366R...
  • Page 36 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A ENGINE I OPTIONAL EQUIPMENT Spark Arrester engine-tecumseh 2...
  • Page 37 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A ENGINE PART DESCRIPTION 170864 Control Th/ch Flag Screw Hex Thd Cut 1/4-20 x 1/2 17720408 Engine Tec OHV135 (Order parts from engine manufacturer) Muffler Exhaust 156700 ..Gasket Eng (Order parts from engine manufacturer) 148456 Tube Drain Oil Easy Washer Lock Ext Tooth 3/8...
  • Page 38 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A SEAT seat_lt.bolt_l PART PART DESCRIPTION DESCRIPTION 127426X Seat 72050412 Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 140551 Bracket Seat Pivot 134300 Spacer Split .28 x .96 71110616 Bolt Hex 3/8 - 16 x I 121250X Spring Cprsn 19131610...
  • Page 39 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A DECALS PART PART DESCRIPTION DESCRIPTION 181249 Decal, Clutch/Brake Eng 164578 Decal, Hood RH 162392 Decal, Grille 164579 Decal, Hood LH 64-1726-29 Decal, Engine HP 145005 Decal, Caution, Battery 164424 Decal, Side Panel 156867 Decal, Oper Sdl P/L 157002 Decal, Fender Danger English...
  • Page 40 REPAIR PARTS TRACTOR -- MODEL NUMBER WET1338A MOWER LIFT .t,_O 161718 13 -----_ lift-rh.lpiece_3...
  • Page 41 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A MOWER LIFT PART DESCRIPTION 159460 Wire Asm Inner/Sprg w/plunger 159471 Shaft Asm Lift RH 105767X Pin Groove 1 500 Zinc 12000002 E Ring #5133-62 19211621 Washer 21/32 x 1 x 21 Ga 120183X Bearing Nylon BIk 629 Id 109413X...
  • Page 42 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A MOWER DECK I _148...
  • Page 43 REPAIR PARTS TRACTOR - - MODEL NUMBER WET1338A MOWER DECK PART PART DESCRIPTION DESCRIPTION 170280 Mower Housing Assembly 178515 Washer, Hardened 72140506 Bolt Carriage 5/16-18 x 3/4 133840 Idler Arm Assembly 138017 Bracket Asm Ft. Sway Bar 165723 Spacer, Retainer 169970 Bracket Deck Sway Bar 38"/42 _ 106932X...
  • Page 44 SERVICE NOTES...
  • Page 45 LIMITED WARRANTY The Manufacturer warrantsto the original c onsumerpurchaserthat this productas manufactured is free fromdefectsin materi- als and workmanship. F ora periodoftwo (2) years from date of purchaseby the originalconsumerpurchaser, w e willrepairor replace,at ouroption,withoutchargefor parts or labor incurred in replacingparts,any pert whichwe findto be defectivedue to materialsor workmanship.
  • Page 46 POLICY SERVICE ECUMSE_ WARRANTY Issued January 1980 Revised January 1991 LIMITED WARRANTIES NEW PEERLESS GEAR POWER TRAIN COMPONENTS A. Products Warranted Peerless Gear and Machine Division of Tecumseh Products Company ("Tecumseh'), subject to the limitations contained below, will at its option, repair or replace, without charge for parts or labor only, any port of a new Power Train Component (which as used heroin means and includes the transaxle, gear box, transmission, differontial and right angle drives, and any part of the Power Train Component), EXCEPT any new Power Train Component incorporated in equipment, used for commercial or rental purposes, which is found upon examination by any Tecumseh Authodzed Service Outlet or by Tecumseh s factory in Grafton, Wisconsin, to be DEFECTIVE...
  • Page 47 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION NOT ACROSS HILL 15 DEGREES MAX. WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees. Make turns gradually to prevent tipping or loss of control.
