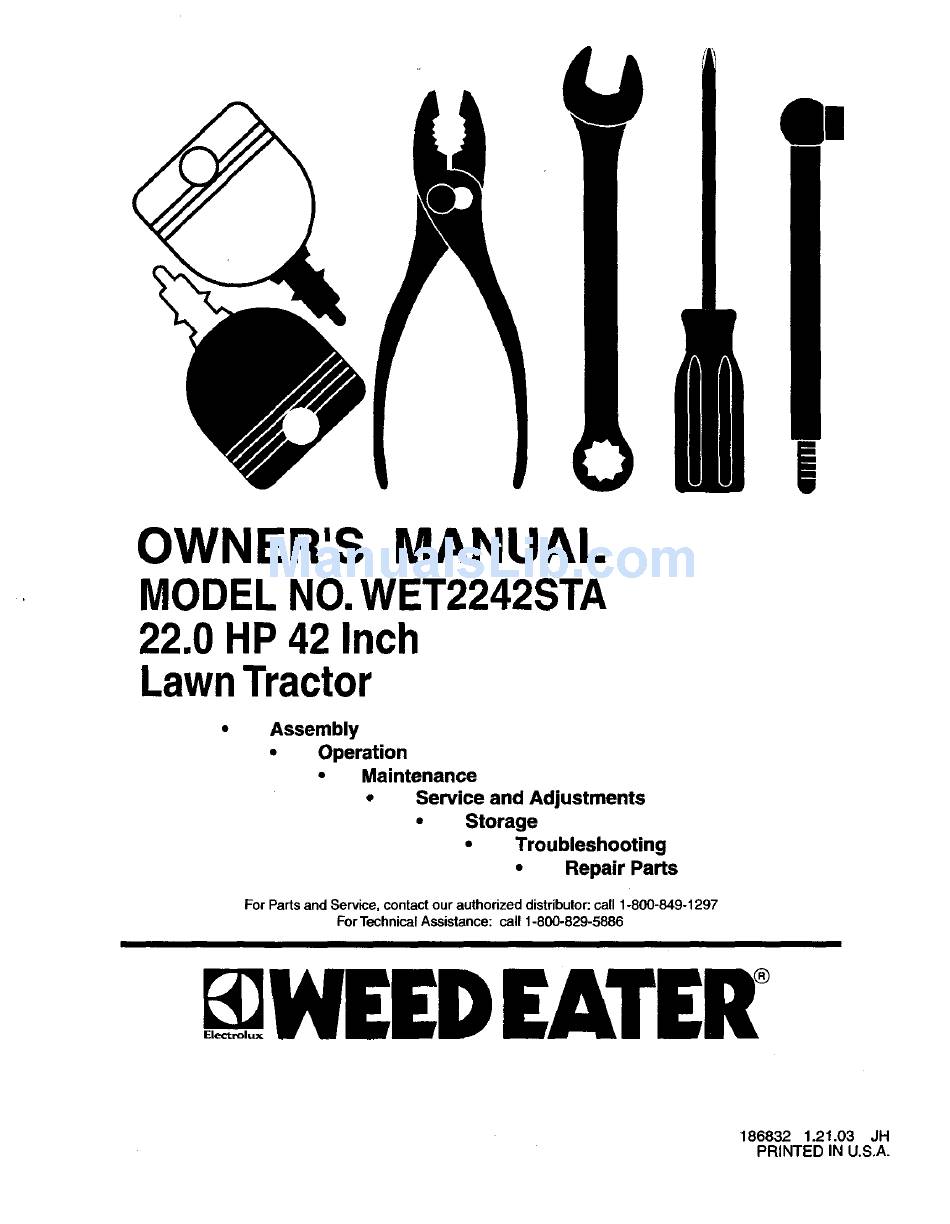

OWNER'S MANUAL MODEL NO.WET2242STA 22.0 HP 42 Inch LawnTractor Assembly • Operation • Maintenance Service and Adjustments • Storage • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886 WEEDEATER 186832 1.2t.03 PRINTED IN U.S.A.
Page 2
SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS IMPORTANT: THIS CUTI'ING MACHINE IS CAPABLEOF AMPUTATINGHANDS AND FEET ANDTHROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DE.ATH. OPERATION I. GENERAL • Avoid starting or stopping on a slope. If tires lose trac- tion, disengage the blades and proceed slowly straight •...
Page 3
SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS Be sure the area is clear of other people before mowing. Stop WARNING: In order to prevent ac- machine if anyone enters the area. cidental starting when setting Never carry passengers or children even with the blades transporting, adjusting or making re- off.
Page 4
PRODUCT SPECIFICATIONS _NGRAT!JLATIONS on your purchase of a new tractor. Ithas been designed, engineered and manufactured to give you the best possible dependability and performance. GASOLINE CAPACITY 2.0 GALLONS Should you experience any problem you cannot easily rem- AND TYPE: UNLEADED REGULAR edy, please contact your nearest authorized service center/...
Page 5
CONTENTS OF HARDWARE PACK Steering Wheel Seat ============= Steering Boot (1) Washer 17/32 x 1-3/16 x 12 Gauge Steering Wheel Extension Insert Steering (1) Bolt Steering Wheel Adapter Locknut (1) Locknut 1/2-20 Keys Slope Sheet ® (1) Large Flat Was (1) Large Flat Washer (1) Locknut 1/4-28 (1) Hex Bolt 1/4-28 x 1-1/4...
Page 6
ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
Page 7
ASSEMBLY HOWTO SET UPYOURTRACTOR SEAT PAN (See Fig. 2) INSTALL SEAT Adjust seat before tightening adjustment bolt. LABEL • Remove adjustment bolt, lock washer and flat washer securing seat to cardboard packing and set aside for assembly of seat to tractor. •...
Page 8
ASSEMBLY CHECK TIRE PRESSURE ,/'CHECKLIST The tires on your tractor were overinflated at the factory BEFORE YOU OPERATE AND ENJOYYOUR NEW TRAC- for shipping purposes. Correct tire pressure is important TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE for best cutting performance. BESTPERFORMANCEAND SATISFACTION FROM THIS •...
Page 9
OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their mean- ing. I'.,I "_ _,-_ REVERSE NEUTRAL HIGH CHOKE FAST SLOW IGNITION ENGINE LIGHTS ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE...
Page 10
OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference. IGNITION ATTACHMENT SWITCH CLUTCH LEVER THROTrL_...
Page 11
OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
Page 12
OPERATION TO TRANSPORT (See Fig. 6) TO OPERATE MOWER • Raise attachment liftto highest positionwith attachment Yourtractor isequipped with an operator presence sensing lift control. switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will •...
Page 13
OPERATION MOWING TIPS CAUTION: Alcohol blended fuels (called • Mower should be properly leveled for best mowing per- gasohol or using ethanol or methanol) can ato formance. See "TO LEVEL MOWER HOUSING" in the tract moisture which leads to separation and Service and Adjustments section of this manual.
Page 14
MAINTENANCE F,LL,. REGULAR SERVICE VICE DATES cC _ee_C: B::p rOesP:r:: iOn _V p Check Operator Presence and Interlock Systems Check for Loose Fasteners Sharpen/Replace Mower Blades Lubrication Chart Check BatteryLevel Clean Battery and Terminals Check Transaxle Cooling Check V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) l'/_ Change Engine Oil (without oil filter)
Page 15
MAINTENANCE TRACTOR TRAILING MANDREL EDGE UP BLADE ASSEMBLY Always observe safety rules when performing any main- tenance. CENTER HOLE BRAKE OPERATION If tractor requires more than six (6) feet stopping distance LOCK WASHER at high speed in highest gear, then brake must be adjusted. STAR (See "TO ADJUST BRAKE"...
Page 16
MAINTENANCE TO CLEAN BA'I-FERY AND TERMINALS OIL DRAIN VALVE Corrosion and dirt on the battery and terminals can cause the battery to "leak" power. CLOSED • Disconnect BLACK battery cable first then RED bat- tery cable and remove battery from tractor. LOCKED POSITION •...
Page 17
MAINTENANCE MUFFLER Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or dam- age. SPARK PLUGS Replace spark plugs at the beginning of each mowing sea- son or after every 100 hours of use, whichever comes first. Spark plug type and gap setting is shown in "PRODUCT SPECIFICATIONS"...
Page 18
SERVICE AND ADJUSTMENTS MENTS: WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUST- Depress clutch/brake pedal fully and set parking brake. Place gearshift lever in neutral (N) position. Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. •...
Page 19
SERVICE AND ADJUSTMENTS When distance "D" is 1/8" to 1/2" lower at front than TO LEVEL MOWER HOUSING rear, tighten nuts "F" against trunnion on both front Adjust the mower while tractor is parked on level ground links. or driveway. Make sure tires are properly inflated (See To raise front of mower, loosen nut"F"...
Page 20
SERVICE AND ADJUSTMENTS IDLER PULLEYS WITH PARKINGBRAKE "ENGAGED" MANDRELPULLEYS FIG. 18 TO CHECK AND ADJUST BRAKE (See Fig. FIG. 19 Your tractor is equipped with an adjustable brake system TO REPLACE MOTION DRIVE BELT which is mounted on the right side of the transaxle. (See Fig.
Page 21
SERVICE AND ADJUSTMENTS ADJUST STEERING WHEEL ALIGN- ENGINE----..L VENT If steering wheel crossbars are not horizontal (left to right) when wheels are positionedstraightforward, remove steer- ing wheel and reassemble per instructions in the Assembly section of this manual. STATIONARY • FRONT WHEEL TOE-IN/CAMBER "...
Page 22
SERVICE AND ADJUSTMENTS First connect RED battery cable to positive (+) terminal TO START ENGINE WITH A WEAK BA]-I'ERY with hex bolt and keps nut as shown.Tighten securely, (See Fig. 23) Slide terminal cover over terminal. & Connect BLACK grounding cable to negative (-) ter- WARNING: Lead-acid batteries gen-...
Page 23
SERVICE AND ADJUSTMENTS ENGINE TO ADJUSTTHRO'I-FLE CONTROL CABLE The throttle control has been preset at the factory and adjustment should not be necessary. If adjustment is nec- essary, see engine manual. TO ADJUST CHOKE CONTROL The choke control has been preset at the factory and ad- justment should not be necessary.
Page 24
STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days FUEL SYSTEM or more. IMPORTANT:IT ISIMPORTANTTOPREVENTGUM DEPOSITS WARNING: Never store the tractor with FROMFORMING IN ESSENTIALFUELSYSTEM PARTSSUCH AS CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK gasoline in the tank inside a building DURING STORAGE.
Page 25
TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Engine flooded. Wait several minutes before attempting to start. Bud spark plug. Replace spark plug. Dirty air filter.
Page 26
TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Engine continues to run Faulty operator-safety presence control system. Check wiring, switches and connectfons. If not when operator leaves seat corrected, contact an authorized service center/ with attachment clutch department. engaged Poorcut-uneven Worn, bent or loose blade. Replace blade.
Page 28
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA ELECTRICAL...
Page 29
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA ELECTRICAL PART DESCRIPTION 163465 Battery 12 Volt 25 Amp 74760412 Bolt Hex Hd 1/4-20unc X 3/4 176689 Box Battery 176138 Switch Interlock Push -In 175685 Harness Asm Light W/4152J 4152J Bulb Light #1156 4799J Cable Battery 6 Ga 11"red 146147...
Page 30
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA CHASSIS AND ENCLOSURES...
Page 31
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA CHASSIS AND ENCLOSURES PART DESCRIPTION 174619 Chassis 176554 Drawbar Screw 3/8-16x.75 17060612 155272 Bumper Hood/Dash 168336X010 Dash P/L 72140608 Bolt Carriage 3/8-16 x 1 Panel Dash Lh 174996 145660 Clip Tinnerman 172105 Panel Dash Rh 17490608 Screw Thdrol 3/8-16 x 1-1/4...
Page 32
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA DRIVE " '_69...
Page 33
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle Peerless (206-545C) 175410 Engine Pulley Bolt Hex (Order parts from transaxle manu- 71170764 facturer) 10040700 Washer Lock Hvy Hlcl Spr 7/16 146682 Spring Return Brake T/a Zinc 154778 Keeper Belt Engine Foolproof Screw Hex wsh HiLo 1/4 x 1/2 unc...
Page 34
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA STEERING ASSEMBLY _-_4,...
Page 35
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA STEERING ASSEMBLY PART DESCRIPTION 140044X428 Wheel Steering Auto Black 175131 Axle Asm Front 169840 Spindle Asm Lh 169839 Spindle Asm Rh 6266H Bearing Race Thrust Harden 121748X Washer 25/32 X 1 5/8 X 16ga Washer 27/32 X 1 1/4 X 16 Ga 19272016 12000029...
Page 36
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA ENGINE I OPTIONAL EQUIPMENT Spark Arrester...
Page 37
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA ENGINE PART DESCRIPTION 170803 Control Throt/Ch Flag 17720408 Screw HexThd Cut 1/4-20xl/2 Engine Tec Model TVT691 (Order Parts From Engine Manufacturer) 149723 Muffler Exhaust Exhaust Tube LH 174703 174704 Exhaust Tube RH 171877 Bolt 5/16-18unc x 3/4 W/Sems 175563...
Page 38
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA SEAT ASSEMBLY '! ! PART PART DESCRIPTION DESCRIPTION 140116 Seat 72050412 Bolt Rdhd Sht Nk 114-20 x 1-1/2 140551 Bracket Pnt Pivot Seat (blk) 134300 Spacer Split 28 x 96Yel Zinc 71110616 Bolt 121250X Spring Cprsn 1 27 BIk Pnt...
Page 39
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA DECALS PART PART DESCRIPTION DESCRIPTION 156368 Decal Oper 162398 Decal Ins Strg Whl Decal Deck 181249 Decal Footrest 162391 164579 Decal Hood LH 160396 Decal V-Belt Schematic Decal Hood Rh 185409 Decal Replace 164578 Decal Bat Dan/Psn 64-1916-83...
Page 40
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA MOWER LIFT 11__ 161718 13---o_...
Page 41
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA MOWER LIFT PART DESCRIPTION 159460 Wire Asm Inner/Sprg w/Plunger 159471 Shaft Asm Lift 105767X Pin Groove 12000002 E Ring #5133-62 19211621 Washer 21/32 x I x 21 Ga. 120183X Bearing Nylon 109413X Grip Handle 124526X Button Plunger...
Page 42
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA MOWER DECK ,146 _47 142...
Page 43
REPAIR PARTS TRACTOR - - MODEL NUMBER WET2242STA MOWER DECK PART PART DESCRIPTION DESCRIPTION Retainer 165892 Mower Deck Assembly, 42" 4497H 72140506 Bolt 137729 Screw, Thdrol 1/4-20 x 5/8T 138017 Washer, Hardened Bracket Asm Fr. Sway Bar 3/42 133944 165460 Bracket Asm Deck 42"...
Page 45
LIMITED WARRANTY The Manufacturer w arrantsto the odginalconsumerpurchaserthat this productas manufactured is free fromdefectsin mated- als and workmanship. F ora periodof two (2) yearsfrom date of purchase by the originalconsumerpurchaser, w e willrepairor replace, at our option,withoutcharge for parts or labor incurredin replacingparts, any part whichwe findto be defectivedue to materialsor workmanship.
Page 46
SERVICE POLICY WARRANTY Issued January 1980 Revised January 1991 LIMITED WARRANTIES NEW PEERLESS GEAR POWERTRAIN COMPONENTS A. Products Warranted Peerless Gear and Machine Division of Tecumseh Products Company ("Tecumseh"), subject to the limitations contained below,will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train Component (which as used herein means and includes the transaxle, gear box, transmission, differential and right angle drives, and any part of the Power Train Compo- nent), EXCEPT any new Power Train Component incorporated in equipment used for commercial or rental purposes, which is found upon examination by any Tecumseh Authorized Service Outlet or by Tecumseh's factory in Grafton, Wisconsin, to be DEFECTIVE IN...
Page 47
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION "---. ..FOL ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. down the face of slopes, never across the face. Do not mow ARNING: To avoid'serious injury, operate your tractor up and slopes greater than 15 degrees.
