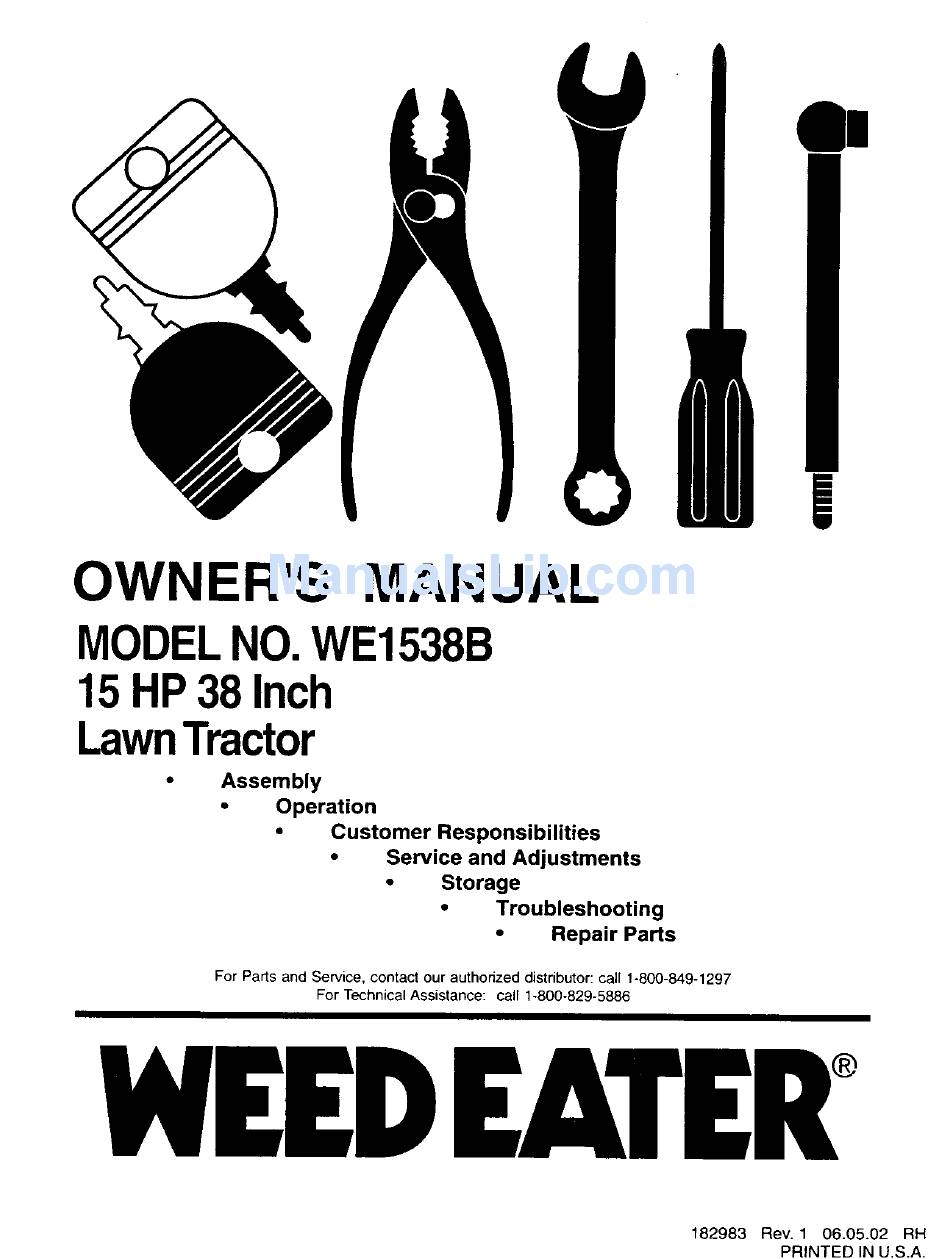

OWNER'S
MANUAL
MODELNO.WE1538B
15 HP38 Inch
Lawn Tractor
•
Assembly
•
Operation
Customer
Responsibilities
•
Service
and Adjustments
•
Storage
°
Troubleshooting
•
Repair
Parts
For Parts and Service, contact our authorized distributor: call 1o800-849-1297
For Technical Assistance:
call 1-800-829-5886
i
WIlD EATER
182983
Rev. 1 06.05.02
RH
PRINTED IN U.S.A.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Weed Eater WE1538B
Summary of Contents for Weed Eater WE1538B
- Page 1 OWNER'S MANUAL MODELNO.WE1538B 15 HP38 Inch Lawn Tractor • Assembly • Operation Customer Responsibilities • Service and Adjustments • Storage ° Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor: call 1o800-849-1297 For Technical Assistance: call 1-800-829-5886 WIlD EATER 182983 Rev.
- Page 2 SAFETY RULES SAFE OPERATION PRACTICES FOR RIDE-ON MOWERS ,_ IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. Avoid starting or stopping on a slope. If tires lose traction, I.
- Page 3 SAFETY RULES !Safe Operation Practices for Ride-On Mowers Look for this symbol to point out im- Be sure the area is clear of other people before mowing. portant safety precautions. It means Stop machine if anyone enters the area. CAUTIONlt! BECOMEALERT!!! YOUR SAFETY...
- Page 4 PRODUCT SPECIFICATIONS CONGRATULATIONS on yourpurchaseofanewtractor. has been designed, engineered and manufactured to give you the best possible dependability and performance. GASOLINE CAPACITY 1.25 GALLONS AND TYPE: UNLEADED REGULAR Should you experience any problem you cannot easily remedy, please contact your nearest authorized service OILTYPE (API-SF-SJ}: SAE 30 (above 32°F) center/department.
- Page 5 UNASSEMBLED PARTS Steering Wheel Seat (1) Washer 17/32 x 1-3/16 x 12 Gauge &:b (1) Lock Washer Steering Wheel Insert Steering Boot Steering Extension Shaft Steering Wheel Adapter (1) Oil Drain Tube For Future Use Keys llll Keys Slope Sheet (1) Locknut 1/2-20 (1) Large Flat Washer...
- Page 6 ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
- Page 7 ASSEMBLY (See Fig. 3) INSTALL SEAT TO ROLL TRACTOR OFF SKID (See Operation section, page 10, for location and function Adjust seat before tightening adjustment bolt. controls) Remove adjustment bolt, lock washer and fiat washer securing seat to cardboard packing and set aside for Press lift lever plunger and raise attachment lift lever to assembly of seat to tractor.
- Page 8 ASSEMBLY CHECK TIRE PRESSURE / CHECKL IS T The tires on your tractor were ovednflated at the factory for BEFORE YOU OPERA TEAND ENJOY YOUR NEW TRAC- shipping purposes. Correct tire pressure is important for TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE best cutting performance.
- Page 9 OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. I- ;I BATTERY CAUTION REVERSE FORWARD FAST SLOW WARNING ENGINE ON ENGINE OFF OIL PRESSURE LIGHTS ON OVER TEMP LIGHT FUEL CHOKE MOWER HEIGHT...
- Page 10 OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize you rself with the locations of various controls and adjustments. Save this manual for future reference. ATTACHMENT IGNITION CLUTCH SWITCH...
- Page 11 OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can resu It in severe eye damage. Always wear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend a wide vision safety mask over spectacles or standard safety glasses.
- Page 12 OPERATION TO TRANSPORT (See Fig. 6) TO OPERATE MOWER Raise attachment lift to highest position with attachment Your tractor is equipped with an operator presence sensing lift control. switch. Any attempt by the operator to leave the seat with the engine running and the attachment clutch engaged will When pushing or towing your tractor, be sure gearshift shut off the engine.
- Page 13 OPERATION MOWING TIPS CAUTION: Alcohol blended fuels (called & • Tire chains cannot be used when the mower housing is gasohol or using ethanol or methanol) attached to tractor. can attract moisture which leads to sepa- Mower should be properly leveled for best mowing ration and formation of acids during performance.
- Page 14 CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE FILL IN DATES AS YOU COMPLETE sERvicE DATES REGULAR SERVICE Check 8rake Operation Check Tire Pressure Check Operator Presence Interlock Systems Check for Loose Fasteners Lubrication Chart Check Battery Level Sharpen/Replace Mower Blades Clean Battery and Terminals Check Transaxle Cooling Check V-BelIs...
- Page 15 CUSTOMER RESPONSIBILITIES TRACTOR MANDREL TRAILING ASSEMBLY Always observe safety rules when performing any mainte- EDGE UP nance. CENTER BRAKE OPERATION HOLE If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be adjusted. (See'q'O ADJUST BRAKE"...
- Page 16 CUSTOMER RESPONSIBILITIES BATTERY NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils Your tractor has a battery charging system which is suffi- will result in increased oil consumption when used above cient for normal use. However, periodic charging of the 32°F.
- Page 17 CUSTOMER RESPONSIBILITIES CLEAN AIR SCREEN AIR FILTER (See Fig. 13) Air screen must be kept free of dirt and chaff to prevent Yourengine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or engine damage from overheating.
- Page 18 CUSTOMER RESPONSIBILITIES MUFFLER CLAMP Inspect and replace corroded muffler and spark arrester (if equipped) as it could create a fire hazard and/or damage. SPARK PLUGS CLAMP Replace spark plugs at the beginning of each mowing season or after every 100 hours of operation, whichever FUEL FILTER occurs first.
- Page 19 SERVICE AND ADJUSTMENTS WARNING: TO AVIOD SERIOUS INJURY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: Depress clutch/brake pedal fully and set parking brake. • Place gearshift lever in neutral (N) position. Place attachment clutch in "DISENGAGED" position. Turn ignition key to "STOP" and remove key. Make sure the blades and all moving parts have completely stopped.
- Page 20 SERVICE AND ADJUSTMENTS TO LEVEL MOWER HOUSING When distance "D" is 1/8" to 1/2" lower at front than rea r, tighten nuts "F" against trunnion on both front links. Adjust the mower while tractor is parked on level ground or To raise front of mower, loosen nut"F"...
- Page 21 SERVICE AND ADJUSTMENTS • Remove belt downward from around engine pulley. • Pull belt slack toward rear of tractor. Remove belt R,H. SUSPENSION ..upwards from transaxle pulley by deflecting belt keep- ers. MANDREL _-2" ENGINE • Remove belt from center span keeper and pull belt away from tractor.
- Page 22 SERVICE AND ADJUSTMENTS NOTE: To sealtire punctures and prevent flattires due to REPLACING BA'R'ERY (See Figs. 25 and 26) slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and corrosion. WASHERS AXLE COVER -...Q.
- Page 23 SERVICE AND ADJUSTMENTS ENGINE REPLACE HEADLIGHT BULB • Raise hood. TO ADJUST THROTTLE CONTROL CABLE Pull bulb holder out of the hole inthe backside of the grill. (See Fig. 28) Replace bulb in holder and push bulb holder securely The throttle control has been preset at the factory and back into the hole in the backside of the grill.
- Page 24 STORAGE Immediately prepare your tractor for storage at the end of the • If battery is removed from tractor for storage, do not season or if the tractor will not be used for 30 days or more. store battery directly on concrete or damp surfaces. ENGINE FUEL SYSTEM IMPORTANT:...
- Page 25 TROUBLESHOOTING POINTS CAUSE CORRECTION PROBLEM Will not start Out of fuel, Fill fuel tank. Engine not "CHOKED" properly. See "TO START ENGINE" in Operation section. Wait several minutes before attempting to start. Engine flooded. Bad spark plug. Replace spark plug. Clean/replace air filter.
- Page 26 TROUBLESHOOTING POINTS PROBLEM ! CAUSE CORRECTION Faulty operator-safety presence control system. Check wiring, switches and connections If not Engine continues to run corrected, contact an authorized service center/ when operator leaves seat with attachment depadment. clutch engaged poor cut - uneven Worn, bent or loose btade.
- Page 27 TRACTOR - - MODEL NUMBER WE1538B SCHEMATIC BATrERY FUSE STARTER AMMETER OPTIONAL) BLACK I© : C_-- WHITE SOLENOID CLUTCH / BRAK (PEDAL UP) A_ C WHITE IGNITION SWITCH J ..(NOT OCCUPIED) SEAT SWITCH BLACK _LAC_ GROUNDING CONNECTOR OPTIONAL) • SPARK PLUG BLACK...
- Page 28 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B ELECTRICAL...
- Page 29 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B ELECTRICAL PART DESCRIPTION 163465 Battery 74760412 Bolt Hex Hd 1/4-20unc X 3/4 176689 Box Battery 176138 Switch Interlock 166181 Harness Asm Light W/4152j 4152J Bulb Light #1156 4799J Cable Battery 6 Ga 11 "red 146147 Cable Battery 175158...
- Page 30 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B CHASSIS...
- Page 31 REPAIR PARTS TRACTOR -. - MODEL NUMBER WE1538B CHASSIS PART DESCRIPTION 174620 Chassis 176554 Drawbar, Stretch 17060612 Screw 3/8-16 x 3/4 155272 Bumper, Hood/Dash 174643X013 Saddle Silkscreen 155138 Clip Retainer Slide-On 168347X011 Dash 72140608 Bolt, Carriage 3/8-16 x 1 155927 Panel Dash LH 145660 Clip Tinnerman Grille P,L...
- Page 32 REPAIR PARTS DRIVE TRACTOR. _ MODEL NUMBER WE1538B _.I-63 52 30 - 250 _°...
- Page 33 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B DRIVE PART PART DESCRIPTION DESCRIPTION Transaxle 123205X Retainer Belt Style Spring Peerless Model 205-544C 74760624 Bolt Hex Hd 3/8-16unc X 1-1/2 (Order parts from transaxle 73680600 Nut Crownlock 3/8-16 Unc manufacturer) 73680500 Nut Crownlock 5/16-18 unc 146682 Spring Return Brake...
- Page 34 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B STEERING...
- Page 35 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B STEERING PART DESCRIPTION 140044X428 Wheel Steering Ayp/P/L BIk 175131 Axle Asm 169840 Spindle Asm LH 169839 Spindle Asm RH 6266H Bearing Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga 19272016 Washer 27/32 x 1-1/4 x 16 Ga 12000029...
- Page 36 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B ENGINE OPTIONAL EQUIPMENT Spark Arrester...
- Page 37 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B ENGINE PART DESCRIPTION 170551 Control Th/ch Flag 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 Engine, B&S 28U707 (Order parts from engine manufacturer) Muffler Exhaust B&S 137352 165291 Gasket Eng 1 313 Id Tin Plated 148315 Plug Drain Oil Easy 11050600...
- Page 38 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B SEAT ..< 26.\ _"_'_ ,.--j rc_15 ?-._ _?..,._. _13\< PART PART DESCRIPTION DESCRIPTION 127426X Seat 72050412 Bolt Rdhd Sht Nk 1/4 - 20 X 1 -1/2 140551 Bracket Seat Pivot 134300 Spacer Split .28 X .96 71110616 Bolt Hex 3/8 - 16 X 1 121250X...
- Page 39 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B DECALS PART PART DESCRIPTION DESCRIPTION 101892X 157163 Decal, Oper Sdl P/L Gear Dr Eng Decal, Clutch/Brake Eng/Fr 180888 136832 Decal, V-Belt Sch. Decal, Replacement 180972 138311 Decal, Handle Lft Height Adj. Decal, Engine HP 170563 182983 Manual, Operator's English...
- Page 40 REPAIR PARTS TRACTOR -- MODEL NUMBER WE1538B MOWER LIFT 161718...
- Page 41 REPAIR PARTS TRACTOR MODEL NUMBER WE1538B MOWER LIFT PART DESCRIPTION 15946O Wire Asm Inner/Sprg w/plunger 159471 Shaft Asm Lift RH 105767X Pin Groove 1 500 Zinc 12000002 E Ring #5133-62 19211621 Washer 21/32 X 1 X21 Ga 120183X Bearing Nylon BIk 629 Id 109413X Grip Handle Bicycle Matte BIk 124526X...
- Page 42 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B MOWER DECK 123,...
- Page 43 REPAIR PARTS TRACTOR - - MODEL NUMBER WE1538B MOWER DECK PART PART DESCRIPTION DESCRIPTION 170280 Mower Housing Assembly 165723 Spacer, Retainer Knob 72140506 Bolt Carriage 5/16-18 x 3/4 106932X 138017 Bracket Asm Fr. Sway Bar 144200 V-Belt, 42" Mower Pin, Cotter 3/32 x 3/4 169970 Bracket Deck Sway Bar 38"/42"...
- Page 44 SERVICE NOTES...
- Page 45 LIMITED WARRANTY The Manufacturer warrants to the originalconsumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any pad which we find to be defective due to materials or workmanship.
- Page 46 TECuMSEt4 TECUMSE_ WARRANTY Issued January 1980 Revised January 1991 LIMITED WARRANTIES PEERLESS GEAR POWER TRAIN COMPONENTS A. Products Warranted Peerless Gear and Machine Division of Tecumseh Products Company ("Tecumseh"), subject to the limitations contained below, will, at its option, repair or replace, without charge for parts or labor only, any part of a new Power Train...
- Page 47 SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION ONLY RIDE UP AND DOWN HILL, NOT ACROSS HILL 15 DEGREES MAX. & WARNING: To avoid serious injury, operate your tractor up and down the face of slopes, never across the face. Do not mow slopes greater than 15 degrees.
- Page 48 WEEDEATER...
