VIORE BDP1000 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

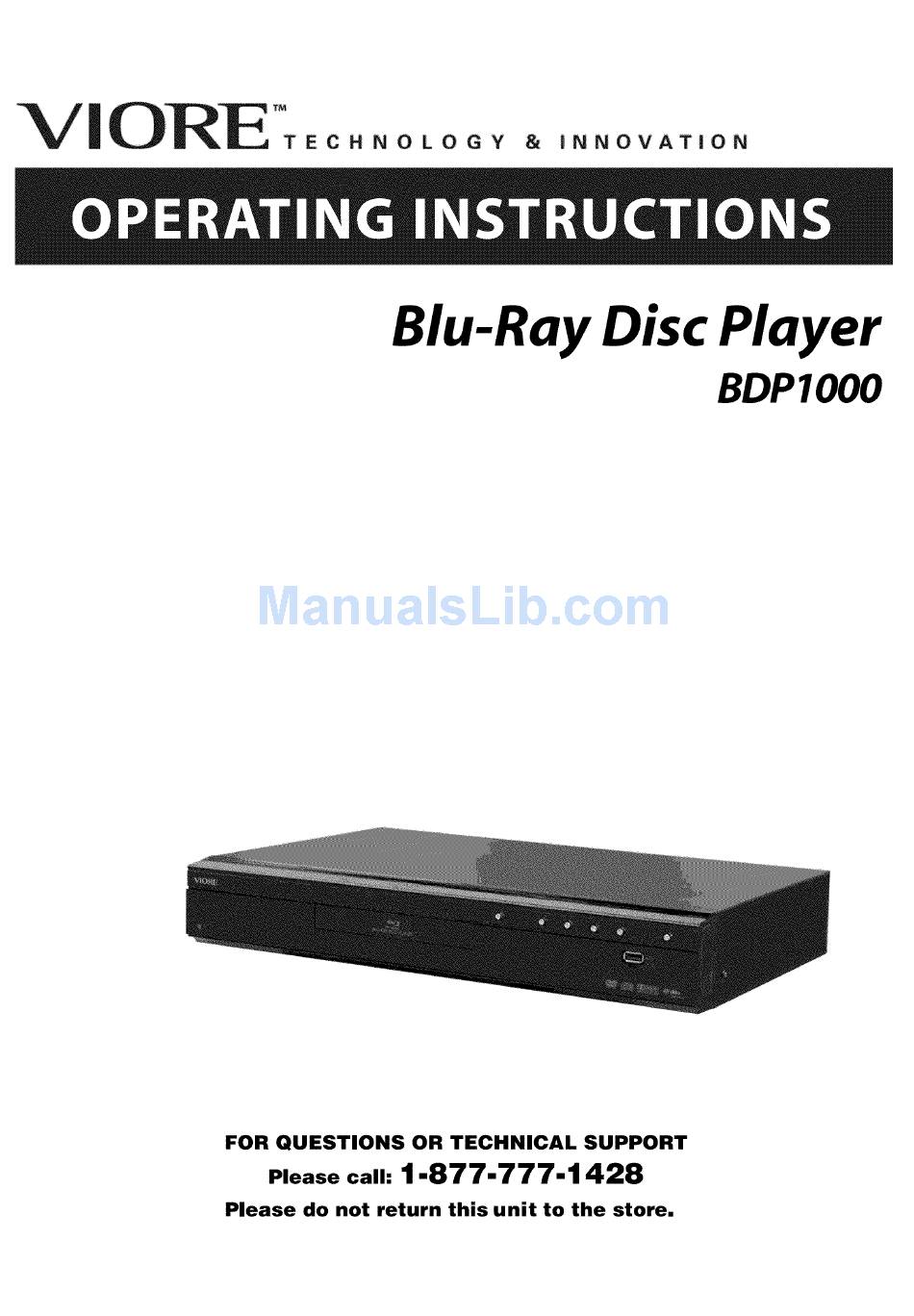

Blu-Ray Disc Player
BDPIO00
FOR QUESTIONS
OR TECHNICAL
SUPPORT
Please
call:
1-877-777-1428
Please
do not return
this unit
to the store.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDP1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for VIORE BDP1000

  • Page 1 Blu-Ray Disc Player BDPIO00 FOR QUESTIONS OR TECHNICAL SUPPORT 1-877-777-1428 Please call: Please do not return this unit to the store.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION ..........................OVERVIEW ............................PLAYABLE DISK TYPES ........................FUNCTIONAL ........................FRONT PANEL ..........................Remote control ........................REAR PANEL CONNECTORS ....................... CONNECTING BD PLAYER ....................... CONNECTING THE POWER ........................ CONNECTING TO A TV ........................CONNECTING TO A HOME THEATRE SYSTEM ..................SETUP MENU .............................
  • Page 3 TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.
  • Page 4 The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. This product is covered by one or more of the following U.S. patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570...
  • Page 5 12) Useonlywiththecart,stand, tripod, b racket, ortablespecified b ythemanufacturer, orsoldwiththe apparatus. When a cartisused, u secaution w henmoving t hecart/apparatus combination toavoid injury fromtip-over. 13) Unplug thisapparatus during lightning s torms orwhenunused forlongperiods o ftime. 14) Refer a llservicing t oqualified s ervice personnel. Servicing i srequired w hen theapparatus hasbeen damaged i nanyway,suchas power-supply cordor plugisdamaged, liquid hasbeen spilled orobjects have fallenintotheapparatus theapparatus hasbeen exposed t orainor moisture, doesnotoperate normally, or hasbeen dropped.
  • Page 6 Disc Handling Precautions • This Blu-ray disc player supports discs that are compatible with DVD-RAM Standard Version 2.0. • Avoid touching the surface of a disc • Be careful not to leave fingerprints or scratches on the surface of the Disc. •...

  • Page 7: Introduction

    RNTRODUCT ON i .i OVERVIEW Your BD player has the capability of providing high-definition and cinema-like pictures. Soundtracks in more than one language are usually included on the disk, and subtitles in more languages are often included as well. i .2 PLAYABLE DiSK TYPES...
  • Page 8 For writeable CD disks • CD-R/-RW media recorded with UDF or ISO9660 format can be played back. • MP3 files must be written to the disk with a .mp3 (or .MP3) file extension in order to be recognized and played back properly •...

  • Page 9: Functional

    FUNCTIONAL OVERVIEW FRONT PANEL FRONT PANEL DISPLAY Displays the playing status, time, etc. (See next section) DISC TRAY Opens to accept a disc. OPEN/CLOSE BUTTON Opens and closes the disc tray. FAST FORWARDIREVERSEIPAUSEIPLAY BUTTONS Allow for control of playback from the front Panel POWER BUTTON When the Power Switch is turned on, TV is under the Standby mode,the indicator light is Blue.

  • Page 10: Remote Control

    CONTROL 1.Power Press the power button to turn the BD player on or off. 2.Open/close Press this button to open/close the disk tray. 3.Play Pause Pressing the pause button will pause audio and video playback. Pressing the play button will resume playback.
  • Page 11 12.Menu Navigation Keys These keys are used when navigating the menus on BD and DVDs. They are also used for navigating the setup menus for the BD player. 13.1NFO Display the information of the disk. 14.Numeric Keypad These buttons are used with the GOTO button to move to a specific track on an audio CD.
  • Page 12 21 .Slow When movie playback is paused, pressing this button will cause the video to play back at 1/2,1/4,1/8 speed 22 .Zoom Adjust picture size of DVD 23.Goto This button is used with the numeric keypad to jump to a specific track on an audio CD.

  • Page 13: Rear Panel Connectors

    REAR CONNECTORS PANEL Since the rear panel contains multiple video and multiple audio outputs, a brief description of the capabilities of each of the outputs is described below, in order to help you chose the appropriate outputs to connect to your television and, if present, your surround-sound receiver.
  • Page 14 2.3.3 Rear Panel Description Rear Panel Component Video out Connect these outputs to the component video inputs of the television, if the television does not have an HDMI input. Some televisions can accept digital video and audio signals via an HDMI (see item 7 below) connection. NOTE: The component video output has a maximum...

  • Page 15: Connecting The Bd Player

    CONNECTING THE BD PLAYER CONNECTING THE POWER Connect the AC power to the BD player by the power cord. CONNECTJNGTOATV HDMI->TV Component->TV Composite->TV S-video->TV CONNECTING TO A HOME THEATRE SYSTEM 3.3.1 Highest-fidelity Audio and Video Setup: Can only be achieved using HDMI.

  • Page 16: 4 Setupmenu

    4 SETUPMENU SETUP MENU OPERATION 4.1.1 Invoking the Setup Menu After the BD player has been turned on, enter the SETUP menu by pressing the ENTER key on the remote. The following screen will appear: As shown in the figure above, the Setup Menu screen is divided into three separate sections.

  • Page 17: Language Menucategory

    By pressing the up/down arrow keys (_._) on the remote and moving the highlighting, the setting for each option can be changed by pressing the Enter key (_'_2%_) once the desired choice is highlighted. The currently saved setting will be indicated by an orange ball, as shown in the figure above. In order to configure the BD player for proper audio and video output, press the up/down arrow keys (_-_) on the remote until one the following setup menu categories is highlighted: Language...

  • Page 18: Display Menu Category

    The up/down arrow keys (_) on the remote can then be used to select English, French, Spanish, Chinese as the default language for disk subtitles. Selecting 'auto' will result in the default subtitle language being determined from information on the BD or DVD disk. 4.2.3 Menu Language...
  • Page 19 4.3.1 TV Type You can tell the BD player whether to output US/Asia (NTSC) video or European (PAL) video using this menu item. To set the BD player's output video format, press the up/down arrow keys (8) on the remote until the TV Type choice in the center of the setup screen is highlighted.
  • Page 20 I ¸ Episode Will Episode will be SD (4:3) be stretched shown in center No effect - television No effect - Epsiode horizontally to of screen; Epsiode will fill will fill entire screen episodes fit entire vertical bars will entire screen appear on sides screen of screen...
  • Page 21 4.3.4 Color Space To set the BD player's HDMI colorspace, press the up/down arrow keys (_._-_) o n the remote until the Color Space choice in the center of the setup screen is highlighted. Then, press the right arrow key ( _ ) on the remote until the rightmost portion of the setup screen is highlighted.

  • Page 22: Audiomenucategory

    AuD(O MENU CATEGORY To set the digital and analog audio outputs correctly, press the up/down arrow keys (_._-_) on the remote until the Audio menu category is highlighted on the leftmost portion of the setup menu screen, A screen similar to the following will appear: Each of the menu choices above will be explained in the subsequent sections.
  • Page 23 These formats use "accurate but not identical" compression to encode Dolby Digital and DTS multichannel (5.1) audio onto a DVD or Blu-Ray disk. (Digital Theater Systems) Digital Surround This format offers up to 7.1-channel surround sound, and is only available Dolby Digital Plus...
  • Page 24 Now that the various types of digital audio codecs have been explained, the next few menu items will be described in further detail 4.4.2 Digital Output You can tell the BD player what type of digital audio data to output over HDMI, SPDIF, or TOSlink with this menu item.
  • Page 25 Can decode Dolby Can decode Dolby Can decode Digital Digital Plus Set to 'Bistream Set to 'Bistream Legacy'for disks with DD+ Legacy'for disks with soundtracks. Dolby digital soundtracks. Set to PCM 5.1 or PCM I want the highest- Set to 'Bistream Set to PCM 5.1 or PCM 7.1 for disks without Dolby fidelity...
  • Page 26 4.4.3 PCM Downsampling You can use this menu item to tell the BD player whether your surround receiver can handle high- bitrate PCM signals over the SPDIF/TOSlink interface. To inform the BD player of your surround sound receiver's PCM capabilities, press the up/down arrow keys (_-_) on the remote until the PCM Downsampling choice in the center of the setup screen is highlighted.
  • Page 27 To tell the BD player whether you want the loud noises in the movie to be quieter, press the up/down arrow keys (_) on the remote until the Dynamic Range Control menu choice in the center of the setup screen is highlighted. Then, press the right arrow key (_) on the remote until the rightmost portion of the setup screen is highlighted.

  • Page 28: Parental Control

    PARENTAL CONTROL To set the player's parental control settings, from the main setup menu, press the up/down arrow keys on the remote until the "Parental Control" menu choice is highlighted. Attempting to change any of these items initially will result in the following screen appearing: The first time this screen appears, you should enter the default parental password, which is 0000.

  • Page 29: System Menu Category

    Enter any 4-digit number for the parental password. Once this number has been entered, it must be re- entered any time someone enters the parental setup category and then attempts to make changes. 4.5.5 Exiting the Parental Setup Menu When you are done setting up the BD player's parental controls, you may use the left arrow key (_[) on...

  • Page 30: Playing A Bd Or Dvd Disk

    PLAYINGA BD OR DVD DmSK STANDARD (OR NORMAL) PLAYBACK A BD Disc Press the STANDBY/ON button on the front panel of the BD player Press the power button the remote Turn on the TV, and using the TV remote control, select the input on the TV that is connected the BD player (HDMI, component, etc)

  • Page 31: Non-Standard Playback Of A Bd Or Dvd Disc

    To stop playback, press the STOP button on the remote control To remove the disk, press OPEN/CLOSE on the front panel of the BD player to open the tray. To remove the disk, press the OPEN/CLOSE button _ _on the BD player remote to open the tray.

  • Page 32: Other Bd And Dvd Playback Features

    5.2.3 "Slow Forward" Playback When the disk is playing normally, press the pause button " on the remote to pause playback. When the player is paused, pressing the fast forward button ..... on the remote will cause the player to play back at a slow (1/4 normal) speed.

  • Page 33: Mp3/Windows Media Audio / Jpeg Image Playback

    5.3.6 Repeating a Title or Chapter When the disk is playing normally, press the REPEAT button on the remote. The words REPEAT will appear on the TV screen. To repeat a chapter, continue pressing the REPEAT button on the remote until the words REPEAT CHAPTER...

  • Page 34: Mp3/Windows Media Audio Playback Requirements

    &3 MP3/VVJNDOWS MEDIAAUDIO PLAYBACK REQUJREIVIENTS For the audio player, you will need to insert a "data CD" on a computer with pre-encoded MP3 or Windows Media audio (WMA) files. MP3 files must have a file extension of" .rap3". Windows Media audio files must have a file extension of ".wma".

  • Page 35: Viewing Jpeg Images

    At the end of the current song, playback of the next song will begin until the end of the playlist is reached. Pressing 'LEFT' only the first level pop-up will exit from the pop-up view completely. 6.6.2 Audio Pause Pressing 'Pause' on an audio file during the playback of the song will pause the audio playback. 6.6.3 Audio Play from...
  • Page 36 Note: Press the 'LEFT' navigation key to exit the current level of the pop-up menu. Pressing 'LEFT' on the first level pop-up will exit from the pop-up view completely. 6.7.2 Viewing the Image Properties Navigate through the disk contents using the 'RIGHT', 'LEFT', 'UP' and 'DOWN' navigation keys to the desired image file.

  • Page 37: Slide Show Player Instructions

    Note: Press the 'LEFT' navigation key to exit the current level of the pop-up menu. Pressing 'LEFT' on the first level pop-up will exit from the pop-up view completely. Rotating the Image Counterclockwise Press the 'MENU' key to invoke the pop-up menu. Select the 'Rotate' option in the menu as shown in the figure below, and press the 'RIGHT' navigation key.
  • Page 38 Press the 'MENU' key to invoke the pop-up menu for the image file. Select the 'Start Slide Show' option in the menu as shown in the figure below, and press the 'RIGHT' navigation key. This will invoke a sub pop- up.
  • Page 39 Starting the Slide Show - Option 3 The slide show can also be started while viewing an image. Press the 'MENU' key to invoke the pop-up menu. Select the 'Start Slide Show' option in the menu as shown in the figure below, and press the 'RIGHT' navigation key. This will invoke a sub pop-up. Select the any one of the 6 effects options displayed (Blend, Film, Shutter, Fade, Curtain and None) from the sub pop-up and press 'OK'.
  • Page 40 Note: Press the 'LEFT' navigation key to exit the current level of the pop-up menu. Pressing 'LEFT' on the first level pop-up will exit from the pop-up view completely. 6.8.3 Setting the Duration between Images The first time the image duration is set, the slide show must be running.

  • Page 41: Mwj Player Important Things To Remember

    Note: Press the 'LEFT' navigation key to exit the current level of the pop-up menu. Pressing 'LEFT' on the first level pop-up will exit from the pop-up view completely. 6.8.5 Starting the Slide Show with a Background Song The first time the slide show is started with background music, the slide show must already be in motion.

  • Page 42: Appendix A Specifications

    Appendix Player Specifications NTSC/PAL Output Format up to 480i / 576i up to 1080p GUI/Menu Language Resolution F/Panel Tool No Display F/Panel FL Dimmer F/P Color Memory slot R/Panel Video Out Composite Component HDMI Audio Out Audio L/R CoaNoial Optical HDMI Ethernet Power...
  • Page 43 DVD-RAM Video CD/Super Audio CD CD-R/CD-RW MPEG2 Video Format MPEG4 AVC SMPTE VC1 (VC-9) DivNo LPCM Audio Format Dolby Digital (Bitstream) Dolby Digital Plus Dolby TrueHD DTS-HD MA (Passthru only) MPEG 1/2 L2 LPCM Audio Format Dolby Digital (Decoding) Dolby Digital Plus Dolby TrueHD DTS-HD MA MPEG 1/2 L2...
  • Page 44 LPCM Conversion (Dolby TrueHD) Down Sampling 48kHz 16bit Dynamic Range OFF/ON Control MHP-Like Interactive Content ..!nteract!v!'_y Simultaneous Playback of HD & SD Video ..MiNoed Presentation of Dual Audio BD ROM profile Still Picture Others 1080P Upscaling Screen Saver Parental Lock Initial logo Trick Play...
  • Page 45 Appendix Upgrading Your PRayer The company that produced this player may occasionally offer upgrades to the player's software. order to perform the upgrade, you Go to the company's website and click on the 'support' link Download the firmware upgrade file to a computer with a CD writer iii.

  • Page 46: Appendix C Audio Output Formats

    Appendix Audio Output Formats This appendix shows the audio formats that will occur on each of the BD player's outputs, based on the audio setup menu selections and the selected BD/DVD audio track. Do[by TFueHD, Do[by Digital Plus, and Do[by Digital Audio Tracks If you select one of the Dolby audio formats from the main disk menu, the BD player's...
  • Page 47 • If not, the BD player will automatically revert to Dolby Digital 5.1 on the HDMI output (if supported by the HDMI-connected audio receiver). • If the HDMI device connected to the BD player does not support any Dolby codec (TrueHD, DD+, or DD), the BD player will automatically revert to PCM on the HDMI output.
  • Page 48 NOTES: Assumes the HDMI-connected surround-sound audio receiver (or TV, if connected directly to TV) can decode DTS-HD. • If not, the BD player will automatically revert to DTS 5.1 on the HDMI output (if supported by the HDMI-connected audio receiver). •...
  • Page 49 NOTES: Assumes the HDMI-connected surround-sound audio receiver (or TV, if connected directly to TV) can decode LPCM at this rate. If not, the BD player will automatically revert to a lower PCM sample rate. If the HDMI device connected to the BD player does not support multichannel LPCM at higher bitrates,...
