EVGA GTX 285 User Manual

Evga gtx 285 graphics card user's guide
Hide thumbs
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Table of contents

Requirements

..................................................................................... 2

Unpacking

.......................................................................................... 2
............................................................................ 3
.......................................................................................... 5
................................................................... 9
............................................................................ 10
........................................................................ 10
.............................................10
................................................................. 10
.........................................................................................11
..............................................................................11
.................................................................. 11
.................................................................... 12
1
Requirements
Requires Mac Pro (Early 2009 with 1066Mhz DDR3 memory) or Mac Pro (Early 2008 with
800Mhz DDR2 FB-DIMM memory) with PCI Express 2.0 slot. Requires Mac OS X v10.5.7
or later.
Unpacking

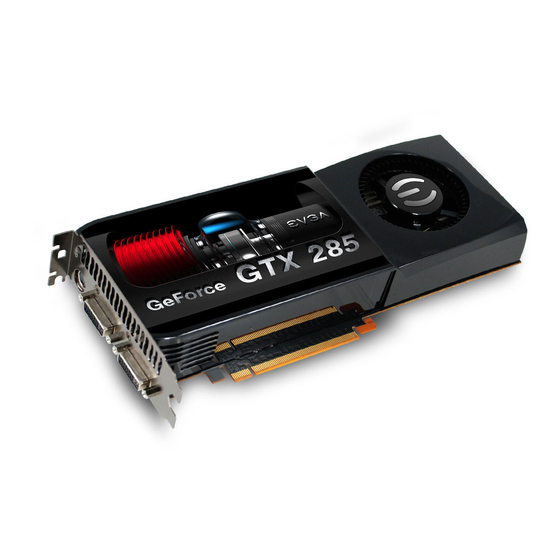

Your EVGA GTX 285 graphics card
logic board of the Mac Pro (see Figure 3). You will not need any tools to perform this installation.
3
(English) GTX 285
GTX 285 (English)
1
is shipped with two power cables
2
that connect to the
1. EVGA GTX 285 graphics card
2. Power cables
3. Two DVI ports
Figure 1. EVGA GTX 285 Graphics Card
1
2
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GTX 285 and is the answer not in the manual?

Questions and answers

Related Manuals for EVGA GTX 285

Summary of Contents for EVGA GTX 285

  • Page 1 1. EVGA GTX 285 graphics card 2. Power cables Warranty Information ................ 10 3. Two DVI ports ..........10 EVGA Advanced RMA (EAR) Program Figure 1. EVGA GTX 285 Graphics Card EVGA Online Community ..............10 ..................11 EVGA FAQ FOLDING@EVGA ................11 ..............
  • Page 2 3. Reboot your system when the update is complete. IMPORTANT NOTE: It is mandatory that you install the drivers BEFORE installation of the card. After updating your system to version 10.5.7 or later, insert the EVGA driver CD or download the latest drivers from www.evga.com/support/drivers/. Install the provided driver and power off your Mac Pro when the installation is completed.
  • Page 3 You can install the EVGA GTX 285 graphics card in any of the PCI Express slots in your Mac Pro. (For optimum performance, it is recommended to install the card into either PCI Expressslot #1 or #2.
  • Page 4 Early 2008 Model: 5. Remove the port access covers from the slots in which you plan to install the card or remove an existing graphics card if present (Figure 2). 6. Plug both ends of the power cables that came with your card into the connectors on the logic board and the other ends into the back of the card 1, as shown in Figure 3.
  • Page 5 Connect a Display that has a DVI connector to either DVI port on your graphics card. EVGA is dedicated to supporting our products. If you need to contact Customer Service, please have your system configuration ready, as well as your model number and serial number ready.

  • Page 6: Compliance Information

    Visit http://evga.com/folding Trademark Information © 2000-2009 EVGA Corp. EVGA, the EVGA logo and combinations thereof are trademarks of EVGA Corp. NVIDIA, the NVIDIA logo, GeForce, GeForce logo, PureVideo, PureVideo logo, and NVIDIA CUDA are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries.
