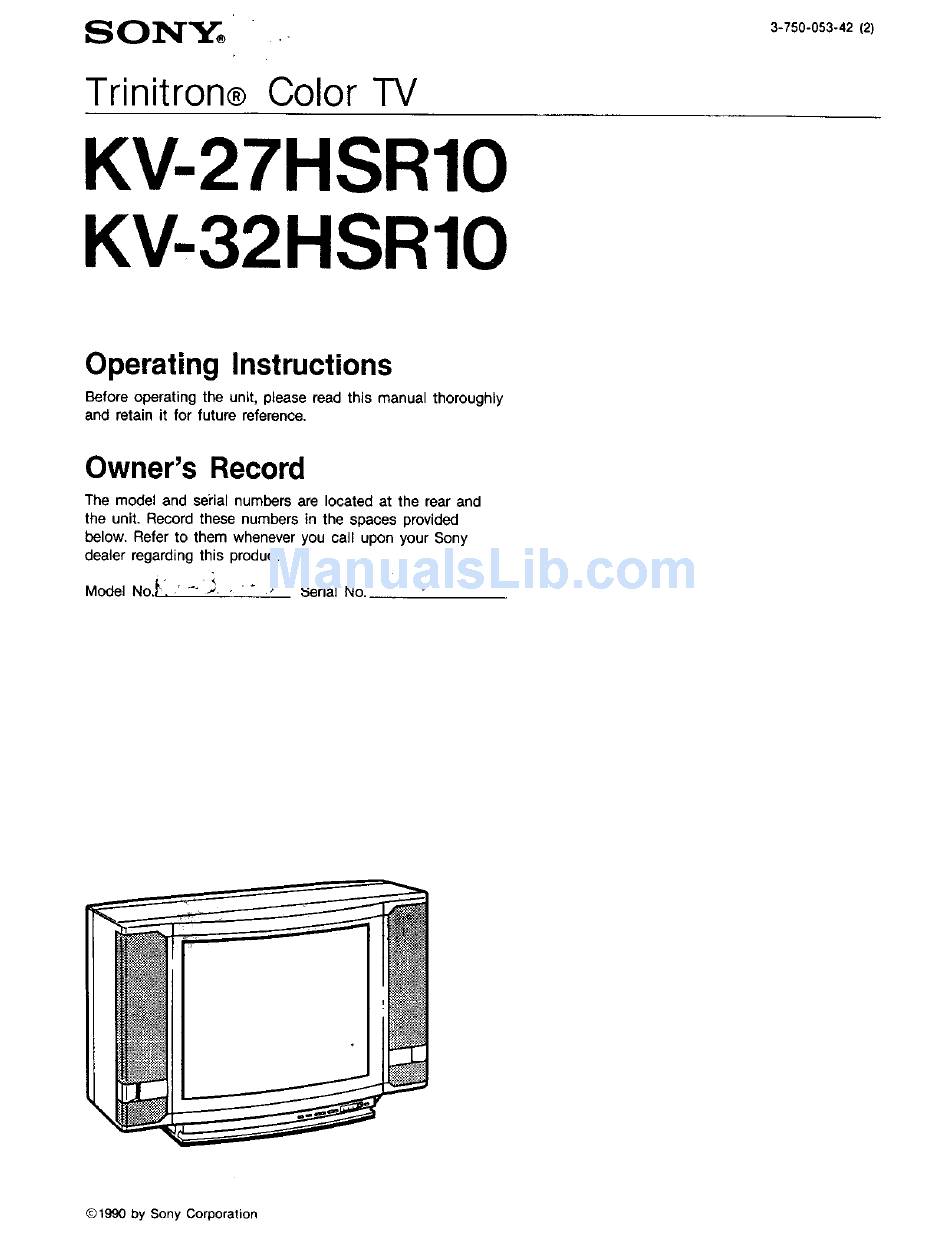

Trinitron® Color TV
KV-27HSR10
KV-32HSR10
Operating Instructions
Before operating
the unff, please read this manual thoroughly
and retain it for future reference.
Owner's Record
The model and sei'ial numbers are located at the rear and
the unit. Record these numbers in the spaces provided
below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No.}"_
....
_.
- °
_
Serial No.
@1990 by Sony Corporation
Advertisement
Table of Contents
Related Manuals for Sony Trinitron KV-27HSR10
Summary of Contents for Sony Trinitron KV-27HSR10
- Page 1 Owner's Record The model and sei'ial numbers are located at the rear and the unit. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No.}"_ - °...
- Page 2 To prevent fire or shock hazard, do not ECAUTION: ] expose the unit to rain or moisture. TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
-
Page 3: Table Of Contents
