Fedders Cased A-Coil AC1A Series Specifications

Residential & Light Commercial HVAC
Rated in Accordance with ARI Standard 210/240.
Certification Applies Only When Used with
Proper Components as Listed with ARI.
Additional rating information can be found
at www.aridirectory.org
Easy To Install:
All tubing exits through left hand side of front access panel
Split seam front access
Suction and discharge line extend past the outside of
the cabinet

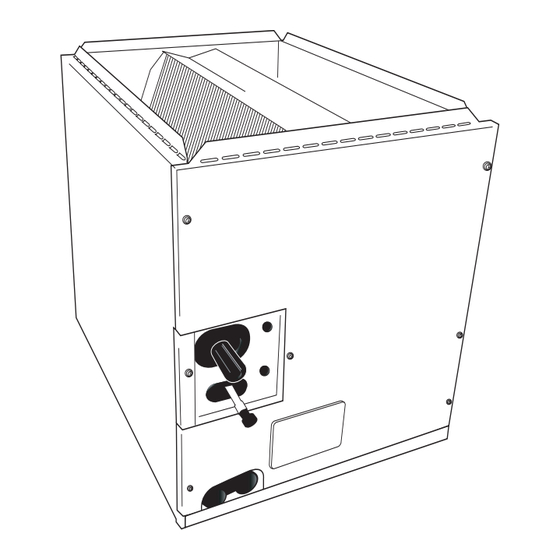

AC1A Series Cased A-Coil
Upflow/Downflow, 1
Fedders Cased Coils for use with the cool only
condensing unit. This reliable matching cased coil
was designed to compliment the Fedders full system.
The coils are available for use in R-22 systems. They
are housed in a durable gauge painted cabinet and
fully insulated for quiet, efficient operation.
Performance:
Rated in accordance with ARI Standard 210/240
A-Coils offer low pressure drops to enhance system
performance and airflow characteristics
Quality Built:
Coils have sweat fitting refrigerant connections
Widths match flush with Fedders gas furnaces
Primary and secondary condensate drain
connections are 3/4" F.P.T. – Flush Mounted
Condensate drain pan is constructed of high grade,
heat resistant, corrosion free material
Copper tube aluminum fin coil
All evaporators are factory leak-tested, dehydrated,
sealed and shipped with holding charge
Pressure taps on suction and liquid line
TXV is standard on all coils
R4.0 insulation value in case
All drain pans are compatible with UV lights
Limited 5-year warranty
Serviceability:
Front panel is removable for easy service
and coil cleaning
Foil-Face insulation for easy cleaning
1 ⁄ thru 5 Tons
2
