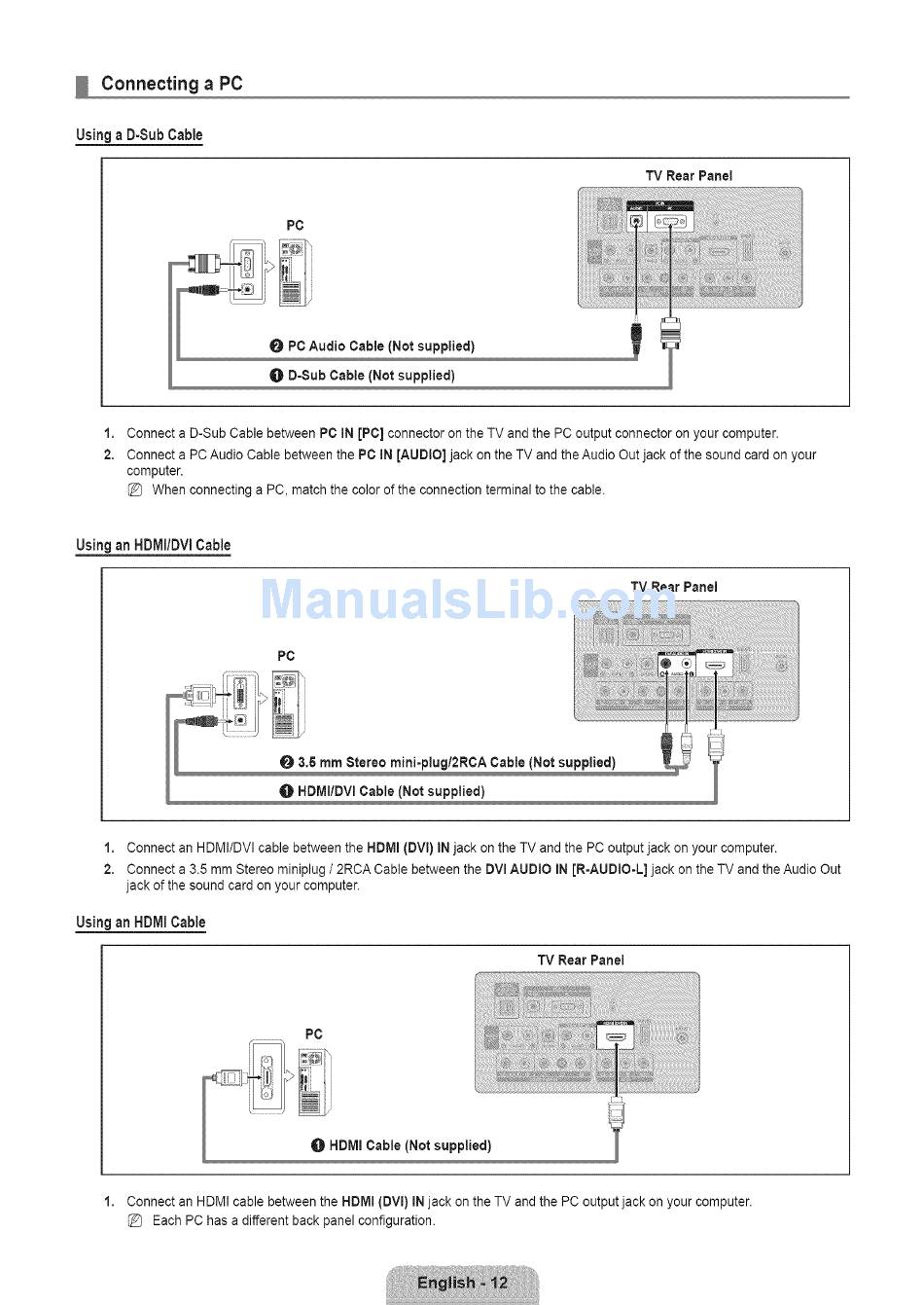

Connecting a PC
Using a D-Sub Cable
PC
TV Rear Panel
1,
2.
Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer,
Connect a PC Audio Cable between the PC iN [AUDtO] jack on the TV and the Audio Out jack of the sound card on your
computer,
When connecting a PC, match the color of the connection terminal to the cable.
Using an HDIVII/DVlCable
TV RearPanel
PC
O 3,5 mm Stereo mini-piugl2RCA Cable (Not supplied)
HDMIIDVI Cable (Not supplied)
1. Connect an HDMI/DVI cable between the HDIVll(DVl) IN jack on the TV and the PC output jack on your computer.
2. Connect a 3,5 mm Stereo miniplug / 2RCA Cable between the DVm AUDtO IN JR-AUDIO-L] jack on the TV and the Audio Out
jack of the sound card on your computer.
Usingan HDMICable
TV Rear Panel
1,
PC
Connect an HDMI cable between the HDMm {DVl) iN jack on the TV and the PC output jack on your computer.
Each PC has a different back panel configuration.
