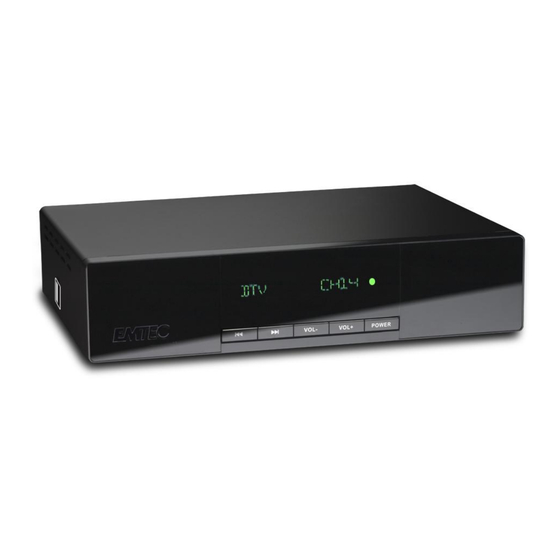

- Page 1 MOVIE CUBE N160H DVB-T Set top box User Manual Movie Cube N160H...
- Page 2 Movie Cube N160H...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS ............................5 Preface ................................6 1. Main Features .............................. 6 Front panel ................................6 Back panel ................................7 2. REMOTE CONTROL ............................8 Installation guide ..............................9 TV ................................... 10 1. Timeshift function ............................10 2. - Page 4 5. Option ................................ 20 6. System................................ 21 7. USB................................23 Troubleshooting ............................. 26 Movie Cube N160H...
-
Page 5: Safety Warnings
SAFETY WARNINGS CAUTIONS: The lightning flash with arrowhead Warning: To reduce the risk of The exclamation point within an symbol, within an equilateral electric shock, don't open the equilateral triangle is intended to triangle, is intended to alert the user cabinet. -
Page 6: Preface
PREFACE Thank you for purchasing the new N160H! Please read this manual thoroughly before any use and keep it well for future reference. It will help you keep abreast with many of the exciting features and contains important safe measurements and correct operational information, so please read all the information carefully in order to avoid any damage. -
Page 7: Back Panel
BACK PANEL 1. RF signal input 2. RF signal output 3. Coaxial jack 4. HDMI 5. TV scart Movie Cube N160H... -
Page 8: Remote Control
2. REMOTE CONTROL MUTE Disable Audio output POWER Standby on/off TV/R Switch between TV program and Radio program when available INFO. Display the information bar Record the current program Direct access to your USB devices contents Direct access to your recordings MENU Display main menu BACK... -
Page 9: Installation Guide
INSTALLATION GUIDE (1) Press [CH+/CH-] key to move the cursor. (2) Press [VOL+/VOL-] key to select the item. (3) Select [Channel Search] and press [OK] key to begin the auto scan. (4) Press [Exit] key to exit menu. As soon as the channel search ends, start enjoying your Movie Cube N160H watching your favorite DVB-T channels. -
Page 10: Timeshift Function
1. TIMESHIFT FUNCTION This function is only available when you connect USB storage to the player. Press [Red] to start the timeshift, then press [Stop] to stop the recording. Movie Cube N160H... -
Page 11: Record Function
2. RECORD FUNCTION If you press [REC] key to start recording, the screen will be displayed as below : Press [STOP] key to stop recording. 3. EPG RECORDING You will never miss your favorite program base on fully EPG recording feature. Press the [GREEN] button to access to the EPG. -
Page 12: Schedule Your Recording
4. SCHEDULE YOUR RECORDING Press the [BLUE] button to access to the Timer. You can schedule your recordings by defining start and end time. You can add, edit and delete any scheduled recordings later on. Movie Cube N160H... -
Page 13: Usb - Multimedia
USB - MULTIMEDIA (1) Press [OK] key to enter the “Multimedia” menu. (2) Press [VOL-/VOL+] key to select “Music, Photo, Movie”. 1. MUSIC (1) Press [OK] key to enter the “Music” menu. (2) Press [CH-/CH+] key to select the file and press [OK] key to play the music. (3) Press [EXIT] key to return to folder. -
Page 14: Pvr - Manage Your Recordings
PVR – MANAGE YOUR RECORDINGS (1) Press [OK] key to enter the “PVR” menu. (2) Press [CH-/CH+] key to select the PVR file and press [OK] key to play the video. (3) Press [EXIT] key to return to folder. 1. FULL SCREEN (1) Press [CH-/CH+] key to choose the file to play. -
Page 15: Configure
CONFIGURE Press [CH-/CH+] key to select menu pages among Program, Picture, Channel Search, Time, Option, System and USB. 1. PROGRAM 1.1 PROGRAM EDIT Press [CH-] or [OK] key to enter the “Program Edit”. If Menu Lock is “On”, a dialogue inquires the password, which is “000000”... -
Page 16: Move
When entering the “ALL TV” menu, which shows as below: (1) Press [CH+/CH-] key to move the cursor. (2) Press [PGDW/PGUP]key to execute the Page Up/Page down function. (3) Press the color key to execute the corresponding functions in “ALL TV”. 1.2 MOVE (1) Press [CH+/CH-] key to move the cursor and press [RED] key to make a mark. -
Page 17: Sort
(4) After marking, press [Exit] key to go back to “ALL TV”: there will be a favorite mark beside the marked channel. 1.2.5 RENAME (1) In “ALL TV” menu, press [CH-/CH+] key to move the cursor and press [BACK] key to open the “Rename” window. -
Page 18: Channel Search
3. CHANNEL SEARCH (1) Press [MENU] key to display the main menu. (2) Press [VOL-/VOL+] key to select the “Channel Search “program. (3) Press [Exit] key to go back to the main menu. AUTO SEARCH (1) Press [CH+/CH-] key to select “Auto Search”. (2) Press [OK] to enter the “Auto Search”... -
Page 19: Time
MANUAL SEARCH (1) Press [CH+/CH-] key to select “Manual Search”. (2) Press [OK] to enter the “Manual Search” menu. (3) Press [VOL-/VOL+] key to select the country. (4) Press [VOL-/VOL+] key to power on/off the “Antenna Power”. (a) You can scan channel by adjusting the “Frequency Channel” number and press [OK] key to start scanning. (b) If you scan channels by Frequency (MHz), “Frequency”... -
Page 20: Option
TIME OFFSET Press [VOL-/VOL+] key to change “AUTO / MANUAL“ type of time offset. COUNTRY REGION Press [VOL-/VOL+] key to change the country region. TIME ZONE When the time offset is “MANUAL“, you can change “GMT+0” value. SLEEP The player will automatically turn off after the number of hours indicated DAYLIGHT TIME Press Left/Right key to turn on or turn off Daylight saving POWER DOWN AFTER... -
Page 21: System
TRANSPARENT Increase or decrease the menu transparency to see the TV channels running in the background. 6. SYSTEM (1) Press [MENU] key to display the main menu. (2) Press [VOL-/VOL+] key to select the “System“ menu. PARENTAL GUIDANCE (1) Press [VOL-/VOL+] key to move the cursor and press [OK] key to input the Password ”000000”. (2) This sets the program parental controlling level. - Page 22 SET PASSWORD (1) Press [VOL-/VOL+] key to move the cursor and press [OK] key to enter the password settings sub-menu. (2) Use the numeric keys of the remote control to set the new password. RESTORE FACTORY DEFAULT (1) Press [OK] key to enter the sub menu and then [OK] to confirm to restore the default. (2) Press [EXIT] key to cancel the restoring.
- Page 23 7. USB The USB menu will be disabled when the USB device is unplugged. The media player list will not be saved after unplugging the USB device, or in standby or power off mode. (1) Press [MENU] key to display the main menu. (2) Press [VOL-/VOL+] key to select the “USB“...
- Page 24 MOVIE SET UP [CH-/CH+] (1) Press key to move the cursor and press [OK] to enter the “Movie configure” menu. (2) Press [CH-/CH+] and [VOL-/VOL+] key to adjust the aspect ratio. PVR SET UP Press [CH-/CH+] key to move the cursor and press [OK] key to enter the “PVR Configure” menu. Recording device (1) Press [CH-/CH+] key to move the cursor and press [OK] key to enter the “Record Device”...
- Page 25 Format (1) Press [CH-/CH+] key to move the cursor and (2) Press [OK] key to enter the “Format” then (3) Press [VOL-/VOL+] key to choose the Format (4) Press [Exit] key to return sub-menu. Movie Cube N160H...
-
Page 26: Troubleshooting
TROUBLESHOOTING If you encounter problems when using this product, please check the following points before requesting service. Problem Solution Confirm that you have an appropriate power source. Check if all the connections between the wall outlet and power supply, and the power supply and the player are No power on correct.
