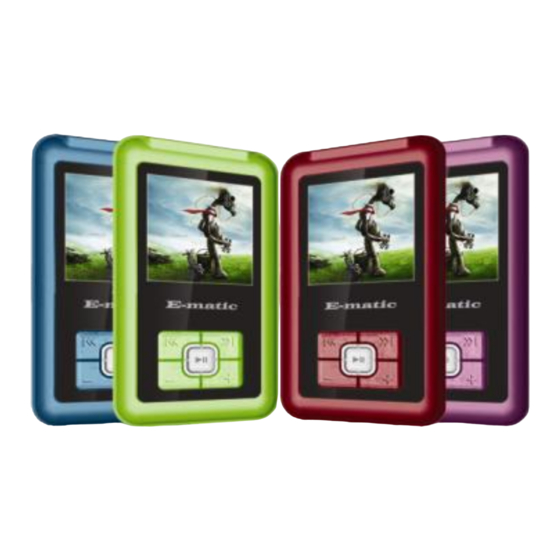

Ematic EM102VIDBL Manual

Hide thumbs

Advertisement

Quick Links

EM102VIDBL
EM102VIDP
EM102VIDR
EM102VIDB
EM102VIDG
Designed in the United States
V1

Advertisement

loading

  Also See for Ematic EM102VIDBL

  Summary of Contents for Ematic EM102VIDBL

  • Page 1 EM102VIDBL EM102VIDP EM102VIDR EM102VIDB EM102VIDG Designed in the United States...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ................................................. 1 Important Safety Precautions ........................................... 2 Features ..................................................3 Location of Controls..............................................4 Connecting with Computer ............................................5 System requirements ............................................... 5 Installing the driver for windows 98 SE ........................................5 Connecting player to computer ..........................................6 Loading files to the player ............................................
  • Page 3 Skipping tracks............................................... 13 Searching backward or forward within a track ...................................... 13 A-B function ................................................13 Using the music menu ............................................14 Displaying lyric synchronously ..........................................17 Viewing Picture ................................................. 18 Watching Video ................................................. 19 Pausing playback ..............................................19 Skipping video files ..............................................19 Searching backward or forward ..........................................
  • Page 4 Settings ..................................................27 Navigating the settings menu ..........................................27 Setting language ..............................................28 Setting play mode ..............................................28 Setting record quality ............................................. 29 Setting contrast ..............................................29 Setting time off ............................................... 30 Reset settings ................................................ 30 Deleting Files ................................................31 About ..................................................
  • Page 5: Introduction

    Introduction Congratulations on purchasing the MP3 Player. Before using the player, read this manual thoroughly and keep it for future reference. This manual will help you use all of the exiting features to make your player view more enjoyable. This manual contains important safety information and correct operation instructions. Read the manual carefully before you use the player in order to avoid any confusion.
  • Page 6: Important Safety Precautions

    Important Safety Precautions Always follow these basic safety precautions when using your player. This will reduce the risk of product damage and personal injury. Do not disassemble, repair or modify the player by yourself. Refer servicing to qualified personnel.  Do not dispose of the player in fire to avoid explosion because the player has built-in battery.
  • Page 7: Features

    Features  1.44 inch 65K color CSTN with 128*128 resolution  Built-in rechargeable Li-polymer battery  USB 2.0 high speed transmission  Supports playback of MP3, WMA, WAV and DRM(Digital Rights Management)-protected WMA music files Supports multiple equalizer (EQ) and 3D sound effects ...
  • Page 8: Location Of Controls

    Location of Controls Earphone jack USB cable connection port A-B/REC ] Power on/off; Stop; Open sub-menu; Return to previous menu. RESET hole Screen display  ] Next, Fast Forward [ ] Enter main menu, Play/Pause, Confirm [] Volume up  ] Previous, Fast Rewind [−] Volume down Hold switch...
  • Page 9: Connecting With Computer

    Connecting with Computer System requirements Your computer system must meet the following specifications:  Pentium 200MHz or above Microsoft Windows 98SE/2000/ME/XP/Vista  120MB of available hard disk space  USB port supported  CD-ROM drive  Installing the driver for windows 98 SE If your computer is running Windows ME/2000/XP/Vista, no driver is required to install.
  • Page 10: Connecting Player To Computer

    Connecting player to computer Files can be transferred directly into the player using the USB data cable. Make sure that your computer is powered on. Below is the procedure of connecting with computer: Plug the larger USB connector of the USB cable into the USB port on the computer. Plug the other end (the smaller end) of the USB cable to the player.
  • Page 11: Loading Files To The Player

    Loading files to the player To download the files from your computer, perform the following steps: Files that are not copy-protected Open the Windows Explorer or My computer. “Removable Disk” (MSC mode) or “Audio Player” (MTP mode) is displayed. Select the files on your computer and simply move it into the “Removable Disk” or “Audio Player” in the usual way (drag-and-drop, or copy-and-paste).
  • Page 12: Disconnecting The Usb Cable

    Disconnecting the USB cable MSC MODE After completing the file transfer, please disconnect the USB cable as the following way: Double click the green arrow “Safety Remove Hardware” in the taskbar on the bottom right of the window. Select “USB Device” and click “Stop”. When the “Stop a Hardware device”...
  • Page 13: Charging The Battery

    Charging the battery The battery of the player is charging automatically when the player is connected to the computer. Make sure the computer is turned on. The battery of the player is 80-percent charged in about two hours and fully charged in about four hours. If you charge the player while loading files to the player, it might take longer.
  • Page 14: Basic Operation

    Basic Operation Turning on/off the player To turn on the player, press and hold the [ ] button for two seconds.  To turn off the player, press and hold the [ ] button for two seconds.  Adjusting the volume Press the [] button to increase the volume.
  • Page 15 Music Music playback Photo Photo playback Movie Video playback Voice Voice playback FM Radio FM radio playback and FM recording Mic. Record Voice recording E-Book Text view Settings Language English | German | Italian | Spanish | French | Dutch | Portuguese Play Mode Normal | Repeat One | Repeat All | Random &...
  • Page 16: Listening To Music

    Listening to Music Turning on and playing Make sure that the battery is enough and the earphone is connected correctly. Press and hold the [ ] button to turn on the player. The DISPLAY lights up. The MP3 player enters Main menu with Music option selected by default.
  • Page 17: Pausing Playback

    Pausing playback While a song is playing, press the [ ] button to pause the playback. To resume the playback, press the [ ] button once again. Skipping tracks Press the [  ] button to skip to the previous track. ...
  • Page 18: Using The Music Menu

    Using the music menu The music menu allows you to manage all factors of listening, such as repeating tracks, selecting equalizers, and so on. Note: After finishing the music setting, press the [ ] button to exit the music setting menu. To set play mode The play mode setting enables you to select a play mode to enjoy the music in desired order.
  • Page 19 To set equalizer The equalizer setting enables you to select an equalizer from the six preset equalizer settings to suit the type of audio output or customize your personal equalizer effect. Press the [ ] button while listening to music. The music menu appears on the screen. Use the [ ...
  • Page 20 To set 3D effect Press the [ ] button while listening to music. The music menu appears on the screen. Use the [  ] or [  ] button to select 3D, and press the [ ] button. The 3D menu appears on the screen. Use the [ ...
  • Page 21: Displaying Lyric Synchronously

    To navigate music files Press the [ ] button while listening to music. The music menu appears on the screen Use the [ ] or [ ] button to select File, and press the [ ] button. The music file list appears on the ...
  • Page 22: Viewing Picture

    Viewing Picture This player supports the playback of pictures in formats of JPEG and BMP. Press and hold the [ ] button to enter the main menu. Use the [  ] or [  ] button to select Photo and press the [ ] button.
  • Page 23: Watching Video

    Watching Video This player supports the playback of converted videos in MTV format. Press and hold the [ ] button to enter the main menu. Use the [  ] or [  ] button to select Movie and press the [ ] button.
  • Page 24: Setting Video Repeat Mode

    Setting video repeat mode You to select a mode to enjoy the movie in desired order. Press the [ ] button to stop the playback. Press the [ ] button again to open the video menu, and select Repeat and press the [ ] button.
  • Page 25: Listening To The Fm Radio

    Listening to the FM Radio Important: Always connect your earphones to the left earphone jack, since the earphone cable serves as antenna for the internal radio. Press and hold the [ ] button to enter the main menu. Select the FM Radio using the [ ...
  • Page 26: Manually Searching A Frequency

    Manually searching a frequency Press the [  ] or [  ] button to search for the frequency you want. Automatically searching a frequency Push and hold [  ] or [  ] button to automatically search for radio stations with strong signal forward or backward. Selecting FM region Before starting automatic or manual searching, you can select desired FM region.
  • Page 27: Automatic Searching And Storing The Frequencies

    Automatic searching and storing the frequencies Press the [ ] button to open the FM Radio sub-menu. Use the [  ] or [  ] button to select the Auto Scan and press the [ ] button to start the search. The MP3 player automatically searches for all radio stations with the strongest reception and save them in the 20 memory locations (CH01-CH20).
  • Page 28: Recording Voice

    Recording Voice In Mic.Record mode, you can activate the voice recording with integrated microphone. You also can directly press and hold [A-B/REC] button to start recording in Music or Voice mode. Press and hold the [ ] button to enter the main menu. Use the [ ...
  • Page 29: Listening To Recordings

    Listening to Recordings All recordings can be played in the voice mode. Press and hold the [ ] button to enter the main menu. Use the [  ] or [  ] button to select the Voice and press the [ ] button.
  • Page 30: Reading E-Book

    Reading E-book This player only supports the playback of files in TXT format. Other formats must be saved as TXT format before transfer. Press and hold the [ ] button to enter the main menu. Use the [  ] or [ ...
  • Page 31: Settings

    Settings The unit settings can be customized by accessing the Settings Menu. The Settings Menu consists of several items where various functions can be selected concerning language, play mode, recording, contrast, time off , storage, reset, etc. Navigating the settings menu This section describes how to access and change various features through the MP3 player settings menu.
  • Page 32: Setting Language

    Setting language  To select a desired menu language. Setting play mode To select the repeat mode for the music, voice and movie playback.  Normal: Play all saved files in order once. Repeat One: Play the current or selected file repeatedly. Repeat All: Play all the files in order repeatedly.
  • Page 33: Setting Record Quality

    Setting record quality  To set the microphone recording quality. Note: The higher the frequency means the higher the quality, however, the recordable time will be shorten. Setting contrast To adjust the contrast of screen display. ...
  • Page 34: Setting Time Off

    Setting time off  Stop Off: To set the shutdown time. The player will turn off automatically if the player is non-usage for the set time.  Sleep Off: To set the sleep time. The player will turn off automatically after the set time. Backlight Off: To set the LCD off time.
  • Page 35: Deleting Files

    Deleting Files In the Delete mode, you can delete the files and folders stored on your player without a computer. Press and hold the [ ] button to enter the main menu. Use the [  ] or [  ] button to select Delete and press the [ ] button.
  • Page 36: Converting Video To Mtv Format

    Converting Video to MTV Format This player supports the playback of videos in MTV format. Other formats (AVI, WMV, MEPG1, Quick Time, MPEG2, RealMedia, MPEG4, 3GP) must be converted to MTV format. The “MTVVideo Converter” is supplied on the CD to enable you to convert the other formats to MTV format. Insert the provided CD to the CD-ROM driver of your computer.
  • Page 37 Click Input Video, and then select the input source from the Open dialog box. Note: If your video files (e.g. MP4 file) cannot be found in the Open dialog box, select All Files (*.*) in the File of type box. Click Output Video to select an output directory.
  • Page 38: Troubleshooting

    Troubleshooting If you have problems in operating your player, please check the points below before sending it to service center. Cannot power on The battery may be exhausted. Please recharge the battery.  Files cannot be downloaded  Check if the driver is installed correctly in the computer. ...
  • Page 39: Specifications

    Specifications Audio Format MP3/WMA Size 75.8*41.8*12.6mm Photo Format JPEG/BMP weight <40g (without accessories) Video Format Frequency response 20Hz~20KHz MP3 bit Rate 8Kbps–320Kbps Dynamic current ≤40mA (Play Mp3, backlight off) WMA bit Rate 5Kbps–320Kbps Dynamic current ≤75mA (Play movie) S/N rate ≥80dB Power off current ≤250uA...
