Summary of Contents for Elo TouchSystems 1940L

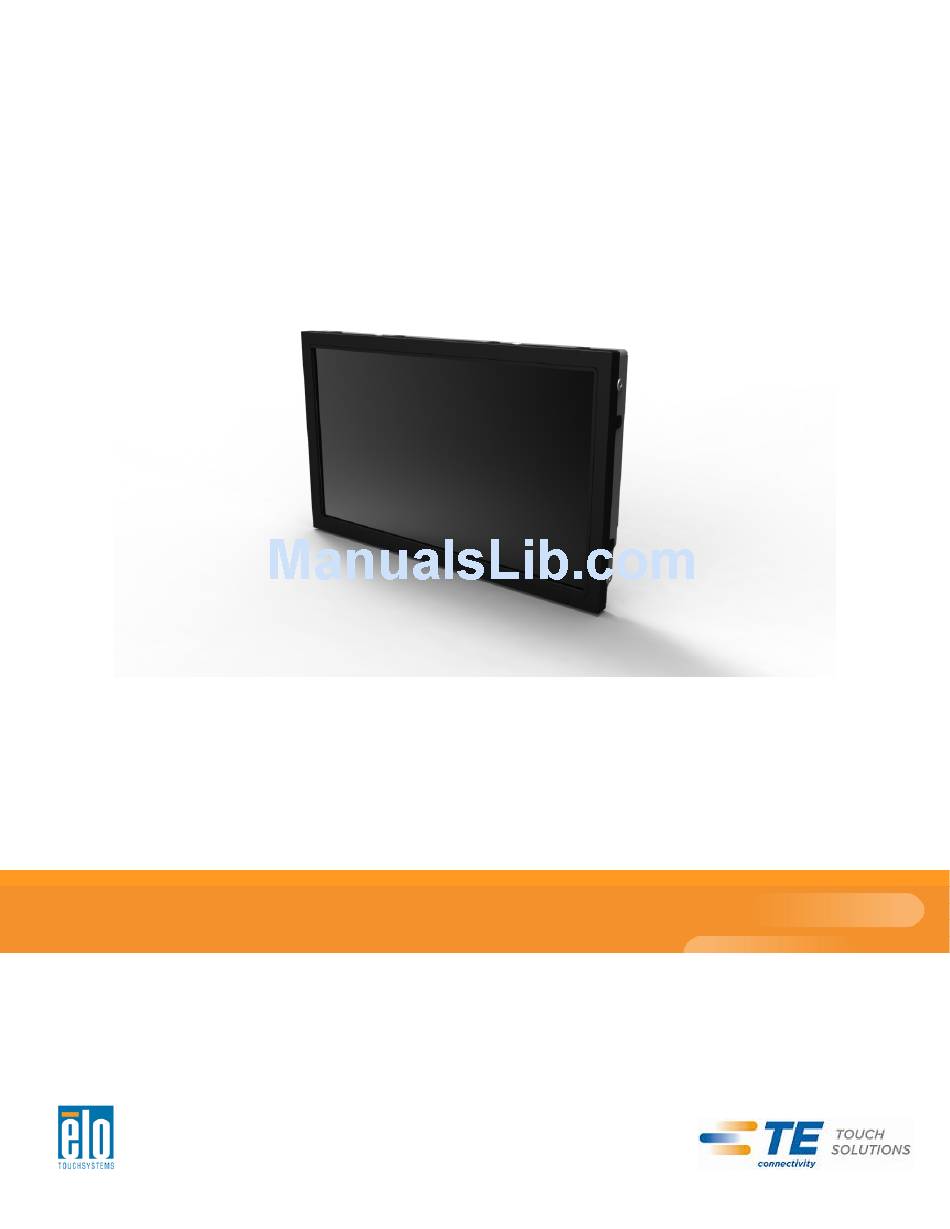

- Page 1 User Manual Elo TouchSystems 1940L Touchmonitor User Manual – 1940L SW601787 Rev A Page 1 of 26...
- Page 2 TE to notify any person of such revisions or changes. Trademark Acknowledgments AccuTouch, Elo (logo), Elo TouchSystems, IntelliTouch, TE Connectivity and TE (logo) are trademarks of the TE Connectivity Ltd. family of companies. Windows is a trademark of the Microsoft group of companies.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 - Introduction ................4 Chapter 2 – Installation ................5 Chapter 3 – Mounting ................11 Chapter 4 – Operation ................14 Chapter 5 – Technical Support ............... 20 Chapter 6 – Safety & Maintenance ............ -
Page 4: Chapter 1 - Introduction
Chapter 1 - Introduction Product Description Your new touchmonitor combines Elo TouchSystems reliable product performance with the latest developments in touch technology and display design. This combination of features creates a natural flow of information between a user and the touchmonitor. -
Page 5: Chapter 2 -Installation
Chapter 2 –Installation Unpacking the Touchmonitor Open the carton and verify the following items are present: Touchmonitor with protective sheet for its face Elo TouchTools CD & User Manuals CD Quick Install Guide Japanese language regulatory information pamphlet ... - Page 6 The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003 and 2008 operating systems are provided with your touchmonitor on a CD. Visit the Elo TouchSystems website www.elotouch.com for: The most up-to-date touch driver versions Additional touch driver information ...
- Page 7 For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install the “USB Touchscreen Drivers” when prompted: For Windows 7 installations, check the “Install driver” box under “Elo USB Interfaces – Other Touchscreens” After accepting the end-user license agreement, the drivers will finish installing. Reboot your computer after the install is complete.
- Page 8 Installing the Touch Driver-IntelliTouch Plus Touchscreen Technology *Multi-touch Support *USB *Single monitor *Windows 7 ONLY Follow the directions on the screen to complete the driver setup for your Windows 7 system. Insert the Elo CD-ROM in your computer’s CD-ROM drive. EloSetup launches.
- Page 9 Review and accept the license agreement. User Manual – 1940L SW601787 Rev A Page 9 of 26...
- Page 10 The touch driver setup is complete. User Manual – 1940L SW601787 Rev A Page 10 of 26...
-
Page 11: Chapter 3 - Mounting
Chapter 3 – Mounting General Mounting Information The OSD text can be rotated through the OSD menu to better suit your mounting orientation. Rear VESA Mount A four-hole 75x75mm mounting pattern for M4 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-D, 75, C. - Page 12 User Manual – 1940L SW601787 Rev A Page 12 of 26...
- Page 13 Side Bracket Mount Threaded holes are provided on the sides of the monitor for mounting using the provided brackets. User Manual – 1940L SW601787 Rev A Page 13 of 26...
-
Page 14: Chapter 4 - Operation
Chapter 4 – Operation Power To turn the touchmonitor on or off, press the touchmonitor power button once. The Power Status LED on the REMOTE OSD controller functions according to the following table: TouchMonitor/Computer Module status LED status SLEEP PULSING The system consumes low power when in SLEEP and OFF modes. -
Page 15: Gesture Support
Select “Match Touch to Display…” to calibrate multiple monitors. Projected-Capacitive Touch Technology When connected to Windows 7 computers, the touchmonitor can report 2 simultaneous touches. When connected to Windows XP computers, the touchmonitor reports single touches. No additional drivers are required for this touch technology to work, it uses Windows HID drivers. - Page 16 Video A display’s native resolution is its width and height measured in number of pixels. Generally, for best performance, an image displayed on this monitor will look best when your computer’s output resolution matches this monitor’s native resolution of 1366x768. For computer output resolutions at non-native resolutions, the monitor will scale the video to its panel’s native resolution.
- Page 17 On-Screen Display (OSD) Five OSD buttons are located on REMOTE OSD controller. These can be used to adjust various display parameters. The buttons and their functionality are: Button Function when OSD is not displayed: Function when OSD is displayed: Menu Display OSD main menu Return to previous OSD menu Increase value of selected parameter /...
- Page 18 Switches the scaling method between Full Scaling and Maintain Aspect Ratio. Default: Full Scaling Full Scaling – scales the X- and Y-dimensions of the input video (up or down as needed) to the Aspect Ratio display’s native resolution. Fill To Aspect Ratio – Assuming a landscape orientation and an input video with aspect ratio smaller than 1920x1080, scales the Y-dimension of the input video (up or down as needed) to the display’s Y-resolution, and scales the X-dimension to maintain the input video’s aspect ratio (and fills the rest of the display with equal black bars on the left and right).
- Page 19 All touchmonitor adjustments made through the OSD are automatically memorized as soon as they are entered. This feature saves you from having to reset your choices every time the touchmonitor is unplugged or powered off and on. If there is a power failure, the touchmonitor settings will not default to the factory specifications.
-
Page 20: Chapter 5 - Technical Support
Chapter 5 – Technical Support If you are experiencing trouble with your touchmonitor, refer to the following suggestions. If the problem persists, please contact your local dealer or contact Elo TouchSystems Customer Service. Solutions to Common Problems Problem Suggested Troubleshooting The touchmonitor does not respond when Check that the power cables are correctly attached. -
Page 21: Chapter 6 - Safety & Maintenance
Chapter 6 - Safety & Maintenance Safety To avoid risk of electric shock, follow all safety notices and do not disassemble the touchmonitor. They are not user-serviceable. The slots located on the sides and top of the touchmonitor case are for ventilation. Do not block or insert anything inside the ventilation slots. -
Page 22: Chapter 7 - Regulatory Information
Chapter 7 – Regulatory Information I. Electrical Safety Information: Compliance is required with respect to the voltage, frequency, and current requirements indicated on the manufacturer’s label. Connection to a different power source than those specified herein will likely result in improper operation, damage to the equipment or pose a fire hazard if the limitations are not followed. - Page 23 iii) Reorient the affected receiver’s antenna. iv) Plug the digital device into a different AC outlet so the digital device and the receiver are on different branch circuits. v) Disconnect and remove any I/O cables that the digital device does not use.(Unterminated I/O cables are a potential source of high RF emission levels.) vi) Plug the digital device into only a grounded outlet receptacle.
- Page 24 O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this component is below the limit requirement in SJ/T11363-2006. X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this component is above the limit requirement in SJ/T11363-2006.
-
Page 25: Chapter 8 - Warranty Information
Chapter 8 – Warranty Information Except as otherwise stated herein, or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the TouchMonitors, and their components is 3 (three) years. -
Page 26: Product Information
Check out the Elo TouchSystems Website! www.elotouch.com Get the latest... Product Information Specifications News on upcoming events Press releases Software drivers TouchMonitor Newsletter Getting in Touch with us To find out more about the extensive range of Elo touch solutions, visit our Website at www.elotouch.com, or simply call the...
