Summary of Contents for Fantom CW233H

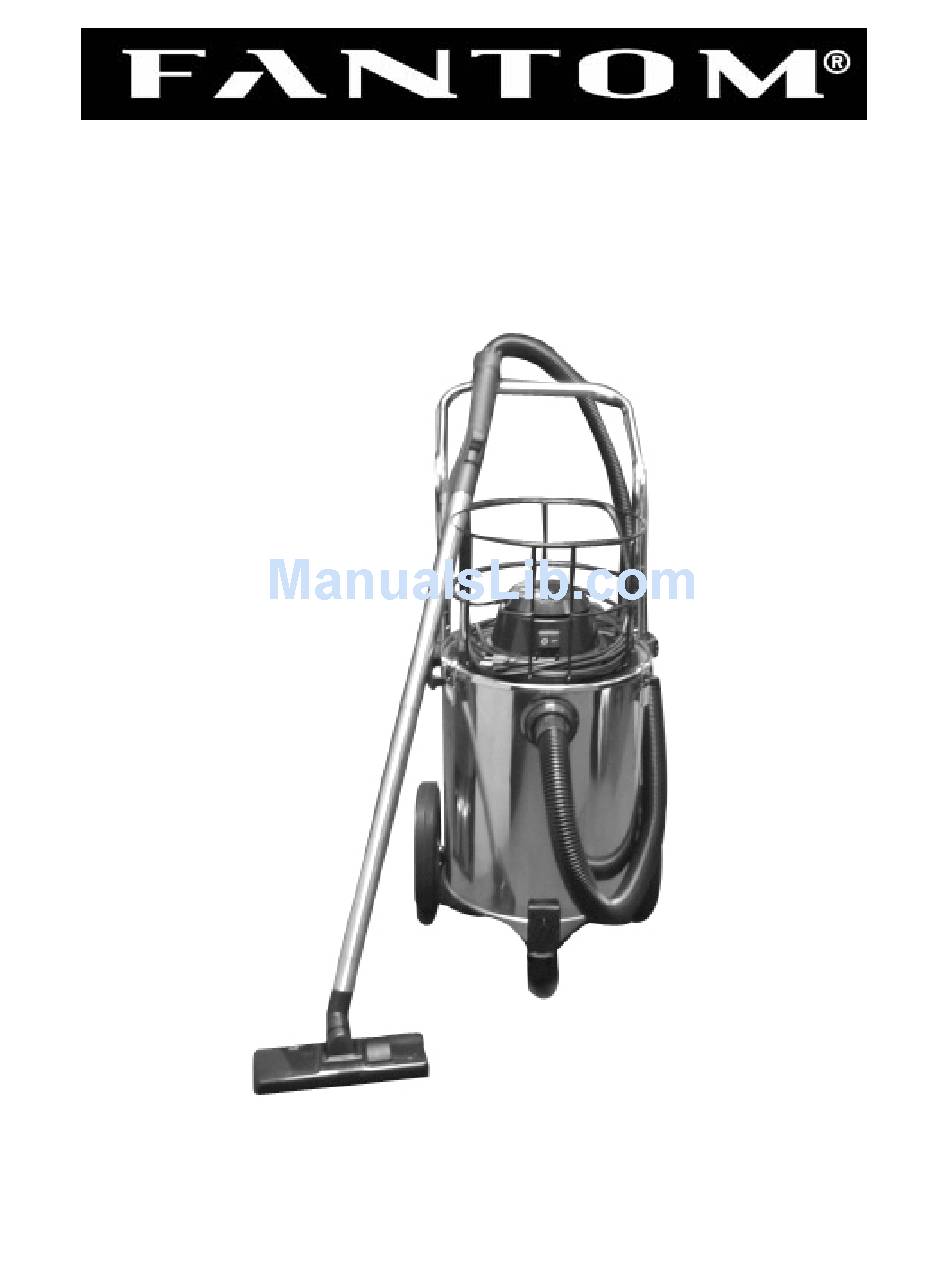

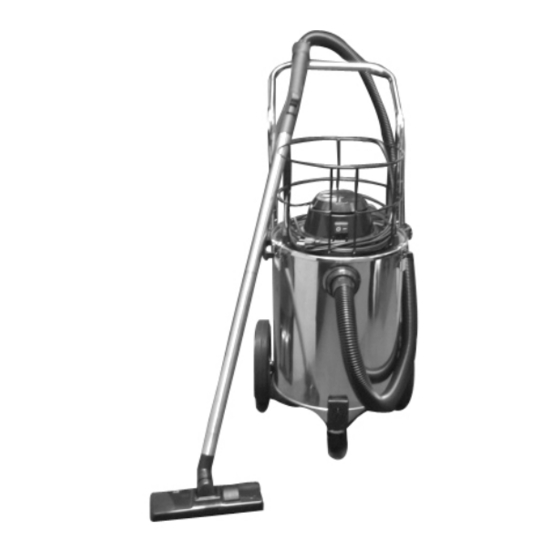

- Page 1 Commercial Stainless Steel Wet/Dry Vacuum OWNER’S MANUAL Model CW233H 120V., 60Hz., 8.3 Amps FANTOM 94 Main Mill Street, Door 16 Plattsburgh, NY 12901 FOR HOUSEHOLD OR COMMERCIAL USE Tel. :1 (800) 275-9251...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your Wet/Dry Vacuum, basic safety precautions should always be observed, including the following: 1. Read all instructions before using your vacuum. 2. Use the vacuum only for its intended use. 3. To protect against a risk of electric shock, do not immerse any part of the vacuum in water or other liquids. -
Page 4: Parts And Components
PARTS AND COMPONENTS Note Verify that all parts and components are included before assembly. Vacuum Parts Vacuum Canister Hose Intake Locking Clasp Canister Handle (x2) Power Cord and Hose Storage On/Off Power Switch Caddy Parts Caddy Parts 15. Caddy Handle 16. -
Page 5: Tools Required For Assembly
Assembling the Caddy Your vacuum cleaner requires some assembly. Ensure that all parts listed on the “Parts and Components” page are included in the packaging. Tools Required for Assembly Phillips Screwdriver Wrench (not included) (included) 1. Assemble the caddy frame first. Parts required... -
Page 6: Filter Assembly
Assemble the Vacuum to the Caddy 1. Make sure that the hose intake is facing forwards and the wheels are at the rear of the unit. Using the handles on the canister, carefully lower it onto the frame aligning the canister edge with the notches in the frame. - Page 7 OPERATING INSTRUCTIONS 3. Place the dust bag onto the filter cartridge, ensuring that the elastic at the bottom of the bag is at the bottom of the filter. (Fig. 14) 4. Turn the filter holder over and place in the vacuum canister with the power cord in the rear.
- Page 8 OPERATING INSTRUCTIONS Dry Material Vacuuming Warning: To reduce risk of electric shock - unplug before cleaning or emptying canister. Caution : To reduce the risk of hearing damage wear ear protectors when using the unit for extended periods of time or when in a noisy area. The operation of any utility vacuum can result in foreign objects being blown into the eyes, which can result in severe eye damage.
-
Page 9: Motor Thermostat
Cleaning / Replacing Filter Cartridge / Dust Warning: To reduce risk of electric shock - unplug before cleaning, assembly or emptying canister. Warning : If picking up any type of renovating dust a protective mask should be worn. The filter cartridge is washable. It should, however, be replaced every three (3) to six (6) months depending on usage to ensure peak performance of your vacuum. -
Page 10: Troubleshooting Guide
2. Turn unit off and unplug from wall outlet. Check for object(s) in air duct and remove. 3. Turn unit off and unplug from wall outlet. Check for objects in flexible hose / extension tube. 1. Empty the canister. for Model CW233H Tel.: 1 (800) 275-9251... - Page 11 By returning this card you acknowledge to have read and understood the instructions for use, and warnings set forth in the accompanying instructions. RETURN TO FANTOM: 94 Main Mill Street, Door 16, Plattsburgh, NY 12901 Model CW233H ______________________________________________________________________________________________ Appliance model...
