IMPORTANT -
PLEASE READ THIS MANUAL
BEFORE INSTALLING UNIT
CAUTION - Before installation, careful consideration must be
given to how this system will operate if connected to any other
piece of mechanical equipment, i.e. a forced air furnace or air
handler, operating at a higher static pressure.
Your Fantech HEPA Filtration system should be installed in conformance with the appropriate local, provincial or
state requirements or in the absence of such requirements with the current edition of the National Building
Code, and / or ASHRAE's " Good Engineering Practices".
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
HEPA Filtration

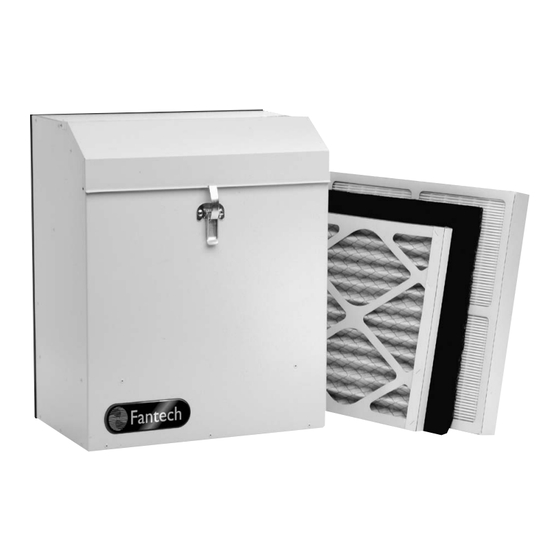

HEPA DM 3000P
Air Filtration System
Advertisement
Related Manuals for Fantech HEPA DM 3000P
Summary of Contents for Fantech HEPA DM 3000P
-
Page 1: Air Filtration System
Your Fantech HEPA Filtration system should be installed in conformance with the appropriate local, provincial or state requirements or in the absence of such requirements with the current edition of the National Building Code, and / or ASHRAE’s “... -
Page 2: Specification
TABLE OF CONTENTS WARRANTY SPECIFICATION..2 INSTALLATION ...7 SERVICE..8 TROUBLESHOOTING..8 WAR R AN TY The Best Limited Warranty in the Business • The maintenance free motors are permanently lubricated and are guaranteed for 7 years. They are factory balanced to prevent vibrations and promote silent operation. - Page 3 REMOVE TEMPLATE FROM MANUAL Direction de l’air Airflow 1. Using enclosed template, draw holes on duct. 1. Utiliser le gabarit pour localiser les trous à percer dans le conduit. Direction de l’air Airflow 3. Screw mounting plate to duct. 3. Visser la plaque de distribu- tion au conduit en repliant les bords affaiblis de façon à...
- Page 4 Direction de l’air Airflow 2. Cut holes in duct. 2. Découper les trous. Direction de l’air Airflow 4. Attach unit to mounting plate with screws. 4. Attacher l’unité à la plaque en prenant soin de la glisser dans les fentes conçues à cet effet.
-
Page 5: Operation
Your Fantech HEPA filtration system incorporates three stages of filtration. Air is drawn from the house via one of the installation examples, found in this manual, by a powerful efficient EBM fan. The air is cleaned as it passes through the filters, where it is then reintroduced back into the home, cleaned of the majority of harmful particles. -
Page 6: Troubleshooting
HEPA Filtration System. Replacement parts number for motor (410035) and for capacitor (410040). Fantech, reserves the right to modify, at any time and without notice, any or all of its products’ features, designs, components and specifications to maintain their technological leadership position.
