VENTURER
PLV31220S1
22" Digital LCD TV with DVD Player
iNSTRUCTiON
MANUAL
iiiii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
J
l
Need more Help?
DO NOT RETURN THiS PRODUCT
TO THE STORE
Please visit online help at
http://www.venturer.com
Advertisement
Table of Contents
Related Manuals for Venturer PLV31220S1
Summary of Contents for Venturer PLV31220S1

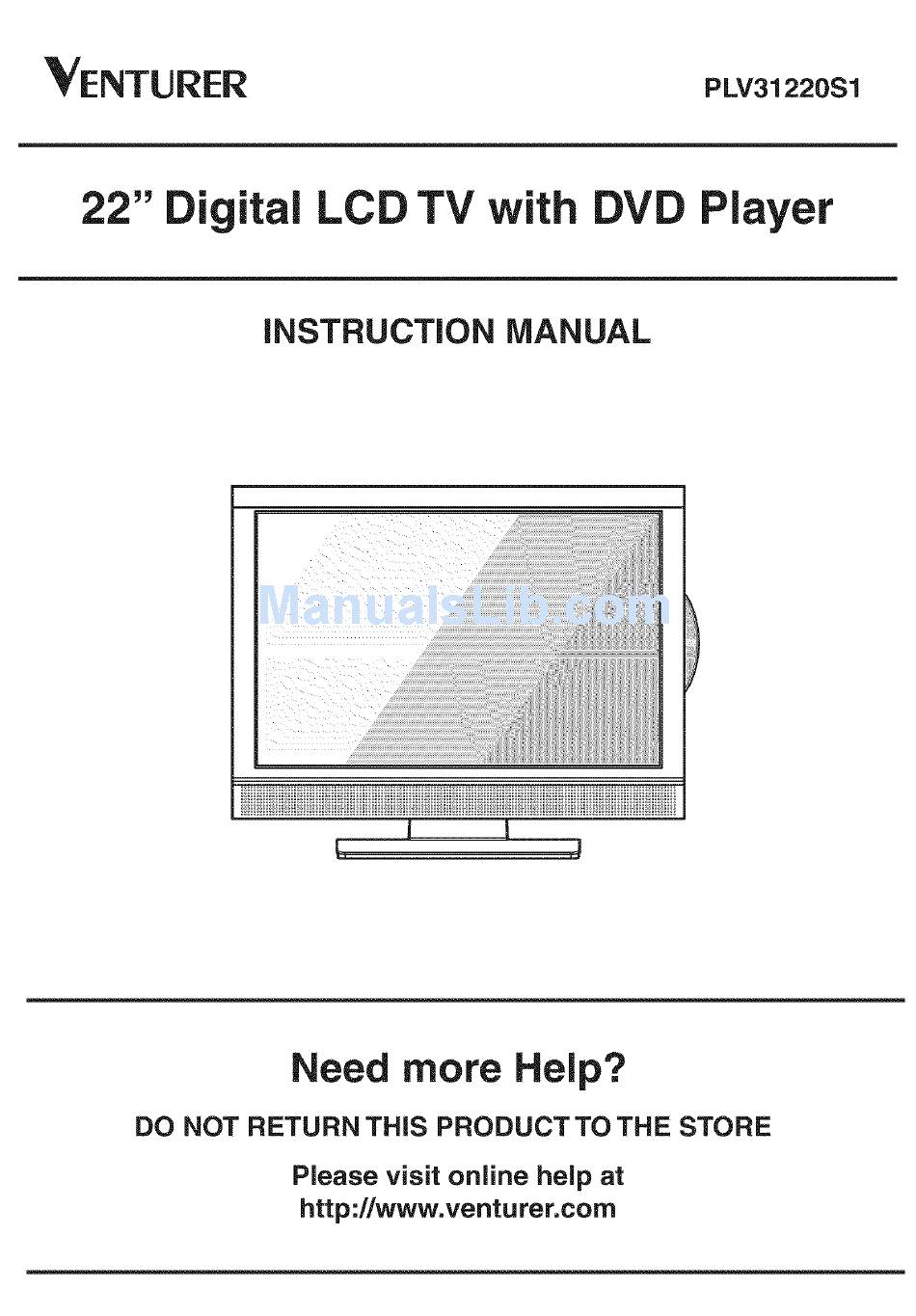

- Page 1 VENTURER PLV31220S1 22" Digital LCD TV with DVD Player iNSTRUCTiON MANUAL iiiii iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii Need more Help? DO NOT RETURN THiS PRODUCT TO THE STORE Please visit online help at http://www.venturer.com...
- Page 2 * SEE REAR OF UNIT FOR GRAPHIC SYMBOLS* CAUTION DONOTEXPOSE T HISUNIT TORAINORMOISTURE AVISRISQUE 0E CH0C ELECTRIQUE-NE PAS 0 UVRIR The lightning flash with an arrowhead symbol, within an equilateral triangle, intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 3: Safety Information
PLACEMENT INFORMATION • Do not use this unit in places that are extremely hot, cold, dusty, or humid. • Do not restrict the airflow of this unit by placing it somewhere with poor airflow, by covering it with a cloth, or by placing it on bedding or carpeting. •... - Page 4 Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
-
Page 5: Mounting On The Wall
ATTACHING THE BASE STAND • Before attaching (or detaching) the stand, unplug the AC cord from the AC input terminal. WARNING: The LCD display is very fragile and must be protected at all times when attaching the base stand. Be sure that nothing hard or sharp, or anything that could scratch or damage the LCD display, comes... - Page 6 2½" I When you turn on your television for the first time, be sure to place it on a solid stable surface. To avoid danger, 7 7/8" do not expose the TV to water, or a 2 ½" heat source (e.g. lamp, candle, radiator). Do not obstruct the ventilation grid at the rear and be sure to leave sufficient...
- Page 7 SAFETY PRECAUTIONS ......2 - 3 Playing a Disc ........Playing a Picture File Disc ..... IMPORTANT SAFETY INSTRUCTIONS ..4 Pausing Playback (Still Mode) ....QUICK INSTALLATION ......5 - 6 Stopping Playback ....... DISC FORMATS ......... Skipping to a Different Track ....
- Page 8 This unit can playback: DVDS [8CM/12CM DISC] VIDEO AUD,OCDS CO-WCO-RW D,Gr_AL_UD,O [8CM/12CM DISC] Compatible REGION MANAGEMENT INFORMATION Region Management Information: This unit is designed and manufactured to respond to the Region Management Information that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc.
- Page 9 Please check and identify the supplied accessories. Remote Control ...................... [] AAA Batteries (for remote control) ................[] Screws (for base stand) .................... Base Stand ......................Specifications and appearance are subject to change without notice.
-
Page 10: Control Batteries
USING THE REMOTE CONTROL • Point the remote control at the REMOTE SENSOR located on the unit. • When using this unit in bright light, the infrared REMOTE CONTROL SENSOR may not work properly. • The recommended effective distance for using the remote control is about 16 feet. TO CHANGE THE REMOTE CONTROL BATTERIES... - Page 11 MENU Button Press to display the on-screen TV menu. VOLUME(-/+) Buttons 0 0 © 0 Press to adjust the volume level. CURSOR (A, _, _, I_)Buttons Press to highlight selections on a menu screen and adjust certain settings. ENTER Button Press to confirm selections on a menu screen.
- Page 12 22. • STOP Button m 17 Press to stop playing a disc. I_ PLAY Button Press to start and resume playback of a r_vT_ disc. II PAUSE Button Press to pause playback and single frame advance. 23. AUDIO Button Press to select audio soundtracks on a DVD or change the output mode of a CD.
- Page 13 FRONT, LEFT AND RIGHT SIDE VIEW r° L 123456 iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii -- 1o _1 Button _/IButton Press to turn the unit on and off. Press to select the next title, chapter or track on a disc. I_- PLAY Button - VOL + Controls Press to start or resume playback of a disc.
-
Page 14: Back View
BACK VIEW • lY o © 17 18 1920 21 22 23 24 25 AC Power Cord Component VIDEO IN Jacks (Y/PB/ PR)- YUV IN VIDEO OUT Jack- AV OUT AUDIO IN Jacks (Left/Right) - YUV IN AUDIO OUT Jacks (Left/Right) - AV S-VIDEO Jack- AV IN VIDEO IN Jack-... -
Page 15: Connectinga Tv Antenna/Cable/Satellite
CONNECTING A TV ANTENNA/CABLE/SATELLITE To view television channels correctly, a signal must be received from one of the following sources: - An indoor or outdoor aerial antenna - A cable system - A satellite system Connecting a Digital Antenna The tuner in this TV receives ATSC TV signals from an antenna. - Page 16 CONNECTING DEVICES WITH A COMPOSITE (YELLOW RCA-TYPE)VIDEO OUTPUT To connect AN devices such as a VCR, video game system or camcorder: Connecting a VCR / Video Game System / Camcorder Connect the AUDIO / VIDEO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO and VIDEO OUT) to this unit (AUDIO and VIDEO IN) Note:...
- Page 17 CONNECTING A HIGH-DEFINITION (HD) SOURCE High-Definition (HD) devices with component video output must be connected to the YUV input. Connect the component video cable and audio cable (not included) as shown. Make sure you connect the component video cable and audio cable from the other equipment (COMPONENT VIDEO OUT and AUDIO OUT) to this unit (COMPONENT...
-
Page 18: Connecting The Ac Power Cord
CONNECTING AN AUDIO AMPLIFIER/EXTERNAL SPEAKERS This connection allows you to use an audio amplifier and external speakers. Connect the AUDIO cable (not included) as shown. Make sure you connect the cable from the other equipment (AUDIO IN) to this unit (AUDIO OUT). -
Page 19: Dolby Digital (For Dvd)
• Turn down the volume before connecting headphones to the unit, then adjust the volume to your desired level. • When headphones connected, no sound will come from the front speakers. Note: Avoid listening to sound at high levels for prolonged periods of time. -
Page 20: Picture Menu
Note: Some settings on the menu screen may not activate depending on which mode the unit is currently in (TV/AV in/YUV in/DVD/PC in). PICTURE MENU 1. Press the MENU button. PICTURE A_[_O $1£T P [';A_EN_AL T_,! 2. Press the • button to enter PICTURE settings. -
Page 21: Setup Menu
TIME MENU 1. Press the MENU button. 2. Use the • or • button to select TIME, then press the • button to enter the TIME settings. ,._c-_u_:4_,_o T_MESETU,_ _ :_A_ _L 3. Use the • or • button to select the options (OSD Duration, Sleep Timer, Time Zone, Day Saving Time or Clock). -
Page 22: Parental Menu
PC Set Up (in PC mode only) Resolution : 1,680 x 1,050 max Refresh Frequency : 60Hz max H - Pos : Center the image by moving it left or right. V- Pos :Center the image by moving it up or down. -
Page 23: Parental
Parental 1. Use the • or • button to select various P_C[IJRE A_)[)IO 7_IE PARENTAL Parental settings. Adjust them using the _ or • button, or press the • button to go into the detailed settings. 2. Press the MENU button to return to the previous menu. -
Page 24: Channel Skip
TV MENU (ForTV Mode Only) 1. Press the MENU button. SfT{#I_ l_IOll]RE AI][)IO TI_Jl NIAI. 2. Use the • or • button to select TV, then press the • buton to enter the TV setings. 3. Use the • or • button to select the options (Antenna, Auto Scan, Auto Scan Add OH,... -
Page 25: Playback
This owner's manual explains the basic instructions of this unit. Some DVDs produced to limit operation during playback. For example, many DVDs do not allow users to skip government warnings, or in some cases previews or other features. This is not a defect in the unit. Refer to the instruction notes of discs. "... -
Page 26: Audio Selection
FAST FORWARD/FAST REVERSE 1. Press the SEARCH I_1_or ,4 SEARCH button when a disc is playing. • Each time the SEARCH I_1_or 44 SEARCH button is pressed, the speed of fast scan changes in the following sequence: 2x-- 4x--_ 8x--[_ --_4x-- 8x-- 2. -
Page 27: Display Function
DISPLAY FUNCTION (DVD) While the disc is playing, press the DISPLAY button repeatedly to display information on operation status: Chapter Elapsed Chapter Remain TitleRemain Display Off Tt01/03 Ch03/12 Tt01/03 Ch03/12 Tt01/03 Ch03/12 0:13:26 0:05:42 0:36:08 Audio I/I:Dolby D 5.1ch English Audio I/I:Dolby D 5.1 ch English Audio... - Page 28 You can play a specific title or chapter repeatedly. (Title repeat, chapter repeat, entire DVD repeat, A-B repeat) REPEATING A CHAPTER (DVD) You can play the same chapter repeatedly. 1. While the disc is playing, press the REPEAT button until the "_ Chapter _ indicator displays on the screen.
-
Page 29: Language Setup
PROGRAMMABLE MEMORY The two types of programmed playback provided by this unit is title/chapter programmed playback. TITLE/CHAPTER PROGRAMMED PLAYBACK (DVD) 1. Press the MEMORY button in PLAY mode. 2. Input the title (2 digits) and chapter (2 digits) by pressing the number buttons. (For example : 01 02, 02 05, 02 11.) It will move to the next item automatically. -
Page 30: Video Setup
VIDEO SETUP 1. In Stop mode, press the SETUP button. 2. Press the • orl_ button repeatedly until VIDEO SETUP appears. 3. Use theA or • button to select the option (TV MODE, BRIGHTNESS CONTRAST), then press button. Use the • or 1_ button to make adjustments,... -
Page 31: Cleaning The Disc
CLEANING THE DISC A defective or soiled disc inserted into the unit can cause sound to drop out during playback. Handle the disc by holding its inner and outer edges, j..___.</q • Do NOT touch the surface of the unlabeled side of the disc. •... - Page 32 SYMPTOM CAUSE (AND REMEDY) No power: ......, Ensure the AC power cord is connecte& * Turn on the unit. remote does • Remove any obstacles between the remote and the unit. function. • Use the remote near the unit. • Point the remote at the remote sensor on the unit. •...
- Page 33 SYMPTOM CAUSE (AND REMEDY) Bad Picture • cheCk the loCation of the antenna and adjust it if necessaiyl multiple images, • Make surethe antenna Cable is frmlyconnected. distortion, blurry)Make suie a!! input cables are firm!y c0nnected, No sound. • Increase the volume. •...
- Page 34 Unit: INCH 21 3/4" i iiiiii iii)!_ i ! _iiiiiii!i_i iii! ]iHiI_iiii: i ii_iiiiiiii Kiiii_Hii ® i,,ib_ E - 34...
-
Page 35: Limited Warranty
Packaging and Shipping Instruction When you send the product to the Venturer service facility you must use the original carton box and packing material or an equivalent as designated by VENTURER. LIMITED WARRANTY YOUR RESPONSIBILITY You must retain the original sale receipt to provide proof of purchase.
