Troy-Bilt TB75SS Operator's Manual
  1. Manuals
  2. Brands
  3. Troy-Bilt Manuals
  4. Trimmer
  5. AST TB75SS
  6. Operator's manual

Troy-Bilt TB75SS Operator's Manual

2-cycle gasoline trimmer
Hide thumbs Also See for TB75SS:

Advertisement

Table of Contents

See also: Operator's Manual

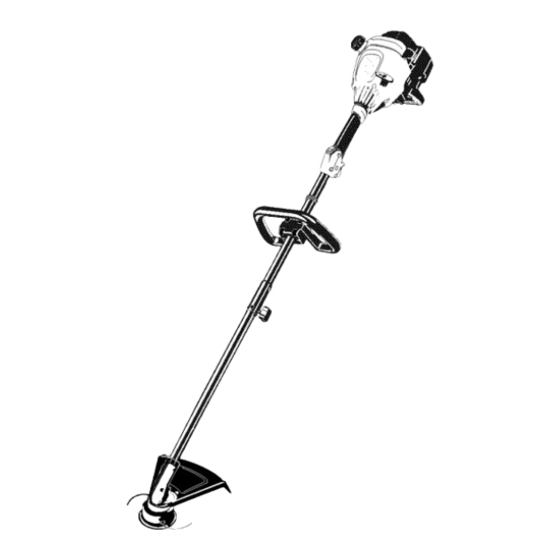

TROKBILT
Manual
2-Cycle
Gasoline Trimmer
Model TB75SS
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY
NOTE: For users on U,S, Forest Land and in the states of California, Maine, Oregon and Washington, All U.S, Forest Land and the state of California
(Public Resources Codes 4442 and 4443), Oregon and Washington require, by !aw that certain internal combustion engines operated on forest brush
and/or grass-covered
areas be equipped with a spark arrestor, maintained in effective working order, or the engine be constructed,
equipped and
maintained for the prevention of fire. Check with your state or local authorities for regulations pertaining to these requirements. Failure to follow these
requirements could subject you to liability or a fine. This unit is factory equipped with a spark arrestor, if it requires replacement, Accessory
Part 791-
180890 Spark Attestor Screen is a_ailable by contacting the service department at Troy-Bilt LLC, P.O. Box 361131 Cleveland, Ohio 44!36-0019.
TROY-BILT
LLC, P.O. BOX 361131, CLEVELAND,
OH 44136-0019
P/N 792-10813 (12/01) rev. P00)
PRINTED IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TB75SS and is the answer not in the manual?

Questions and answers

tom
April 26, 2025

prime button replace fuel line filter location of fuel lines

0
2 comments:
tom huentelman
April 26, 2025

tom huentelman

0
Mr. Anderson
May 14, 2025

On the Troy-Bilt TB75SS, the fuel line and filter are located inside the fuel tank. The fuel line runs from the fuel filter inside the tank to the carburetor.

This answer is automatically generated

0

Related Manuals for Troy-Bilt TB75SS

Summary of Contents for Troy-Bilt TB75SS

  • Page 1 This unit is factory equipped with a spark arrestor, if it requires replacement, Accessory Part 791- 180890 Spark Attestor Screen is a_ailable by contacting the service department at Troy-Bilt LLC, P.O. Box 361131 Cleveland, Ohio 44!36-0019. TROY-BILT LLC, P.O.
  • Page 2 !!!!!!!!!!!!!!!!!!!c_l!li_g !c_r!s_pp_"!_!!:!!_!!!!!!!!!!!!!!!!!_!!!!:!!_!!:!!_!!!!!!!!!!!!!!!!!_!!!!_!!:!!_!!:!!!!!!!!!!!!!!!!!!! !r_gand Storage BeP a_ e#t _ ar_ aut_ _r;ze d dealer copy ithiii_!a!i.um_ii! iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii...

  • Page 3: Before Operating

    • Use only 0.095 inch (2.41 mm) diameter genuine * Avoid creating a source of ignition for spilled fuel. Do Troy-Bilt LLC replacement line. Never use metal- not start the engine until fuel vapors dissipate. reinforced line, wire, or rope, etc. These can break oft and become a dangerous projectile.

  • Page 4: While Operating

    WHILE OPERATING * If you strike or become entangled with a foreign object, stop the engine immediately and check for • Never start or run the unit inside a closed room or damage. Do not operate before repairing damage. Do building.
  • Page 5 SAFETY AND INTERNATIONAL SYMBOLS This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING SAFETY ALERT SYMBOL Inc_iczttesdanger, wztrning, or cztution, Mzty be used in conjunction with other symbols or pictographs.
  • Page 6 SYMBOL MEANING THROWN OBJECTS AND ROTATING CUTTER CAN CAUSE SEVERE INJURY WARNING: Do not operate without the cutting _chment shield in pl_ce. Keep _way from the rotating cutting _tt_chment. ON/OFF STOP CONTROL ON / START / RUN • ON/OFF STOP CONTROL OFF OR STOP HOT SURFACE WARNING...
  • Page 7 EZ-Start Lever ..APPLICATIONS As a trimmer; Muffler Guard • Cutting grass and light weeds. Fuel Cap • Edging • Decorative trimming around trees, fences, etc. Other optional accessories may be used with the TB75SS. See list of add-ons on page 11. Starter Rope Grip Spark Plug Shaft Grip...

  • Page 8: Installing And Adjusting

    On some units, the D-handle may be preinstalled and Shaft G rip only require loosening the screws and adjusting the D-handle to the operator. Go to step 4 for adjusting the Shaft D-handle if preinstalled. Housing INSTALLING AND ADJUSTING THE D-HANDLE Remove the screws and bottom clamp piece that were installed on the D-handle for shipping.

  • Page 9: Mixing Ratio

    30 ml Using Fuel Additives MIXING RATIO - 32:1 The bottle of Troy-Bilt 2-Cycle Oil that came with your unit contains a fuel additive which will help inhibit corrosion and minimize the formation of gum deposits. It is recommended that you use only Troy-Blilt 2-Cycle Oil ARNING;...

  • Page 10: Starting Instructions

    STARTING INSTRUCTIONS On/Off Stop Control WARNING: Operate this unit only in a well- ventilated are& outdoors. Carbon monoxide exhaust fumes can be lethal in a confined area. WARNING: Avoid accidental starting. Be in the starting position when pulling the starter rope (Fig.
  • Page 11 While firmly holding the add-on, push it straight into OPERATING THE EZ-LINK SYSTEM the EZ-Link _ coupler (Fig. 7). The EZ-Link _ system enables the use of these NOTE: Aligning the release button with the guide recess optional add-ons. will help installation (Fig. 8). Blower/Vacuum ......

  • Page 12: Holding The Trimmer

    HOLDING THE TRIMMER Each time the head is bumped, about 1 inch (25.4 mm.) of trimming line is released. A blade in the cutting WARNING: Always wear eye, hearing, foot attachment shield will cut the line to the proper length if and body protection to reduce the risk of excess line is released.

  • Page 13: Maintenance

    Remove spring from the inner reel (Fig. 13). This section covers both Split-Line _"_ line and standard single line installation. Always use Troy-Bilt fM 0.095 inch (2.41 mm) replacement Bump _ob line. Using line other than specified may make the engine overheat or fail.
  • Page 14 Loop Use a clean cloth to clean the the inner reel, spring, shaft, and inner surface of the outer spool. NOTE: Membrane line can only be used with the inner reel with the slotted holes. Single line can be Check the indexing teeth on the inner reel and outer used on either type of inner reel.
  • Page 15 13. Insert the ends of the line through the eyelets in the outer spool and place inner reel with spring inside the outer spool (Fig. 20). Push the inner reel and outer spool together. While holding the inner reel and outer spool, grasp the ends and pull firmly to release the line from the holding slots in the reel.

  • Page 16: Air Filter Maintenance

    AIR FILTER MAINTENANCE Cleaning the Air Filter Removing the Air Filter/Muffler Cover Clean and re-oil the air filter every 10 hours of operation. It is an important item to maintain. Not maintaining the air filter will VOID the warranty. _lw_ys turn your trimmer off and allow it to cool WARNING;...

  • Page 17: Spark Arrestor

    Reinstalling the Air Filter/Muffler Cover 1. Place the air filter/muffler cover over the back of the Spark Exhaust carburetor and muffler. Align the screw holes. Arrestor Gasket Insert the four (4) screws into the holes in the air filter/muffler cover (Fig. 21) and tighten. Do not over tighten.
  • Page 18 CARBURETOR ADJUSTMENT The idle speed of the engine is adjustable through the Air filtedMuffler cover (Fig. 28). NOTE: Careless adjustments can seriously damage your unit. An authorized service dealer should make carburetor adjustments. Check Fuel Mixture Old and/or improperly mixed fuel is usually the reason for the unit not running properly.
  • Page 19 REPLACING THE SPARK PLUG LONG TERM STOP, AGE If the unit will be stored for an extended time, use the Use a Champion RDJ7Y spark plug (or equivalent). The correct air gap is 0.020 inch {0.5 ram}. Remove the following storage procedure. plug after every 25 hours of operation and check its Drain all fuel from the fuel tank into a container with condition.
  • Page 20 CAUSE ACTION On/Off Stop Control is in OFF position Turn On/Off Stop Control to ON Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times Engine flooded Use starting procedure with the EZ-Start _"_ Lever to the right on page 10 Old or improperly mixed fuel...
  • Page 21 Engine Type ..............Air-Cooled, 2-Cycle Stroke ................ 1.25 in. (31.75 ram) Displacement ..............1.9 cu in. (31 cc) Clutch Type ................Centrifugal Idle Speed RPM ..............2,800 - 3,600 rpm Operating ..............6,600 - 10,-s_J0 rpm Ignition Type ................Electronic Ignition Switch ..............
  • Page 23 • In order to file a claim, go to your nearest Authorized TROY-BILT Service Center. Warranty services or repairs will be provided at all Authorized TROY-BILT Service Centers.
  • Page 24 MANU FAG U RER!S LIMITED WAR EO R! The limited warranty set forth below is given by Troy-Bilt Troy-Bilt LLC reserves the right to change or improve the LLC with respect to new merchandise purchased and design of any Troy-Bilt Product without assuming any used in the United States, its possessions and territories.
