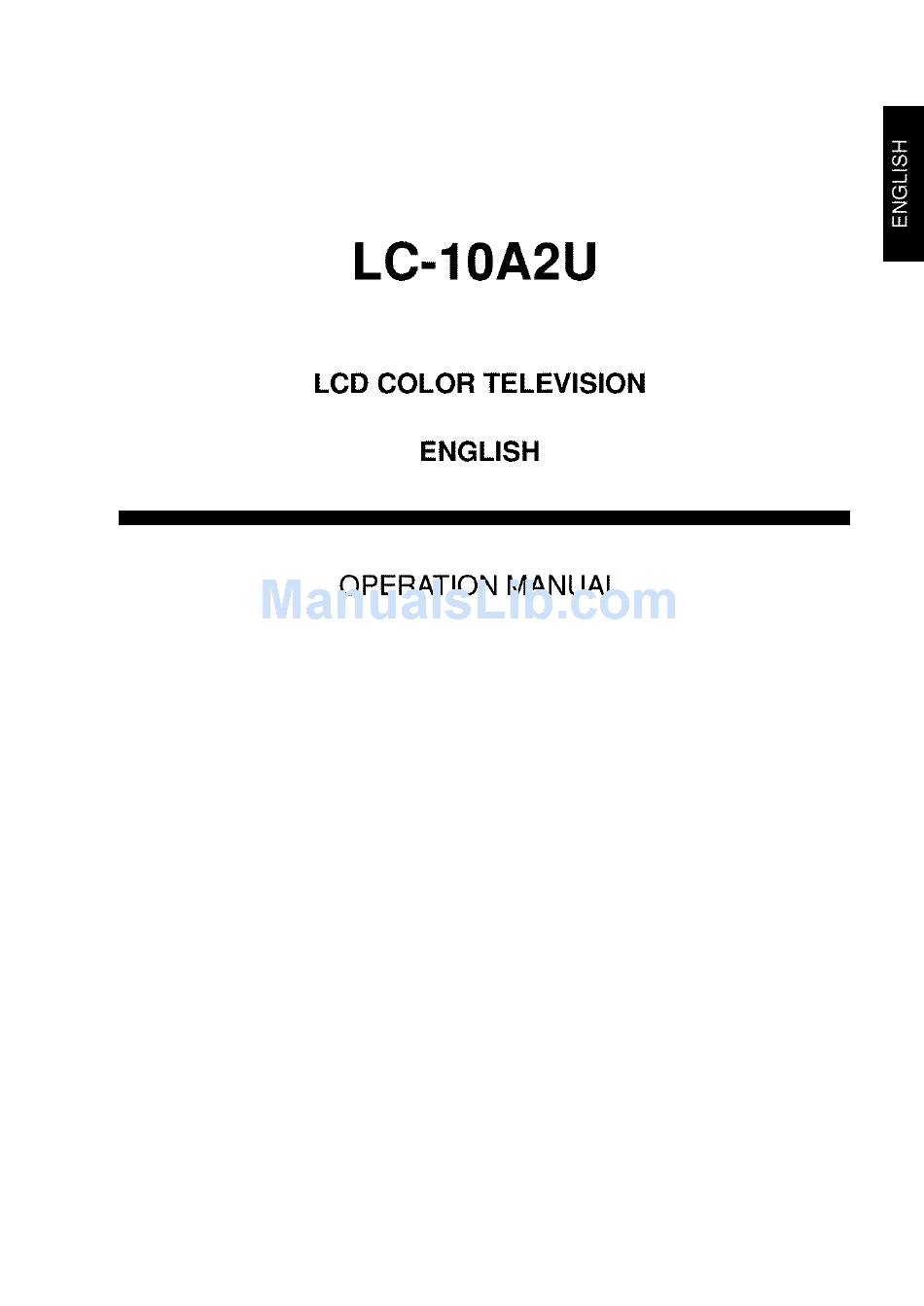

- Page 1 LC-10A2U LCD COLOR TELEVISION ENGLISH OPERATION MANUAL...
- Page 3 Important Information WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. The lightning flash with arrow- head symbol, within an equilat- eral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
-
Page 4: Table Of Contents
CONTENTS Page DEAR SHARP CUSTOMER ......................IMPORTANT SAFETY PRECAUTIONS ..................SUPPLIED ACCESSORIES ......................PREPARATION ..........................8-10 Preparing and Using the Remote Control ................Batteries for Remote Control ....................Power Connection ........................Antenna Connection ......................9,10 FRONT AND REAR CONTROL OPTIONS ................... -
Page 5: Dear Sharp Customer
DEAR SHARP CUSTOMER Thank you for your purchase of the Sharp LCD Color TV product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precau- tions carefully before using this product. IMPORTANT SAFETY PRECAUTIONS... -
Page 6: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS (Continued) 17. Servicing--Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing. 18. Repair--If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. -
Page 7: Supplied Accessories
SUPPLIED ACCESSORIES Make sure the following accessories are provided with the product. LC_ COLOt_T_L_VISIO_ C_TAUX '=aUED_S(LC_) RRMCG1559CESA TINS-7236CEZZ QCNW-5730CEZZ Wall Mount Bracket Screws (×4) QACCD3093CEZZ Fixed Screw for Set Stand (×1) UADP-0211CEZZ UBATU0026GEZZ LANGU9053CE01... -
Page 8: Preparation
PREPARATION • Use the remote control by pointing it towards the remote sensor window. • Objects between the remote cont[ol and sensor w=ndowmay p[event proper operation. Cautions regarding use of remote control • Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place in an area with high humidity. - Page 9 RF switch (not supplied) Cable TV Line descramb_er J Cable TV converter/ not supplied • Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that might be required,...
-
Page 10: Preparation
PREPARATION (Continued) Antennas • The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connections that are provided with the various antenna systems;... -
Page 11: Front And Rear Control Options
FRONT AND REAR CONTROL OPTIONS [Main unit (front view) 1 Remote sensor window Power/standby indicator (The actual location is not visible) A green indicator lights when the power is on and a red indicator lights when in the standby mode (the indicator will not light when the power is off). - Page 12 FRONT AND REAR CONTROL OPTIONS (Continued) I Main unit (rear view) Adjust the set stand to an angle so that the screen is easily visible. The set stand can be opened up to 80i. Rear terminal section AV input 1 terminal S-Video input _-..:.,...
-
Page 13: Basic Operation
REMOTE CONTROL/BASIC OPERATION MENU CH (A)/(V) ASelects next higher channel VSelects next lower channel VOL (+)/(-) FLASHBACK Returns to previous channel DISPLAY Press..Displays receiving channel for 10 seconds. Channel indication reduces in size after about 10 seconds. Press again._.After the CH call is displayed in large size, COLOR SYSTEM except N358 and is displayed for 10 seconds, and then CH will be displayed in small... - Page 14 BASIC OPERATION (Continued) Slide the MAIN POWER switch, V ON-screen display located on the upper side of the main unit to ON. The Power indicator instantane- ously changes from red to green and the main unit is turned on. Input mode indication disappears after several seconds.
-
Page 15: Sound Volume
BASIC OPERATION (Continued) Press the VOL (+) to increase sound volume. The segment of indicator increases. IIIIIIIIIIIIIIIIIIIIIIIII ..ooVOL (+)/(-) @@®o Press the VOL (-) to decrease sound volume. The segment of indicator @®® VOLUMklII I ....decreases. ,_MUTE To mute sound Press the MUTE to temporarily turn... -
Page 16: Changing The Channels
BASIC OPERATION (Continued) Changing channels using the CHANNEL SELECT on the remote control • To handle the increasing number of channels available, this LCD TV set allows you to select up to 125 positions (Channels 1 to 125). One-digit, two-digit and three-digit methods of selection can be used. - Page 17 SELECTING THE MENU ITEMS • This LCD TV set allows you to adjust the picture and sound, and set the channels and other features using the On Screen Display. Select the desired menu item by following the steps below and then refer to the indicated page for detaUs.
-
Page 18: Ez Setup During First Power On
EZ SETUP DURING FIRST POWER ON • When you turn on the LCD TV for the first time, it will automatically memorize the broadcasting channels. Please perform the following instructions before you press the power button. (1) Insert the batteries into the remote control. (See page 8) (2) Connect the antenna cable to the TV set. -
Page 19: Adjustment
ADJUSTMENT The language for the ON SCREEN DISPLAY can be ENGLISH, SPANISH or FRENCH. MENU Setting the ON SCREEN DISPLAY Language. 'SLEEP TIMER VIDEO ADJUST PRESET Press the MENU to display the MENU screen. F ---o VOL (+)/ Press the CH (A)/(V) to move the "_'"... - Page 20 ADJUSTMENT (Continued) MENU VOL (+)/ Press the MENU to display the bSLEEP TIMER VIDEO ADJUST MENU screen. ;#s_T (MAIN MENU screen) Press the CH (A)/(V) to move the MENU SLEEP TIMER cursor to VIDEO ADJUST. _V]DEO ADJUST ®®® LODW VIDEO ADJUST Press the VOL (+)/(-) to display the VIDEO ADJUST Menu screen.
- Page 21 Lower color intensity Higher color intensity BLACK LEVEL Less bright More bright SHARPNESS Soft picture Sharp picture COLOR SYSTEM T _ N358 PAL-M PAL-N AV mode Selected item Press the VOL (-). Press the VOL (÷). PICTURE Decrease contrast Increase contrast...
- Page 22 ADJUSTMENT (Continued) • The PRESET items can be set by the user. 4ENU VOL (+)/ Press the MENU to display the bSLEEP T]MER VIDEO ADJUST MENU screen. PRESET MENU Press the OH (A)/(V) to move the -- CH (A)/ ;ELECT:ACHV ENTER:-VOL+ cursor to PRESET.
-
Page 23: Setup
ADJUSTMENT (Continued) • EZ SETUP By operating the channel presetting functions, you can preset your LCD TV to the desired channels for viewing. MENU Press MENU to display the MENU bSLEEP TIMER VIDEO ADJUST screen. PRESET _---- VOL (+)/ Press OH (A)/(V) to move the "1_"... - Page 24 ADJUSTMENT (Continued) • CHANNEL SETTING If EZ SETUP does not memorize all the channels in your region, follow the instructions below to manually memorize the channel. Press MENU to display the MENU ME.U _SLEEP TIMER screen. V_DEO ADJUST PRESET 2 Press CH(A)/(V) tomove the "1_"...
-
Page 25: Setup
ADJUSTMENT (Continued) • Saving broadcast TV channels into memory. Press MENU to display the MENU CH-SETTING SETUP screen, then press OH (A)/(V) AIR/CABLE SEARCH move the "1_" mark to CH SETTING. MEMORY Press VOL (+)/(-) to display SETUP mode, then press CH (A)/ (Y) to move the "b'"... -
Page 26: Adjustment
ADJUSTMENT (Continued) • BLUE SCREEN Automatically turns the screen blue if a broadcast signal is not received. Press the MENU to display the MENU _SLEEP TIMER MENU screen. VIDEO ADJUST PRESET VOL (+)/ Press OH (A)/(V) to move the "1_" mark to "SET UP". -
Page 27: Listening With A Headphone
LISTENING WITH A HEADPHONE • Plug the headphone mini-plug into the headphone jack located on the rear side of the set. • Screen display Mini-plug H ejdaPch@°ne_ VOLUME e 0 IIIIIIIIIIIIIIIIIIIIIIIIIIIIII Headphone • The headphone is not included in the supplied accessories, •... - Page 28 CONNECTING WITH EXTERNAL DEVICES It is possible to enjoy video and sound by connecting VCR's and home video game systems to the terminals located on the rear of the main unit. When connecting an external device, turn off the power of the main unit and connecting device to prevent any possible damage.
-
Page 29: Connecting With External
CONNECTING WITH EXTERNAL DEVICES (Continued) [Connecting a VCR or home video game system (AV-IN 1/2) I AVqN I .3onnect the video and audio cords correctly. (Audio) (Video) S-Video cord Video/audio cord VCR connection (commercially (commercially cord (commercially available product) available product) available product) ¢idec... -
Page 30: Connecting With External Devices
CONNECTING WITH EXTERNAL DEVICES (Continued) [Outputting video and audio (video output) It is possible to output video and audio from the set through the AV output terminal (AV-OUT). video and audio • When using S-Video input for AV-IN 1, no video output will be made to the AV output terminal, but audio output witl be made for connection to external audio systems. -
Page 31: Troubleshooting
TROUBLESHOOTING • Before calling for repair service, check the following items for possible remedies to the encountered symptoms. I TV set I Reference Problem Check item Pages • Make sure the AC adapter is properly inserted in the power outlet. There is no •... -
Page 32: Troubleshooting
The picture is • Make sure the antenna is facing the right direction. • Make sure the outside antenna is not disconnected. not sharp. The picture moves. • Make sure the antenna is facing the right direction. -
Page 33: Specifications
SPECIFICATIONS ITEMS LC-10A2U MODEL 10.4" TFT LCD LCD panel Number of pixels 921,600 pixels VGA N358, N443, PAL, PAL-M, PAL-N, SECAM, PAL-60 Video color systems Destination USA/Latin AFFwn NTSC/PAL-M/PAL-N TV Standard (CCIR) PLL 181 ch. TV Turning System FUNCTION STEREO AV STEREO EZ SETUP CATV... - Page 34 Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or other- wise. in no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer.
