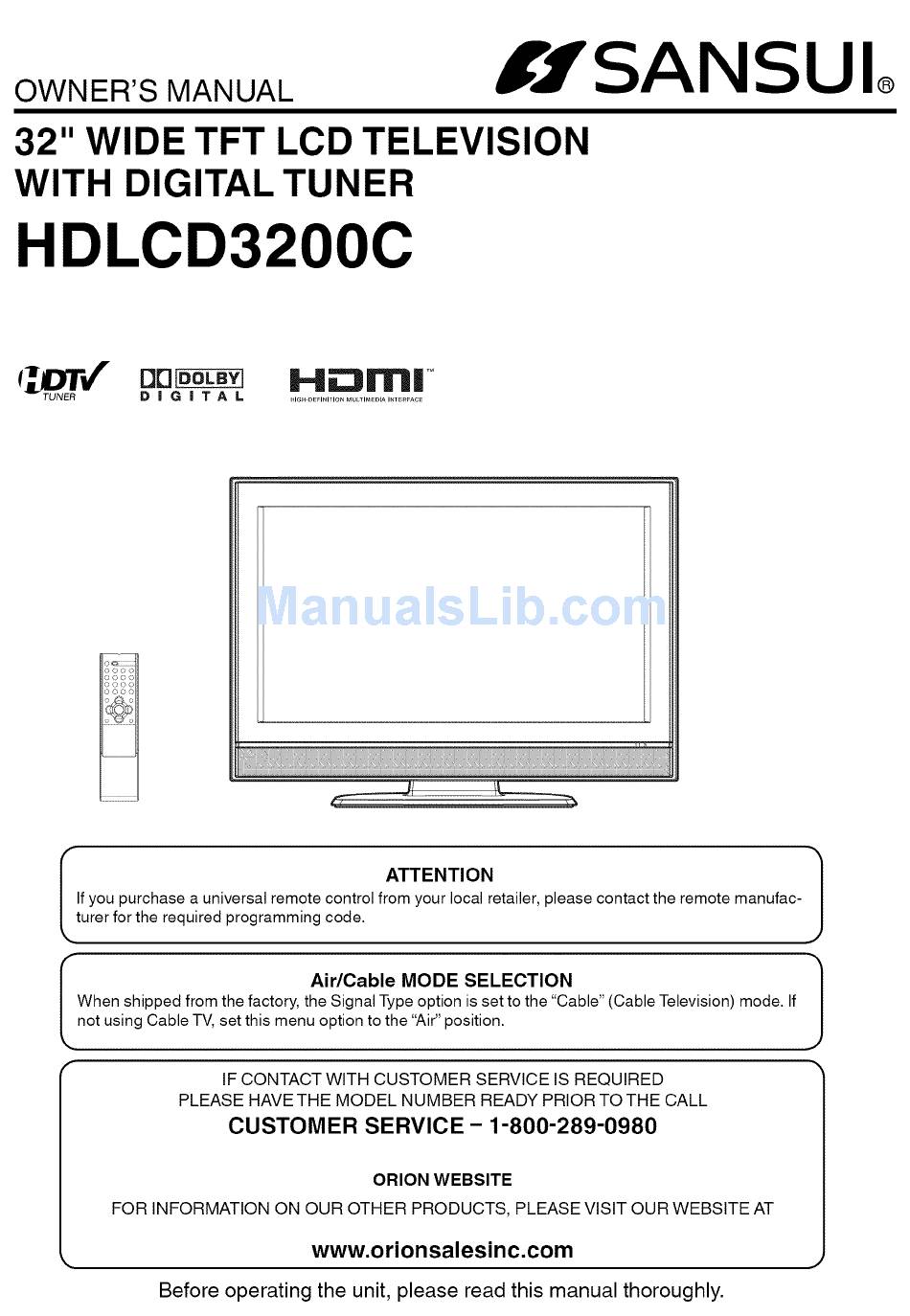

OW.E,'S
!,f SAN
32" WIDE TFT LCD TELEVISION
WITH DIGITAL TUNER
HDLCD3200C
H ml
TM
D I G I T A L
..................................
o o c c
o o oc
oooc
oooc
c
I
ATTENTION
1
If you purchase
a universal remote control from your local retailer, please contact
the remote manufac-
turer for the required programming
code.
I
Air/Cable MODE SELECTION
1
When shipped
from the factory, the Signal Type option is set to the "Cable" (Cable Television)
mode. If
not using Cable TV, set this menu option to the "Air" position.
IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED
PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL
CUSTOMER
SERVICE-
1-800-289-0980
ORION WEBSITE
FOR INFORMATION ON OUR OTHER PRODUCTS, PLEASE VISIT OUR WEBSITE AT
www.orionsalesinc.com
Before operating
the unit, please read this manual thoroughly.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDLCD3200C and is the answer not in the manual?

Questions and answers

Related Manuals for Sansui HDLCD3200C

Summary of Contents for Sansui HDLCD3200C

  • Page 1 OW.E,'S !,f SAN 32" WIDE TFT LCD TELEVISION WITH DIGITAL TUNER HDLCD3200C H ml D I G I T A L ........o o c c o o oc oooc oooc If you purchase a universal remote control from your local retailer, please contact the remote manufac- ATTENTION turer for the required programming...
  • Page 2 The lightning flash with arrowhead symbol, within an equilateral triangle CAUTION is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. CAUTION: TO REDUCE THE RISK OF ELECTRIC The exclamation...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a clean dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS 19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSl/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

  • Page 5: Safety Precautions

    IMPORTANT SAFETY INSTRUCTIONS CONDENSATION Moisture will form in the operating section of the player if the player is brought from coot surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired.

  • Page 6: Table Of Contents

    Contents 1PREPARATIONS IMPORTANT SAFETY INSTRUCTIONS ........SAFETY PRECAUTIONS .............. Contents ..................Features ..................Power source ................. Parts and functions ................ Remote control ................Antenna connections ..............Cable TV connections ..............Connections to other equipment ..........Setting the language ..............OPERATION Memorizing channels ..............

  • Page 7: Features

    Features • Integrated Digital Tuner -You can view digital broadcasts without using a Digital TV Set-Top Box. • Closed Caption Decoder With Full Text Mode - Displays text captions or full screen text on the screen for hearing impaired viewers. •...

  • Page 8: Parts And Functions

    Parts and functions MENU button To display the menu screen. CHANNEL A/T buttons INPUT/ENTER button Press MENU button to display the menu VOLUME +/- buttons POWER button screen. CHANNEL A/T buttons and VOLUME +/- buttons can be used to select the desired setting during the menu screen operations.

  • Page 9: Remote Control

    Remote control 6.CH (CHANNEL) + I-I CURSOR • / • Buttons - Used to operate the menu functions of the LCD TV, and to change the channels of the LCD TV. 7. MENU Button - Use to display the On-Screen menu function.

  • Page 10: Antenna Connections

    Antenna connections If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see page 11 for Cable TV connections. Combination VHF/UHF Antenna (Single 75 ohm cable or 300 ohm twin-lead wire) Connect the 75 ohm cable from the combination...

  • Page 11: Cable Tv Connections

    Cable TV connections This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer "premium pay channels" where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

  • Page 12: Connections To Other Equipment

    Connections to other equipment The exact arrangement you use to interconnect various video and audio components to the LCD TV is dependent on the model and features of each component. Check the Owner's Manual provided with each component for the location of video and audio inputs and outputs. The connection diagrams below are offered as suggestions.
  • Page 13 Connections to other equipment To connect the LCD TV to a DVD player/Satellite receiver If your DVD player or Satellite receiver has a S-Video out jack, connect cords as shown. Left side of the LOD TV To S-VIDEO IN To S-Video OUT S-Video cord (not supplied) Audio cord (not supplied) To Audio OUT...
  • Page 14 Connections to other equipment To connect the LCD TV to a DTV receiver/set-top If you connect a DTV receiver/set-top box, connect your LCD TV to a DTV receiver/set-top box using a component video cord. Left side of the LCD TV To Component OUT To COMPONENT o! °'...
  • Page 15 Connections to other equipment To connect the LCD TV to a Game or a Camcorder The LCD TV can also be used as a TV device for many video games or camcorders. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams.
  • Page 16 Connections to other equipment To connect an audio system This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV's remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV's built-in speakers (see "Turning off the built-in speakers"...

  • Page 17: Setting The Language

    Setting the language You can choose from three different languages (English, French and Spanish) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options. Press EXIT to return to the normal screen. To turn on the TV, press POWER. CABLE CHART (POWER indicator on the front of the unit The chart below is typical of many cable system...

  • Page 18: Tv Operation

    Adding Channel If you find a new channel unregistered, you can add the new channel into the channel memory. Tune in the new channel. Press MENU. The menu screen will appear. Press EXIT to return to the normal screen. Press • or • to select"Channel", then press _ or ENTER.

  • Page 19: Labeling Channels

    NOTE: RECALL • If a channel with no broadcast is selected, the This button allows you to go back to the last channel sound will automatically be muted. selected by pressing RECALL. Press RECALL again • It may take a few seconds for a digital channel to return to the last channel you were watching.

  • Page 20: Labeling Video Inputs

    To register a password 0""9 <-->A-..Z <-_- • ,()@/+=- <_ ) SPACE < Press MENU. The menu screen will appear. Press • or • to select "Lock", then press _ or If the character which you desire appears, press ENTER. ENTER.

  • Page 21: Closed Caption

    Movie Rating If the TV is not storing the additional rating system, the TV will begin downloading it, which may take some time to be completed. Set your preferred content rating limits for the additional rating system. You also need "Update" procedure to update rating information.

  • Page 22: Cc Advanced

    Press select "Closed then Press • or • to select"Analog Caption" or "Digital • or • to Caption", press _- or ENTER. Caption". The Closed Caption menu will appear. When you select "Analog Caption", you can Press • or • to select"Digital CC Preset", then choose Cl, C2, C3, C4, T1, T2, T3 and T4.

  • Page 23: Picture Control Adjustment

    Mode Picture Quality Press • or • to select"Picture Setting", then press I_ or ENTER. Sports Bright and dynamic picture (factory-set) The Picture Setting menu wilt appear. Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Press • or • to select"Color Temperature", then press •...

  • Page 24: Film Mode

    Film Mode Cinema Wide1 picture size (for 4:3 format programs) To fill the screen, the right and left edges are A smoother motion may be obtained by setting extended, the Film Mode to "On" when you view a DVD from however;...

  • Page 25: Dnr

    Selecting Stereo/Second After adjusting, press ENTER to return to the PC Setting menu. Then continue to adjust the other Audio Program (SAP) items. Press EXIT to return to the normal screen. The multi-channel TV sound (MTS) feature provides high-fidelity stereo sound. MTS also NOTE: can transmit a second audio program (SAP) containing...

  • Page 26: Selecting The Hdmi Audio Input Source

    Selecting the HDMI audio input source When you use PC/HDMI AUDIO IN jacks with HDMI or DVI device, you must select HDMI audio input source from "HDMI" or "DVI'. Press • or _ to adjust the setting. Press MENU. The menu screen will appear. Press EXIT to return to the normal screen.

  • Page 27: Reception Disturbances

    Reception disturbances Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

  • Page 28: Troubleshooting

    Troubleshooting Use the following checklist for troubleshooting if you have problems with your LCD TV. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units. rSYMPTOMS SYM PTOMS POSSIBLE SOLUTIONS POSSIBLE...

  • Page 29: Specifications

    Specifications Power supply: AC 120 V 60 Hz Power consumption: Operation: 170 W Stand by: Weight: 31.1 Ibs (14.1 kg) Dimensions: Width: 32-3/8 inches (822 mm) Height: 23-3/4 inches (604 mm) Depth: 11-1/8 inches (282.5 mm) VIDEO: Inputs: 1 V (p-p)/75 ohms AUDIO: -8 dBm/50k ohms S-VIDEO:...

  • Page 30: Limited Warranty

    SANSUI LIMITED WARRANTY 32"WIDE LCD TELEVISION ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 1 year from date of original purchase in the United States.
  • Page 31 Memo...
  • Page 32 III IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII Printed in Thailand J35D0101A SH 08/02 []...
