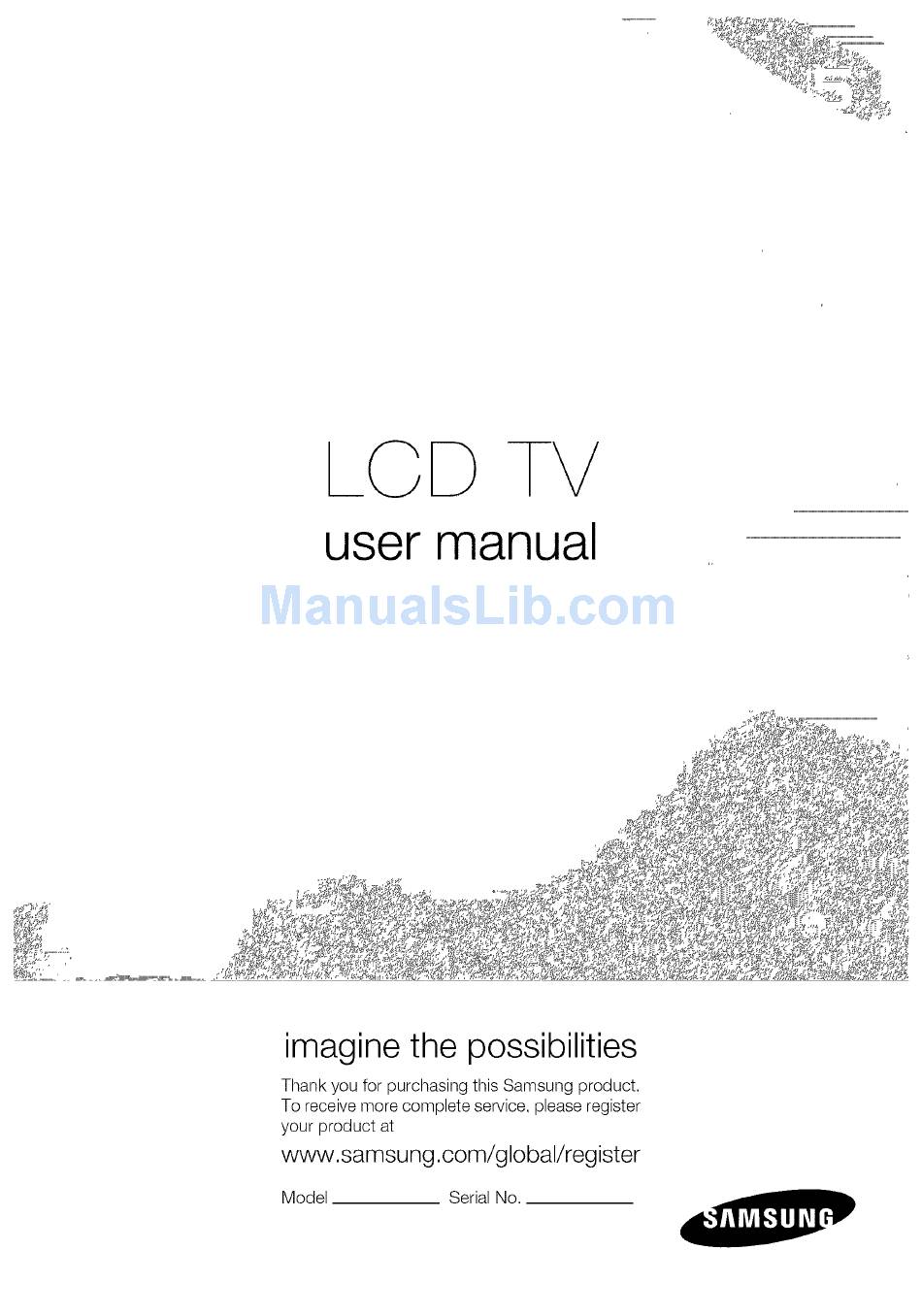

I_OD TV user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register Model Serial No.
Page 2
Subjectto the requirements,conditions, exclusions and limitations of the original LimitedWarranty suppliedwith Samsung -_.Electronics (SAMSUNG)products, and the requirements,conditions, exclusionsand limitations containedherein. SAMSUNGwill additionally provide WarrantyRepair Servicein the United States on SAMSUNGproducts purchased in Canada.and in Canada on SAMSUNG products purchasedin the United States. for the warranty periodoriginaUyspecified,and to the Original Purchaser only.
Contents • List of Features ..............2 • Using Your TV as a Computer (PC) Display ....42 • Accessories ............... 2 • Display Modes ..........• Viewing the Control Panel ..........3 • Setting up the TV with your PC ........43 •...
General Information List of Features • Adjustable picture settings that can be stored in the TV's memory. • Automatic timer to turn the TV on and off. • A special sleep timer. • Excellent Digital Interface: With a built-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top Box) needed.
The buttons on the lower-right panel control your TV's basic features, including the on-screen menu. To use the more advanced features, you must use the remote control. • ....................... SAMSUNG The product color and shape may vary depending on the model. SOURCE _...
Viewing the Connection Panel Use the connection panel jacks to connect A/V components that will be connected continuously, such as DVD players or a VCR. For more information on connecting equipment, see pages 6~11......................[TV Rear Panel] The product color and shape may vary depending on the model. (]1 AUDIO OUT POWER INPUT Connects to the audio input jacks on your Amplifier/...
Use to quickly select frequently DMA (Digital Media Adapter) TOOLS RETURN used functions. Use this when connecting a SAMSUNG DMA device INFO through an HDMI interface and Press to display information on switching to DMA mode. the TV screen. For more information on the...
Installing Batteries in the Remote Control Lift the cover at the back of the remote control upward as shown in the figure. Install twoAAAsize batteries. :_ Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.
Connecting Cable TV To connect to a cable TV system, follow the instructions below. Cable without a Cable Box Plug the incoming cable into the ANT IN terminal on the back of the TV. :_ Because this TV is cable-ready, you do not need a cable box to view unscrambled cable channels.
Connecting a DVDPlayerorCableBox/Satellite r eceiver(Set.Top Box)via HDMI This connection can only be made if there is an HDMI Output connector on the external device. Connect an HDMI Cable between the HDMI IN (1 DVD Player or Cable Box/Satellite receiver or 2) jack on the TV and (Set-Top B ox) Rear Panel TV Rear Panel...
Connecting aDVD Player o rCable Box/Satellite receiver (Set.Top Box) v iaComponent cables The rear panel jacks on your TV make it easy to connect a DVD Player or Cable Box/Satellite receiver (Set-Top Box) to your TV. Connect a Component TV Rear Panel Cable between the COMPONENT IN (1 or 2) [Y, PB, PR]...
Connecting a VCR Video Connection These instructions assume that you have already connected your TV to an antenna or a cable TV system (according to the instructions on pages 6~7). Skip step 1 if you have not yet connected to an antenna or a cable system. Unplug the cable or antenna from the back iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_...
Connecting a Digital Audio System The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV. Connect an Optical Cable 1 • Digital Audio System TV Rear Panel between the "DIGITAL AUDIO OUT (OPTICAL)"...
Operation Turning the TV On and Off Press the POWER(b button on the remote control. You can also use the POWER(b button on the TV. Plug & Play Feature When the TV is initially powered on, basic settings proceed automatically and subsequently. Press the POWER button on the remote control.
8, Press the • or• button tohighlight the time z one f or y our local area. Press ENTER _ button. If you have received a digital signal, the time will be set automatically. If not, see page 45 to set the clock. The message "Enjoy your watching."...
Adjusting the Volume Using the Volume Button Press the VOL - or VOL + button to increase or decrease the volume. Using the MUTE button f'÷ At any time, you can cut off the sound using the MUTE button. MUTE Press MUTE button and the sound cuts off.
Using the TOOLS Button You can use the TOOLS button to select your frequently used functions quickly and easily. The "TOOLS" menu changes depending on which external input mode you are viewing. Press the TOOLS button. (2Z) GE) The "TOOLS" menu will appear. Press the •...
Page 18
Storing Channels in Memory (Automatic Method) Press the MENU button to display the menu. Press the • or • button to select "Channel", then press the ENTER button. Press the • or • button to select "Auto Program", then press the ENTER button.
To Select the Source Use to select TV or other external input sources such as DVD players or Cable Box/Satellite receivers (Set-Top Box) connected to the TV. Use to select the input source of your choice. Press the MENU button to display the menu. Press the •...
Picture Control Changing the Picture Standard You can select the type of picture which best corresponds to your viewing requirements. Press the MENU button to display the menu. Press the ENTER _ button to select "Picture". Press the ENTER _ button to select "Mode".
Adjusting the Detailed Settings Samsung's new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings. Activating Detailed Settings Press the MENU button to display the menu. Press the ENTER _ button to select "Picture".
Page 22
Adjusting the Gamma You can adjust the Primary Color (Red, Green, Blue) Intensity. (-3 ~ +3) Press the • or • button to select "Gamma", then press the ENTER button. Press the • or • button to decrease or increase the value. Press the ENTER _ button.
Page 23
Adjusting the White Balance You can adjust the color temperature for more natural picture colors. 17, Press the • or • button to select "White Balance", then press the ENTER _ button. Select the required option by pressing the • or • button, then press the ENTER _ button.
Setting the xvYCC Setting the xvYCC mode to "On" increases detail and color space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. 24, Press the • or • button to select "xvYCC", then press the ENTER button.
Configuring Picture Options Activating Picture Options Press the MENU button to display the menu. Press the ENTER _ button to select "Picture". Press the • or • button to select "Picture Options", then press the ENTER button. Press the • or • button to select a particular item. Press the ENTER button.
Page 26
When Double ( [_, mm) mode has been set in PIP, the Picture Size cannot be set. Temporary image retention may occur when viewing a static image on the set for more than two hours, > After selecting "Zoom1", "Zoom2" or "Wide Fit": Press the •...
Page 27
Setting the Digital Noise Reduction If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 23) Press the •...
Page 28
Setting the Film Mode The TV can be set to automatically sense and process film signals from all sources and adjust the picture for optimum quality. Follow the "Activating Picture Options" instructions numbers 1 and 2. (Refer to page 23) Press the •...
Viewing Picture-in-Picture You can use the PIP feature to simultaneously watch the TV tuner (analog broadcasts only) and one external video source. (See page 33 to select the PIP picture sound.) This product has one built-in tuner, which does not allow PIP to function in the same mode.
Page 30
Changing the PIP Channel Press the • or • button to select "Air/Cable", then press the ENTER button. Press the • or • button to select "Air" or"Cable", then press the ENTER button. Press the • or • button to select "Channel", then press the ENTER button.
Sound Control Changing the Sound Standard You can select the sound mode to best suit the programming you're watching. Press the MENU button to display the menu. Press the • or • button to select "Sound", then press the ENTER _ button.
Press the • or • button to select a particular frequency to adjust. Press the • or I_ button to increase or decrease the level of the particular frequency. • Balance L/R: Adjusts the balance between the right and left speaker. , Bandwidth Adjustment (lOOHz, 300Hz, lkHz, 2kHz, 3kHz, lOkHz): To adjust the level of different bandwidth frequencies.
Choosing Preferred Language The digitaI-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages). Select the language you would like to hear the audio track in. Press the MENU button to display the menu. Press the •...
Automatic Volume Control Reduces the differences in volume level among broadcasters. Press the MENU button to display the menu. Press the • or • button to select "Sound", then press the ENTER _ button. Press the • or • button to select "Auto Volume", then press the ENTER button.
Listening to the Sound of the Sub (PIP) Picture When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. Press the MENU button to display the menu. Press the • or • button to select "Sound", then press the ENTER _ button. Press the •...
Managing Channels Using this menu, you can Add/Delete or set Favorite channels and use the program guide for digital broadcasts. Viewing All Channels Show all currently available channels. To use the Channel List function, first run "Auto Program" (see page 16). Press the MENU button.
Page 37
Erasing and Adding Channels You can delete or add a channel to display the channels you want. Pressthe MENU button. Press the • or • button to select "Channel", then press the ENTER button. Press the • or • button to select "Channel List", then press the ENTER _ button.
Page 38
Setting Your Favorite Channels You can set channels you watch frequently as favorites. Pressthe MENU button. Press the • or • button to select "Channel", then press the ENTER button. Press the • or • button to select "Channel List", then press the ENTER button.
Page 39
Reserving a Program (Timer Viewing) If you reserve a program you want to watch, the channel is automatically switched to the reserved channel in the Channel List; even when you are watching another channel. To reserve a program, set the current time first. See pages 45~46. Reserved channels can only be set if they are in the "Channel List"...
Page 40
Confirming a Viewing Reservation You can view, modify or delete a reservation. Pressthe MENU button. Press the • or • button to select "Channel", then press the ENTER button. Press the • or • button to select "Channel List", then press the ENTER _ button.
Page 41
Labeling Channels - Analog Channels can labeled so that their call letters appear whenever the channel is selected. Pressthe MENU button. Press the • or • button to select "Channel", then press the ENTER button. Press the • or • button to select "Channel List", then press the ENTER button.
Clearing Scrambled Channels - Digital The "Clear Scrambled Channel" function is used to filter out scrambled channels after "Auto Program" is completed. This process may take up to 20~30 minutes. Press the MENU button to display the menu. Press the • or • button to select "Channel", then press the ENTER button.
Checking the Digital-Signal Strength Unlike analog channels, which can vary in reception quality from "snowy" to clear, digital (HDTV) channels have either perfect reception quality or you will not receive them at all. So, unlike analog channels, you cannot fine tune a digital channel.
Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.) First, click on "Control Panel" on the Windows start menu.
Setting up the TV with your PC How to Auto Adjust Use the Auto "Adjust function" to have the TV set automatically adjust the video signals it receives. The function also automatically fine-tunes the settings and adjusts the frequency values and positions. >- This function does not work in DVI-Digital mode.
Page 46
Changing the Screen Position Adjust the PC's screen positioning if it does not fit the TV screen. Preset: Press the SOURCE button to select PC mode. Press the MENU button to display the menu. Press the • or • button to select "Picture", then press the ENTER button.
Time Setting Setting the Clock Setting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press the INFO button.) Option 1: Setting the Clock Manually Press the MENU button to display the menu.
Page 48
Option 2: Setting the Clock Automatically The Clock can be set automatically if you are receiving a digital signal. Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button.
Page 49
Setting the Sleep Timer The sleep timer automatically shuts off the TV after a preset time (30, 60, 90, 120, 150 and 180 minutes). Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button.
Page 50
Setting the On/Off Timer Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER button. Press the • or • button to select "Time", then press the ENTER {_ button. Three different On/Off Timer Settings can be made.
Function Description Selecting a Menu Language Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button. Press the • or • button to select "Language", then press the ENTER button.
Page 52
The "V-Chip" screen will appear. Press the • or • button to select "Change PIN", then press the ENTER button. The Change PIN screen will appear. Choose any 4 digits for your PIN and enter them. As soon as the 4 digits are entered, the "Confirm new PIN."...
Page 53
How to Set up Restrictions Using the TV Parental Guidelines First, set up a personal identification number (PIN) and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating. Press the MENU button to display the menu.
Page 54
How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, X, NR The MPAA rating system uses the Motion Picture Association of America (MPAA) system and its main application is for movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable ratings (either MPAA or TV-Ratings).
Page 55
How to Set up Restrictions Using the Canadian English Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button. Press the • or • button to select "V-Chip", then press the ENTER button.
Page 56
How to Set up Restrictions Using the Canadian French Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button. Press the • or • button to select "V-Chip', then press the ENTER button.
Page 57
Using the V-Chip for Digital channels Parental restriction information can be used while watching DTV channels. Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button. Press the • or • button to select "V-Chip", then press the ENTER button.
Viewing Closed Captions (On-Screen Text Messages) -Analog The Analog Caption function operates in either analog TV channel mode or when a signal is supplied from an external device to TV. (Depending on the broadcasting signal, the Analog Caption function may operate on digital channels.) Press the MENU button to display the menu.
Viewing Closed Captions (On-Screen Text Messages) - Digital The Digital Captions function operates on digital channels. Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button. Press the • or • button to select "Caption", then press the ENTER C_ button.
Adjusting the TV On/Off Melody Sound A melody sound can be set to come on when the TV is powered On or Off. Press the MENU button to display the menu. Press the • or • button to select "Setup", then press the ENTER _ button.
Using the Energy Saving Feature This feature adjusts the brightness of the TV in order to reduce power consumption. When watching TV at night, set the "Energy Saving" mode option to "High" to reduce eye fatigue as well as power consumption. Press the MENU button to display the menu.
Upgrading the Software Samsung may offer upgrades for TV's firmware in the future. Please contact the Samsung call center at 1-800-SAMSUNG (726-7864) to receive information about downloading upgrades and using a USB drive. Upgrades will be possible by connecting a USB drive to the USB port located on your TV.
"Yes". If you can normally hear the sound from the speakers, select "No". * Yesi There may be a problem with the TV. Contact the Samsung Call center at 1,800-SAMSUNG. , No: There may be a problem with your external equipment. Please...
About Anynet + What is Anynet+? Anynet + is a function that enables you to control all connected Samsung devices that support Anynet + with your Samsung TV's remote. Connecting Anynet+ Devices The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.
Setting Up Anynet + The following settings help set the Anynet + functions. To use the Anynet÷ Function, Anynet + (HDMI-CEC) must be set to On Press the MENU button. Press the • or • button to select "Application", then press the ENTER _ button.
Recording You can make a recording of a TV program using a Samsung recorder. Press the TOOLS button. Press the • or • button to select Recording Immediately and press the ENTER C_ button.
Listening through a Receiver (Home theater) You can listen to sound through a receiver instead of the TV speaker. Press the TOOLS button. Press the • or • button to select "Receiver". Press the • or • button to select to "On". Now you can listen to sound through the receiver.
Appendix Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call Samsung customer service at 1-800-SAMSUNG. Problem Poor picture. Try another channel. Adjust the antenna.
Page 69
Problem Possible Solution Screen is black and power indicator On your computer check: Power, Signal Cable. light blinks steadily. The TV is using its power management system. Move the computer's mouse or press any key on the keyboard. Image is not stable and may appear If the setting is not correct, use your computer utility program to change the to vibrate when you have a computer display settings.
Installing the Stand Attach your LCD TV to the stand. Two or more people should carry the TV. Make sure to distinguish between the front and back of the stand when attaching it. To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper left of right sides of the TV.
Auto Wall-Mount Adjustment (Sold separately) Once the auto watt mount is installed, your TV's position can be easily adjusted. Auto Wall-Mount "IV Rear Panel Entering the menu Press the &, T, • or I_ button on your remote control. The Walt Mount Adjustment screen is displayed. If the Wall Mount Adjustment screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.
Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
Using the Anti-Theft Kensington Lock The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for proper use.
Securing the TV to the Wall Cautjoni Puiiingl pushing, or Climbing Onthe TV maYCause the TV to faik !n particulai, ensure y0ur children donor hang ove r or destabilize the TV; doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided on the included Safety E!yer.
Specifications Model Name Screen Size 40inches 46inches c40.04inches measured diagonally) (46.06inches measured diagonally) (Diagonal) PC Resolution 1920 x 1080@60 1920 x 1080@60 Sound lOWx 2 lOWx 2 Output Dimensions (WxDxH) 38.2 X 3.4 X 24.7 inches 43.5 X4.1 X 27.8 inches Body (971 x 87.2 x 628 mm) (1106 x 104.2 x 706 mm)
Page 78
The GNU General Public License (GPL) Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your freedom to share and change it.
Page 79
These requirements apply tothe modified work as awhole. Ifidentifiable sections ofthat work a re not derived from the Program, and can be reasonably considered independent and s eparate works inthemselves, then t his License, and its terms, donot apply tothose sections when y ou distribute them as separate works.
Page 80
9.The Free S oftware Foundation may p ublish revised and/or new versions ofthe General Public License from time t o time. Such new versions will b e similar inspirit tothe present version, but m ay d iffer indetail toaddress new problems concerns.
Page 81
GNU Lesser General Public License (LGPL) Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. [This is the first released version of the Lesser GPL It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1 .] Preamble...
Page 82
TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called "this License").
Page 83
5.Aprogram that contains noderivative ofany p ortion ofthe Library, but isdesigned towork with the Library by being compiled orlinked with it, is called a "work that uses the Library". Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.
Page 84
10. E ach time y ou redistribute the Library (or a ny w ork b ased onthe Library), the recipient automatically receives alicense from the original licensor tocopy, distribute, link w ith ormodify the Library subject tothese terms and conditions. You m ay not i mpose any f urther restrictions...
Page 85
END OF TERMS AND CONDITIONS How to Apply These Terms to Your New Libraries If you develop a new library, and you want it to be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License).
Page 86
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Contacte con 8AMSUNG WORLDWIDE Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atenci6n al Cliente.
