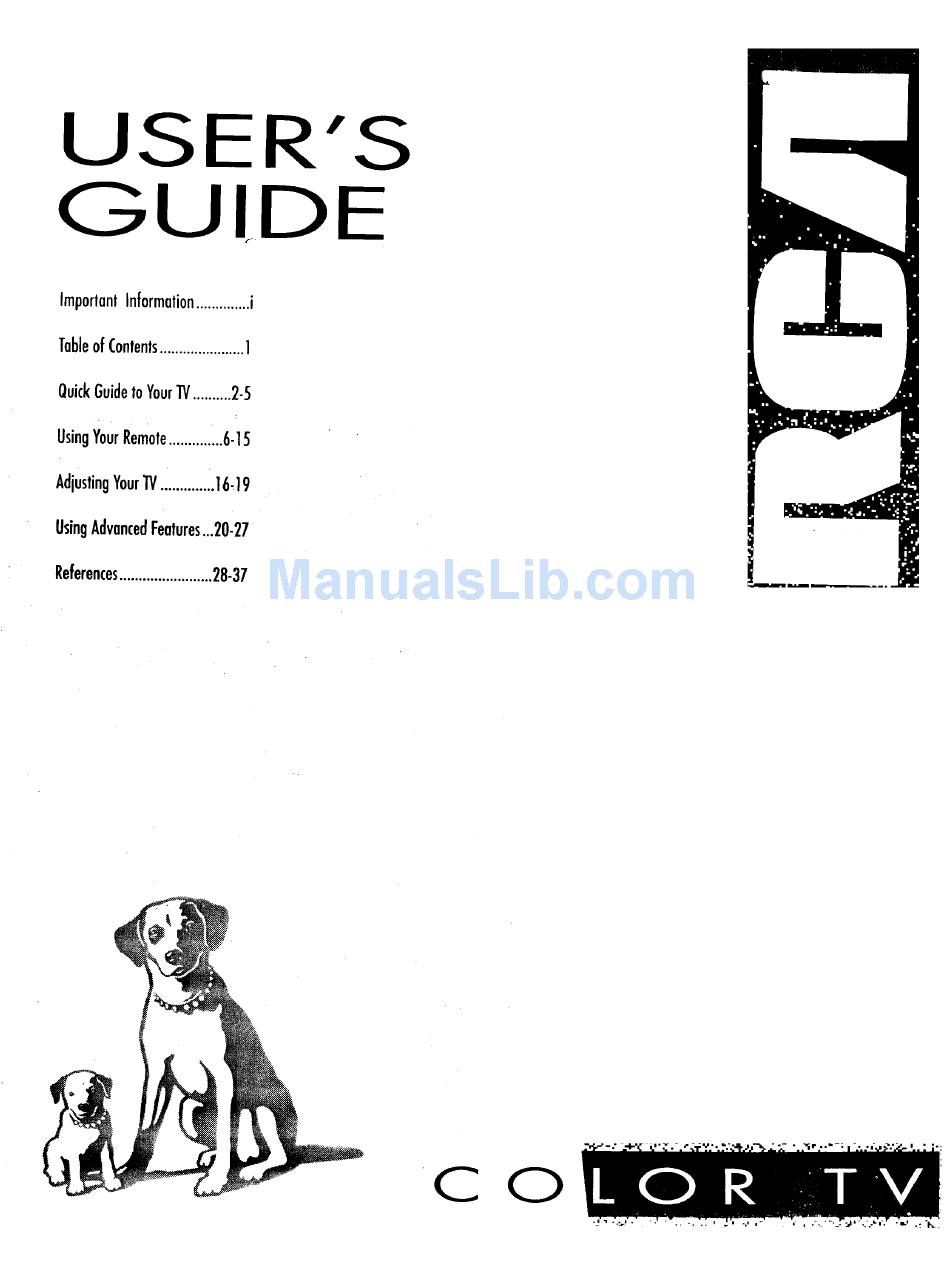

USER'S
GUIDE
Important Information . ............. i
Table ofContents ...................... 1
Quick Guide toYour I V .......... 2-5
Using Y our Remote ........... i ..6-15
Adjusting Your 1 1/.i . ......... 1 .16-19
Using A dvanced Features ...20-27
References
........................ 28-37
C 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F27675 and is the answer not in the manual?

Questions and answers

Summary of Contents for RCA F27675

  • Page 1 USER'S GUIDE Important Information ....i Table ofContents ...... 1 Quick Guide toYour I V ..2-5 Using Y our Remote ... i ..6-15 Adjusting Your 1 1/.i ..1 .16-19 Using A dvanced Features ...20-27 References ......28-37...
  • Page 2: Important Information

    Important Information WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER To reduce the risk of fire or shock SERVICEABLE PARTS INSIDE. REFER SERVICING hazard, do not expose this TV to TO QUALIFIED SERVICE PERSONNEL. rain or moisture.
  • Page 3: Table Of Contents

    Table of Contents Important Information Warning, Product Registration Quick Guide to Your TV Startup Hook up your TV, Plug in the TV, Put Batteries in the Remote, Turn on the TV, Place Channels into Memory, Set the Time Basic Tour of the Remote Basic Button Layout and Functions Menu Basics...
  • Page 4: Quick Guide To Your Tv Startup

    Quick Guide to Your TV Startup The steps below will get your TV connected and ready for watching. For more details, see the page numbers listed. Hook up your TV Hook up any antennas, cables other equipment to your TV before Details are in the Connections you follow the steps below.
  • Page 5 Quick Guide to Your TV Startup Turn on the TV Press -IV on the remote. Press POWER on the TV. 5. Place all available A. Press MENU'PROG until the Setup menu is selected. This channels in memory menu is white. (AutoProgram) Controls Alarm...
  • Page 6: Basic Tour Of The Remote

    Quick Guide to Your TV Basic Tour of the Remote Basic information about your remote is shown below. This will give you a general idea of how your remote works. For more details, see pages 6-15. Turns the TV on. TV Power Button Sets the remote to control the TV.
  • Page 7: Menu Basics

    Quick Guide to Your TV Menu Basics General information about using the on-screen menu system is shown below. Details on using the remote buttons are on pages 6-7. Many menu items are explained in detail in Using the Advanced Features starting on page 20. Yellow Green Light White...
  • Page 8: Using Your Tv And Remote

    Using Your TV and Remote With Remote Buttons DISPLAY POWER Turns off the TV. Shows displays on the screen. Clears menus from the screen. Turns off compatible VCRs. Turns on a component after a SKIP (Commercial Skip) component button is pressed. Allows you to scan other chan- AUDIO, VCR, VCR2-LD, nels during...
  • Page 9 Using Your TV and Remote With Remote Buttons Number Buttons (0-9) MOVE < and I_ (left and right) Moves left and right on a menu Selects any channel number. line. See Menu Basics on page 5. Two numbers must be pressed Changes a feature setting.
  • Page 10 Hitachi ....... 05,15,35,36 Quartz ..........Wards ..........Quasar ..........08 • Instant Replay ......... 08 .... 05,06,07,08,12,13,15,25,31,35 JCL ............ RCA ....00,05,07,08,28,35,37 'Yamaha ......02,14,16,30 Realistic ..02,06,08,09,12,15,19,43 JCPenney ..02,05,07,08,14) 16,30,35 Zenith ......... 11,17 JVC ........02,14,16,30 Samsung ....... 07,13,22,32,42 Kenwood ......
  • Page 11: With Vcrs

    Using Your TV and Remote With VCRs: Setting the VCR1 Channel The VCR 1 Channel works with VGR on the remote. If the VCR 1 Channel is set, pressing VCR selects the channel to see the VCR picture. The VCR 1 Channel setting depends on which diagram...
  • Page 12 Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and the next will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A.
  • Page 13 Using Your TV and Remote With VCRs: Basic Operation If the remote operates your VCR, this page and page 10 will show you how to use it for basic functions. See page 7for more details on buttons used with your VCR. A.
  • Page 14: With A Cable Box

    Tocom ......... 17,21,49,50 ..... _ ..04,05,15,23,24,25,30,36,46 Pioneer ........18,20,44 Unika ........31,32,41 Hamlin ....... 12,13,34,48 Viewstar ..........Randtek ..:........07,08 RCA ..........00,27 Hitachi ........37,43,46 ..07,08,19,21,26,28,29,32,33,40,41 • Jerrold ...." ........Warner Amex ........Regal ..........12,13 Zenith........... 14,42 Regency ........02,33...
  • Page 15 Using Your TV and Remote With a Cable Box: Setting the Cable Channel The Cable Channel works with CABLE on the remote. If the Cable Channel is set, pressing CABLE selects the channel to see cable channels. The Cable Channel setting depends on which channel your cable box...
  • Page 16: With A Laserdisc Player

    D. Use the buttons on the remote that relate to laserdisc player functions. Not all buttons high- lighted may work with your laserdisc player. E. Press POWERto turn it off. Laserdisc Player Codes Pioneer ......33 ProScan .......33 _l!_ RCA..i,.i ...i..33...
  • Page 17: With Audio Equipment

    Basic Operation Refer to the Connection Book or your Audio equipment owner's manual to hook up your audio equipment. Your remote controls only RCA audio equipment such as a radio, CD player, tape player, turntable, or amplifier. remote may need to be programmed for your equipment.
  • Page 18: Adjusting Your Tv

    Adjusting Your TV Overall Picture Follow the steps below to lighten or darken the overall picture withuut changing the color levels. MENU.PHOG to select tile Pre_ 1. Select the Controls Menu Controls menu. This menu is yel- low. Press MOVE • (down) to high- 2.
  • Page 19: Picture Settings

    Adjusting Your TV Picture Settings Follow the steps below to change the picture on the screen to your personal setting. The chart at the bottom of the page explains your options. Press MENU.PROG repeatedly 1. Select the Adjust Menu select the Adjust menu. This menu is light blue.
  • Page 20: Sound Settings

    Adjusting Your TV Sound Settings: Stereo, Expanded Stereo, SAP and Tone Follow these steps to adjust the Stereo, Expanded Stereo, SAP or Tone of your TV. SAP (Second Audio Program) is sometimes used to offer the program being watched in another language.The chart below explains your options.
  • Page 21 Adjusting Your TV Sound Settings: Speakers 'l'he Follow the steps below to turn the speakers on or off in your TV. chart below explains your options. 1. Select the Setup Menu Press MENU'PROG repeatedly select the Setup menu. This menu is white.
  • Page 22 Using Advanced Features Placing Channels in Memory (Autoprogramming) Only channels 2-13 appear in the TV's memory when you first turn it on. The channels available in your area must be programmed into the TV's memory when you hook up your TV. Using CHANNEL up or down allows you to scan through these channels.
  • Page 23: Using Advanced Features

    Using Advanced Features Naming the Channels You can name the channels using the character list below. Full appears beside Label when the memory is used Fixed appears beside Label for channel 00--it cannot be named. A, Press MENU'PROG repeatedly Name a channel to select the Setup...
  • Page 24: Setting The Sleep Timer

    Using Advanced Features Setting the Sleep Timer You can set your TV to turn itself off. If you're watching TV at night and fall asleep, the TV will turn off for you. A. Press MENU,PROG to select Set Sleep Timer the Controls menu and highlight...
  • Page 25: The Alarm Clock

    Using Advanced Features Setting the Alarm Clock The TV can be set to turn on each day like your alarm clock. You can set it to turn on to your favorite channel at a certain time. You can also set it to turn itself off again.
  • Page 26: Watching Picture-In-Picture

    Using Advanced Features Watching Picture-in-Picture Picture-in-Picture allows you to display a small picture within the big picture of the TV screen. To watch two different programs at once, you must connect a VCR, Laserdisc Player or Camcorder. You may need to disable the VCR1 Channel if you can not get two different programs...
  • Page 27 Using Advanced Features Watching Picture-in-Picture Press PIP MOVE to move the Move the small picture small picture to the next corner. Press SWAP to switch the small Swap the big picture with picture with the big picture. the little picture AI Press FREEZE to stop action in Freeze the small picture...
  • Page 28: Selecting A Language

    Using Advanced Features Selecting a Language The on-screen displays in this TV can be displayed in three languages: English, French, and Spanish. When you select a language, most of the displays will be shown on the screen in your preferred language.
  • Page 29: Setting Your Tv For Antenna Or Cable

    Using Advanced Features Setting Your TV for Antenna or Cable Your TV automatically adjusts this feature when the TV places channels ill memory (autoprogram). Follow the steps below to change the setting as needed. 1. Select the Setup menu Press MENU,PROG repeatedly select the Setup menu.
  • Page 30: References Front Panel Buttons

    References Front Panel Buttons For details on using buttons with menus, see Menu Basics oH page 5. MENU Shows menus on screen. Moves from menu to menu. CH ^ and v " •Channel up and down. Scans up and .down through channels in the TV's memory.
  • Page 31: Displays On The Screen

    References Displays on the Screen Your TV shows the settings of several features on the screen. I'o see what features have been set on your TV, press DISPLAY on the remote. 12:00 AM KNBC or Video Alarm Sleep PIP 00 Volume -.
  • Page 32: Trouble Checks

    References Trouble Checks You may have problems that can be fixed with a few minor adjustments. Look for the type of problem you are having below and then try the suggestions to get your TV going again. For warranty information see page 32. Trouble Checks and Adjustments...
  • Page 33 References Trouble Checks Trouble Checks and Adjustments Remote Press "IV to set the remote to control the TV. Buttons don't work when you See buttons on page 6-7. press them Works part or none of the Clear the path between the remote and TV of any objects.
  • Page 34: Limited Warranty

    How you get service: For •screen sizes of 20" and smaller: Take your RCA television to any Authorized RCA Television Servicenter. For screen sizes larger than 20": Request in-home...
  • Page 35: Order Form For Parts

    This could cause damage to the TV and/or personal injury. Stands are not available by mail order. To locate your nearest RCA dealer call this toll-free number: 1-800-336-1900. TVModel F25 672 Matching stand RBZ567...
  • Page 36 References Order Form for Parts U.S. and Canadian Orders USE YOUR CREDIT CARD By Phone: Copy complete account number 1 - 800 - 338 - 0376 Call this toll-free number between I lll IVT-T-1VTT-IVT- 8AM and 8PM Eastern Standard Time and place your order using your Visa Card expires: F-V1 F-r-1 or MasterCard.
  • Page 37: Glossary

    References Glossary Antenna Display Sharpness A device used to receive broadcast A word, words or graphics that Clearness of a picture. signals from TV stations. appear on the TV screen. SKIP See Commerical 5kip. Audio Inputs Located on back of the TV for Sound reproduced by the TV.
  • Page 38: Index

    References Index Delete Channels from Memory .20 CABLE/ANFENNNA Jack ..15 Adding Channels to Memory ..20 Disabled ........Cable Box ......... 12,13 Adjust Menu Cable Box Codes ......12 DISPLAY Button ....... 6,23 Autocolor ........17 CABLE Button ...... 7,12,13 Displays (On-Screen) ....
  • Page 39 Turn on TV ........2 Menu ..........REC / Record Button .... 7,11,15 Buttons ......... 4,6,28 References ....... 28-37 MENU Buttons ......4,5 Guide to ......... 2,3,4 Menus ..........Glossary ........TV Button ......... 3,4,6 Menu Colors ........5 Order Form for Parts ... 33,34 Time ..........
  • Page 40 l'homson Consumer Electronics is one of the first corporations to take part in a special program to improve environment. Thomson has committed itself to a voluntary initiative program through the U.S. Environmental Protection Agency. The program's purpose is to reduce toxic air emissions and to promote pollution prevention.
