Rally FN620J Owner's Manual

3.5 hp 17 inch tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

I

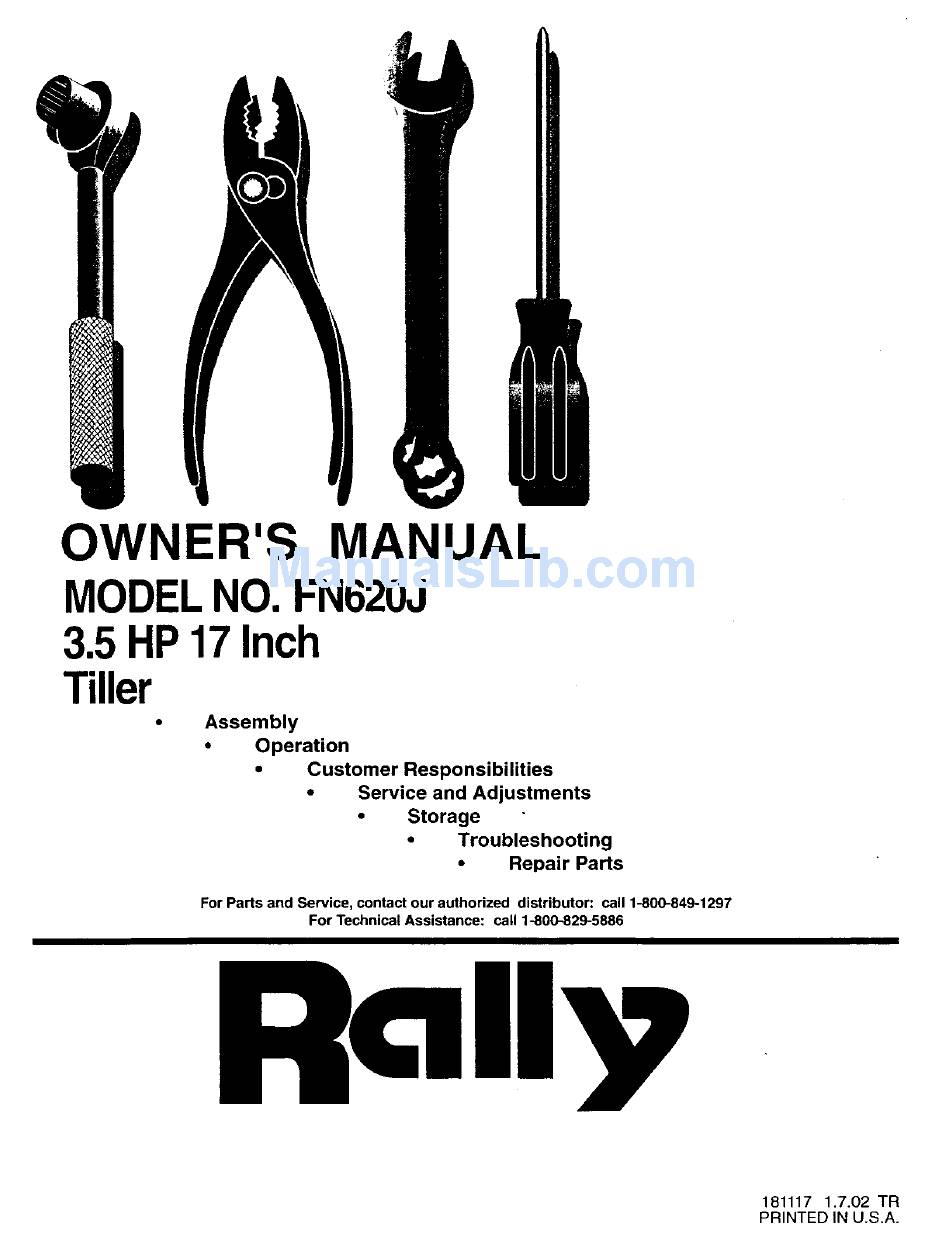

OWNER'S
MANUAL
MODELNO. FN620J
3.5 HP 17 Inch
Tiller
Assembly
•
Operation
Customer
Responsibilities
•
Service and Adjustments
•
Storage
•
Troubleshooting
•
Repair Parts
For Parts and Service, contact our authorized
distributor:
call 1-800-849-1297
For Technica| Assistance:
call 1-800-829-5886
181117 1.7.02 TR
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Rally FN620J

Summary of Contents for Rally FN620J

  • Page 1 OWNER'S MANUAL MODELNO. FN620J 3.5 HP 17 Inch Tiller Assembly • Operation Customer Responsibilities • Service and Adjustments • Storage • Troubleshooting • Repair Parts For Parts and Service, contact our authorized distributor: call 1-800-849-1297 For Technica| Assistance: call 1-800-829-5886 181117 1.7.02 TR PRINTED IN U.S.A.

  • Page 2: Safety Rules

    SAFETY RULES SAFE OPERATION PRACTICES FOR WALK-BEHIND POWERED ROTARYTILLERS TRAINING Neveroperate the tillerwithout properguards, plates, or other safety protective devices in place. • Read the Owner's Manual caretully. Be thoroughly familiar with the controls and the proper use of the Keep children and pets away.

  • Page 3: Specifications

    PRODUCT SPECIFICATIONS CUSTOMER RESPONSIBILITIES GASOLINE CAPACITY: Read and observe the safety rules. 2 Quarts (1,89L) Follow a regular schedule in maintaining, caring for and Unleaded Regular using your tiller. 3IL(API-SF-SJ): SAE 30W (Above 32°F/0°C) Follow instructions under "Customer Responsibilities" CAPACITY: 20 oz./0.6L) SAE 5W-30 (Below 32_F/0°C) and "Storage"...

  • Page 4: Tools Required For Assembly

    ASSEMBLY Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and prope r operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 5 ASSEMBLY UNPACK CARTON & INSTALL HANDLE (See Install into holes "B" and "C" the hardware removed Fig. 2) earlier and one (1) each the same hardware from parts bag. Tighten both bolts securely. Tighten nut "A" when handling or disposing of cartoning Assemble depth stake between depth stake supports material.

  • Page 6: Operation

    OPERATION KNOW YOUR TILLER READ THIS OWNER'S MANUAL SAFETY RULES BEFORE OPERATING YOUR TILLER. Compare the illustrationswith you r tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.
  • Page 7 OPERATION The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask over spectacles or standard safety glasses.

  • Page 8: Before Starting Engine

    OPERATION BEFORE STARTING ENGINE CAUTION: Fill to within 112 inch of top IMPORTANT: BE VERY CAREFUL NOT TO ALLOW DIRT of fuel tank to prevent spills and to allow TO ENTER THE ENGINE WHEN CHECKING OR ADDING for fuel expansion. If gasoline is acci- OIL OR FUEL.
  • Page 9 OPERATION BREAKING IN YOUR TILLER You will find tilling much easier if you leave a row untilled between passes. Then go back between tilled rows. Break-in your belts, pulleys and tine control before you (See Fig. 9) There are two reasons for doing this. First, actually begin tilling.

  • Page 10: Customer Responsibilities

    CUSTOMER RESPONSIBILITIES MAINTENANCE SCHEDULE FILL 1N DATES AS YOU COMPLETE SERVICE DATES REGULAR SERVICE Check Engine Oil Level Change Engine Oil 1_1,2 Oil Pivot Points Inspect Spark Arrester/Muffler Inspect Air Screen Clean or Replace Air Cleaner Cartridge Clean Engine Cylinder Fins Replace Spark Plug Changemoreoftenwhenoperatingunder loador in...
  • Page 11 CUSTOMER RESPONSIBILITIES Disconnect spark plug wire before performing any maintenance (except carburetor adjustment) to prevent accidental starting of engine. Prevent fires! Keep the engine free of grass, leaves, spilled oil, or fuel. Remove fuel from tank before tipping unit for maintenance. Clean muffler area of all grass, dirt, and debris.

  • Page 12: Service And Adjustments

    CUSTOMER RESPONSIBILITIES MUFFLER TRANSMISSION Do not operate tiller without muffler. Do not tamper with Your transmission issealed and will only require lubrication exhaust system. Damaged mufflers or spark arresters could if serviced. create a fire hazard. Inspect periodically and replace if necessary.
  • Page 13 SERVICE AND ADJUSTMENTS NARROW TILLING- 10-1/4" PATH (See Fig. 18) FINAL CHECK "ON" POSITION Remove outer tines. With tine control "O N" (held down to handle) push clown on handle to raise tines off the ground. Slowly pull recoil starter handle while observing tines. Tines should rotate forward.
  • Page 14 SERVICE AND ADJUSTMENTS BELTREPLACEMENT TO REPLACE V-BELT (See Fig. 23) Install new V-belt to engine pulley first then to transmis- Replace V-belt if it has stretched considerably or if it has sion pulley. Be sure belt is positioned on inside groove cracks or frayed edges.
  • Page 15 STORAGE ENGINE Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more. D rain oil (with engine warm) and replace with clean oil. (See "ENGINE" in the Customer Responsibilities section of this CAUTION: Never store the tiller with manual).

  • Page 16: Troubleshooting

    TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. Engine not "CHOKED" properly. See "TO START ENGINE" in the Operation section. Engine flooded. Wait several minutes before attempting to start. Dirty air cleaner. Clean or replace air cleaner carthdge Water in fuel.

  • Page 17: Repair Parts

    REPAIR PARTS TILLER - - MODEL NUMBER FN620J HANDLE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 137176X505 Bracket, Handle 72140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5 72140512 Bolt, Carriage 5/16-18 UNC x 1-1 ;2 9209R505 Panel, Handle 9266R Grip, Handle 74760524 Bolt Fin Hex 5/16-18 x 1-1/2 151473 Handle, L.H.

  • Page 18: Belt Guard

    REPAIR PARTS TILLER - - MODEL NUMBER FN620J BELT GUARD AND PULLEY ASSEMBLY PART PART DESCRIPTION DESCRIPTION 23230506 Screw, Set 5/16-18 x 3/8 165504 Nut J Clip #8 130812 Sheave, Engine 12000036 Ring, Klip 74610812 Bolt, Hex 1/2-20 x 3/4 73350600 Nut, Hex, Jam 3/8-16 17490440...
  • Page 19 REPAIR PARTS TILLER - - MODEL NUMBER FN620J WHEEL AND DEPTH STAKE ASSEMBLY _" "" PART PART DESCRIPTION DESCRIPTION 9194R Pin, Clevis 9186R Wheel 74760520 Bolt, Hex 5/16-18 x 1-1/4 19131311 Washer 13/32 x 13/16 x 11 Ga. 74760512 Bolt, Hex 5/16-18 x 3/4 9190R Bracket, Wheel 73220500...

  • Page 20: Tine Assembly

    REPAIR PARTS TILLER - - MODEL NUMBER FN620J TINE ASSEMBLY PART PART DESCRIPTION DESCRIPTION 165771 Tine, Inner, L.H. 165774 Tine, Outer, R.H. 165773 Tine, Outer, L.H. 4921H Retainer, Spring 9194R Pin, Clevis 165772 Tine, Inner, R.H...
  • Page 21 REPAIR PARTS TILLER - - MODEL NUMBER FN620J TRANSMISSION PART PART DESCRIPTION DESCRIPTION 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2 19091412 Washer 9/32 x 7/8 x 12 Ga. 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4 19092016 Washer 9/32 x 1-1/4 x 16 Ga. Washer 13/32 x 13/16 x 11 19131311 10040400...
  • Page 22 REPAIR PARTS TILLER - - MODEL NUMBER FN620J DECALS PART DESCRIPTION t 32629 Decal, Logo 163988 Decal, Logo 127185X Decal, Description 110613X Decal, Tine Control 110614X Decal, Hand Placement 120076X Decal, Warning, Rotating Tines 171803 Decal, Briggs & Stratton 171806 Decal, 3,5 HP 162384 Decal, Warning...

  • Page 23: Limited Warranty

    LIMITED WARRANTY The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective due to materials or workmanship.
