Rally FN620L Owner's Manual

3.75 hp 17 inch tiller
Hide thumbs
Table of Contents

Advertisement

Quick Links

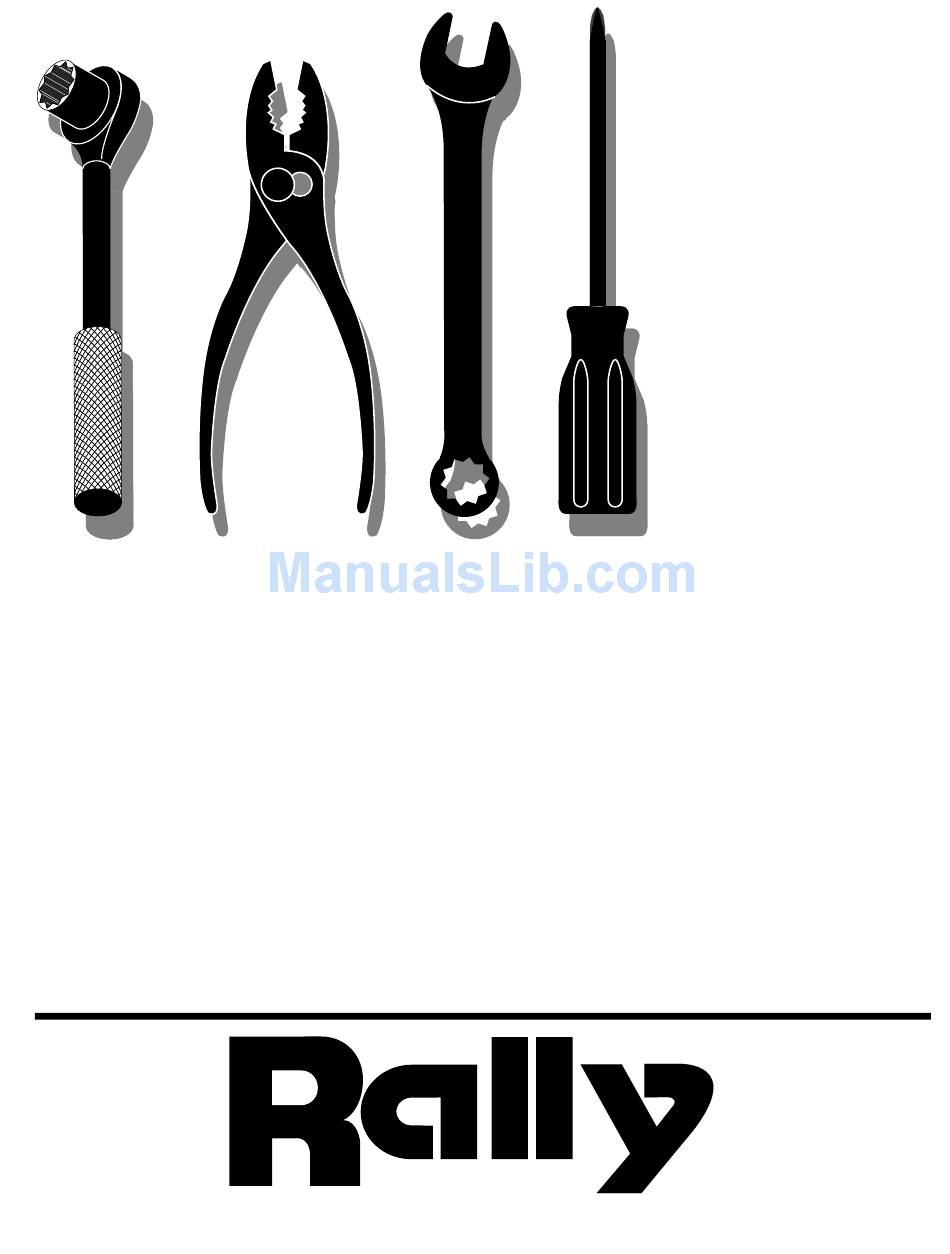

OWNER'S MANUAL
MODEL NO. FN620L
3.75 HP 17 Inch
Tiller
•
Assembly
•
For Parts and Service, contact our authorized distributor: call 1-800-849-1297
Operation
•
Maintenance
•
Service and Adjustments
•
Storage
•
For Technical Assistance: call 1-800-829-5886
Troubleshooting
•
Repair Parts
189783 Rev. 1 02.26.04 TR
PRINTED IN U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FN620L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rally FN620L

Summary of Contents for Rally FN620L

  • Page 1 OWNER'S MANUAL MODEL NO. FN620L 3.75 HP 17 Inch Tiller • Assembly • Operation • For Parts and Service, contact our authorized distributor: call 1-800-849-1297 Maintenance • Service and Adjustments • Storage • Troubleshooting • Repair Parts For Technical Assistance: call 1-800-829-5886 189783 Rev.

  • Page 2: Safety Rules

    • Always refer to the operator’s guide instructions for im por tant details if the tiller is to be stored for an ex- tended period. CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF ATTRACTING ATTENTION TO IMPORTANT OR CRIT I CAL IN FOR MA TION IN THIS MANUAL.

  • Page 3: Table Of Contents

    Please read and retain this manual. The in struc tions will enable you to assemble and main tain your tiller prop erly. Always observe the “SAFETY RULES”. SAFETY RULES ... 2 PRODUCT SPECIFICATIONS ...

  • Page 4: Assembly

    Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

  • Page 5: Assembly

    Repeat for opposite side. Tight en all hard ware se cure ly. NOTE: Cables must not touch the muffl er. • Cut cable ties securing tiller to skid and remove tiller from skid. • Remove screws securing depth stake to skid and dis- card the screws.

  • Page 6: Operation

    KNOW YOUR TILLER READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER. Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.
  • Page 7 The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask over spectacles or standard safety glasses.

  • Page 8: Before Starting Engine

    “PRODUCT SPEC I FI CA TIONS” on page 3 of this manual. • Tilt tiller back on its wheels and then re-level. • With engine level, refi ll to point of overfl owing if nec- es sary.

  • Page 9: Operation

    To slow down the tiller, press down on handles. If you are straining or tiller is shaking, the wheels and depth stake are not set properly in the soil being tilled. The proper setting of the wheels and depth stake is through trial and error and depends upon the soil con di tion.

  • Page 10: Maintenance Schedule

    2 - Service more often when operating in dirty or dusty conditions. GENERAL RECOMMENDATIONS The warranty on this tiller does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tiller as instructed in this manual.

  • Page 11: Maintenance

    TO CHANGE ENGINE OIL (See Figs. 11 and 12) Determine temperature range expected before oil change. All oil must meet API service classifi cation SF-SJ. • Be sure tiller is on level surface. • Oil will drain more freely when warm. •...

  • Page 12: Spark Plug

    fl er, air fi l ter and car bu re tor are cov ered to keep wa ter out. Wa ter in en gine will short en the useful life of your tiller. •...

  • Page 13: Service And Adjustments

    TO ADJUST HANDLE HEIGHT (See Fig. 15) Factory assembly has provided lowest handle height. Se lect handle height best suited for your tilling conditions. Handle height will be different when tiller digs into soil. • If a higher handle height is desired, loosen the four nuts securing handle panel to engine brackets.

  • Page 14: Service And Adjustments

    SERVICE AND ADJUSTMENTS NOTE: Additional tine arrangements can be attained by moving outer tines to opposite side of tiller which will point tines outward. Always keep sharp edges of tines rotating forward from above. TINE OPERATION CHECK (See Fig. 21) Be sure tines do not rotate when engine is running and tine control is in the “OFF”...

  • Page 15: Service & Adjustments

    SERVICE AND ADJUSTMENTS TO REPLACE V-BELT (See Fig. 23) Replace V-belt if it has stretched considerably or if it has cracks or frayed edges. Belt guard must be removed to service belt. See “TO RE- MOVE BELT GUARD” in this section of manual. BELT REMOVAL •...

  • Page 16: Storage

    Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more. WARNING: Never store the tiller with gasoline in the tank inside a build ing where fumes may reach an open fl ame or spark.

  • Page 17: Troubleshooting

    2. Wheels and depth stake incorrectly adjusted. Soil balls up or clumps Ground too wet. Engine runs but tiller 1. Tine control is not engaged. won’t move 2. V-belt not correctly adjusted. 3. V-belt is off pulley(s).

  • Page 18: Handle Assembly

    REPAIR PARTS TILLER - - MODEL NUMBER FN620L HANDLE ASSEMBLY PART DESCRIPTION 137176X505 Bracket, Handle 72140512 Bolt, Carriage 5/16-18 unc x 1-1¦2 9266R Grip, Handle 151473 Handle, L.H. 73680500 Locknut, Crown 5/16-18 19111116 Washer 11/32 x 11/16 x 16 Ga.
  • Page 19 REPAIR PARTS TILLER - - MODEL NUMBER FN620L BELT GUARD AND PULLEY ASSEMBLY PART DESCRIPTION 23230506 Screw, Set 5/16-18 x 3/8 130812 Sheave, Engine 74610812 Bolt, Hex 1/2-20 x 3/4 17490440 Bolt Thd Roller 1/4-20 X 2-1/2 174898 Shield Inner Guard Belt 170488 Screw Hex Wsh Slt #10-24 x .50...
  • Page 20 REPAIR PARTS TILLER - - MODEL NUMBER FN620L WHEEL AND DEPTH STAKE ASSEMBLY PART DESCRIPTION 9194R Pin, Clevis 74760520 Bolt, Hex 5/16-18 x 1-1/4 74760512 Bolt, Hex 5/16-18 x 3/4 73220500 Nut, Hex 5/16-18 10040500 Washer, Lock 5/16 4921H Clip, Hairpin 318J Support, Depth Stake, R.H.

  • Page 21: Tine Assembly

    REPAIR PARTS TILLER - - MODEL NUMBER FN620L TINE ASSEMBLY PART DESCRIPTION 165774 Tine, Outer, R.H. 4921H Retainer, Spring 165772 Tine, Inner, R.H. PART 165771 165773 9194R tine_ipb_4 DESCRIPTION Tine, Inner, L.H. Tine, Outer, L.H. Pin, Clevis...
  • Page 22 REPAIR PARTS TILLER - - MODEL NUMBER FN620L TRANSMISSION PART DESCRIPTION 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4 19131311 Washer 13/32 x 13/16 x 11 73900600 Nut Lock Flg. 3/8-16 unc 9056R505...
  • Page 23 REPAIR PARTS TILLER - - MODEL NUMBER FN620L DECALS PART DESCRIPTION 132629 Decal, Logo 163989 Decal, Logo 127185X Decal, Description 110613X Decal, Tine Control 110614X Decal, Hand Placement 120076X Decal, Warning, Rotating Tines 171803 Decal, Briggs & Stratton 162384 Decal, Warning...

  • Page 24: Warranty

    The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from de- fects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi...
