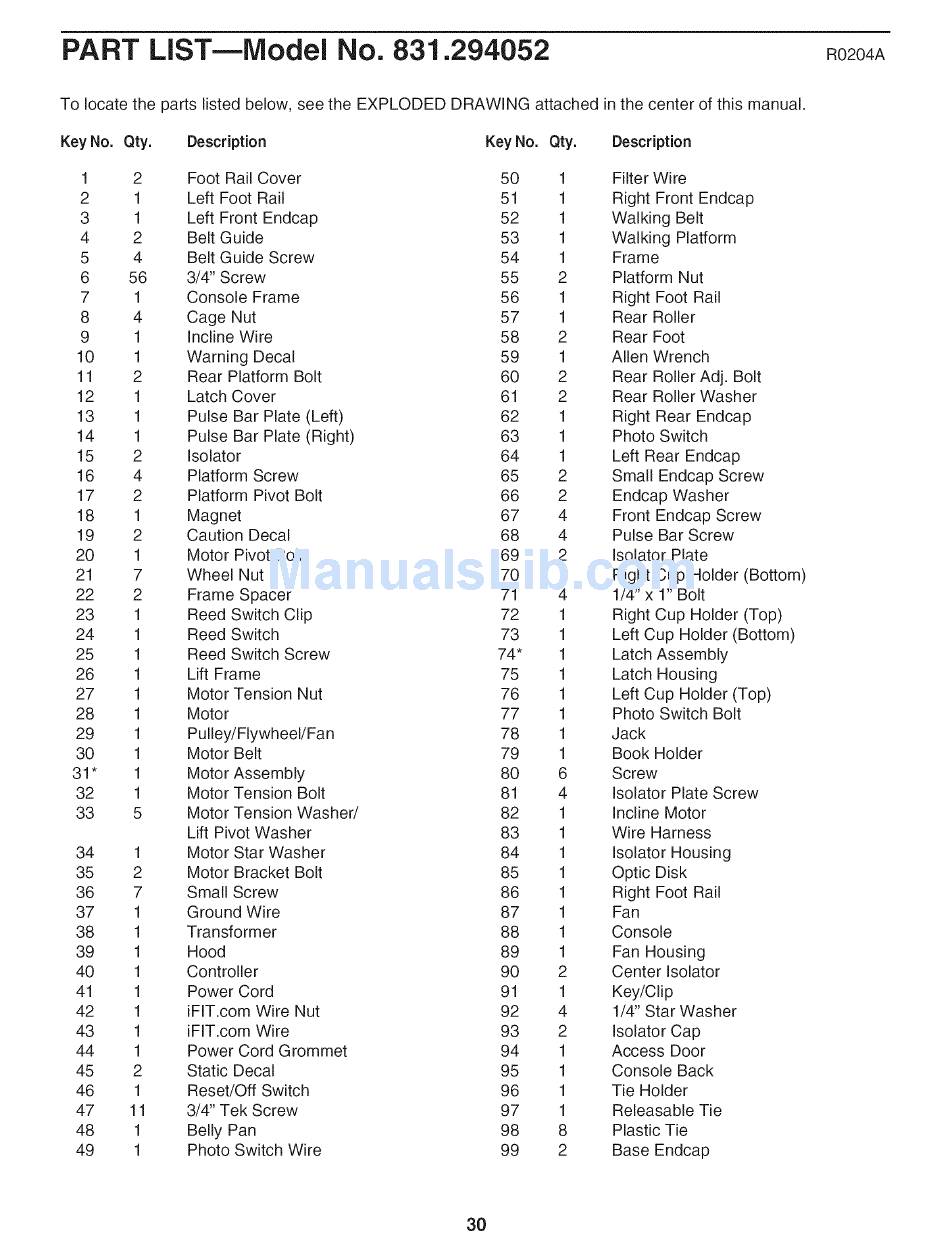

PART LiST--Model No. 831.294052 R0204A
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 2 Foot Rail Cover 50 1
2 1 Left Foot Rail 51 1
3 1 Left Front Endcap 52 1
4 2 Belt Guide 53 1
5 4 Belt Guide Screw 54 1
6 56 3/4" Screw 55 2
7 1 Console Frame 56 1
8 4 Cage Nut 57 1
9 1 Incline Wire 58 2
10 1 Warning Decal 59 1
11 2 Rear Platform Bolt 60 2
12 1 Latch Cover 61 2
13 1 Pulse Bar Plate (Left) 62 1
14 1 Pulse Bar Plate (Right) 63 1
15 2 Isolator 64 1
16 4 Platform Screw 65 2
17 2 Platform Pivot Bolt 66 2
18 1 Magnet 67 4
19 2 Caution Decal 68 4
20 1 Motor Pivot Bolt 69 2
21 7 Wheel Nut 70 1
22 2 Frame Spacer 71 4
23 1 Reed Switch Clip 72 1
24 1 Reed Switch 73 1
25 1 Reed Switch Screw 74* 1
26 1 Lift Frame 75 1
27 1 Motor Tension Nut 76 1
28 1 Motor 77 1
29 1 Pulley/Flywheel/Fan 78 1
30 1 Motor Belt 79 1
31" 1 Motor Assembly 80 6
32 1 Motor Tension Bolt 81 4
33 5 Motor Tension Washer/ 82 1
Lift Pivot Washer 83 1
34 1 Motor Star Washer 84 1
35 2 Motor Bracket Bolt 85 1
36 7 Small Screw 86 1
37 1 Ground Wire 87 1
38 1 Transformer 88 1
39 1 Hood 89 1
40 1 Controller 90 2
41 1 Power Cord 91 1
42 1 iFIT.com Wire Nut 92 4
43 1 iFIT.com Wire 93 2
44 1 Power Cord Grommet 94 1
45 2 Static Decal 95 1
46 1 Reset/Off Switch 96 1
47 11 3/4" Tek Screw 97 1
48 1 Belly Pan 98 8
49 1 Photo Switch Wire 99 2
Filter Wire
Right Front Endcap
Walking Belt
Walking Platform
Frame
Platform Nut
Right Foot Rail
Rear Roller
Rear Foot
Allen Wrench
Rear Roller Adj. Bolt
Rear Roller Washer
Right Rear Endcap
Photo Switch
Left Rear Endcap
Small Endcap Screw
Endcap Washer
Front Endcap Screw
Pulse Bar Screw
Isolator Plate
Right Cup Holder (Bottom)
1/4" x 1" Bolt
Right Cup Holder (Top)
Left Cup Holder (Bottom)
Latch Assembly
Latch Housing
Left Cup Holder (Top)
Photo Switch Bolt
Jack
Book Holder
Screw
Isolator Plate Screw
Incline Motor
Wire Harness
Isolator Housing
Optic Disk
Right Foot Rail
Fan
Console
Fan Housing
Center Isolator
Key/Clip
1/4" Star Washer
Isolator Cap
Access Door
Console Back
Tie Holder
Releasable Tie
Plastic Tie
Base Endcap
3O
