Summary of Contents for Mitsubishi VS-45501

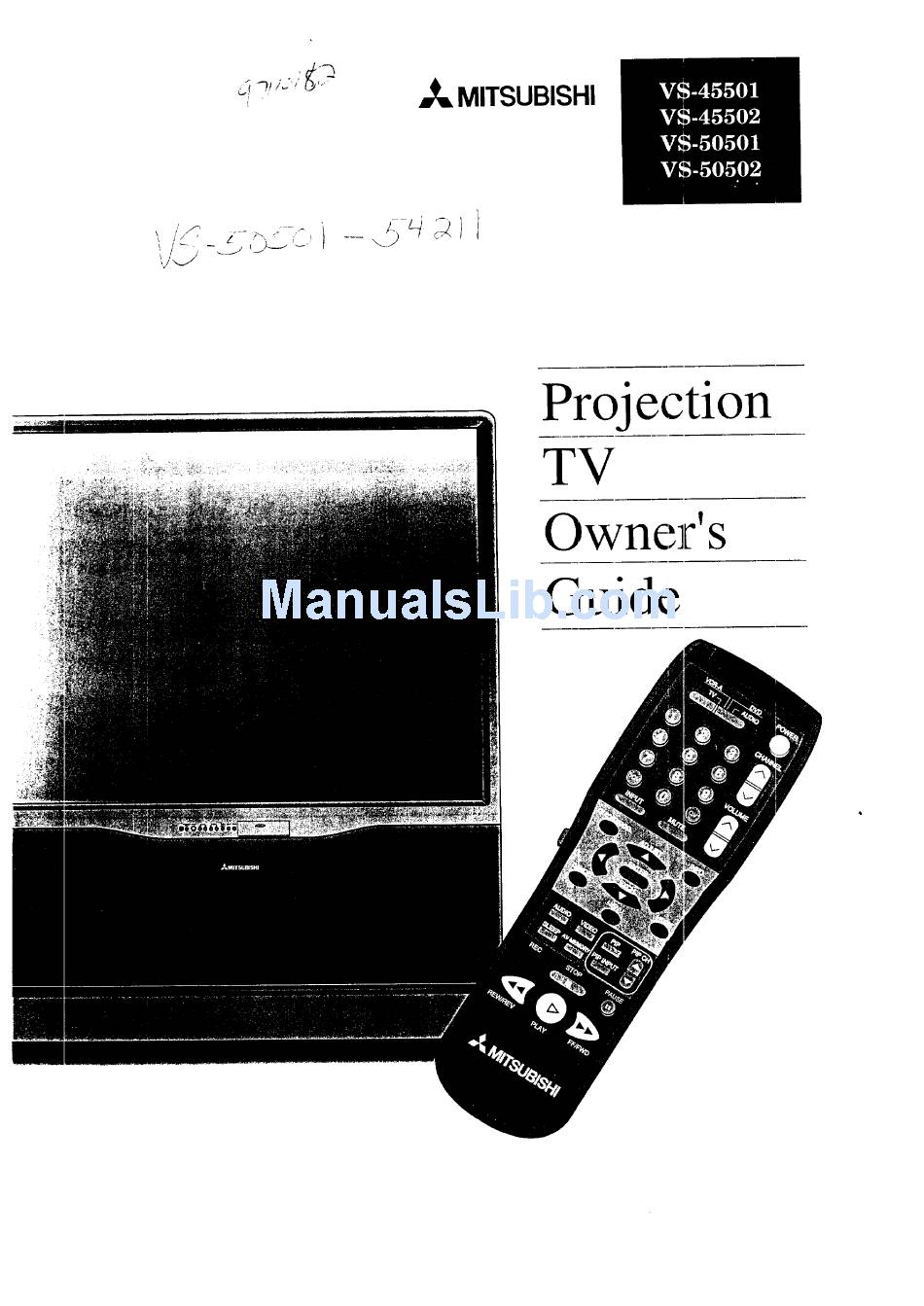

  • Page 1 ,_ MITSUBISHI Projection Owner's Guide...
  • Page 2 RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.. The lightning flash with arrowhead symbol, wil;hm an equilateral triangle, is intended to alert the user to the presence...

  • Page 3: Table Of Contents

    TV + VCR + antenna or cable without a cable box ......TV + VCR + cable with a cable box ..........TV + stereo audio system ..............TV + Mitsubishi products that have A/V Network terminals ..36 Chapter 3: Operating Your TV ..............
  • Page 4 Table of Contents (cont.) Getting Started (cont.) Selecting the A/V memory position ..........Customizing the A/V memory position ........... Adjusting the video settings ............Using the closed caption decoder ..........Adjusting the sound ..............Adjusting the audio functions ............. Using the Advanced Features ..............
  • Page 5 IMPORTANT SAFEGUARDS PLEASE READ ALL THESE INSTRUCTIONS REGARDING YOUR TELEVISION SET AND RETAIN FOR FUTURE REFERENCE. FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE TV RECEIVER. 1. Read Instructions Ventilati Read all safety and operating instructions before Slots and openings in the cabinet operating the appliance.

  • Page 6: Important Safeguards

    Important Safeguards (cont.) 14. Power Lines 18. Servicing Do riot attempt to service thi,; TV receiver An outside antenna system should not be located in the vicinity of overhead power lines or other yourself as opening or removing covers may expose you to dangerous voltage or other...
  • Page 7 PREFACE Welcome to Mitsubishi Congratulations on your purchase of this Mitsubishi TV. Your TV is designed for superb viewing pleasure as well as continued reliability. To familiarize you with your TV and owner's _lide, we sug_;est that you read through...
  • Page 8 Summary of Special Features Your top rated Mitsubishi TV delivers: • 181-Channel Capacity ..programs up to 181 channels. Illuminated Multibrand Remc_te Control with _Fv'/VCR7 DVD/AUDIO Control --- uses a single remote control transmit- ter to operate the TV, selected...

  • Page 9: Unpacking Your Tv

    € Unpacking Your What you will find As you unpack your new TV, please check to be sure the following items are included: • an owner's guide containing a warranty • a registration card • a remote control transmitter • a set of two AAA size batteries for the remote control •...

  • Page 10: What's In Each Chapter

    Your Step-by-step instructions for using your TV Chapter 4, Using the Speeial Features Guidance for enjoying the unique fu_ctions of your Mitsubishi Chapter 5, Troubleshooting Summary of problems you might encounter and suggestions resolving them The appendix explains the procedure...

  • Page 11: Some Conventions Used In This Guide

    Some Conventions Used in this Guide Mitsubishi has gone to great effort to provide you with an easy-to- follow, useful owner's guide. You will find that different types of information are treated in different ways. You should pay particular attention...
  • Page 13 CHAPTER Getting to Know Your TV Now that you have unpacked your TV, read through the safety information and glanced at the overview of how this c w:aer's guide is organized, it's time to become familiar with the buttons controls you will be using when you operate the TV.

  • Page 14: Chapter 1: Getting To Know Your Tv

    Overview of the Control Panel • ¢H • s VIDEO ® intelligent room illumination sensor (IR][S) This is the sensor which regulates the auto:matic contrast brightness adjustment for the IRIS feature. [nstructions :for user access and use of IRIS are detailed in Chapter 3, Custom- the A/V memory.
  • Page 15 Overview of the Control Panel (cont.) ® menu button (MENU) Use this button to display the on-screen menu system, which contains additional instructions for special functions. ® enter button (ENTER) Use this button after selecting an item from the on-.screen menu system.
  • Page 16 Overview of the Remote Control Getting ready to use the remote control installing the batteries Take the two AAA size batteries from the packing bag. Remove the back cover of the remote control by pushing the tab in the direction of the arrow and lifting off the cover.

  • Page 17: Overview Of The Remote Control

    Getting ready to use remote control (cont.) some do's and don'ts To ensure that your remote control will continue working properly, follow these guidelines: • Don't press two or more buttons at the same time, unless are specifically instructed to do so in this owner's guide.

  • Page 18: Remote Control Buttons And Functions

    Remote Control Buttons and Functions This section provides you with an overview of the remote control's buttons and the features that they controh This section does not provide detailed explanal;ions on the use of these buttons. To determine which buttons are used with a particular feature,...
  • Page 19 Remote control buttons functions (cont.) VCR-ATv..___DVD ---( CHANNEL ® QUICK PROG. INFO ® @ ADJUST EXCH PAUSE REW/REV FF/FWD PLAY MITSUBISHI Overview of the Remote Control...
  • Page 20 Use this D Important: switch to select the layer you want to set You must connect a Mitsubishi VCR to up or use. your TV with an AV Network cable to use this feature and both your TV and...
  • Page 21 CD players, etc. These are pre-programmed to operate selected • pause button (PAUSE) -- Press to Mitsubishi components. The PLAY button freeze t:he reduced PIP image and to is also used with the Active t_ Network. return to a "live" image.
  • Page 23 CHAPTERo • Connecting Your TV This chapter offers step-by-step instructions for completing most common hook-ups. It contains the following sections: Overview of the Back Panel Basic Connections...

  • Page 24: Chapter 2: Connecting Your Tv

    Overview of the Back Panel INPUT-1 ANT-A LOOP-OUT ANT-B INPUT-2 ACTIVE OUTPUT NETWORK MON_TOR,qUNER antenna terminals (ANT-A, CABLE LOOP OUT, ANT..B) Use ANT-A and ANT-B terminals to receive, a signal from VHF/ UHF antennas or your cable system. Use the CABLE LOOP OUT Terminal to send the signal being receiw_d by the ANT-A...

  • Page 25: Overview Of The Back Panel

    Overview of the back panel (cont.) ® audio input terminals Use these terminals to connect the audio output from a VCR or other component to the TV. ® active A/V Network terminal Use this terminal to connect a Mil;subishi VC])_ t:hat has an active A/V network terminal.

  • Page 26: Basic Connections

    • TV + VCR + cable with a cable • TV + stereo audio system • TV + Mitsubishi products that have A/V Network termi- nals _Warning: [You should unplug your TV and any other components...
  • Page 27 TV + antenna or cable without a cable equipment you will need If you have a standard 75-ohm coaxial cable, you will not need additional equipment. If your antenna has two leads (called twin lead or 300 ohm antenna lead), you will need to acquire: 300 ohm - in •...
  • Page 28 TV + cable with a cable equipment you will need Use this hook-up if you do not need a cable bcx to descramble basic cable channels, but you do need a cable box to descramble premium cable channels. This hook-up will allow you to tlse your TV's advanced channel...
  • Page 29 TV + cable with a cable (cont.) TVRear Terminals CABLE ANT-A LOOP-OUT ANT-B -.@@@ Incoming Cable OUTPUT Cable Box Rear Terminals ¢ Basic Connections...
  • Page 30 TV + separate and VHF antennas equipment you will need If UHF and VHF signals are brought into your home with two separate antennae, you'll need to combine them in order to connect them to the TV. To do this you will need a UHF/VHF combiner.

  • Page 31: Tv + Vcr + Antenna Or Cable Without A Cable Box

    TV + VCR + antenna or cable without a cable equipment you will need You may want to connect a VCR along with your antennas or cable. To complete this hook-up, you may need the following equipment: • One 75 ohm coaxial cable One set of RCA pin-type audio cables...
  • Page 32 TV + VCR + antenna or cable without a cable (cont.) procedure Connect the incoming cable or antenna to tile ANTENNA terminal on the VCR. Connect one end of a coaxial cable to the ANTENNA terminal on the VCR. Connect the other end of the coaxial cable to the ANT-A te_._mi - .
  • Page 33 TV + VCR + antenna or cable without a cable (cont.) VCR Rear --_cC}- -* @ Antenna VCR Rear Terminals " WteLea C°nnect°_e°rthe°ther --" I,,,u,.,I _ I_1_ Inc':°mAnngenCa:le 0 CABLE Basic Connections...

  • Page 34: Tv + Vcr + Cable With A Cable Box

    TV + VCR + cable with a cable equipment you will need This hook-up will allow you to record scrambled channels while viewing another channel. To complete the hook-up, you will need: Three lengths of 75 ohm coaxial cable One set of RCA pin-type audio cables One RCA pin-type...
  • Page 35 TV + VCR + cable with a cable box (cont,,) procedure (See illustration on the following page.) Connect the incoming cable to the ANT-A terminal on the back of the TV. Connect a coaxial cable from the cable LOOP-OU_£ terminal the back of the TV to the cable box IN terminal.
  • Page 36 TV + VCR + cable with a cable (cont.) Start playing a tape on your VCR. Use the INPUT button on your TV's remote control to select the correct input. If you connected the VCR to INPUT-l, select Input-1. If you connected the VCR to INPUT-2, select Input-2,.

  • Page 37: Tv + Stereo Audio System

    TV + stereo audio system You may want to hear the sound from your TV and/or VCR through your home audio system. To do this, complete the necessary connections shown on previous pages of this chapter, tlhen follow the procedure on this page.
  • Page 38 NETWORK terminal on the back of the TV. Connect the other end of this cable to the ,_" NETWORK terminal on the back of a Mitsubishi compor_ent that has A/V network terminals. You can now use the television remote to control your VCR or other Mitsubishi component.
  • Page 39 TV + Mitsubishi products that have A/V Network terminals Mitsubishi Component Rear Panel TV Rear Panel CABLE ANT-A LOOP_.I] ANT-B ,._o_-, _© @ @@ ,._o_-_ @ @@@ ACTIVE NETWORK _® S-VIDEO VIDEO AUDI O Basic Connections...

  • Page 41: Chapter 3: Operating Your Tv

    CHAPTER THREE Operating Your TV Now that your TV is connected to a cable system an&br an antenna and possibly some external components, it's time tc, enjoy your equipment. This chapter will explain how to operate the TV, first focusing on functions that are basic and easy and then explaining...

  • Page 42: Getting Started

    Getting Started This section is designed to get you started enjoying; your new TV. If you fo]low these procedures one by one, you will soon begin discovering everything your television can do. You'll find information • Using the remote control to operate VCRs, cable...
  • Page 43 • AV memory button If you have a cable box (including the digital satellite box), a non- Mitsubishi VCR, or a Mitsubishi laserdisc player, an A/V receiver, or a compact disc player, you can set up the layer,_ in the remote...
  • Page 44 VCR: VCR-A or DVD. Point the remote control at the VCR and press the desired buttons. If you are using a Mitsubishi VCR, you will be able to use all of the buttons on the remote control to operate...
  • Page 45 Using the remote control to operate VCRs, cable boxes and other components (cont.) setting up the remote control to operate your cable box or digital satellite Turn on your cable box or digital satellite box. Set the select switch on the top of the remote to choose the layer you want to set up: AUDIO or DVD.
  • Page 46 TV or AUDIO. While holding in the POWER button on the remote control, enter one of these code numbers: • For a Mitsubishi A/V receiver or a e,ompact disc player: 30, 31, 35 or 38 • For a Mitsubishi and some Pioneer...
  • Page 47 TV or AUDIO. Point the remote control at the A/V receiver and press the desired buttons. If you are using a Mitsubishi HTS-100 receiver, you can use the POWER, VOLUME, and MUTE buttons to operate If you are using a Mitsubishi...
  • Page 48 Turning the TV on/off [_Important: Before using the remote control to operate the _PT, set the select switch on the top of the remote control to TV. Use the POWER button on either the control panel or the remote control to turn the TV on and off.
  • Page 49 Selecting the input source to watch your VCR or other equipment If you connected components such as VCRs, camcorders, or laser- disc players to your TV, you will need to change the input source view the signals from these components. To select an input source, press the input button (INPUT) on the...

  • Page 50: Changing Channels

    Changing channels Your TV offers you five ways of changing channels_ once their numbers have been programmed into channel memory: • selecting channels one-by-one with the channel[ up (A) and channel down (V) controls • directly accessing a channel by pressing the _._umber button,_ •...
  • Page 51 Changing channels (cont.) changing channels one-by-one To change channe]s: Press one of the channel but- tons (CHANNEL) on the control panel or on the re mote control. The TV will automatically tune to the next memm-ized channel. ®s o ++ ++++ +_s* ¢ _ ,@ @,+@ changing channels directly...
  • Page 52 Changing channels (cont.) using the QuickView option The QuickView feature work in two ways: to recall the last channel viewed (Last Channel Recall), or to recall a channel put into QuickV:iew memory. If you have net memorized channels into QuickView Memory, Last Channel Recall...
  • Page 53 Changing channels (cont.) using the SuperQuickView option To view selected channels programmed into SuperQuickView memory: _®®_ 0 Enr_er the desired channel into SuperQuickView _' memory. For additional infi_rmatJon, reference Using" SuperQuickVie'_" in this chapter. Press the SQV button repeatedly to view the SQV channels in sequence.

  • Page 54: On-Screen Menus

    Understanding the ViewPoint ® on-screen menus One of the distinctive features of this TV is Mitsubishi's exclusiLve l ViewPoint ® ON-SCREEN OPERATING SYSTEM Unlike other television menu systems, ViewPoint _ includes special Picture-in-Picture screen to let you view the TV picture while you are using the menu.

  • Page 55: Setting The Clock

    Setting clock Your TV contains an internal clock. If there is a broadcaster your area that is sending the current time along with its regular broadcast signal, then your TV can automatically set its clock witlh this signal. Otherwise, you can set the clock yoursel:_. "TV Main Menu First Time Setup Customize...
  • Page 56 Setting clock (cont.) If you follow daylight savings Set the Clock time, use the ADJUST buttons Auto crock: On to answer the question with : Sunday "On". Otherwise, answer "Off'. E_] Time : 12:00 pm Time zone: Central Press ENTER. Daylight savings :Off...

  • Page 57: Memorizing Channels

    Memorizing channels You can use the menus to automatically memorize the channels your TV can receive and skip the unused channels. Once channels are memorized, you can scan through them using the channel down controls on the remote control and control panel. TV Main Menu O Press the lvIENU button on the...

  • Page 58: Adding And Deleting Channels

    Adding deleting channels After all available channels have been memorized with the "Memorize Channels" feature, channels with weaker signals can be added or deleted with the following procedure. TV Main Menu O Press the MENU button on the First Time Setup remote control.

  • Page 59: Setting The A/V Network

    Setting the A/V Network The A/V Network is a system that Mitsubishi developed to make it easier to operate many products with one remote control. When the A/V Network is connected between two Mitsubishi products, you can point the remote...

  • Page 60: Selecting The Menu Type

    Selecting menu type (cont.) If you select the "Standard menu", the screen will return to the "Customize Display" menu. If you selected the "Advanced menu.", the screen will show the menu illustrated below. To operate the Advanced menu, use the ADJUST buttons to high- light the icon of the feature...

  • Page 61: Naming The Input

    Naming input This feature allows you to name the inputs so that you can keep track of components you have connected to your TV. For example, you might name one input '_VCR", and another one "DISC". After naming, the new name will appear on the screen display.

  • Page 62: Naming The Channels

    Naming the channels To help you keep track of the many channels available, you can name the channels your TV receives. In this menu, the ENTER button performs the same function as the ADJUST keys in other menus. After you enter a name, it will appear on-scr,_en, next to the channel...

  • Page 63: Using Video Mute

    Using video mute When you use the video mute functions, your TV will display a bi[ue screen whenever it is receiving a weak external input from Input-l, Input-2, or Input-3. If you want to try viewing a weak external input signal, you can turn the video mute off.

  • Page 64: Selecting The Menu Language

    Selecting menu language This TV allows you to display the on-screen menus in either of two languages: English or Spanish (Espafiol). [_TV Main Menu O Press the MENU bul;ton on the First Time Setup remote control. The TV Main Customize Display Menu will appear on the screen.

  • Page 65: Selecting The A/V Memory Position

    Selecting the AN memory position Your TV has five A/V memory positions. Each A/V memory position contains preset picture and sound settings to best suit the type of program you are watching. You can adjust the settings these memories as :much as you like. The five memories are: "Standard"...

  • Page 66: Position

    Selecting the AN memory position Although the preset A/V memory positions are designed to optimize the picture and sound quality for different types of programming, you can adjust individual settings (tint, treble, etc.) for any posi- tion. See Customizing the A/VMemory Position in this chapter information...

  • Page 67: Customizing The A/V Memory Position

    Customizing the AN memory position You can adjust the individual video and audio settings for each of the five preset AN memory positions to select your desired picture and sound qualities. This section provides descriptions of e_.ch video and audio setting, and explains how to adjust them for the...

  • Page 68: Adjusting The Video Settings

    Customizing the AN memory, position (cont.) The Color temp (Color temperature) allows you to set how the TV will display white images. Your choices are "Low," "High," or "Middle". • With the "Low" setting, white images on-screen will have a warm cast to them.
  • Page 69 Customizing the AN memory position (cont,,) Press either the ADJUST right or the ADJUST left button. The setting appears at the bottom of the screen. While the setting is still on the screen, use the ADJUST right/ left buttons to adjust Brightness and contrast cannot...

  • Page 70: Using The Closed Caption Decoder

    Customizing A/V memory position (cont.) Using closed caption decoder Many broadcasters now supply closed captioning information along with their regular broadcasts. Your TV can decode that informa- tion and display it on the TV screen. Closed captioning was initially designed so that those with hearing difficulties could more fully enjoy viewing...

  • Page 71: Decoder

    Customizing the A/V memory position (cont.) adjusting the closed caption decoder You can access the closed caption decoder screen using the MENU or AV MEMORY button. When adjusting the closed caption decoder, you can use the buttons on the remote control.

  • Page 72: Adjusting The Sound

    Customizing A/V memory position (cont.) %Important: If you set the decoder to a "text" setting and tune to a broadcaster that is not sending a text signal, a large black rectangle will appear on your screen. Press the HOME button to make tlhe rectangle disappear.
  • Page 73 Customizing the A/V memory position (cont.) The Surround setting creates simulated stereo and surround effects. You can set this setting to "Off," "Simulate" or "Hall". • Select Off if you do not want to use any surround effects. • Select Simulate if you are watching a non-stereo program.

  • Page 74: Adjusting The Audio Functions

    Customizing the A/V memory position (cont.) Adjusting the audio functions You can adjust the audio settings for any A/V memory position using the MENU or AUDIO buttons on the remote control. access with the MENU button 0 Press the MENU button on the remote control.
  • Page 75 Customizing memory position (cont.) access with the AUDIO button The AUDIO button changes the audio settings for the cu_ently selected A/V memory position. The currently selected A/V memory position will display on the screen above the audio adjustment display when the Audio button is pressed.

  • Page 76: Using The Advanced Features

    Using the Advanced Features This section explains how to use some of the more advanced features. You'll learn about: • Setting the timer • Using the parental lock • Using SuperQuickView Chapter 3: Operating Your TV...

  • Page 77: Setting The Timer

    Setting the timer This special feature allows you to program the TV to turn on automatically at a specific time to the channel that you set NOTE: The clock must be set prior to setting the timer. To set the timer: TV Main Menu First Time Setup Customize...

  • Page 78: Using The Parental Lock

    Using the parental lock This special feature allows you to lock the entire _I_7during certain time period or lock up to ten individual channels. cannot lock the TV and lock individual channels, at the same time. When you turn on the lock, you enter a 4-digit secret code that will allow you to turn off the lock later.
  • Page 79 Using parental lock (cont.) locking the TV O The message for locking the TV Lock the TV will appear. Secret code : ..0 Enter a four-digit secret code using the number buttons (0-9); The lock is now off. then, press the ENTER button. Enter your personal code using NUMBER...
  • Page 80 Using the parental lock (cont.) locking the channel O The message "]:_ock the Chan- Lock the Channel nel" will appear. Secret code : ..O Enter a four-digit secret code using the number buttons (,3-9); The lock is now off. Enter your personal code...
  • Page 81 Using parental lock (cont.) canceling or changing parental lock Press the MENU button. The Main Menu will appear on the screen. Select "Advanced Features" using the ADJUST up/down buttons. Press ENTER. Select "Use Parental Lock" using the ADJUST button. Press ENTER.

  • Page 82: Using Superquickview

    Using SuperQuickView SuperQuickView allows you to cycle through a list of up to ten channels with the SQV button. Use the menus to add channels the list or to remove channels from the list. You ca:a also add channels directly to the list using only the remote control's button.
  • Page 83 Using SuperQuickView (cont,.) €" adding channels directly to the list with the remote control's SQV button Use the channel controls or number buttons to tune the TV to the channel you want to add to the list. Press and hold the SQV button for about 2 seconds.

  • Page 85: Chapter 4: Using The Special Features

    CHAPTER FOUR • Using the Special Features In addition to the basic and advanced features explained in the previous chapter, your TV offers some special features that you can use when operating your TV. This chapter contains the following topics: Understanding On-Screen Displays...

  • Page 86: Understanding The On-Screen Displays

    € Understanding the On-Screen Displays Your TV provides an on-screen summary of the current settin,_s for the TV or cable channels, as well as the information related Extended Data Services (XDS). X_DS allows broadcasters to supply you with the current time, channel information (such as call letters...

  • Page 87: Using The Sleep Timer

    Using the Sleep Timer This special feature allows you to set the TV to turn off automati- cally. You can set the TV to turn off after a period of time ranging from 10 to 120 minutes, in ten minute intervals.

  • Page 88: Setting The Sleep Timer

    Setting sleep timer O Press the SLEEP button on the remote control. The sleep timer display will appear on the screen. O Select how lon,g you want the TV to stay on by repeatedly © c::_::) ® pressing the SLEEP button.

  • Page 89: Changing Or Canceling The Sleep Timer

    Changing or canceling sleep timer O Press the SLEEP button on the TV Sleep Timer 10 min. remote control. An on-screen display will indicate amount of time remaining until the TV turns off. O Repeatedly press the SLEEP button to change the remaining time or to cancel the sleep timer.

  • Page 90: Using The Picture-In-Picture (Pip) Modes

    € Using the Picture-in-Picture (PIP) Modes One of the special features of the TV is the pictux_-in-picture (PIP) mode, which allows you to view two different sources at the sarae time. In this section you'll learn: • Activating the PIP image •...

  • Page 91: Activating The Pip Image

    Activating image O Select the number of the TV channel you want to view with the channel contrel. Press the PIP button. A PIP image will .appear in the corner of the screen. the PIP CH up (A) down (V) control to select the channel Ant-A 023 ESPN be viewed.

  • Page 92: Selecting The Source Of The Pip Image

    Selecting source of the image The Mitsubishi TV you have purchased has two.-t_Lner PIP. If you have only an Ant-A input connected, you can view one program the main picture and another channel from the same ANT input the PIP display...

  • Page 93: Changing Channels While Using The Pip Modes

    Changing channels while using the PIP modes O Press tlhe PIP channel button (PIP CH) up • or down • on the remote control to ,change the channel of the PIP image. O Press the CHANNEL up • down • button on the remote control to change...

  • Page 94: Exchanging The Picture Of The Pip Image

    Exchanging the picture of the PIP image main image As long as Antenna-B is not the main picture, :you may exchange tile picture of the main (back-. ground) image and the PIP iraage by pressing the ]ENTER! EXCHANGE button. Input -1 Ant-A 023 ESPN S-VIDEO...

  • Page 95: Freezing The Pip Image

    Freezing the PIP image 0 Press the PAUSE button freeze the PIP image on the screen. Press PAUSE again to return a live picture. DImportant: If you press the pause button while viewing a picture without a PIP image, a PIP image will appear and be frozen.

  • Page 96: Using The Active A/V Network Feature

    You will gain even more benefits if you have a Mitsubishi VCP_ equipped for the Active A/V Network. The Active A/V Network ° allows you to perform...

  • Page 97: Feature

    Using the active Network feature (cont.) using the quick program button (QUICK PROG.} E>Important: Before using this feature, set the select switch at the top of the remote control to '_CR-A". When you press QUICK PROG. to begin programming your VCR: •...

  • Page 99: Chapter 5: Troubleshooting

    TV, you may occasionally encounter a ]_roblem. This chapter offers common answers to some of the mos'; frequently asked questions of TV owners. We suggest that you consult this chart before contacting a Mitsubishi serv!ice representative.
  • Page 100 Troubleshooting (cont.) Problem Possible Solution For More Information The remote control doesn't • Check that the batteries See Gett:ing Ready to Use work. the Remote Control in installed correctly. Chapter i for an explanation of how to install batteries the remote control.
  • Page 101 Troubleshooting (cont.) Problem Possible Solutions For More Information Check that the MUTE See Remote Control Buttons There's no sound even button isn't on. and Functions in Chapter when the volume is turned which explains the location and function of' the MUTE button.
  • Page 102 Troubleshooting (cont.) Problem Possible Solution For More Information * The PIP source is not Antenna-B does not appear Using the Picture-in- as a PIP source. properly selected. Picture (PIP) Modes Chapter The images appear with The colors in the TV picture * See Adjusl:ing the Conver- additional...

  • Page 103: Caution And Care

    This distortion, how- ever, will not harm the picture tubes. For maximum enjoyment and safe operation of your Mitsubishi TV, please read IMPORTANT SAFECUARDS, pages 3 and 4 of your Owners Guide, very carefully and apply them properly. Cleaning...

  • Page 104: Calling For Service

    TV off. If any of the settings are different from the illustrations above, turn the TV off and consult your Mitsubishi dealer or Mitsubishi thorized Warranty Service Center. Initial Initial 3dia : On...

  • Page 105: Appendix: Procedure For Bypassing The Parental Lock

    Press the MENU button to return to the "Advanced Features" menu. E>Important: You must use the remote control included with this TV. You cannot use a remote control from another Mitsubishi component and you cannot use "Universal" remotes from other manufacturers.

  • Page 107: Index

    Adjust ........ 17, 18 A/V Network Terminals without a cable box ....Cancel ......12, 17, 18 Using Mitsubishi products with TV +cable with a cable box ..26 Enter/Exchange ..13, 17, 18 ........36, 37 Information ....
  • Page 108 =_ MITSUBISHI MITSUBISHI CONSUMER ELECTRONICS AMERICA, INC. 6100 Atlantic Blvd. Norcross, GA 30071-1305 >Z_{ :::_,: © 1997 MitsubishiConsumerElectronics America, Inc. Printed in U.S.A 871D223A10...

This manual is also suitable for:

Vs-50502Vs-45502Vs-50501

Table of Contents
