Pentax K-R Operating Manual
  1. Manuals
  2. Brands
  3. Pentax Manuals
  4. Digital Camera
  5. K-r
  6. Operating manual

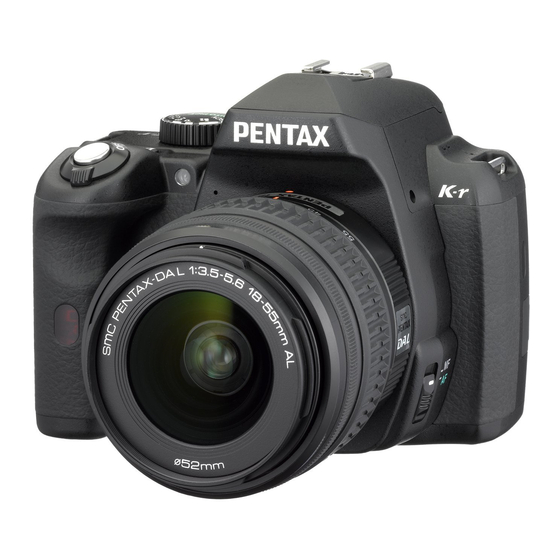

Pentax K-R Operating Manual

Slr digital camera
Hide thumbs Also See for K-R:

Advertisement

Quick Links

Download this manual See also: Service Manual, Operating Manual

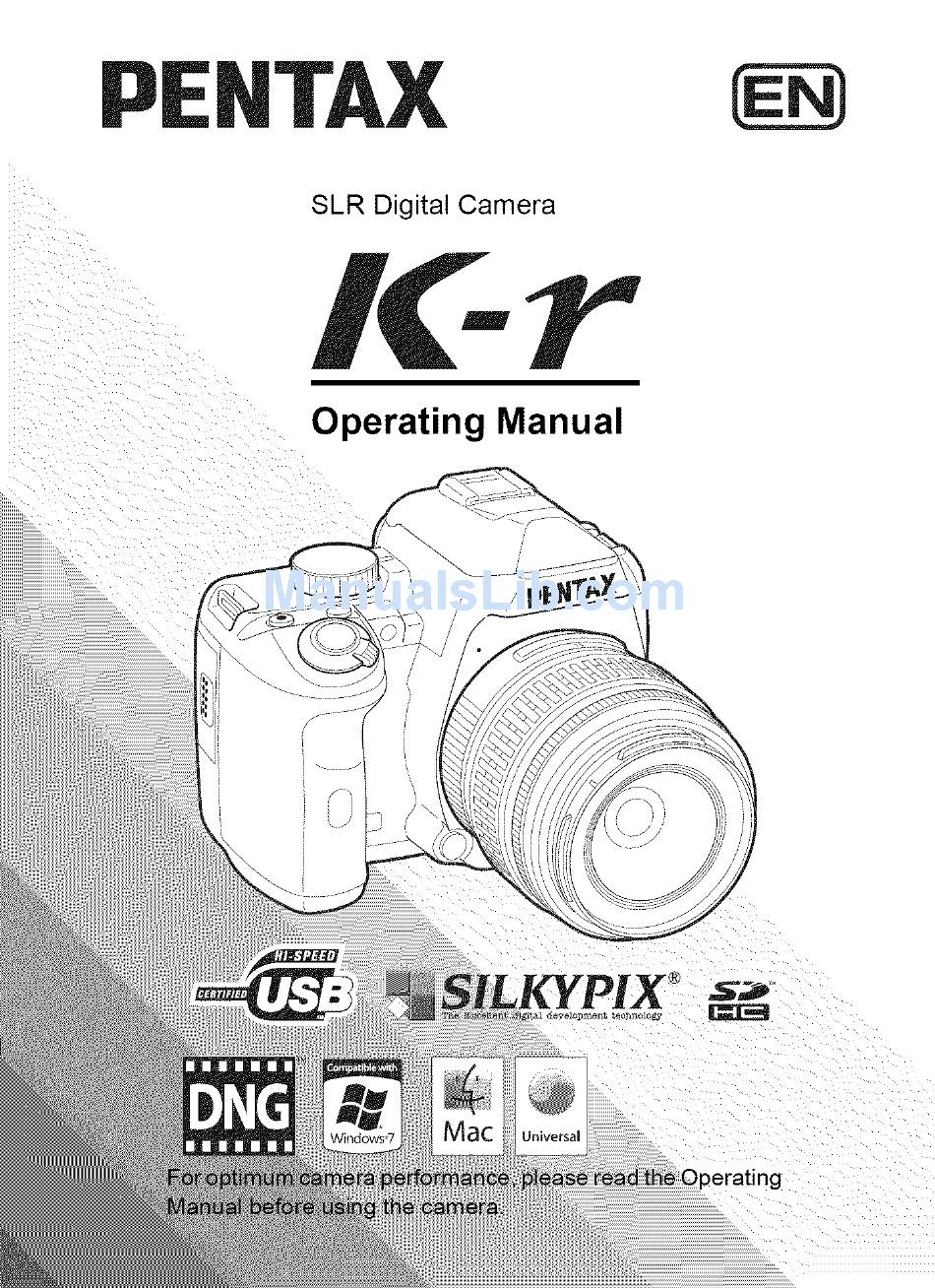

PEN I'AX
SLR Digital Camera
-r
Operating Manual
the Operating
