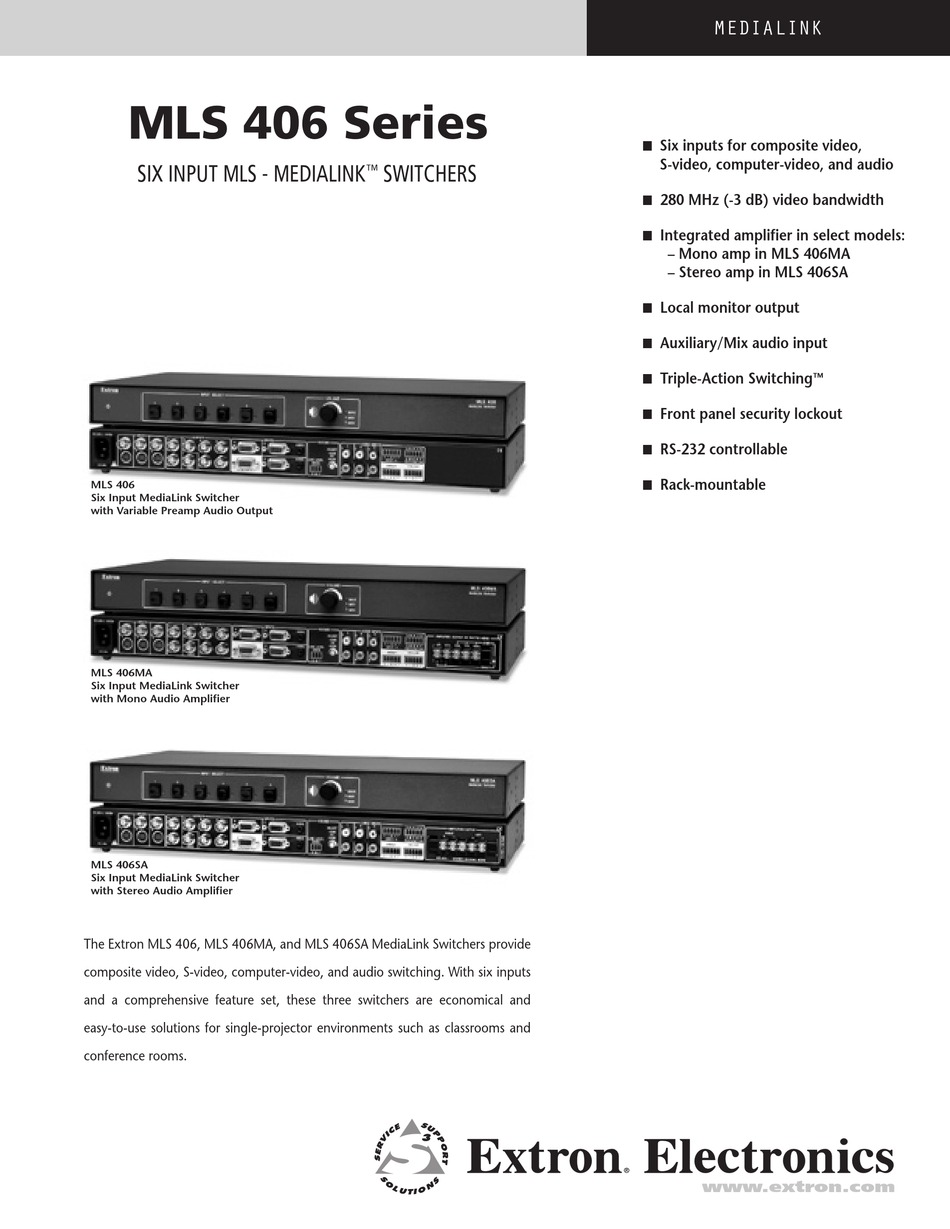

User Manual
MLS 406 Series
SIX INPUT MLS - MEDIALINK
MLS 406
Six Input MediaLink Switcher
with Variable Preamp Audio Output
MLS 406MA
Six Input MediaLink Switcher
with Mono Audio Amplifier
MLS 406SA
Six Input MediaLink Switcher
with Stereo Audio Amplifier
The Extron MLS 406, MLS 406MA, and MLS 406SA MediaLink Switchers provide
composite video, S-video, computer-video, and audio switching. With six inputs
and a comprehensive feature set, these three switchers are economical and
easy-to-use solutions for single-projector environments such as classrooms and
conference rooms.
SWITCHERS
™
MEDIALINK
Six inputs for composite video,
n
S-video, computer-video, and audio
280 MHz (-3 dB) video bandwidth
n
Integrated amplifier in select models:
n
– Mono amp in MLS 406MA
– Stereo amp in MLS 406SA
Local monitor output
n
Auxiliary/Mix audio input
n
Triple-Action Switching
™
n
Front panel security lockout
n
RS-232 controllable
n
Rack-mountable
n
www.extron.com
Advertisement
Related Manuals for Extron electronics MLS 406 Series
Summary of Contents for Extron electronics MLS 406 Series
- Page 1 MLS 406 Series SIX INPUT MLS - MEDIALINK MLS 406 Six Input MediaLink Switcher with Variable Preamp Audio Output MLS 406MA Six Input MediaLink Switcher with Mono Audio Amplifier MLS 406SA Six Input MediaLink Switcher with Stereo Audio Amplifier The Extron MLS 406, MLS 406MA, and MLS 406SA MediaLink Switchers provide composite video, S-video, computer-video, and audio switching. With six inputs and a comprehensive feature set, these three switchers are economical and easy-to-use solutions for single-projector environments such as classrooms and conference rooms.
- Page 2 DesCrIPtION The Extron MLS 406, MLS 406MA, and MLS 406SA MediaLink Switchers are simple-to-use, six input, multi-format active switchers. Designed as economical solutions for single-display classrooms and boardrooms, all three models provide composite video, S-video, computer-video, and audio switching. MLS - MediaLink Switchers are designed to be used in conjunction with an MLC - MediaLink Controller to facilitate low-cost integration.
-
Page 3: Specifications
sPeCIFICatIONs Video Gain ... Unity Bandwidth ... 280 MHz (-3 dB) Differential phase error ... 1.0º at 3.58 MHz and 4.43 MHz Differential gain error ... 1.0% at 3.58 MHz and 4.43 MHz Crosstalk ... -68 dB @ 10 MHz, -39 dB @ 100MHz Switching speed ... -
Page 4: Application Diagrams
aPPlICatION DIagrams Projector Extron MLS 406SA MediaLink Switcher PaNel DrawINgs MLS 406 – Front 100-240V 50-60Hz INPUTS OUTPUTS VIDEO 1.0A MAX. MLS 406 – Back MLS 406MA – Front 100-240V 50-60Hz INPUTS OUTPUTS VIDEO 1.0A MAX. MLS 406MA – Back MLS 406SA – Front 100-240V 50-60Hz INPUTS OUTPUTS VIDEO 1.0A MAX. MLS 406SA – Back © 2006 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners. RS-232 Projector Control RGBHV...
