MTD 030 Series Operator's Manual
  1. Manuals
  2. Brands
  3. MTD Manuals
  4. Lawn Mower
  5. 030 Series
  6. Operator's manual
MTD 030 Series Operator's Manual

MTD 030 Series Operator's Manual

22-inch rotary mower
Hide thumbs Also See for 030 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty
A
O
AL

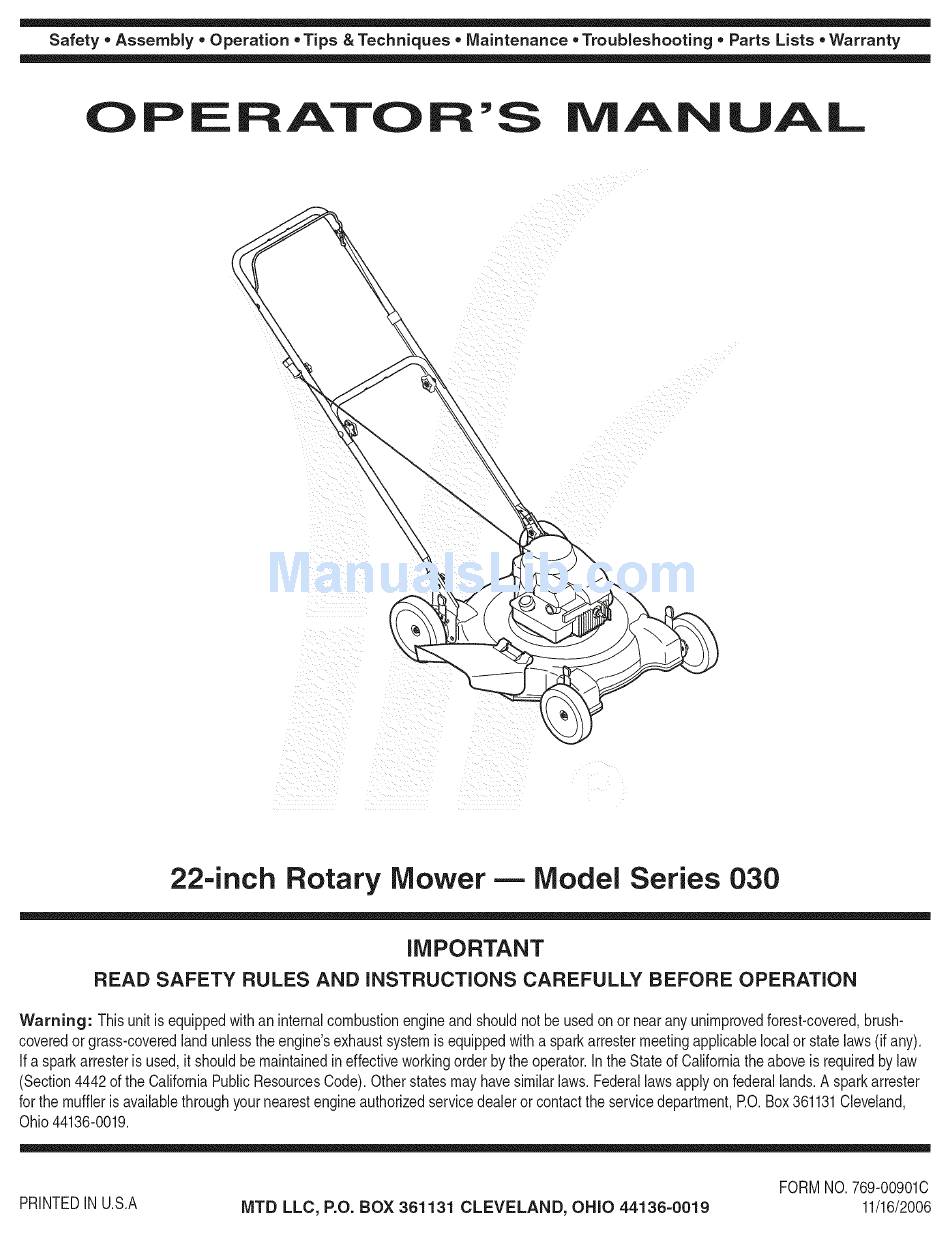

22=inch Rotary Mower-
Model Series 030
iMPORTANT
READ SAFETY
RULES AND iNSTRUCTiONS
CAREFULLY
BEFORE
OPERATION
Warning:
This unit is equippedwithan internal combustionengineand shouldnot be usedon or nearany unimproved forest-covered, b rush-
coveredor grass-covered land unlesstheengine'sexhaustsystemis equippedwith a sparkarrestermeetingapplicablelocalor statelaws(if any).
If a sparkarresteris used,it shouldbe maintainedin effectiveworkingorder by the operator.In theState of Californiathe aboveis requiredbylaw
(Section4442 of the CaliforniaPublicResources Code). Otherstatesmay havesimilarlaws.Federallaws applyon federallands.A sparkarrester
for the muffleris availablethroughyour nearestengineauthorizedservicedealeror contactthe servicedepartment,RO. Box361131 Cleveland,
Ohio 44136-0019.
FORMNO.769-00901C
PRINTEDIN U.S.A
MTD LLC, P.O. BOX 361131 CLEVELAND,
OHiO 44136-0019
11/16/2006
