MITSUBISHI
ELECTRIC
3D DLP®HOME-CINEMA TELEVISION
MODELS
740 Series
840Series

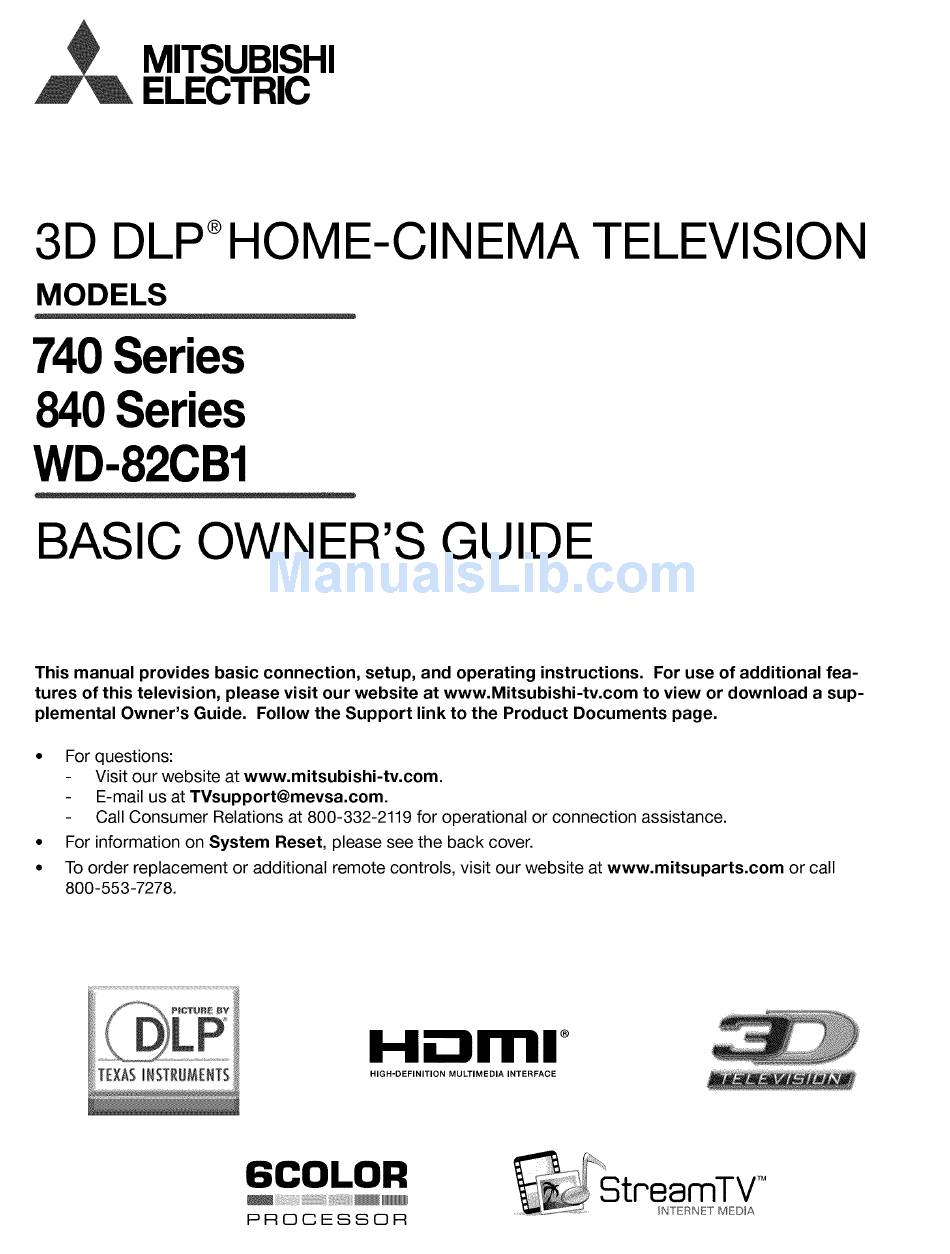

WD-82CB1
BASIC OWNER'S GUID
This manual provides basic connection,
setup, and operating instructions.
For use of additional fea-
tures of this television, please visit our website at www.Mitsubishi-tv.com
to view or download a sup-
plemental Owner's Guide.
Follow the Support link to the Product Documents page.
•
For questions:
Visit our website at www.mitsubishi-tv.com.
E-mail us at TVsupport@mevsa.com.
Call Consumer Relations at 800-332-2119 for operational or connection
assistance.
•
For information on System
Reset, please see the back cover.
•
To order replacement
or additional remote controls, visit our website at www.mitsuparts.com
or call
800-553-7278.
H;S3mll °
HIGH'DEFINITION
MULTIMEDIA
INTERFACE
6COLOR
_
glWIIglglgl_i
P R O C E S S O R
INTERNET MED_A
Advertisement
Table of Contents
Related Manuals for Mitsubishi WD-82840
Summary of Contents for Mitsubishi WD-82840
- Page 1 This manual provides basic connection, setup, and operating instructions. For use of additional fea- tures of this television, please visit our website at www.Mitsubishi-tv.com to view or download a sup- plemental Owner's Guide. Follow the Support link to the Product Documents page.
- Page 2 Mitsubishi could cause harmful interference and would Stand Requirement void the user's authority to operate this equipment. CAUTION: Use these Mitsubishi TV models only with the Mitsubishi stand model shown here. Other stands Canadian Notice can result in instability and possibly cause injury.
-
Page 3: Table Of Contents
MEVSA Internet Applications Policy ..some liquid may enter the TV through the gap between the screen and screen frame. • You may purchase Mitsubishi Screen Cleaner, part number CLEANER-VSS, by calling 1 (800) 553-7278. General Cleaning Precautions • DO NOT allow liquid to enter the TV through the ventilation slots or any crevice. -
Page 4: Important Safety Instructions
Important Safety Instructions Please read the following safeguards for your TV and EXAMPLE OF ANTENNA GROUNDING retain for future reference. Always follow all warnings and instructions marked on the television. ANTENNA Read these instructions. Keep these instructions. I1,1 "_ jANTENNA Heed all warnings. -
Page 5: Package Contents
Basic Set and tion TV Overview Package Contents Please take a moment to review the following list of Sample TV controls and items to ensure that you have received everything. location of the STATUS indicator. See page 31. Remote Control Two AA Batteries Basic... -
Page 6: Remote Control
May apply to compat- StreamTV internet services. ible devices under HDMI control. the supplemental Owner's Guide at Mitsubishi iPhone App www.mitsubishi-tv.com for setup of Visit the iTunes store for a free app HDMI control. that turns your Apple iPhone, iPad, or iTouch into a second remote control for the TV. -
Page 7: Setting Up And Using Tv Inputs
See page 5. Welcome Screen Energy Options Aim the emitter (bulb) • Mitsubishi recommends the Home setting, end of the remote control which produces a picture suitable for home at the TV and press the viewing and uses less power. - Page 8 Owner's Guide at 4° Highlight the device type in the on-screen list and www.mitsubishi-tv.com. press ENTER.The name you select here will appear in the Input Selection menu. Watching Broadcast TV TV Connected...
-
Page 9: Basic Tv Operation
Use the Sound > Audio > TV Speakers menu. HDMI Control (CEC-Enabled HDMI A/V Receiver) The TV's remote control may control some functions of the A/V receiver. See the supplemental Owner's Guide at www.mitsubishi-tv.com. For assistance call 1(800) 332-2119... - Page 10 For more on TV formats and signal types, see the supplemental Owner's Guide at www.mitsubishi-tv.com. High-definition signal with Wide Expand mode stretches squarish 4:3 image embedded. the picture sideways to fill the screen.
-
Page 11: Tv Menus
840 Series. Fine-tuning of color settings Inputs Advanced Highly customized picture adjust- Name Name assignments for TV inputs ments for each input. Mitsubishi recommends these adjustments HDMI Setup for HDMI Control (CEC) of exter- made only by a trained professional Control nal devices installer. -
Page 12: Tvconnections
TVConnections Before You Begin Surround Sound Auto Input Sensing The TV's Auto Input Sensing feature automatically rec- The TV accepts PCM stereo or Dolby Digital 5.1 over ognizes many connections and prompts you to identify the ANT and HDMI inputs and passes the audio out on the type of device connected. -
Page 13: Input And Output Jacks
HDMI output HDMI video and audio through a single cable. cable Mitsubishi recommends using high-speed HDMI cables to connect newer devices incorporating HDMI technol- ogy. See "HDMI Cable Categories" on the opposite page for more on HDMI cable types. Note:... - Page 14 2. TV Connections Y Pb Pr Component Video Device Examples: HDTV Cable Box, Satellite Receiver, or DVD/Blu-ray Player If your source device has an HDMI output, use the con- nections for an HDMI device described on the previous TV jack panel page instead of component video.
- Page 15 2. TV Connections DVI Video Device Examples: Computer or Older A/V Device Note: This connection can carry high-definition video signals. TV panel The HDMI connection supports copy protection (HDCP). Connect a DVI device (digital only) to one of the TV's HDMI input jacks.
- Page 16 2. TV Connect_ns A/V Receiver A/V Receiver with HDMI Output Most setups require either a digital audio cable or Required: One HDMI cable analog stereo audio cables. To send audio from TV This option allows you to view and hear content from channels received on the ANT input or devices con- devices connected to an A/V receiver.
-
Page 17: 3 Tvfeatures
3 TVFeatures StreamTV Internet About StreamTV Open the Setup > Network menu to review set- tings. 740 and 840 Series, U.S. only Internet services let you access many popular on-line applications providing both free and paid content. Required for StreamTV internet media: •... - Page 18 The TV requires an AzureWave AW-NU231 USB wireless adapter to communicate with your IEEE 802.11n-compli- ant wireless network router. The adapter is available from your Mitsubishi dealer or go to www.mitsubishi-tv.com and follow the Accessories link. Disconnect the Ethernet cable if present.
- Page 19 VUDU home menu. INF0. In VUDU's movie service, displays --Playback keys. more options for the current selection if available. F1. Displays a VUDU help menu if available. , MITSUBISHI F2. Displays the VUDU system menu if available. For assistance call 1(800) 332-2119...
-
Page 20: 3D Video
TV Features 3D Video To display 3D content, your Mitsubishi TV requires: Using the TV's Internal Emitters • Active-shutter 3D glasses compatible with any one of the following: The TV's internal emitters 16ft. Effective range of the A matching external synchronization... - Page 21 TV Features 3D Video, continued Other Options in the 3D Menu Watching 3D Video Glasses Active 3D glasses are required. All glasses in use The Off settings disable output Control Off from the selected emitter. at the same time must use the same control type. Halogen lights, fluorescent lights, or direct sunlight can Settings...
-
Page 22: Wireless Audio Playback (840 Series)
Notice Concerning Format Compatibility • Once connection is lost, the TV will power off after The Mitsubishi TVs will support the mandatory HDMI five minutes without receiving a signal. 1.4a 3D signals intended for the United States. Spe- • To clear a paired device, turn off the Bluetooth icon cifically, the TVs will support the 3D signals known as (Inputs >... -
Page 23: Sound Projector (840 Series)
TV Features Sound Projector (840 Series) Sound Projector Technology Connecting the TV To hear digital surround sound, the TV must be con- The TV's built-in speaker array can be adjusted to reflect sound off the room walls to create a surround nected to a digital surround sound source. - Page 24 TV Features Sound Projector, continued Auto Setup Basic Manual Setup Auto setup uses a calibration microphone to optimize Note: If you have already performed Auto setup, do Sound Projector performance for most room condi- not make manual adjustments. Doing so will tions.
- Page 25 TV Features Sound Projector, continued From the Sound > SoundPro menu go to the CUSTOM menu. Position yourself in your usual viewing location. Remain in this position, looking at the TV, while making the following adjustments. Adjusting Beam Angles Adjust Center Beam Angle until sound is about equal in both ears.
-
Page 26: Appendices
Press MENUon the TV remote control to enter the you to control some functions of a CEC-enabled TV main menu. device. See the supplemental Owner's Guide at www.mitsubishi-tv.com. Go to Inputs > Name. Highlight the HDMI input name and press ENTER to select Delete. -
Page 27: Appendix B: Lamp-Cartridge Replacement
Lamp-Substitution Alert MEVSA recommends that you use only genuine Replacement Lamp Assemblies purchased directly from Mitsubishi or a Mitsubishi Authorized Dealer or Mitsubishi Authorized Service Center. MEVSA advises that replacement lamps obtained separately from the Lamp Cartridge and/or Lamp Assemblies obtained from unauthorized sellers may be incorrect for your television, may not fit or perform properly and may even damage your television. - Page 28 Appendices Appendix B: Lamp-Cartridge Replacement, continued Replacement Procedure Removing the Old Lamp Cartrldge Turn off TV power and unplug the TV. Allow the lamp to cool for at least one hour before proceed- ing. After the lamp has cooled, remove the cover of the lamp compartment, located on the back of the TV.
-
Page 29: Appendix C: Troubleshooting
Setup > Channel > Edit menu. Lock Menu To change your Lock Press the 9 and LASTkeys simultaneously to temporarily unlock the TV. See Pass Code menu pass code the supplemental Owner's Guide at www.mitsubishi-tv.com for more. For assistance call 1(800) 332-2119... - Page 30 Appendices Appendix C: Troubleshooting, continued Control-Panel To re-enable the Press and hold the INPUTbutton on Allows the control panel to be Lock Release unlocked if the remote control is control-panel buttons the control panel for ten seconds. after activation of the the TV is powered off, you can now misplaced.
- Page 31 Wait one minute and then plug the set back in. • If LED continues to flash red and yellow, go to www.mitsubishi-tv.com or call 1-800-332-2119 to receive Authorized Service Center information. You may be asked to count how many times the LED flashes each color to aid in troubleshooting.
-
Page 32: Mitsubishi Tv Software
LICENSE GRANT. MEVSA grants you a non-exclusive, non-transferable, limited right and license to use one copy of the Software only with the Mitsubishi television model that included this owner's guide and owned by you. RIGHTS AND LIMITATIONS. Software Not for Resale. - Page 33 FreeSoftware Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation. If you are interested in obtaining open source code for this product, please contact Mitsubishi at 1 (800) 332-2119.
- Page 34 Mitsubishi TV Software 10. Ifyou wishtoincorporatepartsoftheProgramintootherfree programs whose distribution conditions aredifferent, write to the author to ask for permission. For software which is copyrighted bythe FreeSoftware Foundation write to the Free Software Foundation;we sometimes makeexceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivativesof our...
- Page 35 Mitsubishi TV Software remain obligatedto ensure that it is available for as longas neededto satisfytheserequirements. e)Oonvey t he objectcode usingpeer-to*peer transmission, providedyouinformotherpeerswhere the objectcode andCorresponding S ourceof the workarebeingoffered to the general p ublicat nochargeundersubsection Aseparableportion of the objectcode,whosesourcecodeis excludedfromthe Corresponding Sourceas a SystemLibrary,neednot beincludedinconveyingthe objectcode work.
-
Page 36: Warranty
Embedded Software and Lamps, the consumer is solely responsible for any replacement labor. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one (1) year from the original date of purchase at retail. - Page 37 MITSUBISHI service center; physical abuse to or misuse of the product (including any failure to carry out any maintenance as described in the Owner's Guide including air vent cleaning or any product damaged by excessive physical or electrical stress);...
- Page 38 Embedded Software and Lamps, the consumer is solely responsible for any replacement labor. For all other parts, we will provide the labor for a warranty repair by an authorized MITSUBISHI service center without charge for one (1) year from the original date of purchase at retail.
-
Page 39: Mevsa Internet Applications Policy
MEVSA Internet Applications affords the opportunity to access third party Internet product offerings or services ("Third Party Services") on certain Mitsubishi TVs. The Third Party Services accessible herein are provided as per our agreement with these third parties. These agreements are subject to change, interruption, suspension (including termination) at any time and for various reasons. - Page 40 Apple, iPad, iPhone, iTouch, iTunes, are trademarks of Apple Inc., registered in the U.S. and other countries. The Bluetooth® word mark and Iogos are registered trademarks owned by Bluetooth SIC, Inc. and any use of such marks by Mitsubishi Electric is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Real Sound Lab, SlA.
