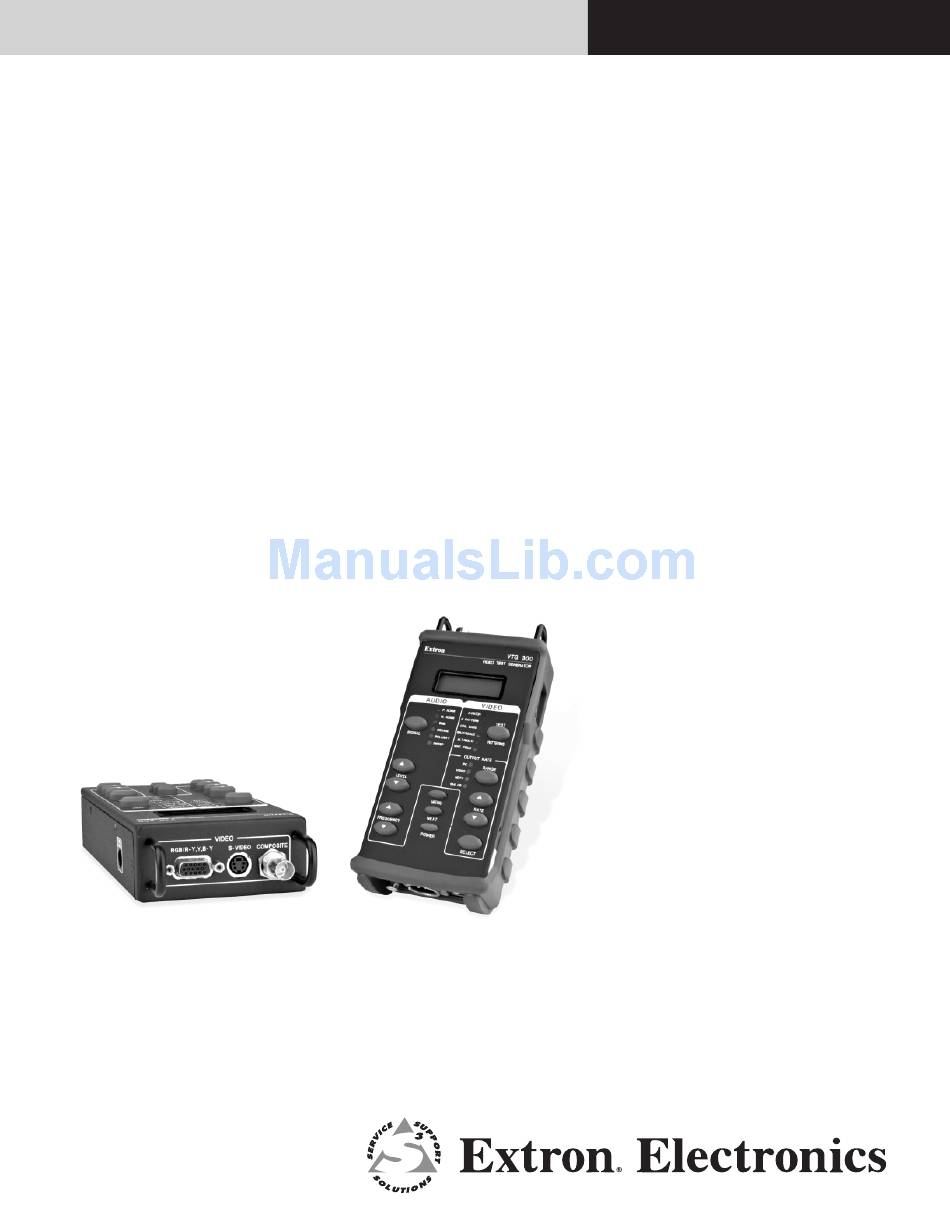

VTG 300 &

VTG 300R

HANDHELD BATTERY POWERED VIDEO

AND AUDIO TEST GENERATORS

The Extron VTG 300 and VTG 300R are intuitive, broadcast quality video and

audio test generators that feature 34 video scan rates, 13 video test patterns, and

six audio test signals for setting up and fine tuning A/V signal reproduction in a

variety of applications. Housed in a compact, rugged enclosure with a protective

rubber boot, both models are ideal for portable field use and integrated systems.

SPECIAL PURPOSE

I High resolution video output signals:

Computer, plasma, HDTV

I NTSC or PAL video output signals:

Component, S-video, composite

I 34 scan rates

I Broadcast quality video encoder

I 13 video test patterns

I Six audio test signals

I Protective rubber boot

I Battery operated or DC powered

I Integrated battery charger

(VTG 300R only)

www.extron.com

Need help?

Do you have a question about the VTG 300R and is the answer not in the manual?

Page 1 HANDHELD BATTERY POWERED VIDEO AND AUDIO TEST GENERATORS The Extron VTG 300 and VTG 300R are intuitive, broadcast quality video and audio test generators that feature 34 video scan rates, 13 video test patterns, and six audio test signals for setting up and fine tuning A/V signal reproduction in a variety of applications.
Page 2 3.5 mm dual-channel mono mini jack. When the test generator is turned off, the most recent settings are stored and automatically recalled when the unit is turned on again. The VTG 300 and VTG 300R are housed in compact, rugged enclosures. Each comes with a protective rubber boot to guard against severe environments and prolong the lifespan of the test generator.
Page 3 ATTERNS VTG 300 TEST PATTERNS 32 x 24 Crosshatch This crosshatch pattern can be used to set projector focus and geometry. For CRT projectors, this pattern is for examining and adjusting both static and dynamic convergence, so that the red, green, and blue video signals are aligned throughout the image. 32 x 18 Crosshatch This crosshatch pattern is for use with 16:9 displays.
Page 4 Compliances... CE, FCC Class A, VCCI, AS/NZS, ICES MTBF ... 30,000 hours Warranty Product ... 3 years parts and labor, excluding the VTG 300R's rechargeable battery pack VTG 300 R battery pack ... 90 days NOTE: All nominal levels are at ±10% Model Part Numbers VTG 300...
