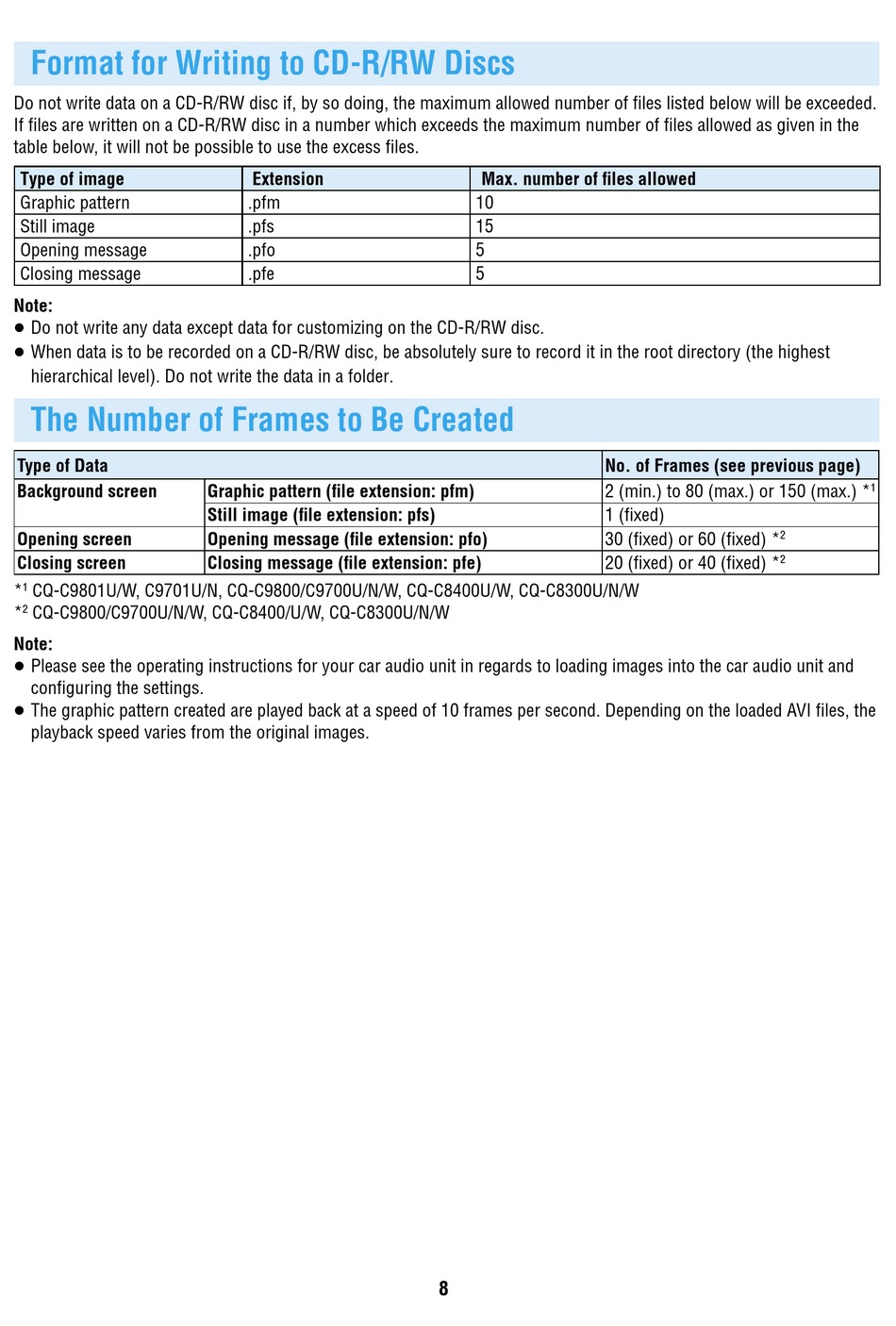

Format for Writing to CD-R/RW Discs

Do not write data on a CD-R/RW disc if, by so doing, the maximum allowed number of files listed below will be exceeded.
If files are written on a CD-R/RW disc in a number which exceeds the maximum number of files allowed as given in the
table below, it will not be possible to use the excess files.
Type of image
Graphic pattern
Still image
Opening message
Closing message
Note:
 Do not write any data except data for customizing on the CD-R/RW disc.
 When data is to be recorded on a CD-R/RW disc, be absolutely sure to record it in the root directory (the highest
hierarchical level). Do not write the data in a folder.

The Number of Frames to Be Created

Type of Data
Background screen
Opening screen
Closing screen
* CQ-C9801U/W, C9701U/N, CQ-C9800/C9700U/N/W, CQ-C8400U/W, CQ-C8300U/N/W
1
* CQ-C9800/C9700U/N/W, CQ-C8400/U/W, CQ-C8300U/N/W
2
Note:
 Please see the operating instructions for your car audio unit in regards to loading images into the car audio unit and
configuring the settings.
 The graphic pattern created are played back at a speed of 10 frames per second. Depending on the loaded AVI files, the
playback speed varies from the original images.
Extension
.pfm
.pfs
.pfo
.pfe
Graphic pattern (file extension: pfm)
Still image (file extension: pfs)
Opening message (file extension: pfo)
Closing message (file extension: pfe)
Max. number of files allowed
10
15
5
5
No. of Frames (see previous page)
2 (min.) to 80 (max.) or 150 (max.) *
1 (fixed)
30 (fixed) or 60 (fixed) *
20 (fixed) or 40 (fixed) *
8
1
2
2
