Back Of The Rack Installation - Extron electronics MIX 301 User Manual

Installation and Operation, cont'd
D IS
T R
IB U
T IO
N A
M P
L IF
IE R

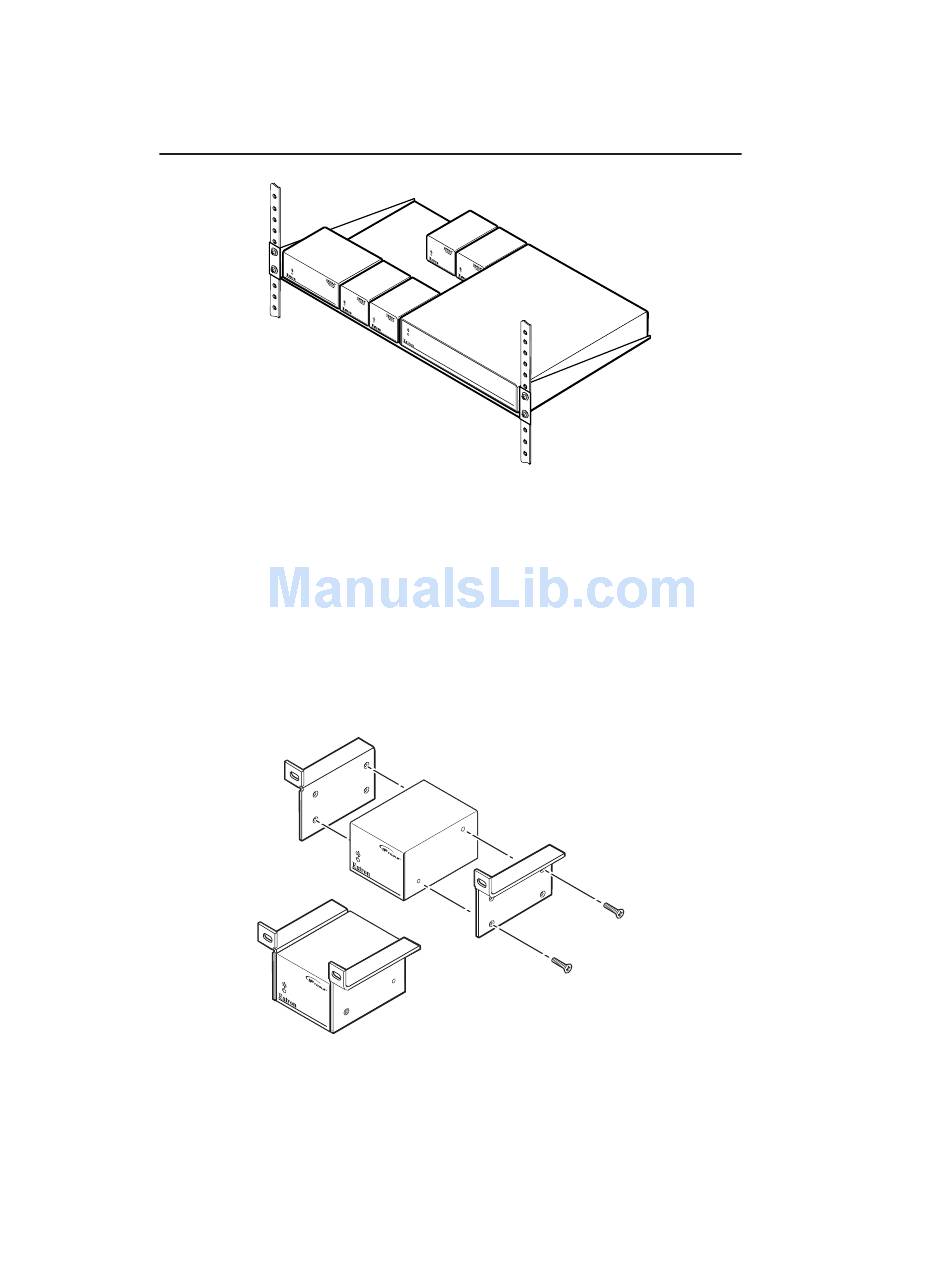

Figure 2 — Mounting the MIX 301 on a standard
1U rack shelf

Back of the rack installation

The MIX 301 can be conveniently mounted on the rear of a rack
by using the Extron MBB 100 back of the rack mounting kit
(Extron part #70-367-01). The back of the rack mounting kit
allows the MIX 301 to be vertically positioned.
1. Attach the two back of the rack mounting brackets to the
sides of the MIX using the four included mounting screws.
I P A
T I
P A
2. Mount the unit on the rack using the two included rack
screws. The MIX 301 can be vertically mounted facing in
either direction, as shown in the following diagram.
4 MIX 301 • Installation and Operation
M D
D IS A S
TR
IB U E R
TI O IE S
N A
M P
LI FI
E R
I P A
T I
P A
