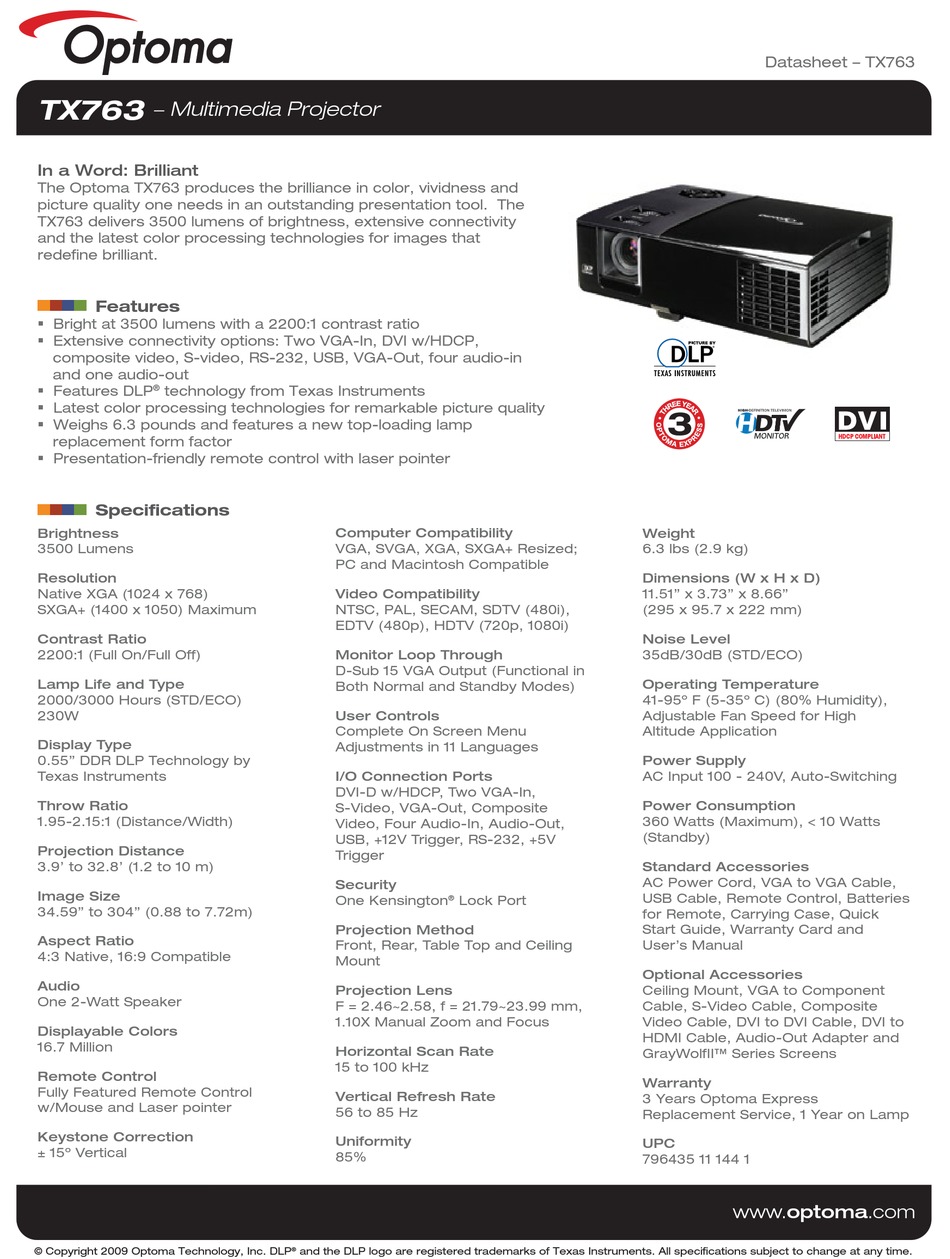

Optoma TX763 Datasheet

TX763
− Multimedia Projector
In a Word: Brilliant
The Optoma TX763 produces the brilliance in color, vividness and
picture quality one needs in an outstanding presentation tool. The
TX763 delivers 3500 lumens of brightness, extensive connectivity
and the latest color processing technologies for images that
redefine brilliant.
Features
 Bright at 3500 lumens with a 2200:1 contrast ratio
 Extensive connectivity options: Two VGA-In, DVI w/HDCP,
composite video, S-video, RS-232, USB, VGA-Out, four audio-in
and one audio-out
 Features DLP technology from Texas Instruments
®
 Latest color processing technologies for remarkable picture quality
 Weighs 6.3 pounds and features a new top-loading lamp
replacement form factor
 Presentation-friendly remote control with laser pointer

Specifications

Brightness
3500 Lumens
Resolution
Native XGA (1024 x 768)
SXGA+ (1400 x 1050) Maximum
Contrast Ratio
2200:1 (Full On/Full Off)
Lamp Life and Type
2000/3000 Hours (STD/ECO)
230W
Display Type
0.55" DDR DLP Technology by
Texas Instruments
Throw Ratio
1.95-2.15:1 (Distance/Width)
Projection Distance
3.9' to 32.8' (1.2 to 10 m)
Image Size
34.59" to 304" (0.88 to 7.72m)
Aspect Ratio
4:3 Native, 16:9 Compatible
Audio
One 2-Watt Speaker
Displayable Colors
16.7 Million
Remote Control
Fully Featured Remote Control
w/Mouse and Laser pointer
Keystone Correction
± 15º Vertical
© Copyright 2009 Optoma Technology, Inc. DLP
Computer Compatibility
VGA, SVGA, XGA, SXGA+ Resized;
PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM, SDTV (480i),
EDTV (480p), HDTV (720p, 1080i)
Monitor Loop Through
D-Sub 15 VGA Output (Functional in
Both Normal and Standby Modes)
User Controls
Complete On Screen Menu
Adjustments in 11 Languages
I/O Connection Ports
DVI-D w/HDCP, Two VGA-In,
S-Video, VGA-Out, Composite
Video, Four Audio-In, Audio-Out,
USB, +12V Trigger, RS-232, +5V
Trigger
Security
One Kensington Lock Port
®
Projection Method
Front, Rear, Table Top and Ceiling
Mount
Projection Lens
F = 2.46~2.58, f = 21.79~23.99 mm,
1.10X Manual Zoom and Focus
Horizontal Scan Rate
15 to 100 kHz
Vertical Refresh Rate
56 to 85 Hz
Uniformity
85%
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – TX763
Weight
6.3 lbs (2.9 kg)
Dimensions (W x H x D)
11.51" x 3.73" x 8.66"
(295 x 95.7 x 222 mm)
Noise Level
35dB/30dB (STD/ECO)
Operating Temperature
41-95º F (5-35º C) (80% Humidity),
Adjustable Fan Speed for High
Altitude Application
Power Supply
AC Input 100 - 240V, Auto-Switching
Power Consumption
360 Watts (Maximum), < 10 Watts
(Standby)
Standard Accessories
AC Power Cord, VGA to VGA Cable,
USB Cable, Remote Control, Batteries
for Remote, Carrying Case, Quick
Start Guide, Warranty Card and
User's Manual
Optional Accessories
Ceiling Mount, VGA to Component
Cable, S-Video Cable, Composite
Video Cable, DVI to DVI Cable, DVI to
HDMI Cable, Audio-Out Adapter and
GrayWolfII™ Series Screens
Warranty
3 Years Optoma Express
Replacement Service, 1 Year on Lamp
UPC
796435 11 144 1
www.optoma.com
