Optoma TW766W Appendices
Rs232 commands
Hide thumbs
Also See for TW766W:
- User manual (99 pages) ,
- Specifications (2 pages) ,
- Quick start card (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Appendices
60
English

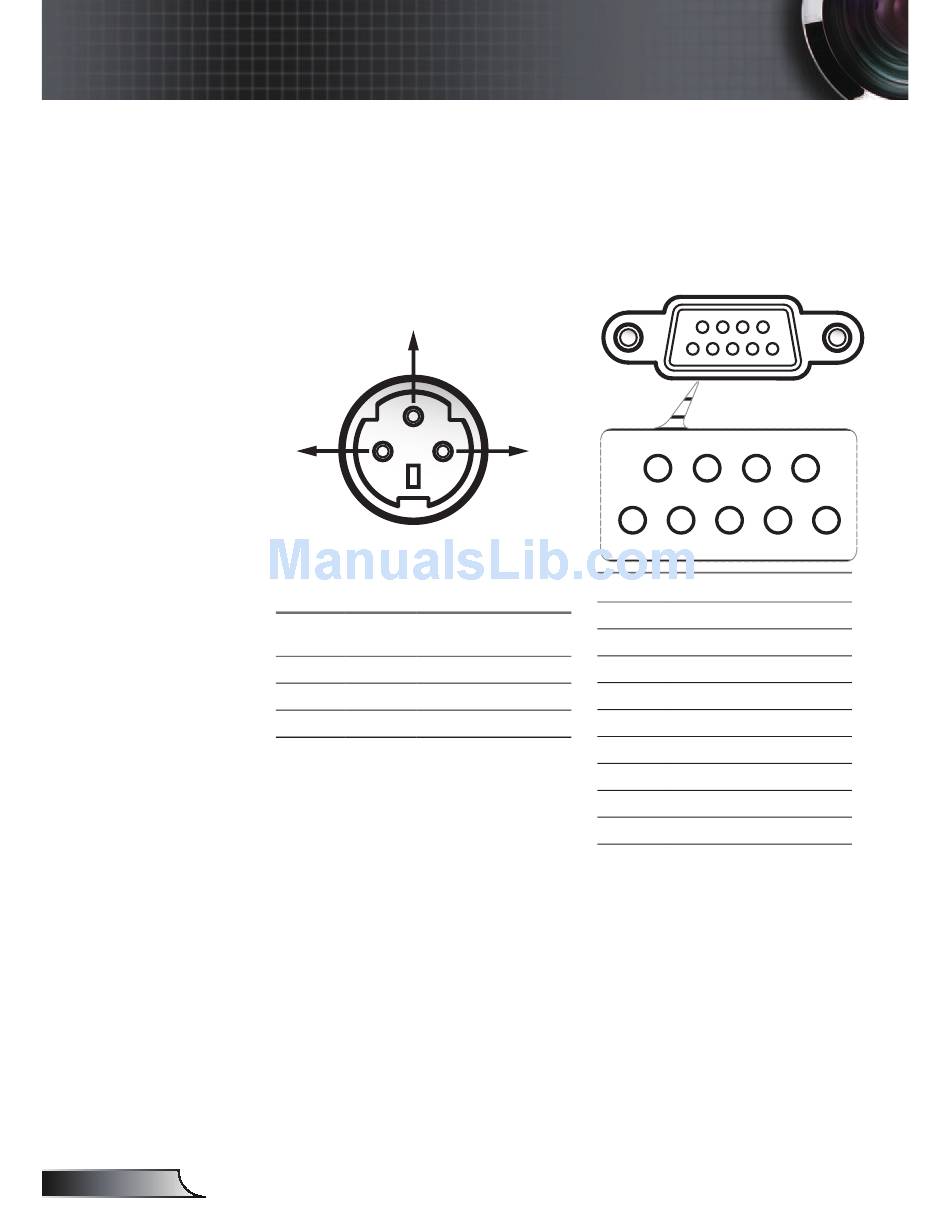

RS232 Commands
RS232 Pin Assignments
3
2
Pin no.
Name
Projector Side)
1
TXD
2
RXD
3
GND
1
5
Pin no.
1
I/O (From
2
OUT
3
IN
4
GND
5
6
7
8
9
9
8
7
6
4
3
2
1
Spec.
N/A
RXD
TXD
N/A
GND
N/A
N/A
N/A
N/A
