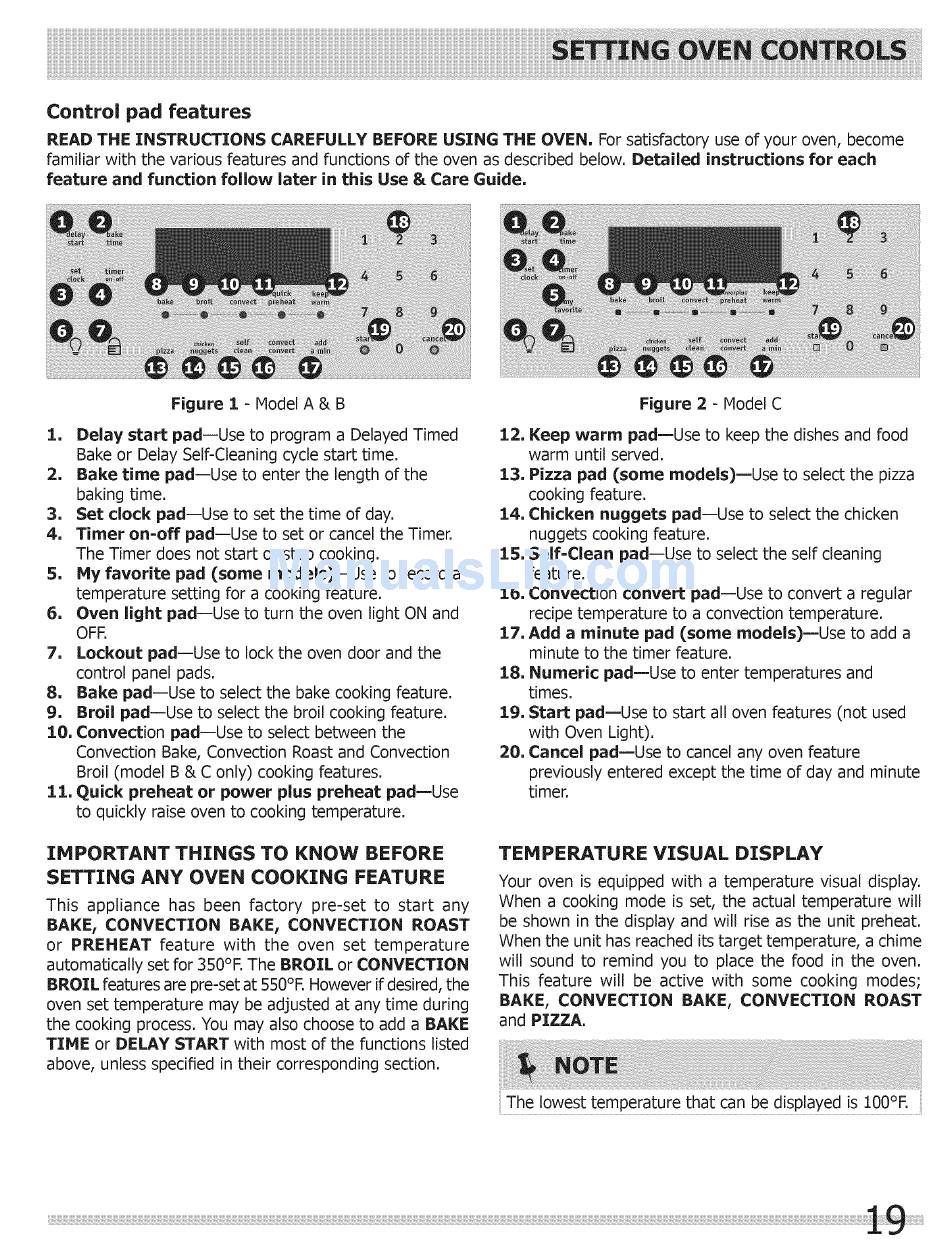

Control pad features
READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of yOUr oven, become
familiar with the various features and functions of the oven as described below. Detailed instructions for each
feature and function follow later in this Use & Care Guide,
Figure I - Model A & B
1. Delay start pad--Use to program a Delayed Timed
Bake or Delay Self-Cleaning cycle start time.
2. Bake time pad--Use to enter the length of the
baking time.
3. Set clock pad--Use to set the time of day.
4. Timer on-off pad--Use to set or cancel the Timer.
The Timer does not start or stop cooking.
5. My favorite pad (some models)--Use to record a
temperature setting for a cooking feature.
6, Oven light pad--Use to turn the oven light ON and
OFE
7. Lockout pad--Use to lock the oven door and the
control panel pads.
8, Bake pad--Use to select the bake cooking feature.
9, Broil pad--Use to select the broil cooking feature.
10. Convection pad--Use to select between the
Convection Bake, Convection Roast and Convection
Broil (model B & C only) cooking features.
11. Quick preheat or power plus preheat pad=Use
to quickly raise oven to cooking temperature.
IMPORTANT THINGS TO KNOW BEFORE
SETTING ANY OVEN COOKING FEATURE
This appliance has been factory pre-set to start any
BAKE, CONVECTION BAKE, CONVECTION ROAST
or PREHEAT feature with the oven set temperature
automatically set for 350°E The BROIL or CONVECTION
BROIL features are pre-set at 550°E However if desired, the
oven set temperature may be adjusted at any time during
the cooking process. You may also choose to add a BAKE
TIME or DELAY START with most of the functions listed
above, unless specified in their corresponding section.
Figure 2 - Model C
12. Keep warm pad=Use to keep the dishes and food
warm until served.
13. Pizza pad (some modeis)=Use to select the pizza
cooking feature.
14,Chicken nuggets pad--Use to select the chicken
nuggetscookingfeature.
15. Self-Clean pad--Use to select the self cleaning
feature.
16. Convection convert pad--Use to convert a regular
recipe temperature to a convection temperature.
17. Add a minute pad (some modeis)=Use to add a
minute to the timer feature.
18. Numeric pad=Use to enter temperatures and
times.
19. Start pad=Use to start all oven features (not used
with Oven Light).
20. Cancel pad=Use to cancel any oven feature
previously entered except the time of day and minute
timer.
TEMPERATURE VISUAL DISPLAY
Your oven is equipped with a temperature visual display.
When a cooking mode is set, the actual temperature will
be shown in the display and will rise as the unit preheat.
When the unit has reached its target temperature, a chime
will sound to remind you to place the food in the oven.
This feature will be active with some cooking modes;
BAKE, CONVECTION BAKE, CONVECTION ROAST
and PIZZA.
The lowest temperature that can be displayed is 100°F.
