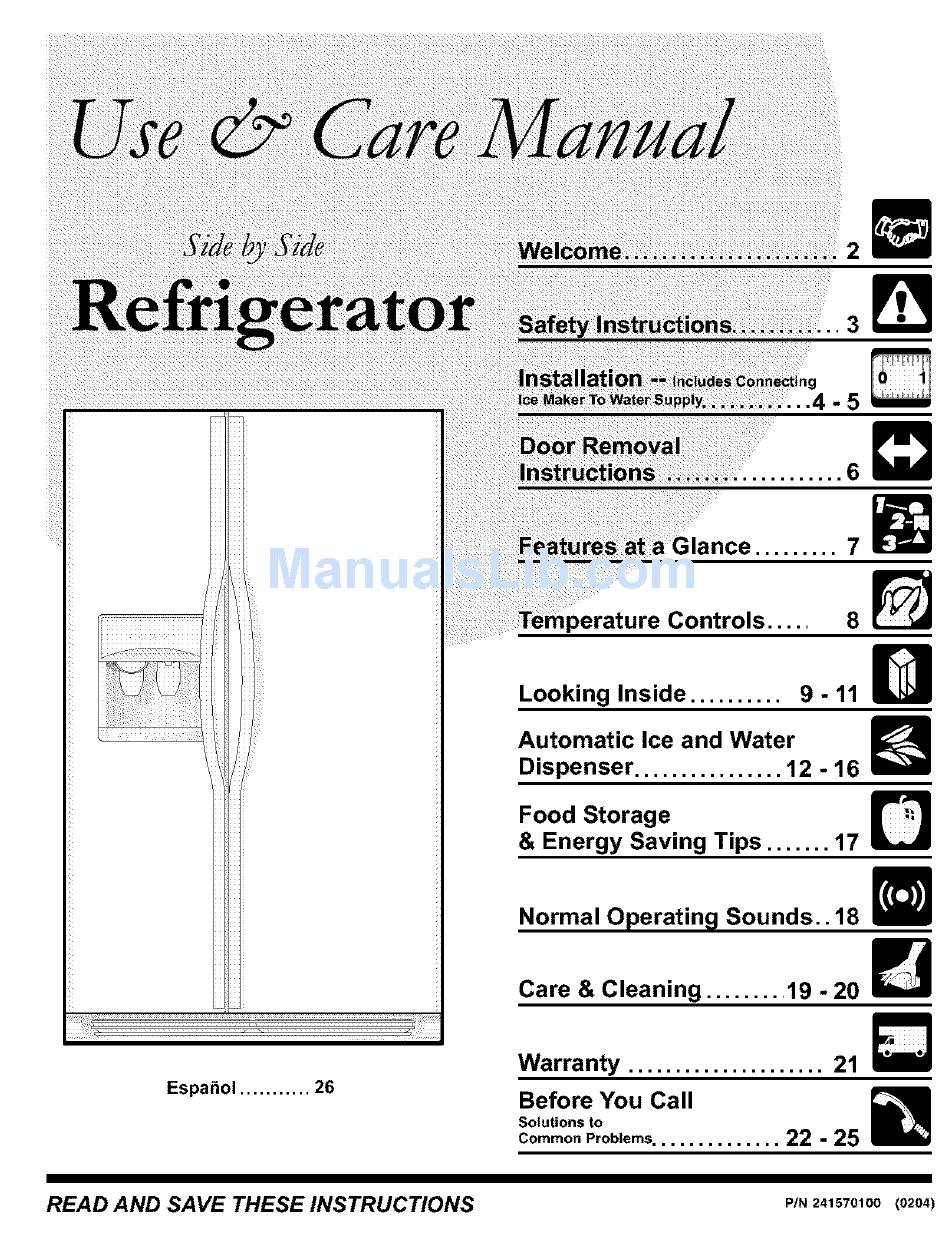

- Page 1 Temperature Controls ..-11 D Looking Inside ..Automatic Ice and Water Dispenser ....12 - 16 Food Storage & Energy Saving Tips ..Normal Operatin_l Sounds.. 18 Care & Cleaning ..19 - 20 Warranty ..... Espa_ol ... Before You Call Solutions to 22 - 25 Common Problems ....
- Page 2 Please read this Use & Care Manuat very carefuIly. It contains (Canada) vaIuable information on how to properIy maintain your new or visit our web site at www.frigidaire.com refrigerator. We know you'll enjoy your new refrigerator and ThankYou Extend Your Warranty Protection for choosing our product.
- Page 3 FOR YOUR SAFETY PROPER DISPOSAL OF YOUR REFRIGERATOR OR FREEZER Do not store or use gasoline, or other flammable liquids in the vicinity of this or any other appIiance. Read Risk of child entrapment product IabeIs for warnings regarding flammability and Child entrapment and suffocation other hazards.
- Page 4 ThisOwner's G uide provides s pecific o perating i nstructions foryourmodelUsetherefrigerator onlyasinstructed i nthis Use & Care Manual. Before starting the refrigerator, follow these important first steps. LOCATION ° Choose a place that is near a grounded eIectrical outIet. Do Not use an extension cord or an adapter plug. °...
- Page 5 Before Installing The Water Supply Line, You Will Need • BasicTools: adjustable wrench, flat-blade screwdriver, and Phillips screwdriver • Access to a household coId water line with water pressure between 20 and 100 psi. • A water suppIy line made of _ inch (6.4 ram) OI9..copper tubing.To determine the Iength of copper tubing needed, you will need to measure the distance from the ice maker inlet vaIve at the back of the refrigerator to your cold water pipe.Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).
- Page 6 Tools Necessap/: DOOR REMOVAL INSTRUCTIONS: If it is necessary to move the refrigerator through narrow doorways, follow these steps to remove the doors. IMPORTANT: Beforeyou begin, remove electrical power cord from ,,vail outtet. Remove any food from door shetves. Disconnect eIectrical supply. Open both doors, tnen remove toe grilIe.
- Page 7 Freezer and Refrigerator SpillSafe g Shelf Ice Cream Ice Make Door Door Pizza Rack Wire Meat Keeper Small Items and Cover Door _illSafe Fixed Shelf Wire Door Small Special Item Large Retainer Door Large and Cover Door Door Bin Toe Grille Features may vary according to model...
- Page 8 COOL DOWN PERIOD To ensu re safe food storage, allow the refrigerator to operate with the doors closed for at Ieast 8 to 12 hours before loading it with food. REFRIGERATOR & FREEZER CONTROLS TEMPERATURE ADJUSTMENT • After 24 hours, adjust the controls as needed. Adjust tOCtOty_tiJZFg_t=tY$_t!at: temperatures gradually: move the knob in small increments, allowing the temperature to stabilize.
- Page 9 PIZZA SHELF (SOME MODELS) This shelf is attached to the freezer wall beside the ice dispenser container. This convenient area allows for storage of pizza and other tall items placed verticaIty between the ice dispenser container and the freezer wail ICE CREAM SHELF (SOME MODELS)
- Page 10 DOOR STORAGE TALL BO'R'LE RETAINER (SOME MODELS) Door bins and shelves are provided for convenient storage The Tall BottIe Retainer keeps tail containers in the bin from of jar& bottles, and cans. FrequentIy used items can be fatting forward when opening or closing the refrigerator door. quickty selected.
- Page 11 CRISPERS (SOME MODELS) MEAT KEEPER (SOME MODELS) The crispers, located under the bottom refrigerator shetf, Some modeIs are equipped with a Meat Keeper. Meat Keeper are designed for storing fruits, vegetable& and other fresh temperatures can be adjusted by sliding the Meat Keeper produce.
- Page 12 AUTOMATIC ICE & WATER DISPENSER OPERATING INSTRUCTIONS 0@@0 Features may vary according to model. Crushed Press the Crushed Touch Pad O to get crushed ice. A red indicator will appear above the Touch Pad. Press glass against ICE dispensing paddleOas far up as possible to catch all ice.
- Page 13 ICE AND WATER DISPENSER FEATURES The ice and water dispenser conveniently dispenses chilled water, and ice cubes or crushed ice, depending on the model To operate the ice dispenser, select the ice option desired using the touchpad. Press a glass against the dispensing paddte as far up as possible to catch aII ice.
- Page 14 CLEANING THE ICE DISPENSER CIean the dispenser and ice container at regular intervals, particuIarly )o not usethe ice chuteas a handlewher before you take a vacation or move, or if the ice dispenser sticks. ramoving or raplacing the ice storagebin, Turn off ice production by pressing the ice maker's On/Off switch.
- Page 15 1-800-944-9044, or go to our web site at Remove new filter cartridge from packaging and place in cup. The end www.frigidaire.com It might be good to with the small o-ring should be up, out of the cup. order some filter cartridges when you first Screw cup, with filter, back onto housing.
- Page 16 Customer Care Center at 1-800-944-9044, or go to our web site at www.frigidaire.com It might be good to order some filter cartridges when you first install your refrigerator. Be sure to ask for the FC-100 PureSource TM*replacement Pull the oId filter cartridge straight out of the housing.
- Page 17 FOOD STORAGE IDEAS Fresh Food Storage • The fresh food compartment shouId be kept between 34 ° F and 40 ° F with an optimum temperature of 37 ° E • Avoid overcrowding the refrigerator shelves.This reduces the circulation of air around the food and resuIts in uneven cooling.
- Page 18 UNDERSTANDING THE SOUNDSYOU MAY HEAR A. Evaporator The flow of refrigerant through the evaporator may Your new high-efficiency refrigerator may make unfamiliar sounds.These are aII normal sounds and soon will become create a boiling or gurgling sound. famiIiar to you.They atso indicate your refrigerator is operating B.
- Page 19 Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spilts immediately and clean both sections at least twice a year. Never use metallic scouring pads, brushes, abrasive cteaners or strong aIkaline soIutions on any surface. Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before cleaning.
- Page 20 iii ! !i!i il ¸ pi g iii iiiii buibS dgetting REPLACING LIGHT BULBS Unptug refrigerator. Wear gloves as protection against possible broken glass. Remove Iight cover, if necessary. Unscrew and replace oId buIb with an appliance buIb of the same wattage. Replace Iight cover, if necessary.
- Page 21 REFRIGERATOR WARRANTY Your refrigerator is protected by this warranty WARRANTY THROUGHOURALrFHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR: PERIOD WE WILL: FULLONE-YEAR Oneyeartromodgtsal Payallco_tsforrepaHngorrepacinganypartsottlis Costs of service calls tl'_t are stud under NORMAL WARRANTY p;Jrclase date appliar_e which prove [o be detec[ivein materialsor RESPONSiBiLiTiES OFTHE CONSUMER, * workmanship Excedes orginaland reolacen_nt Ice &...
- Page 22 PROBLEM CAUSE CORRECTION RUNNING OF REFRIGERATOR • Freezer control is set to "O" Compressor does not run, • Set freezer control. See Temperatura Controls section. • Refrigerator is in defrost cycle • This is normal for a fully automatic defrost refrigerator The defrost cycle occurs periodically, lasting about 30 minutes.
