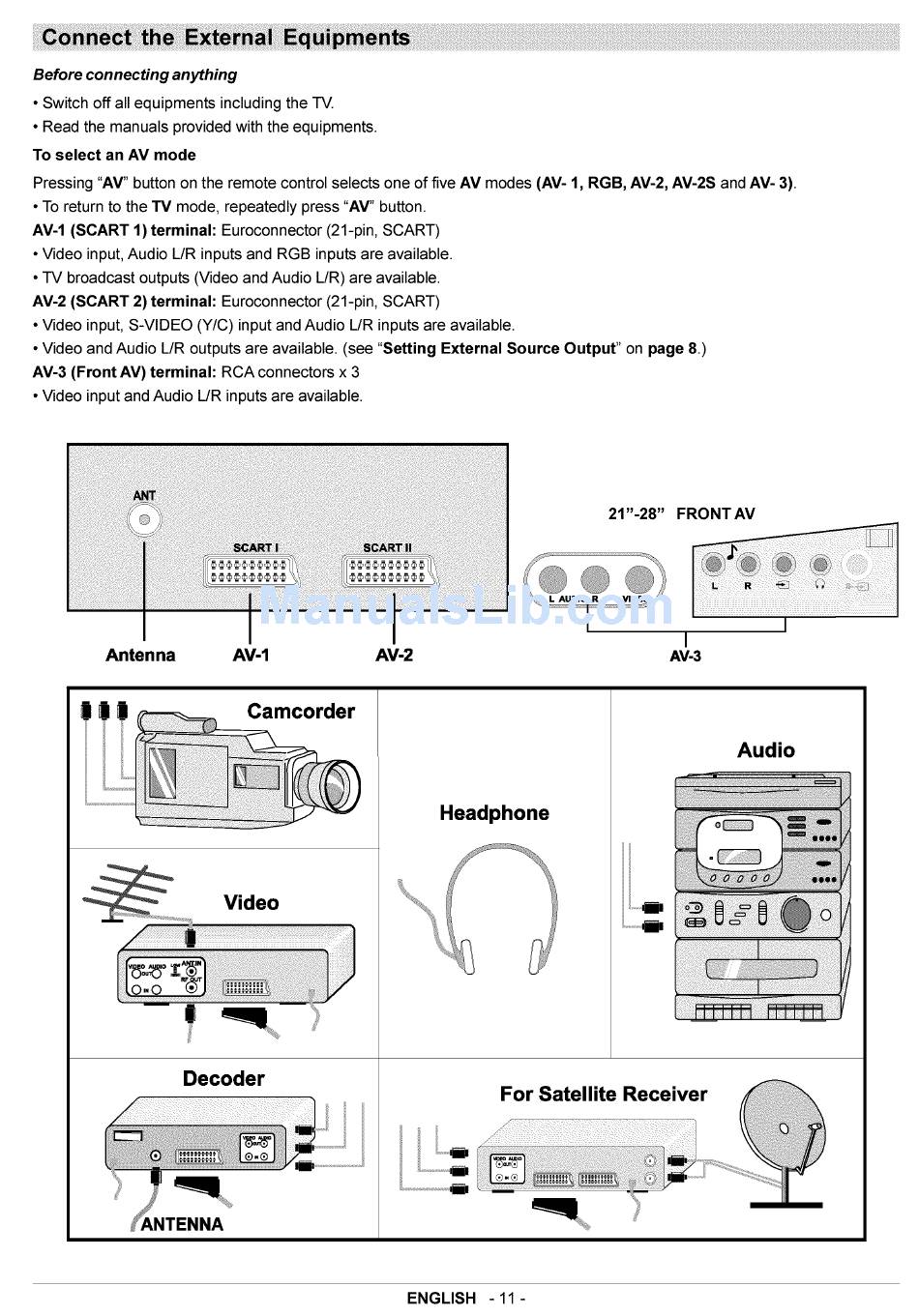

Connect The External Equipments - JVC AV21BT7EPS Instructions Manual

Colour television

Before connecting anything

• Switch off all equipments including the IV.

• Read the manuals provided with the equipments.

To select an AV mode

Pressing "AV" button on the remote control selects one of five AV modes (AV- 1, RGB, AV-2, AV-2S and AV- 3).

• To return to the "IV mode, repeatedly press "AV" button.

AV-1 (SCART 1) terminal:

Euroconnector (21-pin, SCART)

• Video input, Audio L/R inputs and RGB inputs are available.

• TV broadcast outputs (Video and Audio L/R) are available.

AV-2 (SCART 2) terminal:

Euroconnector (21-pin, SCART)

• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.

• Video and Audio L/R outputs are available. (see "Setting External Source Output" on page 8.)

AV-3 (Front AV) terminal:

RCA connectors x 3

• Video input and Audio L/R inputs are available.

Antenna

AV-1

AV-2

21"-28"

FRONT AV

AV-3

rder

Decoder

Headphone

Audio

orSate,,,te

ENGLISH

-11-
