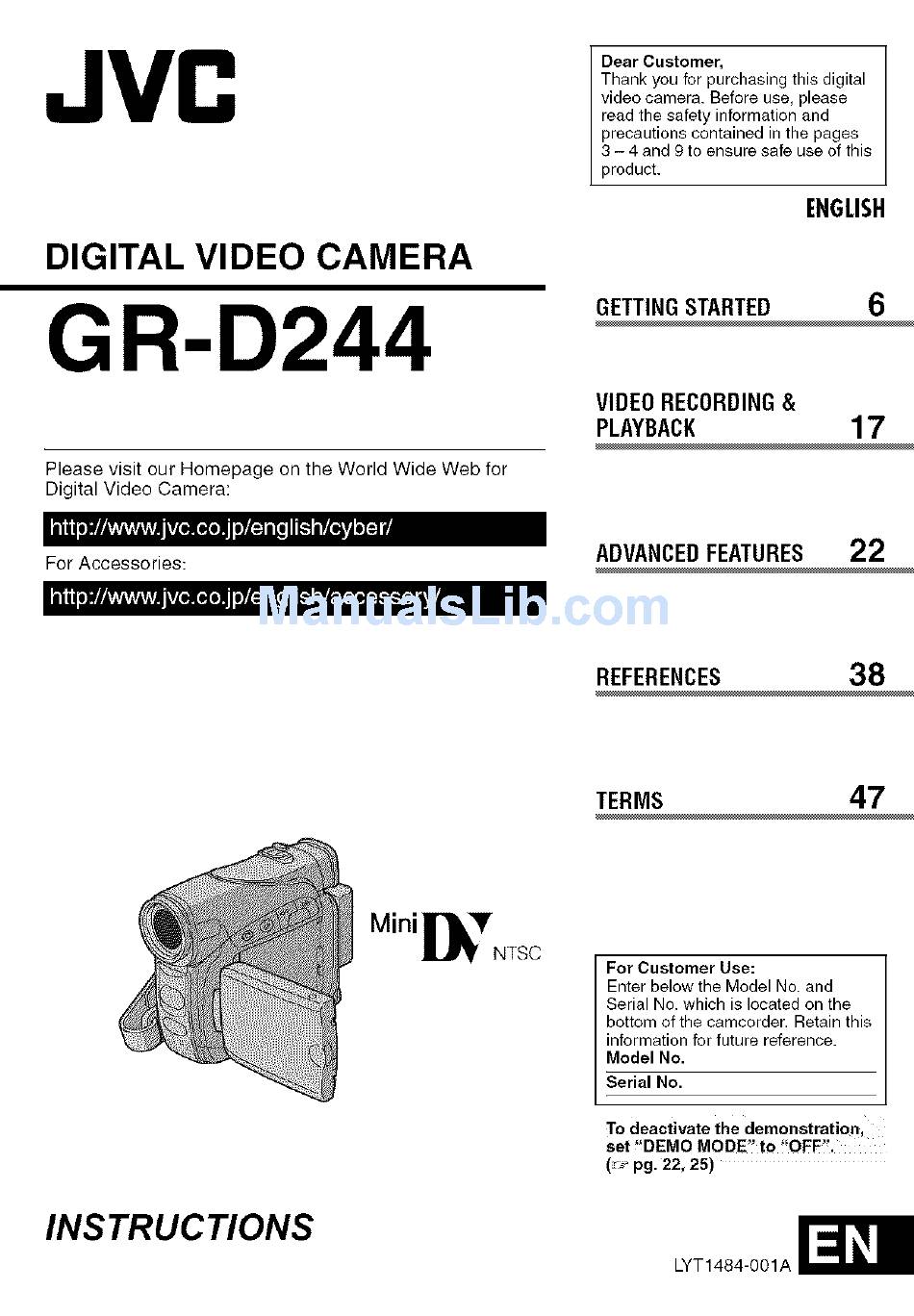

JVC
DIGITAL VIDEO CAMERA
GR-D244
Please visit our Homepage
on the World
Wide Web for
Digital Video
Camera:
,
o,-
o
7_17A
For Accessories:
Dear Customer,
Thank
you for purchasing
this digital
video camera.
Before
use, please
read the safety
information
and
precautions
contained
in the pages
3 - 4 and 9 to ensure
safe use of this
product.
ENGLISH
GETTINGSTARTED
6
VIDEORECORDING&
PLAYBACK
17
ADVANCED FEATURES
22
REFERENCES
38
TERMS
47
INSTRUCTIONS
Mi0il -
gy
NTSC
For Customer
Use:
Enter below
the Model
No. and
Serial
No. which is located
on the
bottom
of the camcorder.
Retain this
information
for future reference.
Model
No.
Serial
No.
To deactivate
the demonstration,
set !!DEMO
MODE"
to "OFF.
(,-_ pg. 22, 25)
LYT1484-OO1A
