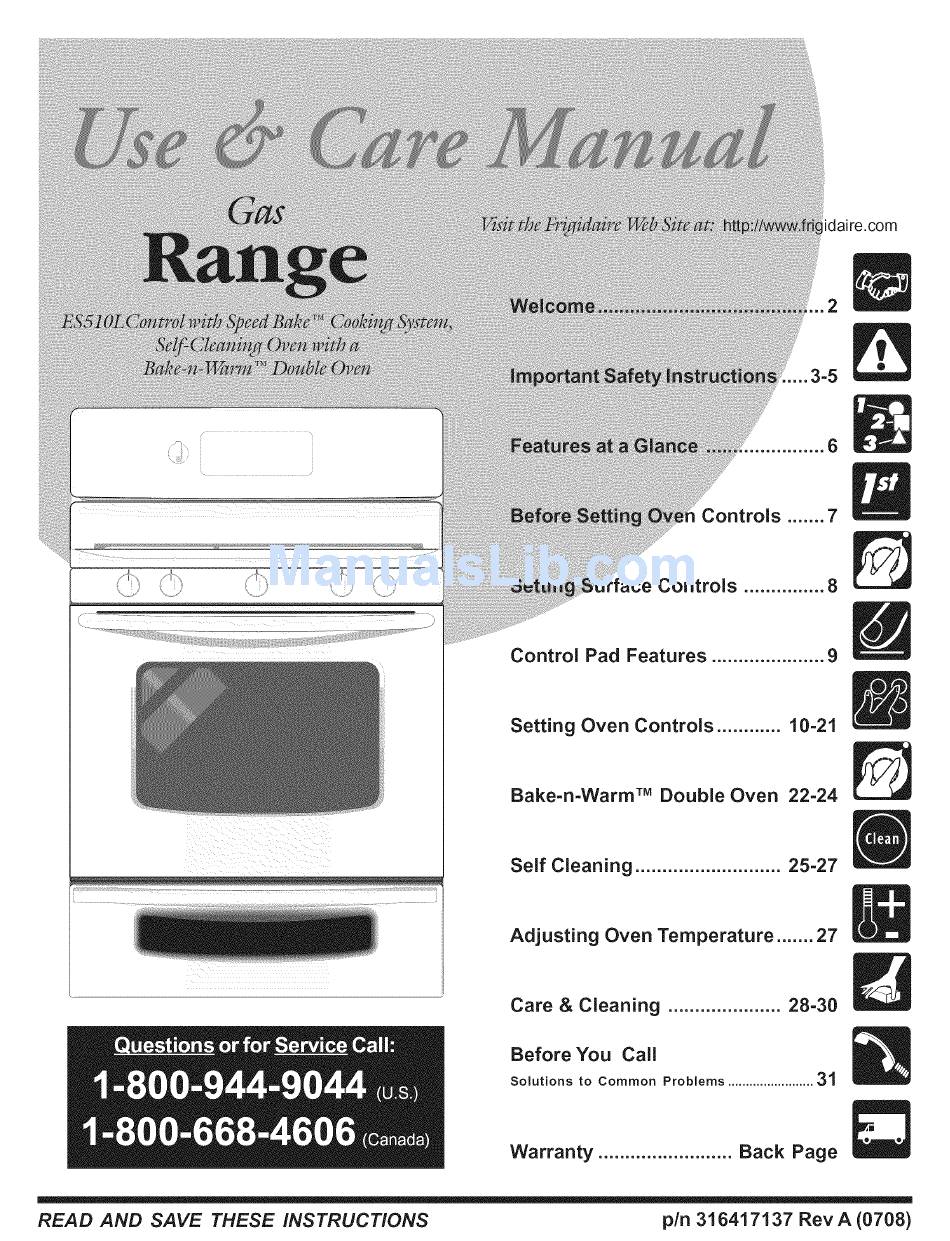

idaire.com
Controls
....... 7
Controls
............... 8
Control
Pad Features
.....................
9
Setting
Oven Controls
............
10-21
Bake-n-Warm
TM
Double
Oven
22-24
Self Cleaning
...........................
25-27
Adjusting
Oven Temperature
....... 27
Care & Cleaning
.....................
28-30
Before
You
Call
Solutions
to Common
Problems
........................
3"!
Warranty
.........................
Back
Page
READ AND
SAVE THESE
INSTRUCTIONS
pin 316417137
Rev A (0708)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FGFLMC55GCB
Summary of Contents for Frigidaire FGFLMC55GCB
- Page 1 idaire.com Controls ..7 Controls ....8 Control Pad Features ..... Setting Oven Controls .... 10-21 Bake-n-Warm Double Oven 22-24 Self Cleaning ......25-27 Adjusting Oven Temperature ..27 Care & Cleaning ..... 28-30 Before Call Solutions to Common Problems ......
- Page 2 Welcome& Congratulations Congratulations on your purchase of a new range! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. We know you'll enjoy your new range and Thank You for choosing our product.
- Page 3 important Safety instructions Read all instructions before using this appliance. Save these instructions for future reference. This manual contains importantsafety symbols and instructions. P lease pay attention to these symbols and follow a I instructions given. This symbol will help alert you to situations that may cause serious bodily harm, death or property damage. This symbol will help alert you to situations that may cause bodily injury or property damage.
- Page 4 • Protective Liners--Do not use aluminum foil to line surface = Do Not Leave Children Alone--Children should not be left burner pans, or oven bottom, except as suggested in this alone or unattended in the area where appliance is in use. They should never be allowed to sit or stand on any part of the manual.
- Page 5 important Safety Notice The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.
- Page 6 Fe.tU,'es At ® Your Gas Range Features Include: Electronic Oven Control with Kitchen Timer. Bake-n-Warm Double Oven Control & Indicator Light. Left Front Burner Valve & Knob. Left Rear Burner Valve & Knob. Center Burner Valve & Knob (some models). Right Rear Burner Valve &...
- Page 7 OVEN VENT Oven Vent Location The oven vent is located below the backguard (See Fig. 1). When the oven is on, warm air is released through this vent. This venting is necessary for proper air circulation in the oven and good baking results. DO NOT BLOCK THE VENT. Removing &...
- Page 8 s etting surfaC e controIs Do not place plastic Setting Surface Controls items such as salt and pepper Your range may be equipped with different sized surface burners. The ability to heat food quicker and in larger volumes increases as the burner size increases. The shakers, spoon holders or plastic Simmer burner (some models) is best used for simmering delicate food items wrappings...
- Page 9 READ THE iNSTRUCTiONS CAREFULLY BEFORE USING THE OVEN. For satisfactory use of your oven, become familiar with the various features and functions of the oven as described below. Detailed instructions for each feature and function follow later in this Use & Care Manual. OVEN LIGHT--Use TIMERON/...
- Page 10 Setting Oven Controls - -Even. Cook- Convection Oven Speed Oven Timer clean light OnlOff Clean Bake Start Broil Bake Keep time time warm Clear Maxx Clock Speed Favorite t0ft clean Lock bake setting Controls Setting the Clock The CLOCK _ pad is used to set the clock.
- Page 11 Setting Continuous Bake or 12 Hour Energy Saving The TIMER ON/OFF _ and CLEAN ___ pads control the Continuous Bake or 12 Hour Energy Saving features. The oven control has a factory preset built-in 12 Hour Energy Saving feature that will shut off the oven if the oven control is left on for more than 11 hours and 59 minutes, The oven can be programmed to override this feature for Continuous Baking, INSTRUCTIONS PRESS...
- Page 12 Setting Oven Lockout Feature The _ pad controls the Oven Lockout feature. The Oven Lockout feature automatically locks the oven door, prevents the Bake-n-Warm Double Oven and most oven controls from being turned ON. It does not disable the clock, Kitchen Timer or the interior oven light.
- Page 13 - -Even-Cook- Convection Oven Speed Oven Timer clean light OnlOff Clean Bake Start Broil Bake Keep time time warm Clear Max× Clock Speed Favorite _0ff clean Lock bake setting ",..._i/ Controls Setting Silent Control Operation The START TIME _ and CLEAN _e_ pads control the Silent Control operation feature. The Silent Control operation feature allows the oven control to be operated without sounds or beeps whenever necessary.
- Page 14 Setting Oven Controls - - Even-Cook- Convection Oven Speed Oven Timer clean light on/off Oean Bake Start Broil Bake Keep time time warm Clear Max× (;lock Speed Favorite _Off clean Lock bake setting Controls Setting Bake The BAKE_ pad controls normal baking. The oven can be programmed to bake at any temperature from 170°F to 550°F (The sample shown below is for 350°F).
- Page 15 Setting Timed Bake pads control the Timed Bake feature. The automatic timer of the Timed Bake feature The BAKE and BAKE TiME _ will turn the oven OFF after cooking for the desired amount of time you selected. iNSTRUCTiONS PRESS DISPLAY To program the oven to begin baking immediately...
- Page 16 Setting Delayed Timed Bake The BAKE , BAKE TIME _ and START TIME _ pads control the Delayed Timed Bake feature. The automatic timer of the Delayed Timed Bake will turn the oven ON and OFF at the time you select in advance. INSTRUCTIONS PRESS DISPLAY...
- Page 17 Setting Broil pad controls the Broil feature. When broiling, heat radiates downward from the oven broiler for even coverage. The Broil feature is preset to start broiling at 550°F however, the Broil feature temperature may be set at any temperature between 400°F and 550°F.
- Page 18 Benefits of Speed Bake Cooking System: iSome foods may cook up to 25 to 30% faster, saving time and energy. iMultiple rack baking. special pans or bakeware needed. Setting Speed Bake The Speed Bake pad controls the Speed Bake feature. Use the Speed Bake feature when cooking speed is desired.
- Page 19 Using the Favorite Setting Feature FAVORITE SETTING pad is used to record and recall your favorite recipe settings. This feature may store and recall from 1 to 3 different settings. The Favorite Setting feature may be used with Bake or a Timed Bake. This feature will not work with any other function including a Delayed Timed Bake setting.
- Page 20 Setting the Sabbath Feature (for use on the Jewish Sabbath & Holidays) The _ BAKE TIME and _ START TIME pads are used to set the Sabbath feature. The Sabbath feature may only be used with the pad. The oven temperature may be set higher or lower after setting the Sabbath feature (the oven temperature adjustment feature should be used only during Jewish Holidays), however the display will not visibly show and no audible tones will be provided when a change occurs.
- Page 21 Setting the Sabbath Feature (cont'd) It is recommended that any oven temperature change with the Sabbath feature activated be followed with 2 presses of the START pad. This will insure the oven remains ON even if the attempt to set the oven temperature was lower or higher than the oven control can accept.
- Page 22 o,o.. warm oo. o Dual Features of the Bake-n-Warm Double Oven The Bake-n-Warm Double Oven is designed to provide two unique food preparation features. The features provide a Mini Oven and a Warmer Drawer using the same lower oven cavity, drawer and control. The Mini Oven feature is ideal for cooking foods such as pizza, casseroles, baked potatoes and frozen convenience foods.
- Page 23 To Set the Mini Oven Feature of the Bake-n-Warm Double Oven: Push in and turn the Bake-n-Warm control knob clockwise to the desired temperature setting (See Fig. 1). A beep will sound and the Bake-n-Warm Double Oven Indicator Light will glow indicating the oven is ON. Warmer Mini For best results always preheat the oven drawer before adding food.
- Page 24 Bake,n Warm Doub e Oven Bake-n-Warm Double Oven Light Operation (some models): The Bake-n-Warm Double Oven light operates with the upper oven light and automatically turns ON when the upper oven door is opened. If equipped, the Bake-n-Warm Double Oven light may also be manually operated by pressing the _pad.
- Page 25 Self-Cleaning Oven A Self-Cleaning oven cleans itself with high temperatures (well above cooking temperatures) which eliminate soils completely or reduces them to a fine powdered ash you can wipe away with a damp cloth, Adhere to the following cleaning precautions: During the Self-Cleaning DO NOT use oven cleaners or oven protective coatings in or around any cycle, the outside of the range can...
- Page 26 TheSPEED CLEAN _, CLEAN _& MAXX CLEAN _9" pads are used to start a Self-Cleaning cycle. When used with START TIME @ pad, a delayed Self-Cleaning cycle may also be programmed. This feature allows for any Self-Cleaning cycle times from 2 hours (using Speed Clean), 3 hours (using Clean) to 4 hours (using Maxx Clean). During the Self-Cleaning cycle, the outside of the range can become very hot to the touch.
- Page 27 iNSTRUCTiONS PRESS DISPLAY When the Self-Clean cycle is done: The time of day,"DOOR LOCKED" and "CLEAN" icon will remain in the display. Once the oven has cooled down for approximately 1 HOUR, and the "DOOR LOCKED" icon is no longer displayed, the oven door can then be opened.
- Page 28 Surfaces How to Clean Glass, Painted For general cleaning, use a soft cloth, clean with mild dish detergent & water or a 50/50 solution of vinegar & water. Follow by rinsing the area with clean water; dry & polish with a soft cloth. Plastic Body Parts &...
- Page 29 Cleaning the Contoured Cooktop Well Areas, Burner Cap, Burner Head and Burner Drip Pans (some models) The contoured well areas, burner cap, burner head and burner drip pans (some models) should be routinely cleaned. Keeping the burner ports clean will prevent improper ignition and an uneven flame. Refer to the following instructions: THE COOKTOP IS NOT REMOVABLE.
- Page 30 Removing and Replacing the Lift-Off Oven Door The door is heavy. For safe, temporary storage, lay the door flat with the inside of the door facing down. Door Hinge To Remove Oven Door: locations with oven door Open oven door completely (horizontal with floor- See Fig. 1). fully open Pull the door hinge locks on both left and right door hinges down from the...
- Page 31 Solutions to Common Problems ........... Before you call for service, review the following list. It may save you time & expense. The list includes common occurrences (shown in bold) that are not the result of defective workmanship or materials in this appliance. The possible corrections to these problems are provided with the problem listed: Range is not level = (1) Poor installation.
- Page 32 Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed,...
