Rotary lawn mower 875 series briggs & stratton engine power=propelled, electric start 21" multi-cut (48 pages)
Summary of Contents for Husqvarna 917.374450
Page 1

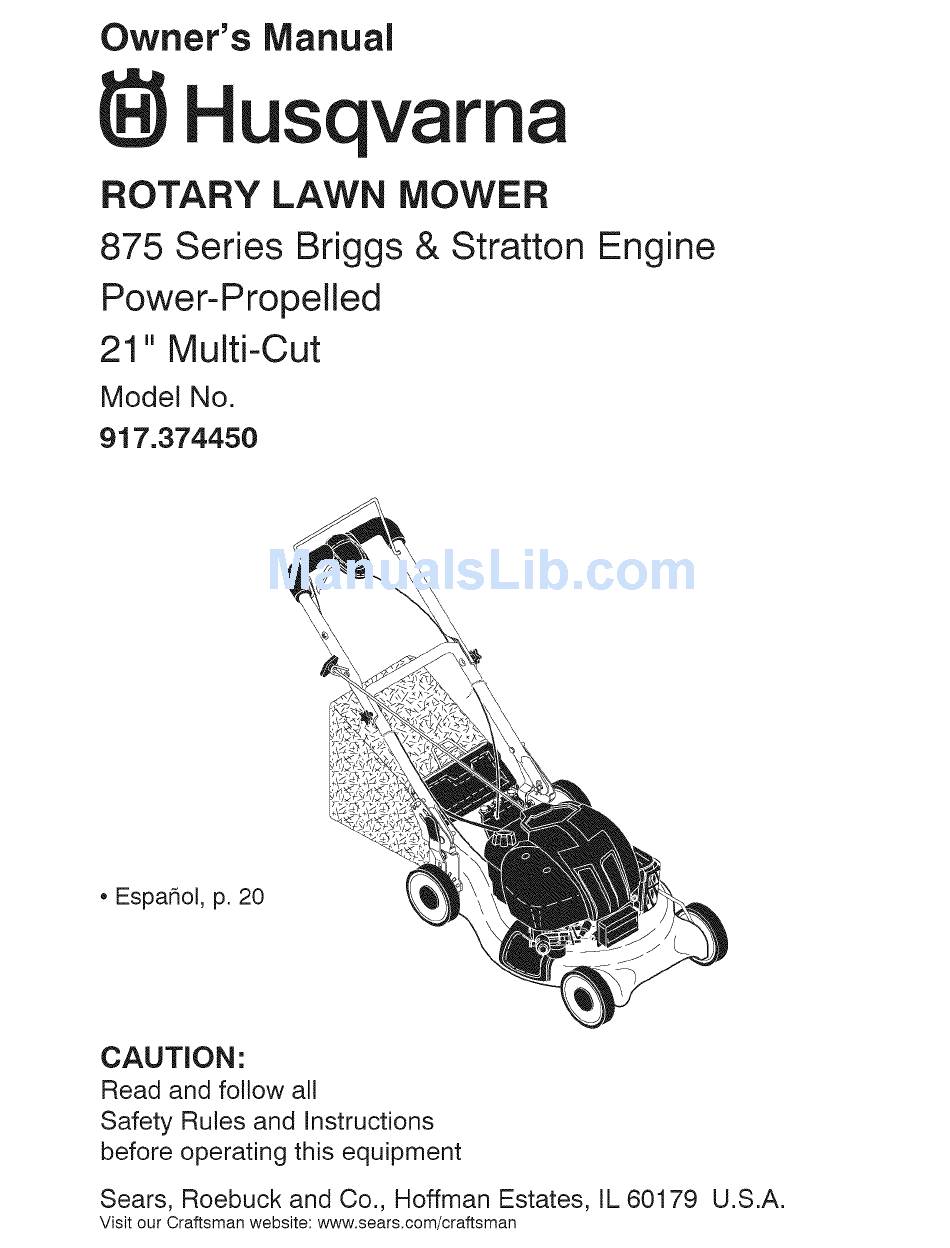

Owner's Manual Husqvarna ROTARY LAWN MOWER 875 Series Briggs & Stratton Engine Power-Propelled 21" Multi-Cut Model No. 917.374450 • Espahol, p. 20 CAUTION: Read and follow all Safety Rules and Instructions before operating this equipment U.S.A. Sears, Roebuck and Co., Hoffman...
Maintenance ........12-15 Safety Rules .......... Warranty ........... Service and Adjustments ....15-16 Product Specifications ......Storage ..........17-18 Assembly / Pre-Operation ......Troubleshooting ......... 18-19 Operation ..........7-11 Repair Parts ........38-46 Maintenance Schedule ......IMPORTANT: This cutting machine is capable of amputating hands and feet and throwing...
Page 3
4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest Husqvarna other authorized service center (See the REPAIR PARTS section of this manual).
Page 4
Husqvarna dealer for SECTION 3: ITEMS NOT COVERED BY THIS WAR- evaluation. Proof of purchase, as explained in section RANTY 6, rests solely with the customer.
They are not shipped with your mower. They are also available at most Husqvarna retailers and ser- vice centers. Some of these accessories may not apply to your lawn mower. LAWN MOWER...
Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower. IMPORTANT: This lawn mower is shipped WITHOUT OIL OR GASOLINE in the engine. Your lawn mower been assembled at the factory with the exception of those parts left unassembled...
Page 7
KNOW YOUR LAWN MOWER READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself with the location of various controls and adjustments. Save this manual future reference. These symbols may appear...
Page 8
The operation of any Operator presence control bar lawn mower can result in foreign objects thrown into the eyes, which can result in severe eye dam- age. Always wear safety glasses or eye shields while operating your lawn mower Drive or performing any adjustments or repairs.
Page 9
TO CONVERT MOWER Discharge deflector Your lawn mower was shipped ready to be used as a mulcher. To convert to bagging or discharging: REAR BAGGING Open rear door and remove mulcher plug. Store mulcher plug in a safe place. • You can now install the grass catcher optional clipping...
GASOLINE Fill fuel tank to bottom of tank filler neck. Do not overfill. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Pur- chase fuel in quantities that can be used within 30 days to assure fuel freshness.
Page 11
MOWING TIPS MULCHING MOWING TIPS A CAUTION: Do not use de-thatcher IMPORTANT: For best performance, blade attachments on your mower. Such keep mower housing free of built-up attachments are hazardous, will damage grass and trash. See "CLEANING" in the Maintenance section of this manual.
Page 12
MA|NTENANCE BEFORE AFTER EVERY EVERY EVERY BEFORE EACH EACH 25 HOURS SCHEDULE HOURS OR SEASON HOURS STORAGE v" Check for Loose Fasteners v" v" v" _it Clean / Inspect Grass Catcher * v" Check Tires Check Drive Wheels v" v" Clean Lawn Mower ..
LAWN MOWER IMPORTANT: Blade bolt is heat treated. Always observe safety rules when per- If bolt needs replacing, replace only with approved bolt shown in the Repair Parts forming any maintenance. section of this manual. TIRES Crankshaft Blade adapter • Keep tires free of gasoline, oil, or insect control chemicals...
ENGINE Continue adding small amounts of oil, LUBRICATION rechecking the dipstick until oil level settles at FULL. DO NOT overfill, Use only high quality detergent oil rated with API service classification SG-SL. engine will smoke heavily from the muffler on startup. lect the oil's SAE viscosity grade according...
Page 15
CLEANING Keep finished surfaces and wheels free of all gasoline, oil, etc. iMPORTANT: For best performance, We do not recommend using a garden keep mower housing free of built-grass hose to clean lawn mower unless and trash. Clean the underside of your electrical system,...
Page 16
Husqvarna , The recommended tightening torque or other qualified service center for repair 35-40 ft. Ibs.
Page 17
Immediately prepare your lawn mower for storage at the end of the season or if the unit will not be used for 30 days or more. LAWN MOWER When lawn mower is to be stored for a SQUEEZE period of time, clean it thoroughly, remove...
Replace with new spark plug. TROUBLESHOOTING = See appropriate section in manual unless directed to a Husqvarna Parts & Repair Center. PROBLEM CAUSE CORRECTION Does not start 1. Dirty air filter. Clean/replace air filter. Out of fuel.
Page 19
TROUBLESHOOTING = See appropriate section to a Husqvarna Parts & Repair Center. PROBLEM CAUSE CORRECTION Does not start Control bar defective. Replace control bar. 10.Turn fuel valve lever (continued) 10. Fuel valve lever (if so equipped) in OFF position.
Page 20
Mantenimiento .......... 30-33 Reglas de Seguridad ........ 20-21 Garantfa ............Servicio y Adjustes ........33-34 Almacenamiento ........35-36 Especificaciones del Producto ....... Montaje / Pre-Operaci6n ....... Identificaci6n de problemas ...... 36-37 Operaci6n ..........25-29 Partes de repuesto ........38-46 Programa de Mantenimiento ......
Page 21
HACER: • Nunca Ilenar contenedores en un vehiculo, en Puede recortar a traves de la superficie de un cami6n o caravana con un forro de pl&stico. Colocar siempre los contenedores en el suelo la cuesta, nunca hacia arriba y hacia abajo. lejos de su vehiculo antes de Ilenar.
Page 22
1: GARANTIA UMITADA Husqvarna Forest & Garden Company ("Husqvarna") ga- cumplir con una cualquiera de las leyes aplicables; o: rantiza al comprador original que el producto Husqvarna (4) Dar_os adicionales a partes o componentes debido no tiene defectos de material y fabricaci6n a partir de al uso continuativo despu6s de una cualquiera de las cosas indicadas arriba.
No son facilitados junto al cortacesped. Tambien est&n disponibles en la mayoria de las tiendas de Husqvarna yen los cen- tros de servicio. AIgunos de estos accesorios tal vez no se apliquen a su segadora.
Page 24
Lea estas instrucciones y el manual completamente antes de tratar de montar u operar su sega- dora nueva. IMPORTANTE: Este cortacesped viene SIN ACEITE O GASOLINA en el motor. Su segadora nueva ha sido montada en la f&brica con la excepci6n de aquellas partes que se dejaron sin montar por razones de envio.
Page 25
FAMILIARICESE SU SEGADORA LEA ESTE MANUAL DEL DUENO Y LAS REGLAS DE SEGURIDAD ANTES DE OPARAR SU SEGADORA. Compare las ilustraciones con su segadora para familiarizarse con la ubicaci6n de los diversos controles y ajustes. Guarde este manual para referencia en el futuro. Estos simbolos pueden apareser sobre su segadora...
Page 26
Barra de control que )resencia del operador La operaci6n de cualquier segadora puede hacer que SEGURIDAD salten objetos extra_os dentro de sus ojos, Io que puede producir da_os graves en estos. Siempre use anteojos de seguridad o protecci6n para Control dc los ojos mientras opere su segadora o cuando haga ajustes o reparaciones.
Page 27
Desviador PARA CONVERTJR LA SEGADORA de la descarga Su segadora fue enviada lista para usarse como acolchadora de capa vegetal. Para convertirla a una operaci6n de ensacado o de descarga: SEGADORAS CON DESCARGA TRASERA • Abra la puerta trasera y remueva la tap6n acolchadora.
Page 28
,APRECAUCl6N: Los combustibles mezclados con alcohol (conocidos como gasohol, o el uso de etanol o metanol) pueden atraer la humedad, la que conduce a la separaci6n y formaci6n de &cidos durante el almacenamiento. La gasolina acfdica puede daflar el sistema del combustible de un motor durante el almacenamiento.
Page 29
ONSEJOS PARA SEGAR CONSEJOS PARA SEGAR Y ACOL- PRECAUClON: No utilizar dispositivos anti- CHAR paja de la hoja en la segadora ya que estos IMPORTANTE: Para obtener el mejor accesorios son peligrosos, pueden daflar su rendimiento mantenga la caja de la segadora segadora y anular su garantia.
Page 30
PROGRAMA ANTES DESPUES CADA CADA CADA ANTES DEL DE CADAi DE CADA 25 NORAS O ALMACE- MANTEN|M|ENTO HORAS TEMPORADA HORAS NAMIENTO Revisar si hay Sujetadores Sueltos Limpiar/Inspeccionar el Recogedor de Cesped Controlar los Neumaticos Controlar las Ruedas Motrices Limpiar la Segadora ..
Page 31
SEGADORA Instale el perno de la cuchilla con la aran- dela de seguridad y la arandela endurecida Siempre observe las reglas de seguridad en el adaptador de la cuchilla y el cigueflal. ando haga el mantenimiento, Use un bloque de madera entre la cuchilla y la caja de la segadora y apriete el perno LLANTAS de la cuchilla gir&ndolo en el sentido en que...
Page 32
• Lacajadeengranajes s e Ilenaconlubricante Limpie todo el aceite derramado en la sega- hastael niveladecuado en laf&brica. L a dora yen el lado del motor. Onica vez que el lubricante necesita atenci6n Echar aceite despacio en el conducto del es cuando se le ha prestado servicio a la aceite, par&ndose a intervalos regulares caja de engranajes.
Page 33
BUJiA Limpie el motor a menudo para evitar que Cambie el bujfa al comienzo de cada tempo- se acumule la basura. Un motor tapado fun- rada de siega o despues de cada 100 horas de ciona m&s caNente y se acorta su duraci6n. operaci6n, Io que suceda primero.
Page 34
, Latorsi6nparaapretarrecomendada e s de su segadora a mas con su centro de servicio 35- 40 pieslibras. Husqvarna o con un otro centro de servicio IMPORTANTE: El pernode la cuchilla es cualificado. tratadoa calo. Si es necesario sustituir l os...
Page 35
Inmediatamente prepare su segadora para el almacenamiento al final de cada temporada o si mango la unidad no se va a usar por 30 dias o m&s. SEGADORA Cuando se va a guardar la segadora por cierto periodo de tiempo, limpiela cuidadosamente, remueva toda la mugre, la grasa, las hojas, etc.
Page 36
SOLUCI6N DE PROBLEMAS - Yea la seccion apropiada en el manual amenos este dirigido a un centro de servico Husqvarna. PROBLEMA CAUSA CORRECCION No arranca Filtro de aire sucio. Limpie/cambie el filtro de aire. Sin combustible. Llene el estanque de combustible.
Page 37
Cigue_al del motor doblado. P6ngase en contacto con su centro de servicio Husqvarna o con un otto centro de servicio cualificado. Cord6n El freno del volante del motor Presione la barra de control arranoador est@.
Page 39
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.374450 KEY PART PART PART DESCRIPTION DESCRIPTION DESCRIPTION 57808 Screw 199982 Handle, Upper (Includes 161333 Baffle, Side 193791 Pulley, V-Groove, Idler Foam Grip) 163409 Screw #12 x 5/8 145212 Flanged Nut 193664X498...
Page 40
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.374450 /331 30 22 21 28 \ 4...
Page 41
HUSQVARNA ROTARY LAWN MOWER - - MODEL NUMBER 917.374450 KEY PART KEY PART DESCRIPTION DESCRIPTION Washer 403326 Drive Control Assembly 851226 195745 Cover, Top 403102X004 Shaft Assembly, Rear 187353 Pulley 407175X004 Shaft Assembly, Front 190039 Lever, Drive Control 161463 Retainer, Front Shaft...
